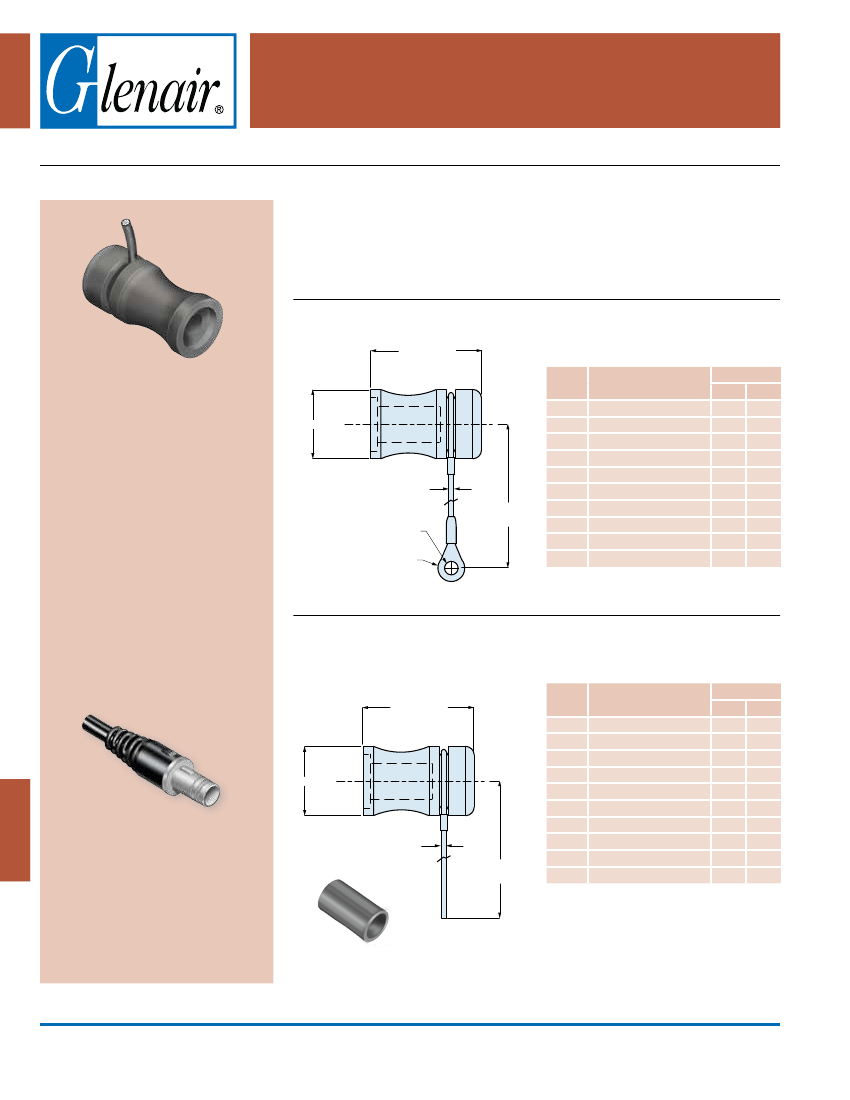

Series 88 SuperFly
Protective Covers for Series 880 QDC Connectors
889-004 Rubber Cover for Series 880 QDC Plugs
889-004 bEAN RUbbER COVERS FOR SERIES 880 QDC PlUGS
Neoprene cover fits 880-001P, 880-009P, 880-010P, 886-001P and 886-002P QDC plugs. Protects
connector from water and debris ingress. Flexible stainless steel lanyard is coated with abrasion-
resistant black nylon. Supplied with 2 inch (51mm) lanyard with .125” (3.18) ring, or with 5 inch
lanyard and loose crimp ferrule for attaching to cable. loop lanyard around cable, terminate with
flat nose pliers and remove excess lanyard. -55° to +120°C. Meets fungus resistance requirement
of MIl-STD-810.
COVER WITh 2 INCh lANyARD AND RING
black nylon coated stainless steel lanyard with stainless steel ring.
.800 (20.3)
øA
Ø.034
(0.86)
Ø .126
(3.20)
Ø .31
(7.87)
MAX
2.0
(50.8)
Shell
Size
B
C
D
E
F
G
H
J
K
L
Part Number
889-004-BS2-01
889-004-CS2-01
889-004-DS2-01
889-004-ES2-01
889-004-FS2-01
889-004-GS2-01
889-004-HS2-01
889-004-JS2-01
889-004-KS2-01
889-004-LS2-01
ØA
In. mm.
.40
.45
.45
.45
.50
.50
.55
.55
.55
.60
10.1
11.4
11.4
11.4
12.7
12.7
14.0
14.0
14.0
15.2
COVER WITh 5 INCh lANyARD AND CRIMP FERRUlE
black nylon coated stainless steel lanyard with loose crimp ferrule. loop lanyard around cable
through ferrule and crimp with flat nose pliers.
Shell
Size
B
C
D
E
F
G
H
J
K
L
Part Number
889-004-BS5-00-CF
889-004-CS5-00-CF
889-004-DS5-00-CF
889-004-ES5-00-CF
889-004-FS5-00-CF
889-004-GS5-00-CF
889-004-HS5-00-CF
889-004-JS5-00-CF
889-004-KS5-00-CF
889-004-LS5-00-CF
ØA
In. mm.
.40
.45
.45
.45
.50
.50
.55
.55
.55
.60
10.1
11.4
11.4
11.4
12.7
12.7
14.0
14.0
14.0
15.2
.800 (20.3)
øA
Ø.034
(0.86)
5.0
(127)
CRIMP FERRULE
(SUPPLIED LOOSE)
Dimensions in inches (millimeters) and are subject to change without notice.
