REVISION E
NOTES:
C
1.
REPRESENTS A CRITICAL DIMENSION.
2. MAX PIN ROTATION IN BODY TO BE 2°.
3. PUSHOUT FORCE TO BE 1lb. [4.45 N] MIN.
4. NOTE DELETED
5. FOR LOCKING CLIPS: .75lb. [3.336 N] MIN RETENTION
6. MEASURE AT BEND.
DESIGNED AND DIMENSIONED
IN INCHES [MILLIMETERS]
ETMM-1XX-02-X-D-XX-XX
No. OF POSITIONS
-02 THRU -25
OPTION
-LC: LOCKING CLIP
(USE LC-05-TM FOR THROUGH HOLE STYLE, SEE FIG. 1)
(USE LC-07-TM FOR -SM STYLE, SEE FIG. 3, SHT. 2)
NOT AVAILABLE FOR -RA STYLE
-TR: TAPE & REEL (FOR -SM OPTION ONLY)
-K: POLYIMIDE FILM PAD (USE K-500-300, SEE FIG. 4, SHT 3)
NOT AVAILABLE WITH -TH OPTION
-XX: PIN No. TO BE OMITTED (POLARIZED OPTION)
BODY HEIGHT
-TH: THROUGH HOLE (SEE FIG. 1, SHT. 1)
-RA: RIGHT ANGLE (SEE FIG. 2, SHT. 2)
-SM: SURFACE MOUNT (SEE FIG. 3, SHT.2)
ROW SPECIFICATION
-D: DOUBLE (USE ETMM-XX-D-LC)
LEAD STYLE
PLATING SPECIFICATION
-S: SELECTIVE GOLD (USE T-1S13-XX-S-2)
-L: LIGHT SELECTIVE (USE T-1S13-XX-L-2)
-F: FLASH GOLD SELECTIVE
(USE T-1S13-XX-F-2)

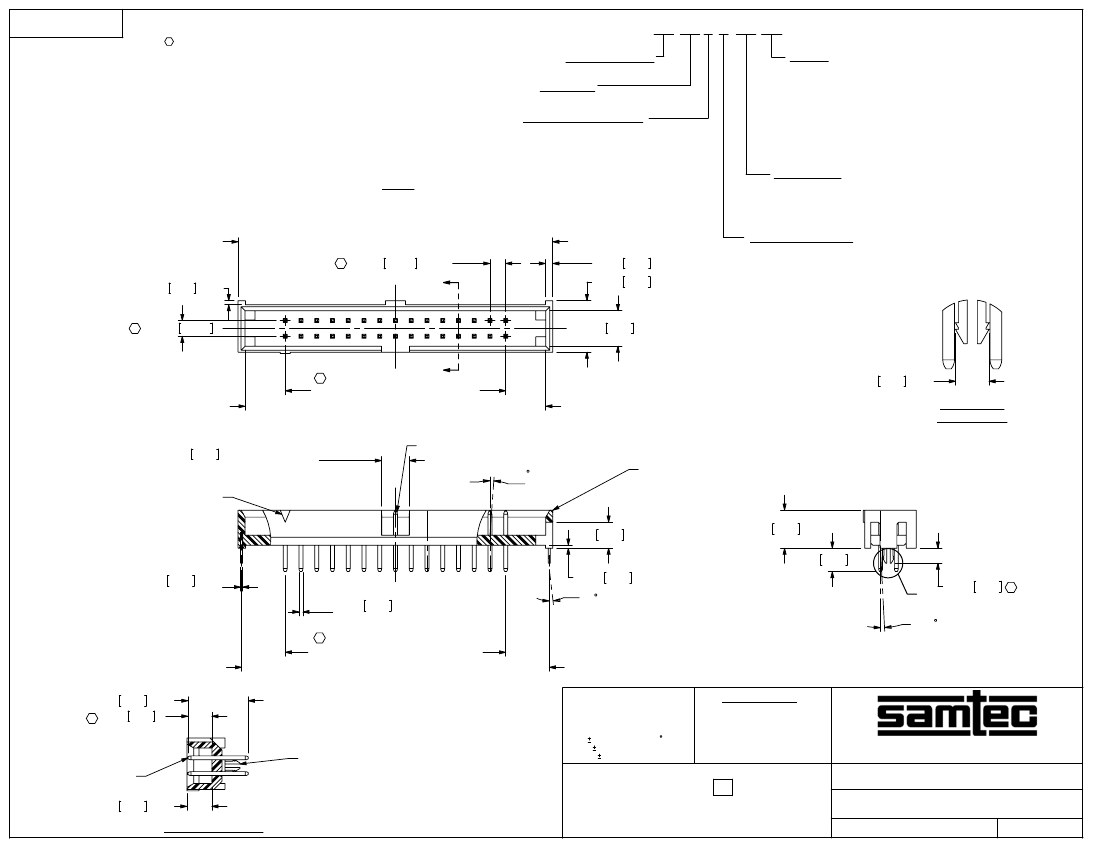

ETMM-115-02-X-D-TH-LC SHOWN
FIG.1
(No. OF POS. x .0787[2.000]) + .3926[9.972] REF
C
.0787 2.000 (TYP)
"A"
.037 0.94 REF
.257 6.54 REF
C .177 4.51 REF
L
.020 0.51 REF
.0787 2.000
02 04
C
01 03
"A"
C
L
(No. OF POS. - 1) x .0787[2.000]
(No. OF POS. x .0787[2.000]) + .3226[8.194] REF
C
.056 1.42 REF
DETAIL 'D'
SCALE 6 : 1
.140 3.56 REF
ONLY FOR POS. -05 THRU -25
FIRST POSITION
INDICATOR
CONTACT AREA
2 MAX SWAY
(TYP)
ETMM-XX-D-LC
.130 3.30 REF
.190 4.83 REF
.117 2.97 REF
.010 0.25 REF
(TYP)
C
L
.020 0.50 SQ. REF
(TYP)
C
.015 0.38 REF
2 MAX SWAY
(TYP)
'D'
.075 1.91
C
2 MAX TOE
(TYP)
(No. OF POS. - 1) x .07874[2.000]
(No. OF POS. x .0787[2.000]) + .3576[9.083]±.0030[0.076]
.302 7.67 REF
C
.120 3.05
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
LC-05-TM
T-1S13-07-XX-2
.125 3.18 REF
.XX: .01 [0.3]
1
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
LCP INSULATOR: LCP
COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
E
2MM SHROUDED TERMINAL STRIP
SECTION "A"-"A"
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
1
OF
3
REVISION E
.120 3.05
.413 10.49 REF
.228 5.79 REF

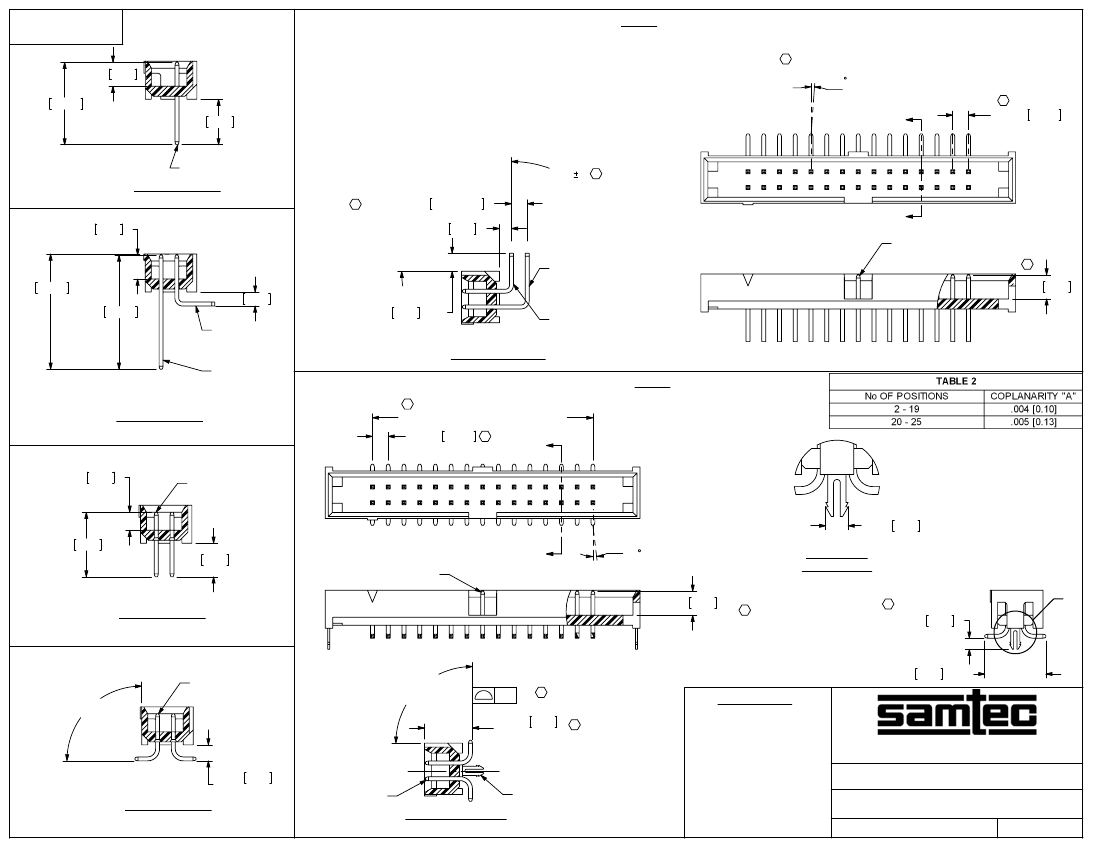

ETMM-115-02-X-D-RA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
C
FIG. 2
2 MAX SWAY
(TYP)
C
"B"
02 04
.0787 2.000
IN PROCESS 1
(FOR -RA ONLY)
.120 3.05
T-1S13-19-XX-2
C
90° 2°
(TYP)
.0787±.005 2.00±0.13
.060 1.52
C
01 03
"B"
CONTACT AREA
T-1S13-22-X-2
.576 14.63 REF
.571 14.50 REF
.070 1.77 REF
T-1S13-19-XX-2
C
.120 3.05
.090 2.29 REF
T-1S13-19-XX-2
SECTION "B"-"B"
T-1S13-22-XX-2
IN PROCESS 2
(FOR -RA ONLY)
02 04
.090 2.29
T-1S13-20-XX-2
ETMM-115-02-X-D-SM-LC SHOWN
C
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
(No. OF POS. - 1) x .0787[2.000]
.0787 2.000
C
FIG. 3
"C"
.323 8.20 REF
.168 4.27 REF
01 03
"C"
CONTACT AREA
2 MAX SWAY
(TYP)
.120 3.05
.056 1.42 REF
DETAIL 'E'
SCALE 4 : 1
C
C
IN PROCESS 1
(FOR -SM ONLY)
'E'
.055 1.40
T-1S13-20-XX-2
+3°
90°
- 2°
90°
- 2°
(TYP)
+3°
.305 7.75 REF
C
"A"
(SEE TABLE 2)
.240 6.10
(SEE NOTE 6)
PROPRIETARY NOTE
C
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
IN PROCESS 2
(FOR -SM ONLY)
.080 2.03
REF
C
L
T-1S13-20-XX-2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SECTION "C"-"C"
LC-07-TM
2MM SHROUDED TERMINAL STRIP
SHEET SCALE: 2:1
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
2
OF
3
REVISION E
C

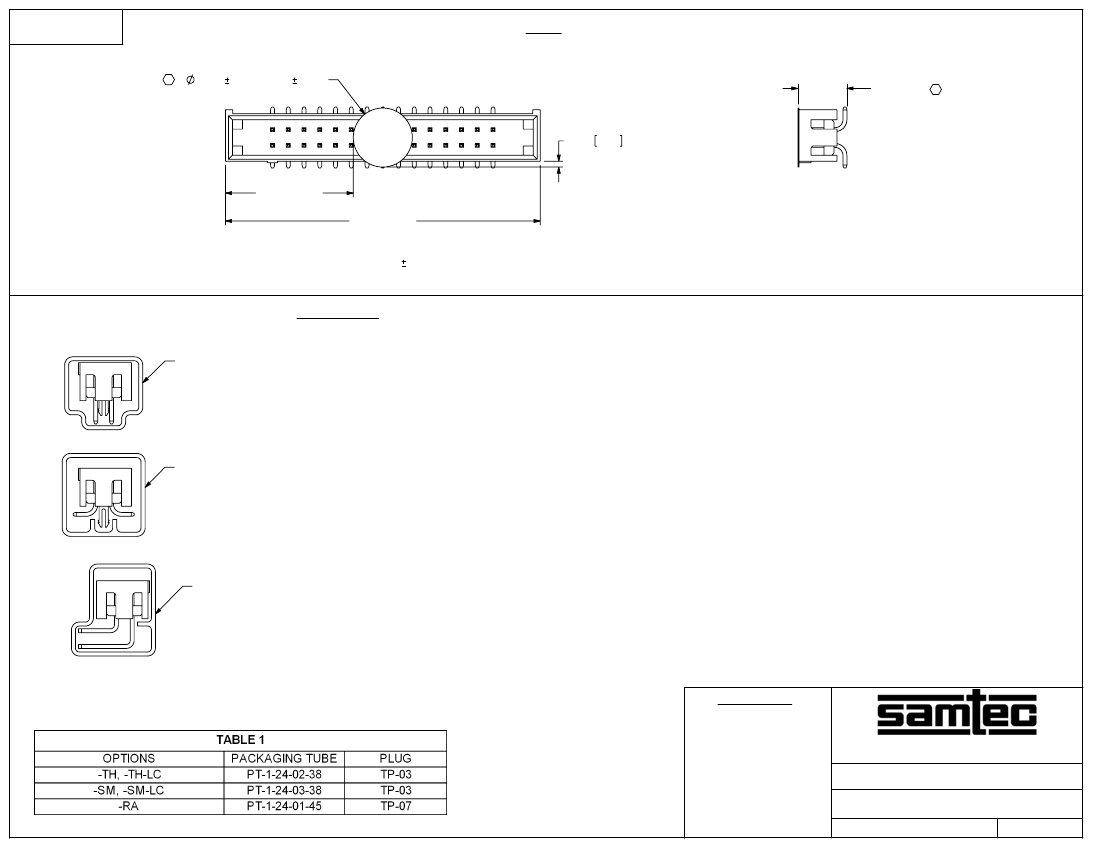

ETMM-115-02-X-D-SM-K SHOWN
(DIFFERENT AS SHOWN OTHERWISE SAME AS FIG. 1)
.2953 .0050 [7.501 .127]
.245 [6.22]
C
FIG. 4
.029 0.74
"S"
(SEE NOTE)
"R"
(SEE NOTE)
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = {("R" - .2953[7.50]) / 2} .020[0.51]
ALL PARTS ARE LOADED WITH POSITION 1
TOWARD ARROW EXCEPT -RA OPTION
PT-1-24-02-38
PACKAGING
PT-1-24-03-38
PT-1-24-01-45
PROPRIETARY NOTE
NOTE: ALL POSITIONS ARE TO BE TUBED.
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2MM SHROUDED TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
3
OF
3
