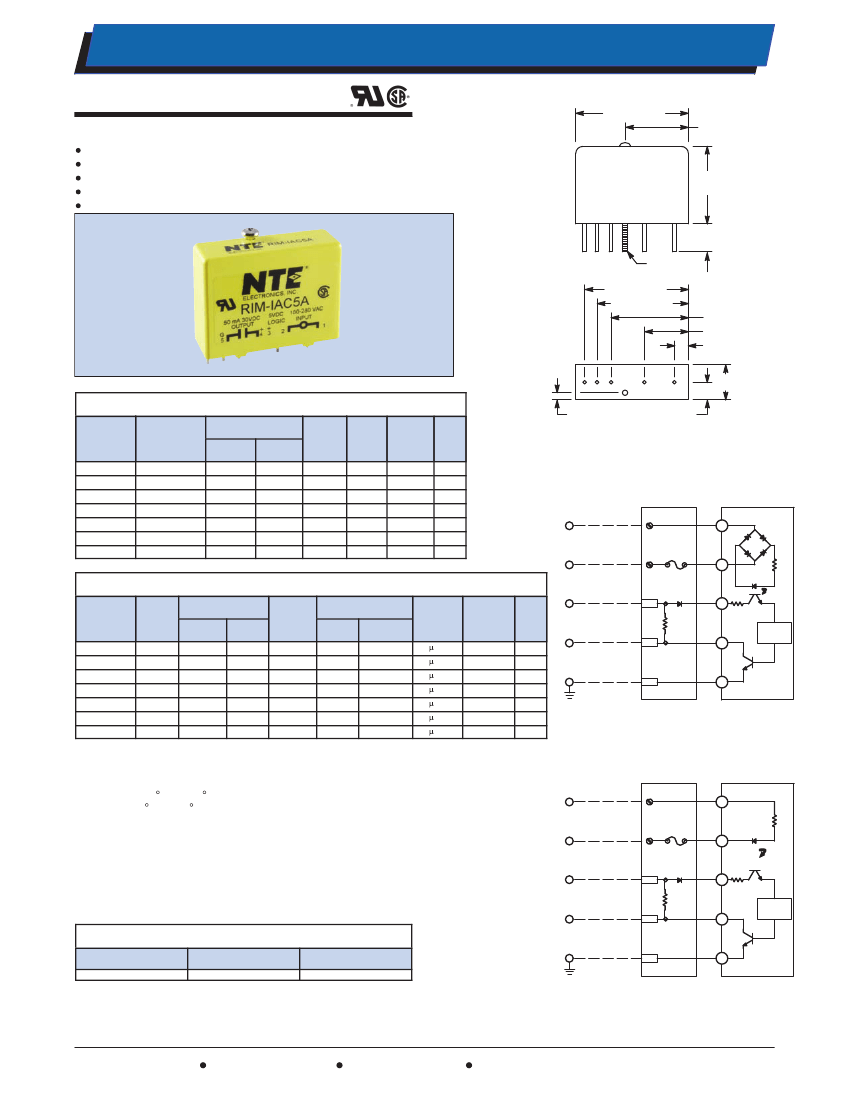

Input / Output Modules
RIM Series
Features
4KV Optical Isolation
Industry Standard Packaging
Plugs into Standard I/O Module Mounting Board
Industry Standard Color Code (AC=Yellow, DC=White)
AC & DC Types
Input Digital Modules
1.700 (43.18)
D28
Case Colors:
AC
−
Yellow
DC
−
White
1.000 (25.4)
1.250
(31.75)
5 4 3
2
1
.250
(6.35)
4−40 Hold
Down Screw
1.600 (40.64)
1.400 (35.56)
1.200 (30.48)
.700 (17.78)
.300 (7.62)
.600 (15.24)
INPUT SPECIFICATIONS
NTE
Type No.
RIM−IAC5
RIM−IAC15
RIM−IAC5A
RIM−IAC15A
RIM−IAC24A
RIM−IDC5
RIM−IDC24
Nominal
Input
Voltage
120 VAC
120 VAC
240 VAC
240 VAC
240 VAC
5
−
28 VDC
5
−
28 VDC
Input Voltage
Min
90 Vrms
90 Vrms
180 Vrms
180 Vrms
180 Vrms
10 VDC
3.3 VDC
Max
140 Vrms
140 Vrms
280 Vrms
280 Vrms
280 Vrms
36 VDC
32 VDC
Input
Control
Max mA
10
10
10
10
10
34
34
Drop
Out
Current
2.5mA
2.5mA
1.5mA
1.5mA
1.5mA
1.0mA
1.0mA
Allowable
Input For
NO
Output
3.0mA
3.0mA
2.0mA
2.0mA
2.0mA
1.5mA
1.5mA
Diag
No.
D28A
D28A
D28A
D28A
D28A
D28B
D28B
.100 (2.54)
.300 (7.62)
Diagram A
−
AC Input
Mounting Rack
1
Plug−In Module
VAC
Screw
Terminals
2
OUTPUT SPECIFICATIONS
NTE
Type No.
RIM−IAC5
RIM−IAC15
RIM−IAC5A
RIM−IAC15A
RIM−IAC24A
RIM−IDC5
RIM−IDC24
Nom.
Logic
Supply
Vltg.
5.0 VDC
15 VDC
5 VDC
15 VDC
24 VDC
5 VDC
24 VDC
Logic Supply Vltg.
Min
2.75 VDC
12 VDC
2.75 VDC
12 VDC
20 VDC
2.75 VDC
20 VDC
Max
6 VDC
18 VDC
6 VDC
18 VDC
30 VDC
6 VDC
30 VDC
Max
Logic
Supply
Current
16mA DC
16mA DC
16mA DC
16mA DC
16mA DC
16mA DC
16mA DC
Maximum Output
Volts
30 VDC
30 VDC
30 VDC
30 VDC
30 VDC
30 VDC
30 VDC
Current
50mA ADC
50mA ADC
50mA ADC
50mA ADC
50mA ADC
50mA ADC
50mA ADC
Max
Output
Leakage
Curr.
10 A DC
10 A DC
10 A DC
10 A DC
10 A DC
10 A DC
10 A DC
Max
Output
Vltg. Drop
200mV DC
200mV DC
200mV DC
200mV DC
200mV DC
200mV DC
200mV DC
Diag
No.
D28A
D28A
D28A
D28A
D28A
D28B
D28B
+
5A Fuse
V
CC
(Logic Supply)
LED
3
3.3k
Output
Logic GND
(Common)
Edge Comn
4
Schmitt
Trigger
5
Electrical Specifications
Operating:
−30
C to +80 C
Storage:
−40
to +100 C
Diagram B
−
DC Input
+
−
VDC
Mounting Rack
1
Environmental
Plug−In Module
+
Operational Characteristics
Max Turn−On Time:
20ms (AC Modules),
1ms (DC Modules)
Max Turn−Off Time:
30ms (AC Modules),
1ms (DC Modules)
Screw
Terminals
2
5A Fuse
V
CC
(Logic Supply)
LED
3
+
Schmitt
Trigger
Insulation Characteristics
Input to Output Isolation Voltage:
4000 VRMS
3.3k
Output
Logic GND
(Common)
Edge Comn
4
ACCESSORIES
MOUNTING
STYLES
DIN RAIL MOUNT
DESCRIPTION
2−POSITION SOCKET
NTE
TYPE NO.
RLY9142
5
NTE Electronics, Inc.
Voice (973) 748−5089
FAX (973) 748−6224
http://www.nteinc.com
