82-3032TC: DescriptionRF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm,; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

82-3032TC Overview

RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm,

82-3032TC Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	46.02 dBm
JESD-609 code	e0
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

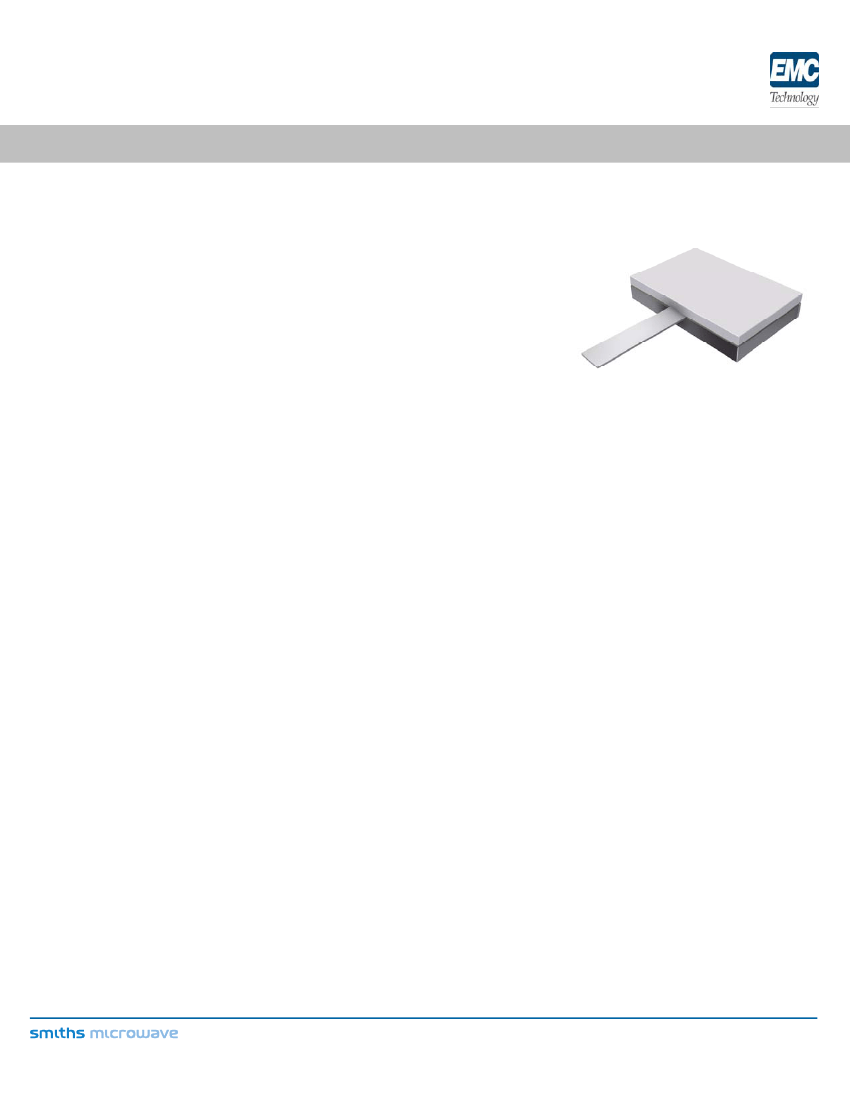

TERMINATION

TAB & COVER 60 WATT

DATA SHEET

FEATURES

Wide Band Response

High Power

Direct Attached

Low VSWR

Easy Installation

Excellent Heat Transfer

PART SERIES: 82-3032TC

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 82-3032TC

EN 13-3497

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flangeless terminations worldwide.

Tab and cover components offer the highest performance of any style of termination

component.

ORDERING INFORMATION

Part Identifier:

82-3032TC

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

Input Power CW:

Peak Power:

DC Resistance:

50 ohms

DC - 6.0 GHz

1.30:1 Max

60 Watts @ 100°C heat sink, derated linearly to zero power and 150°C

600 Watts (based on 10us pulse width and 1% duty cycle)

Ω

±5%

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM /

˚C

max

3.0 MARKING

Unit Marking:

No Marking

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tray Packaging

Form 423F102

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
