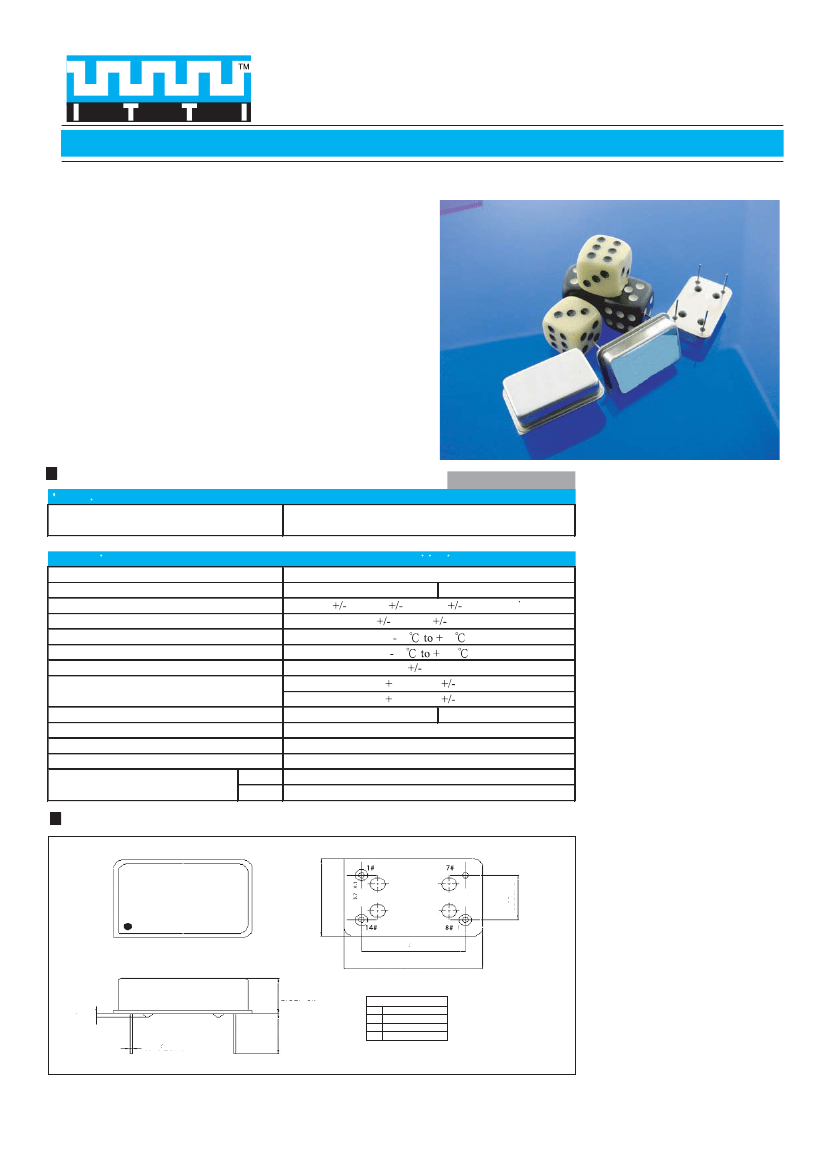

Voltage Controlled Crystal Oscillator(Through Hole)

VC14

(Through Hole VCXO Series)

Part Number:VC14 (waveform) (ppm)

Example:VC14T50-1080-100-20.000

VC14

Specification

Part No.

VC14 (waveform) (ppm)

-Temp Range-Pull-Freq

VC14

Example

VC14T50-1080-100-20.000

VC14 Series

HCMOS

8.001MHz - 45.000MHz

1.000MHz - 8.000MHz

25ppm,

50ppm,

100ppm Min

25ppm,

50ppm

10

70

55

125

5ppm

3.3V DC

5%

5.0V DC

5%

40mA Max

20mA Max

40/60% to 60/40% at 50% level

15pF

10/10nS Max

10% Vcc Max

90% Vcc Min

Specification

Output Waveform

Frequency Range

Frequency Pullability

Temperature Stability over Temperature Range

Operating Temperature Range

Storage Temperature Range

Aging

Supply Voltage (Vcc)

Supply Current

Symmetry

Output Load

Rise and Fall Time

Output Voltage

VOL

VOH

Dimensions

(Unit:mm)

12.9max

3.7

15.24

0.13

20.4max

5.08max

0.8

0.1

1

7

8

14

Pin Connection

E/D

GND

Output

Vcc

6.8max

0.45

0.10

7.62

0.13

0.1
