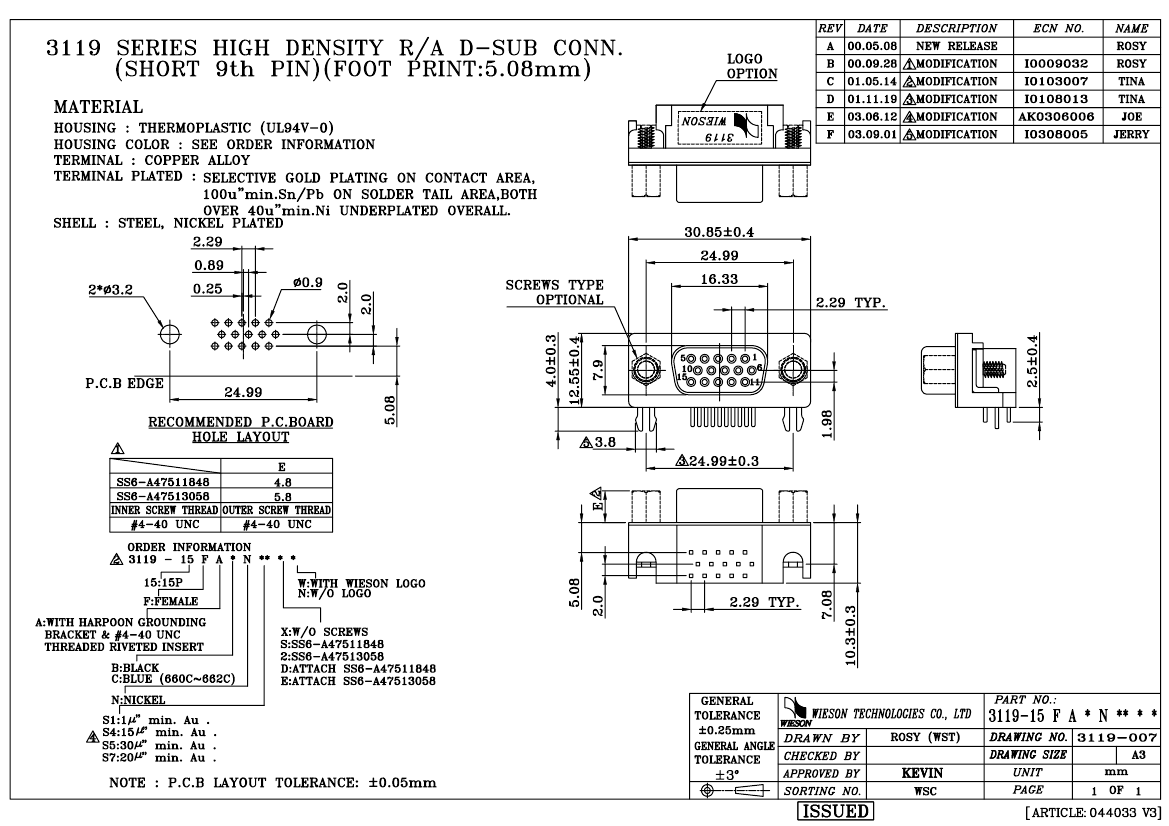

3119-15FACNS72W

Description
D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size185KB,1 Pages
ManufacturerWieson Technologies Co., Ltd.
Download Datasheet Parametric View All

3119-15FACNS72W Overview

D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug

3119-15FACNS72W Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerWieson Technologies Co., Ltd.
Reach Compliance Codeunknown
body width0.494 inch
subject depth0.406 inch
body length1.215 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact styleRND PIN-SKT
Insulator colorBLUE
insulator materialTHERMOPLASTIC
JESD-609 codee0
Manufacturer's serial number3119
Plug contact pitch0.09 inch
Match contact row spacing0.078 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number3
Number of rows loaded3
PCB contact patternSTAGGERED
PCB contact row spacing2.0066 mm
Plating thickness20u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTEEL
Terminal length0.098 inch
Terminal pitch2.286 mm
Termination typeSOLDER
Total number of contacts15
Base Number Matches1
