DESCRIPTION
ECN 3307: UPDATE DWG FORMAT
ECN 4101: CN RELEASE AND NEW FORMAT
2
REVISIONS
DATE
5/1/08
8/3/09
1
APPROVED
D.GRIFFIN
D.FRISIELLO
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
LENGTH
D
C

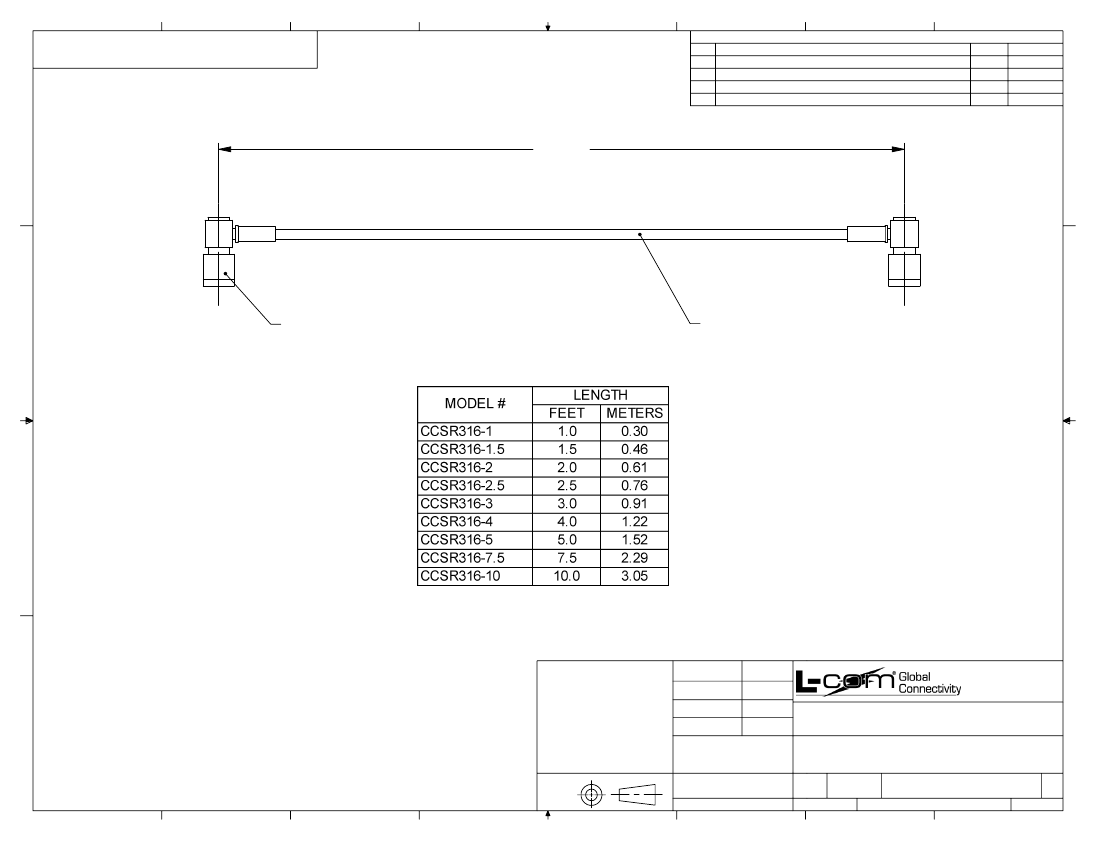

2X, SMA RIGHT ANGLE MALE PLUG
NICKEL PLATING OVER BRASS.
GOLD PLATED CENTER CONTACTS.
RG316, 50 OHM COAXIAL CABLE
JACKET: FEP, BROWN
C
B
B
RoHS Compliant
NOTES:
CABLE ASSEMBLY IS DESIGNED FOR HIGH TEMPERATURE APPLICATIONS (200° C).
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .2
.XX = ± .02
.XXX = ±.005
PROJECTION
APPROVALS
DRAWN BY
DATE
05/08/2001
05/08/2001
05/08/2001
PRODUCT DESCRIPTION
CATEGORY
A
CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.
CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE
WITH L-COM SPECIFICATION PS-0031.
C.MCCORMICK
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
D.PARHAM
APPROVED BY
R.CARRICK
COAXIAL
RIGHT ANGLE SMA TO RIGHT ANGLE SMA RG316
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
A
43321
2
FSCM NO.
DWG. NO.
CCSR316
1
REV.
SHEET 1 OF 1
SCALE: NONE
CAD FILE:
CCSR316.SLDDRW
