855262: DescriptionSAW Filter, 1 Function(s), 201MHz, 10 Pin(s), Ceramic,; CategoryAnalog mixed-signal IC filter; File Size34KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric View All

855262 Overview

SAW Filter, 1 Function(s), 201MHz, 10 Pin(s), Ceramic,

855262 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Maximum attenuation frequency (+/- delta f)	600 kHz
Attenuation frequency (+/-Δf) - minimum value	400 kHz
Attenuation at maximum frequency	35 dB
Center frequency or cutoff frequency (fo/fc)	201 MHz
filter type	SAW FILTER
high	1.911 mm
input resistance	50 OHM
Maximum insertion loss	8 dB
JESD-609 code	e0
length	18.326 mm
Manufacturer's serial number	855262
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	10
Maximum operating temperature	70 °C
Minimum operating temperature
Output impedance	50 OHM Ω
Packaging Materials	CERAMIC
physical size	L0.748XB0.256XH0.078 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	6.272 mm
Base Number Matches	1

Preview

Download Datasheet

View All

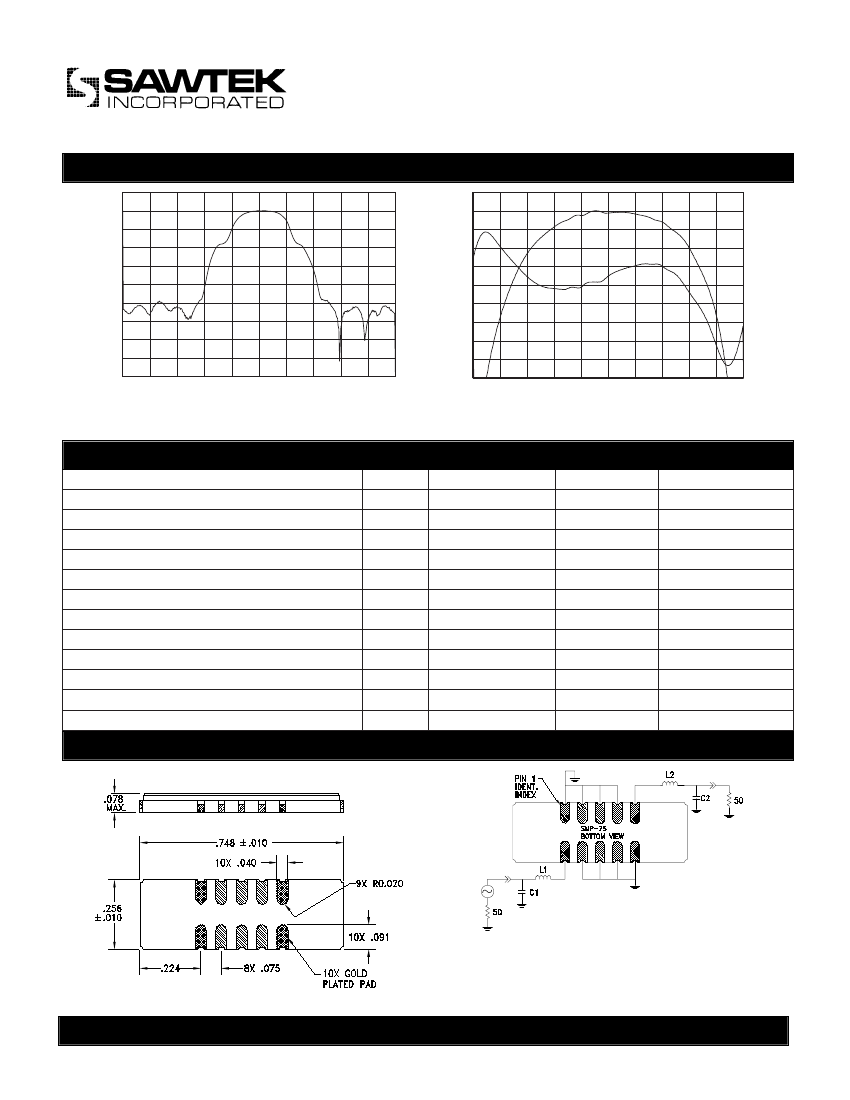

201 MHz RLL Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

199.5

199.8

200.1

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

201.9

202.2

202.5

200.675

200.745

200.815

25

20

15

10

5

0

-5

-10

-15

-20

-25

201.235

201.305

-

8

-

1

500

-

70

85

201.375

Ω

200 kHz Bandwidth

Part Number 855262

200.4

200.7

201.3

201.6

200.885

200.955

201.025

201.095

Parameter

Center Frequency, f

o

Insertion Loss at 201 MHz

Attenuation @ f

o

±

400 kHz

Attenuation @ f

o

±

600 kHz

Attenuation @ f

o

±

800 kHz

Attenuation @ f

o

±

3 MHz

Amplitude Variation (f

o

±

100 kHz)

Specifications

Unit

Minimum

MHz

dB

nsec

dB

-

°C

-

10

27

45

-

55

-

0

-30

Typical

201

6.5

18

35

49

0.69

293

60

Quartz

25

201.165

Horizontal: 300 kHz/Div

Vertical: 10 dB/Div

201

Horizontal: 70 kHz/Div

Vertical: 1 dB/Div

Vertical: 5 Deg/Div

Maximum

Group Delay Variation (f

o

±

90 kHz)

Rejection (f

o

-12 MHz

±100

kHz)

Substrate Material

Operating Temperature Range

Storage Temperature Range

Package Outline

Matching Configuration

Ω

L1 = 15 nH, L2 = 18 nH

C1 = 73 pf, C2 = 56 pf

Nominal Source/Load Impedance = 50Ω

Package Style SMP-75

11/24/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
