419G-45.000MHZ-BBE08030 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 419G-45.000MHZ-BBE08030

419G-45.000MHZ-BBE08030: DescriptionParallel - 3Rd Overtone Quartz Crystal, 45MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size165KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

419G-45.000MHZ-BBE08030 Overview

Parallel - 3Rd Overtone Quartz Crystal, 45MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

419G-45.000MHZ-BBE08030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant

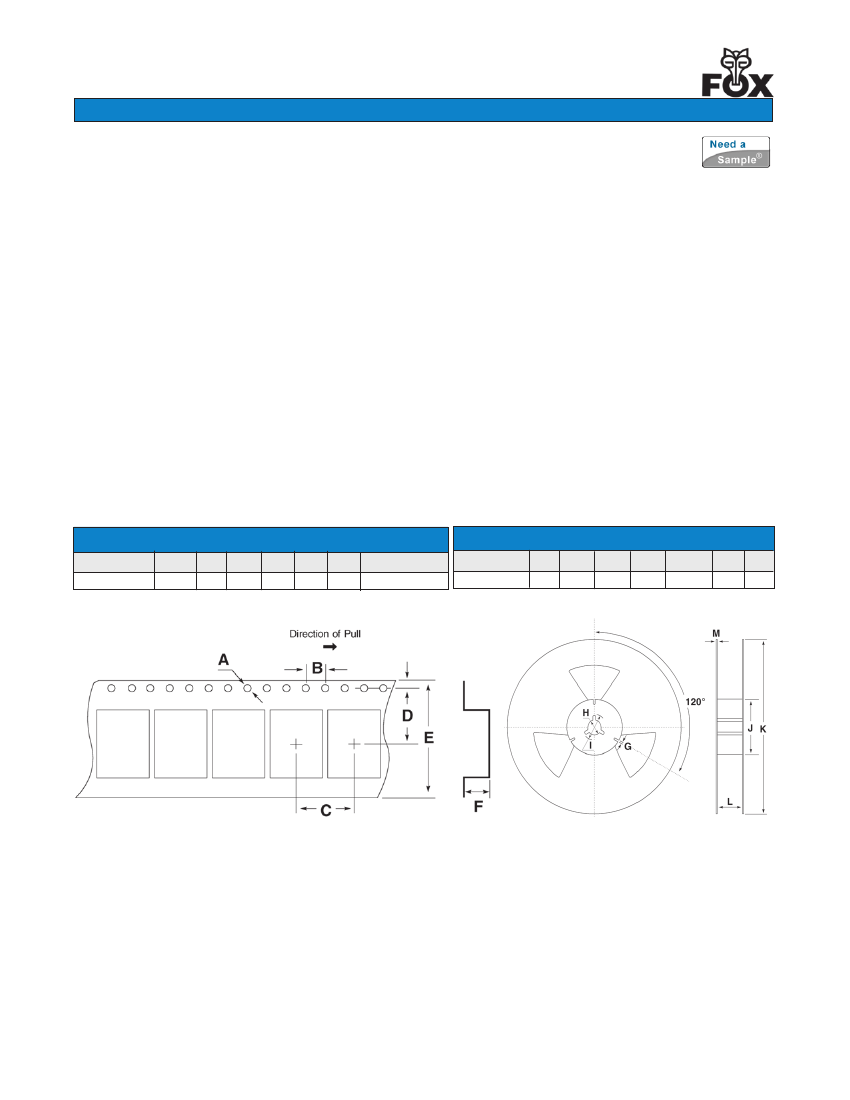

Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	45 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L5.0XB3.2XH1.4 (mm)/L0.197XB0.126XH0.055 (inch)
Series resistance	90 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

Ceramic SMD Glass Seal Crystal

Model: FX532_G Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 6/9/2008

http://www.foxonline.com/need_a_sample.htm

• PART NUMBER SELECTION

Learn More - Internet Required

Part Number

419G-Frequency-xxxxx

646G-Frequency-xxxxx

Model Number

FX532AG

FX532CG

Frequency Range (MHz)

10.000 ~ 67.000

5.0±0.2

3.2±0 .2

1 .4 M ax

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref. @ 25ºC

Over Operating Temp. Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp/Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

10.000 ~ 67.000 MHz

±50PPM

±50 PPM

-10ºC ~ +70ºC

-40ºC ~ +85ºC

7 pF

8 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

260ºC / 10 Seconds

2 .0

F X 5 32 A G

2.4

F X 5 32 C G

2 .6

1 .4

1.3

B o tto m V iew

Recommended

Solder Pad Layout

Recommended

Solder Pad Layout

1.8

2.4

2.0

2 .6

1 .4

1 .3

1 .6

All dimensions are in millimeters.

Other tolerances, stabilities & operating temperature ranges available.

Frequency Range

(MHz)

10.000 ~ 19.999

20.000 ~ 29.999

30.000 ~ 54.000

45.000 ~ 67.000

Operating Mode

Fundamental

Max ESR

Ω

120

Note: Dimensional drawing is for reference to critical specifications defined by size measure-

ments. Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
