MP03991 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> MP03991

Preview

MP03991: DescriptionSAW Filter, 1 Function(s), 423MHz; CategoryAnalog mixed-signal IC filter; File Size73KB，7 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

MP03991 Overview

SAW Filter, 1 Function(s), 423MHz

MP03991 Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Center frequency or cutoff frequency (fo/fc)	423 MHz
filter type	SAW FILTER
high	1 mm
input resistance	50 OHM
Maximum insertion loss	3 dB
Manufacturer's serial number	MP03991
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω

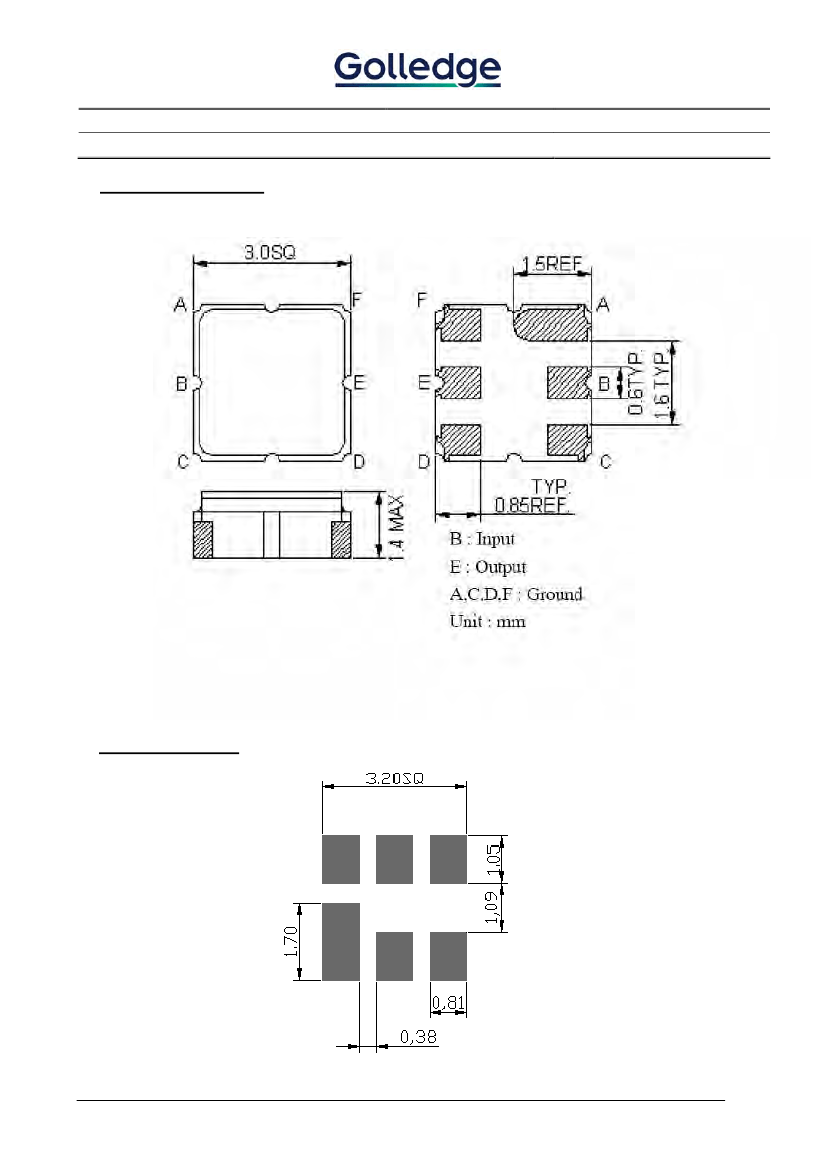

physical size	L3.0XB3.0XH1.4 (mm)/L0.118XB0.118XH0.055 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

Tel: +44 1460 256 100

Fax: +44 1460 256 101

www.golledge.com

Golledge Electronics Ltd

Eaglewood Park, ILMINSTER

Somerset, TA19 9DQ, UK

SAW Filter 423.0MHz

Part No: MP03991

A. MAXIMUM RATING:

1. Input Power Level: 10dBm

2. DC Voltage: 3V

3. Operating Temperature: -40° to +85°

C

4. Storage Temperature: -40° to +85°

C

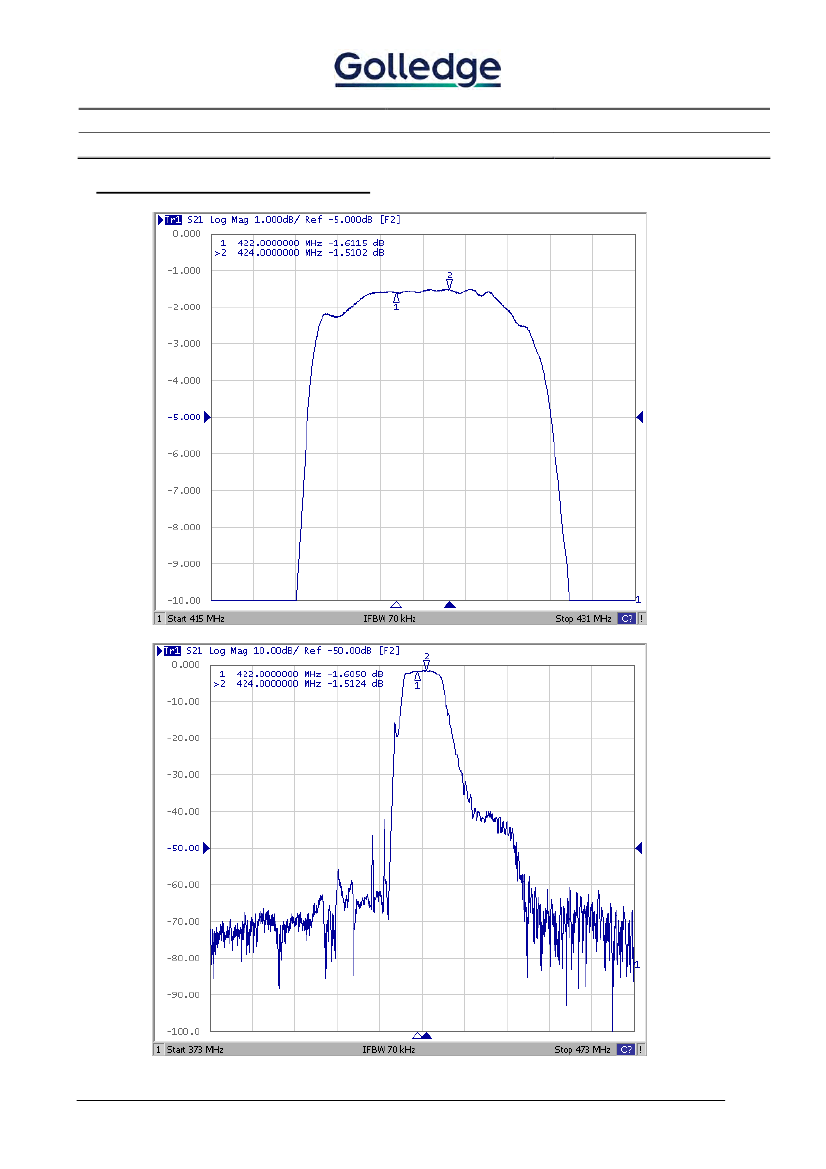

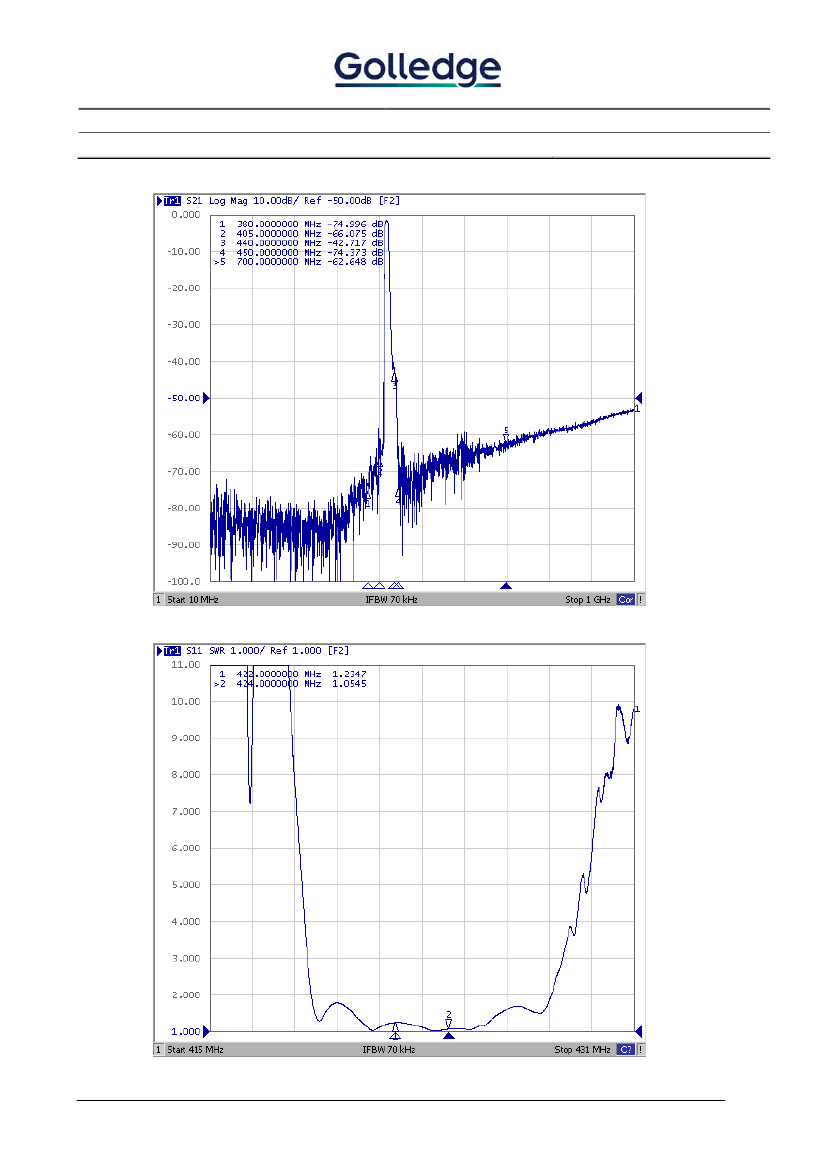

B. ELECTRICAL CHARACTERISTICS:

Item

Center frequency Fc

Insertion Loss (422 ~ 424MHz) IL

Amplitude Ripple (422 ~ 424MHz)

VSWR (422 ~ 424MHz)

Attenuation (Reference level from 0dB)

10 ~ 380MHz

380 ~ 405MHz

440 ~ 450MHz

450 ~ 700MHz

700 ~ 1000MHz

dB

55

45

30

50

42

Unit

MHz

dB

-

Min.

-

Model: TA1105A

Rev No: 1

Typ.

423

1.7

0.2

1.3

Max.

-

3.0

1.2

2.2

70

58

41

58

53

-

C. MEASUREMENT CIRCUIT:

HP Net work analyz er

50Ω

B

SAW Filter

E

50Ω

A ,C , D , F

TA1105A v1

1
