35ST106MD35750: DescriptionFilm Capacitor, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size64KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

35ST106MD35750 Overview

Film Capacitor, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT

35ST106MD35750 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	, 2220
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	FILM CAPACITOR
JESD-609 code	e3
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
size code	2220
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

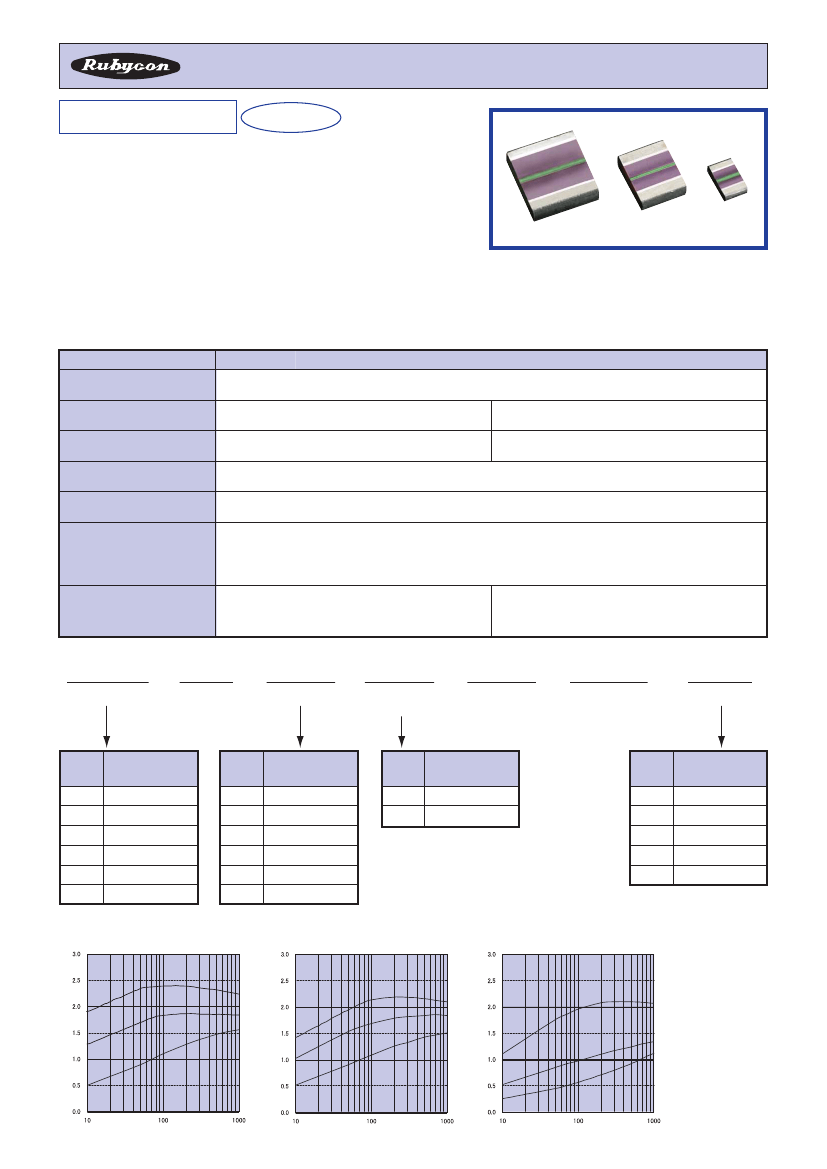

POLYMER MULTI-LAYER CAPACITORS

ST

SERIES

UPGRADE

◆FEATURES

・

Surface-mounted device.

・

Lead free reﬂow soldering is available.

・

RoHS compliance.

◆CAUTION

ST series shall be used in only reﬂow method. Do not use in ﬂow, dipping, and VPS soldering method.

Please storage in moisture proof bag with dry silica-gel after opening the moisture proof bag. Please ask for detail.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Dissipation Factor

（tanδ）

Characteristics

−55∼＋125℃

16∼63V.DC

0.001∼22μF

（102∼226）

E6 series

100V.DC

0.001∼0.1μF

（102∼104）

E6 series

±10%

（K）

,±20%

（M）

1.5% or less(1kHz±20%, 5Vrms or less)

Voltage Proof

Nothing abnormal shall be found, when applying 150% of the rated voltage for 1minute

or 175% of the rated voltage for 1 second to 5 seconds.

Insulation Resistance

C≦0.1μF 3000MΩor more (After 1 minute application of rated voltage)

：

C＞0.1μF 300MΩ μF or more (After 1 minute application of rated voltage)

：

・

1000MΩ or more (After 1 minute application of rated voltage)

◆PART NUMBER

□□□

Rated Voltage

ST

Series

□□□

Capacitance

□

Capacitance

Tolerance

□□□

Option

□□

TP code

□□□□

Chip Size

Code

Rated Voltage

Code

Capacitance

Code

Tolerance

Code

Chip Size

16

25

35

50

63

100

16V.DC

25V.DC

35V.DC

50V.DC

63V.DC

100V.DC

153

224

684

335

106

226

0.015μF

0.22μF

0.68μF

3.3μF

10μF

22μF

K

M

±10%

±20%

2012

3216

3225

4532

5750

2.0×1.25mm

3.2×1.6mm

3.2×2.5mm

4.5×3.2mm

5.7×5.0mm

◆PERMISSIBLE CURRENT FOR FREQUENCY

16V

35V

50V

Permissible current

（Arms)

Permissible current

（Arms)

Permissible current

（Arms)

226

106

475

106

105

224

Frequency kHz)

（

Frequency kHz)

（

Frequency kHz)

（

35ST106MD35750 Related Products

	35ST106MD35750	35ST475MC44532	63ST335MD35750	16ST475MC14532	100ST473MA23216	50ST475MD35750
Description	Film Capacitor, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT	Film Capacitor, 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Film Capacitor, 63V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT	Film Capacitor, 16V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Film Capacitor, 100V, 20% +Tol, 20% -Tol, 0.047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Film Capacitor, 50V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT
Maker	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon
package instruction	, 2220	, 1812	, 2220	, 1812	, 1206	, 2220
Reach Compliance Code	compliant	compliant	compliant	compliant	unknow	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	10 µF	4.7 µF	3.3 µF	4.7 µF	0.047 µF	4.7 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	105 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
positive tolerance	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	35 V	63 V	16 V	100 V	50 V
size code	2220	1812	2220	1812	1206	2220
surface mount	YES	YES	YES	YES	YES	YES
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to
JESD-609 code	e3	e3	e3	e3	-	e3
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
