DV74LS192D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS192D

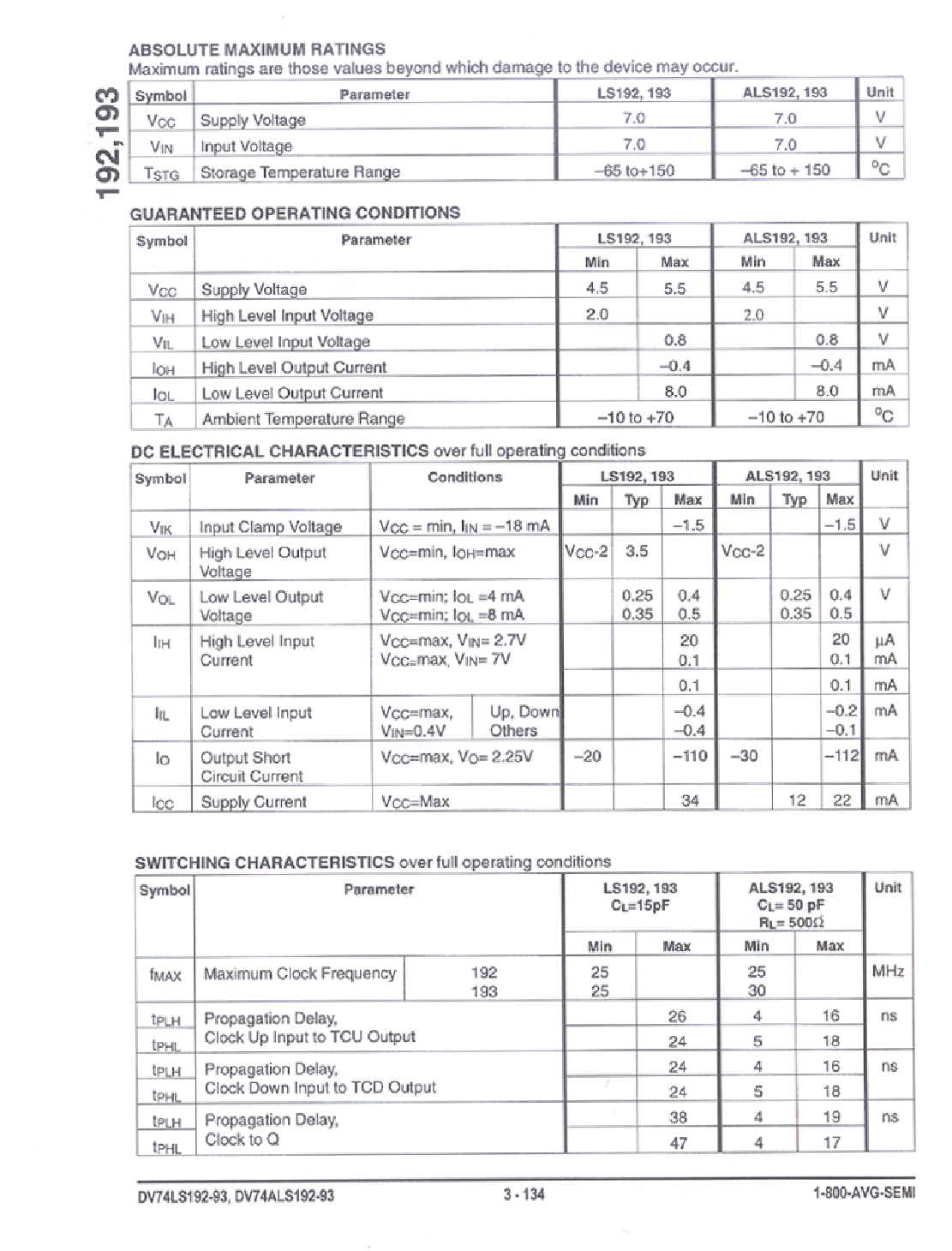

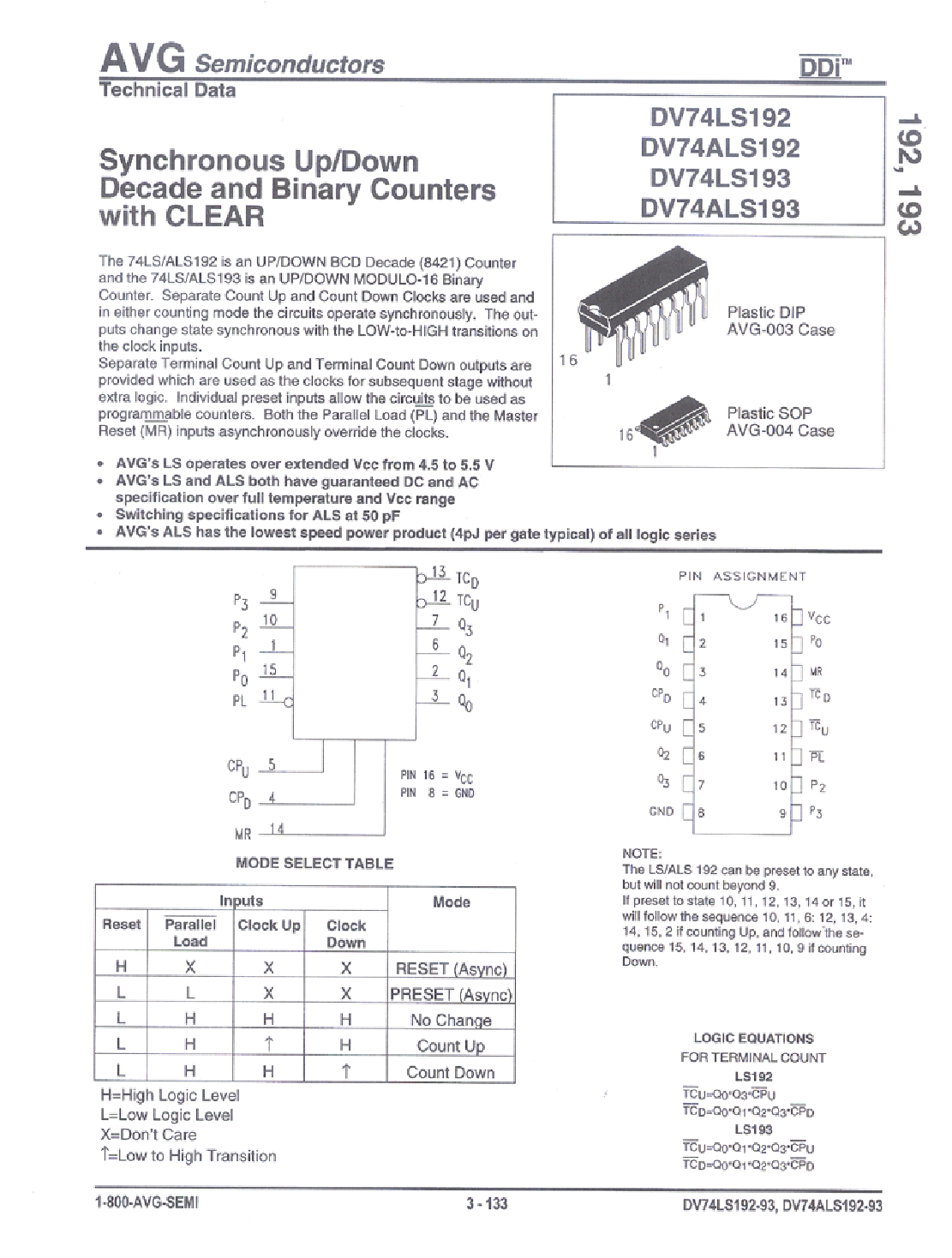

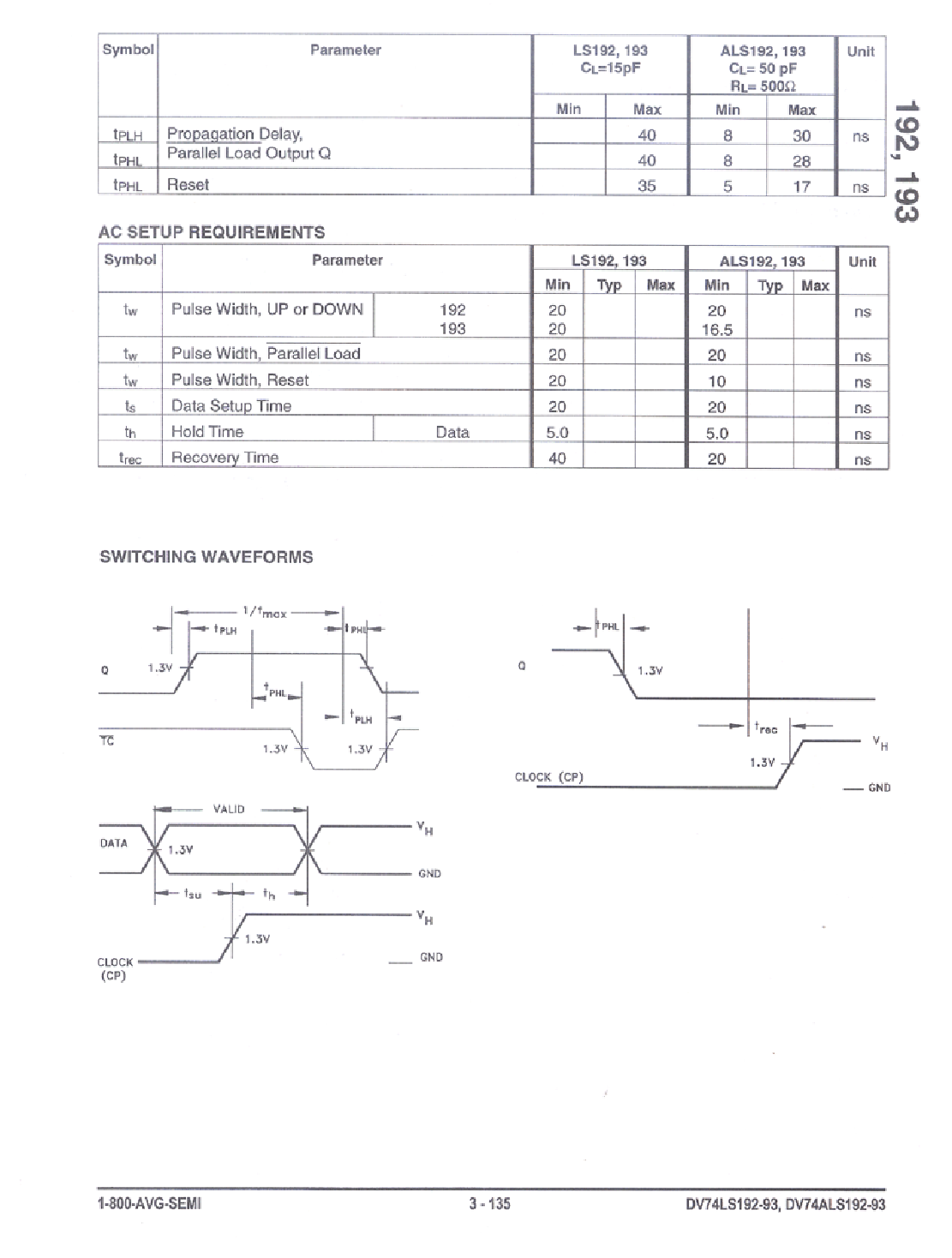

DV74LS192D: DescriptionDecade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size425KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS192D Overview

Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16

DV74LS192D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	15 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	34 mA
propagation delay (tpd)	47 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	25 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

DV74LS192D Related Products

	DV74LS192D	DV74LS192N	DV74ALS193D	DV74ALS192N	DV74LS193N	DV74LS193D	DV74ALS192D
Description	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16	Binary Counter, ALS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16	Decade Counter, ALS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16	Decade Counter, ALS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOP-16
Parts packaging code	SOIC	DIP	SOIC	DIP	DIP	SOIC	SOIC
package instruction	PLASTIC, SOP-16	DIP,	SOP,	DIP,	DIP,	SOP,	SOP,
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maker	AVG [AVG Semiconductors(HITEK)]	-	-	-	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	-	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL
series	LS	LS	ALS	ALS	-	LS	ALS
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	-	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	19.175 mm	9.9 mm	19.175 mm	-	9.9 mm	9.9 mm
Load capacitance (CL)	15 pF	15 pF	50 pF	50 pF	-	15 pF	50 pF
Load/preset input	YES	YES	YES	YES	-	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	-	BINARY COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	-	4	4
Number of functions	1	1	1	1	-	1	1
Number of terminals	16	16	16	16	-	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	-	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	34 mA	34 mA	22 mA	22 mA	-	34 mA	22 mA
propagation delay (tpd)	47 ns	47 ns	19 ns	19 ns	-	47 ns	19 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.44 mm	1.75 mm	4.44 mm	-	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	YES	NO	YES	NO	-	YES	YES
technology	TTL	TTL	TTL	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE
width	3.9 mm	7.62 mm	3.9 mm	7.62 mm	-	3.9 mm	3.9 mm
minfmax	25 MHz	25 MHz	30 MHz	30 MHz	-	25 MHz	30 MHz
Base Number Matches	1	1	1	1	-	-	-
