DAMO3P3SVK126 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAMO3P3SVK126

DAMO3P3SVK126: DescriptionD Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size124KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMO3P3SVK126 Overview

D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Receptacle,

DAMO3P3SVK126 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DAMO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

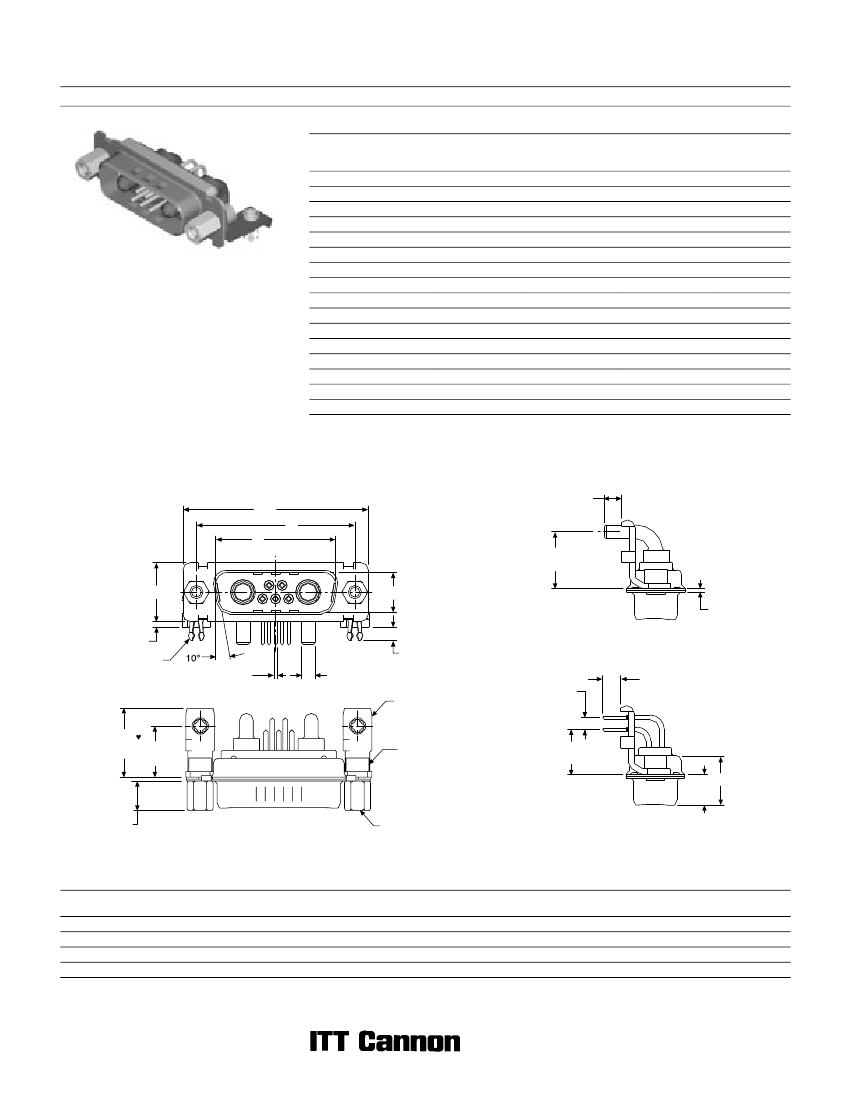

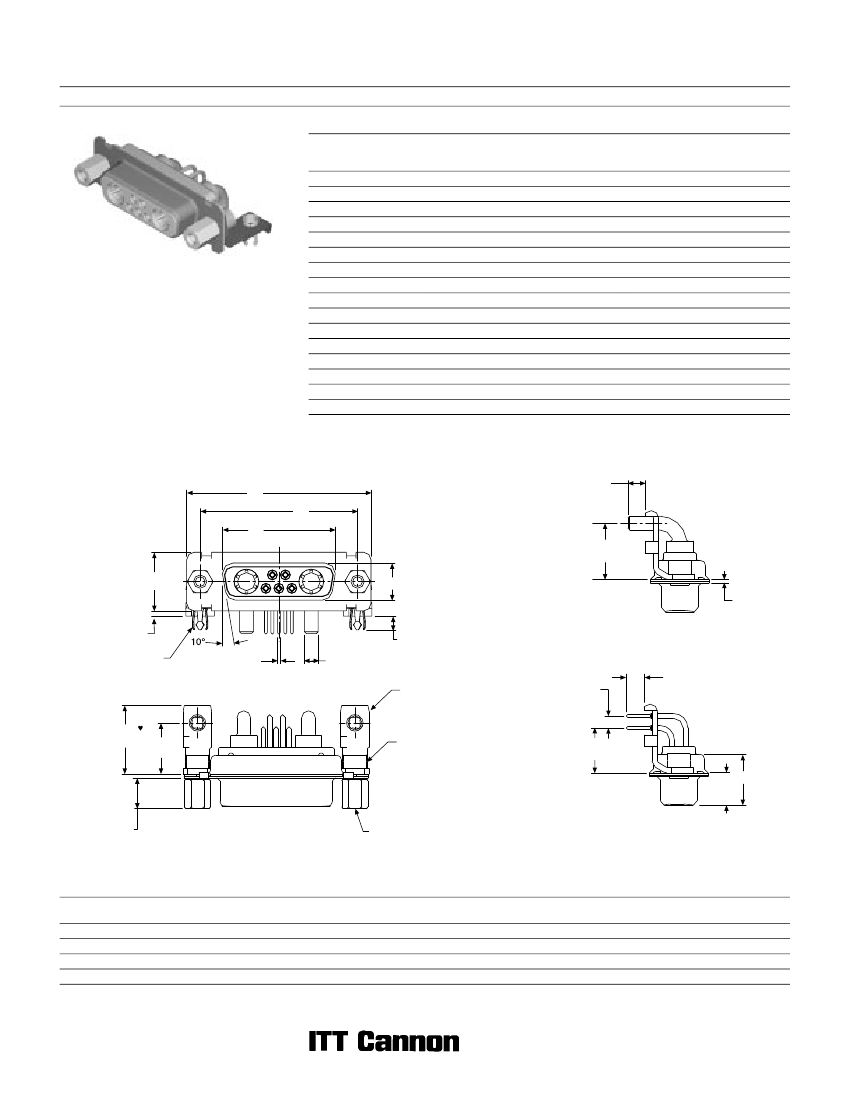

D Subminiature

40 A High Power 90° — European Footprint 10,2 or 9,4 mm

Plug

Combo D

(Sizes DE-DC)

Part Number

Without Screw Locks

With Boardlocks

DEMC5P1PVK87

DAMC7P2PVK87

DAMC11P1PVK87

DAMC3P3PVK87

DAMC3PK3PVK87TM

DBMC5P5PVK87

DBMC9P4PVK87

DBMC13P3PVK87

DBMC17P2PVK87

DBMC21P1PVK87

DCMC8P8PVK87

DCMC13P6PVK87

DCMC17P5PVK87

DCMC21PA4PVK87

DCMC25P3PVK87

DCMC27P2PVK87

Part Number

With Screw Locks

Without Boardlocks

DEMD5P1PVK87

DAMD7P2PVK87

DAMD11P1PVK87

DAMD3P3PVK87

DAMD3PK3PVK87TM

DBMD5P5PVK87

DBMD9P4PVK87

DBMD13P3PVK87

DBMD17P2PVK87

DBMD21P1PVK87

DCMD8P8PVK87

DCMD13P6PVK87

DCMD17P5PVK87

DCMD21PA4PVK87

DCMD25P3PVK87

DCMD27P2PVK87

Part Number

With Screw Locks

With Boardlocks

DEMG5P1PVK87

DAMG7P2PVK87

DAMG11P1PVK87

DAMG3P3PVK87

DAMG3PK3PVK87TM

DBMG5P5PVK87

DBMG9P4PVK87

DBMG13P3PVK87

DBMG17P2PVK87

DBMG21P1PVK87

DCMG8P8PVK87

DCMG13P6PVK87

DCMG17P5PVK87

DCMG21PA4PVK87

DCMG25P3PVK87

DCMG27P2PVK87

Part Numbers with Metal Bracket and Rivnut #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMP5P1PVK87

DAMP7P2PVK87

DAMP11P1PVK87

DAMP3P3PVK87

DAMP3PK3PVK87TM

DBMP5P5PVK87

DBMP9P4PVK87

DBMP13P3PVK87

DBMP17P2PVK87

DBMP21P1PVK87

DCMP8P8PVK87

DCMP13P6PVK87

DCMP17P5PVK87

DCMP21PA4PVK87

DCMP25P3PVK87

DCMP27P2PVK87

Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see pages 250-251.

For panel cutouts, see page 221.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

For M3 threads replace MP with MS, MC with ML, MD with MO, MG with MJ.

Notes: For tin plated PC tails add A226 (signal contacts only). Example DEMP5P1PVK87A226

For performance class 2 substitute K127 for K87. Example: DEMP5P1PVK127

Keyed.

Engaging Face

3,30 (.130)

MIN.

11,94

0,25

(.470

.010)

1,00 (.039)

BOARDLOCK

Ø 0,60

(.024)

Ø 2,90

(.114)

BRACKET,

METAL

14,55

(.573)

2,92

(.115)

Screw lock, boardlock, and signal contacts

removed for clarity

4,00 (.157)

2,54

(.100)

10,85

(.427)

RIVNUT

#4-40 UNC

9,40

0,20

(.370

.008)

6,50

0,25

(.256

.010)

Note:

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

8,36 (.329)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,72 (.422)

10,82 (.426)

±0,368

(.0145)

6,693 (.2635)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)

Dimensions subject to change

Recommended Resources
