3633A6R8N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3633A6R8N

3633A6R8N: Description1 ELEMENT, 6.8uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size90KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3633A6R8N Overview

1 ELEMENT, 6.8uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

3633A6R8N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1413
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1413
structure	Chip
core material	FERRITE
DC Resistance	0.5 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	3633A
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	0.95 mm
Package length	3.5 mm
Package form	SMT
Package width	3.3 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.43 A
self resonant frequency	85 MHz
series	3633
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q MEASURED AT 7.96 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

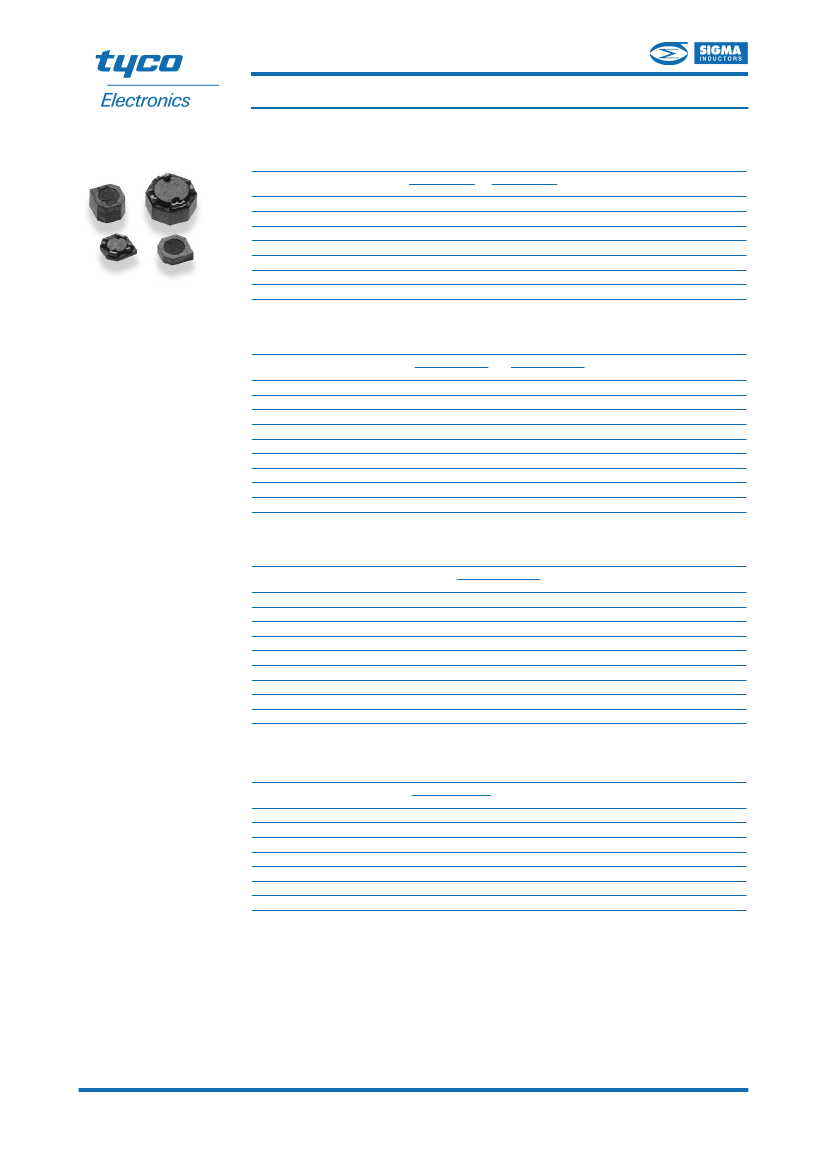

Shielded SMD Power Inductors

Type 3633 Series

Electrical Characteristics -

3633A Series

Inductance

Code

1R2

2R2

3R3

4R7

6R8

100

220

The 3633 series of shielded inductors

are available in six different packages.

Excellent solderability and high heat

resistance, together with Tyco Sigma,

quality and reliability make these

products suitable for a wide range of

electronic equipment applications.

Inductance

(µH)

1.2

2.2

3.3

4.7

6.8

10.0

22.0

Ref.

10.0

8.5

8.0

9.0

8.0

8.5

20.0

Test Freq. (Hz)

100K

7.96M

100K

7.96M

100K

7.96M

100K

7.96M

100K

7.96M

100K

2.52M

100K

2.52M

R.D.C. (mΩ)

S.R.F. (MHz) Irms

Isat

Typ.

(mA) Typ. (mA) Typ. Marking

Typ.

Max.

115

210

1000

1100

115

145

150

800

850

180

225

130

650

720

230

290

100

480

500

400

500

400

430

610

760

280

350

1150

1450

220

250

Electrical Characteristics -

3633C Series

Inductance Inductance

Code

(µH)

1R0

1.0

1R5

1.5

2R2

2.2

3R3

3.3

4R7

4.7

6R8

6.8

100

10.0

150

15.0

220

22.0

Ref.

12.0

10.0

12.0

15.0

10.0

30.0

35.0

Test Freq.(Hz)

100K

7.96M

100K

7.96M

100K

7.96M

100K

7.96M

100K

7.96M

100K

7.96M

100K

2.52M

100K

2.52M

100K

2.52M

R.D.C. (mΩ)

Typ.

Max.

135

130

165

180

230

235

290

440

550

700

875

S.R.F.

Irms

Isat

(MHz) Typ. (mA) Typ. (mA) Typ.

150

1850

1900

120

1550

1600

110

1100

1300

1000

1100

820

920

700

780

640

660

400

460

320

360

Key Features

Available in 6 different

packages

Up to 3.5A

Down to less than 1mm

height profile

Tape and Reeled

High heat resistance

Excellent reliability

Ferrite Core

Electrical Characteristics -

3633D Series

Inductance

Code

2R2

3R3

4R7

6R8

100

150

220

330

470

Inductance

(µH)

2.2

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

Ref.

8.0

10.0

15.0

20.0

18.0

R.D.C. (mΩ)

Typ.

Max.

105

120

150

175

220

250

320

430

550

540

670

S.R.F.

(MHz) Typ.

100

Irms

(mA) Typ.

1700

1450

1100

1000

850

680

600

470

360

Isat

(mA) Typ.

980

800

630

530

470

350

300

250

210

Electrical Characteristics -

3633E Series

Inductance Inductance

Code

(µH)

100

10.0

150

15.0

220

22.0

330

33.0

470

47.0

680

68.0

101

100.0

Ref.

20.0

18.0

20.0

Test Freq.(Hz)

100K

2.52M

100K

2.52M

100K

2.52M

100K

2.52M

100K

2.52M

100K

2.52M

100K

0.796M

R.D.C. (mΩ)

Typ.

Max.

160

200

230

290

270

335

450

560

815

1000

1400

1750

2200

2750

S.R.F.

Irms

Isat

(MHz) Typ. (mA) Typ. (mA) Typ.

720

860

660

720

600

620

470

480

320

380

240

280

190

210

Literature No. 1773155

Issued: 07-05

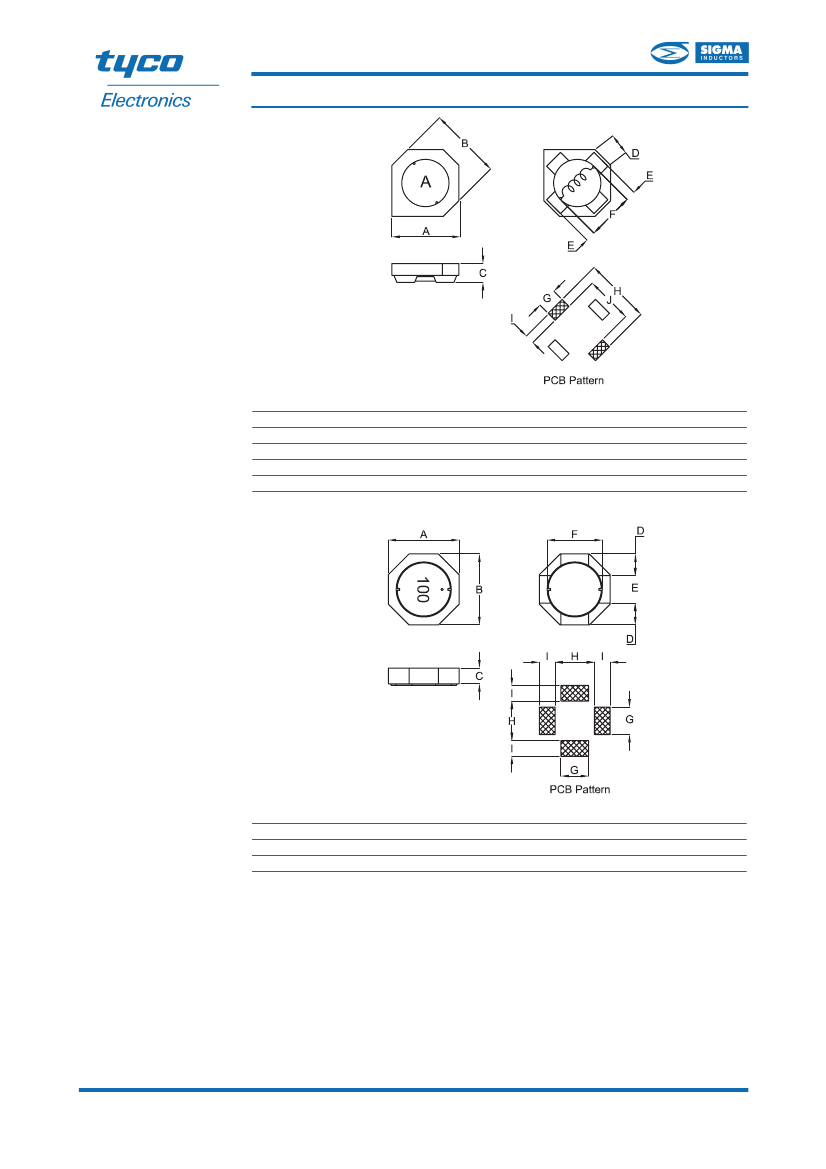

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
