254835 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 254835

254835: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Guide Slot, Receptacle,; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

254835 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254835	-	-	View	Buy Now

254835 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Guide Slot, Receptacle,

254835 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.752 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	254835
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96
Base Number Matches	1

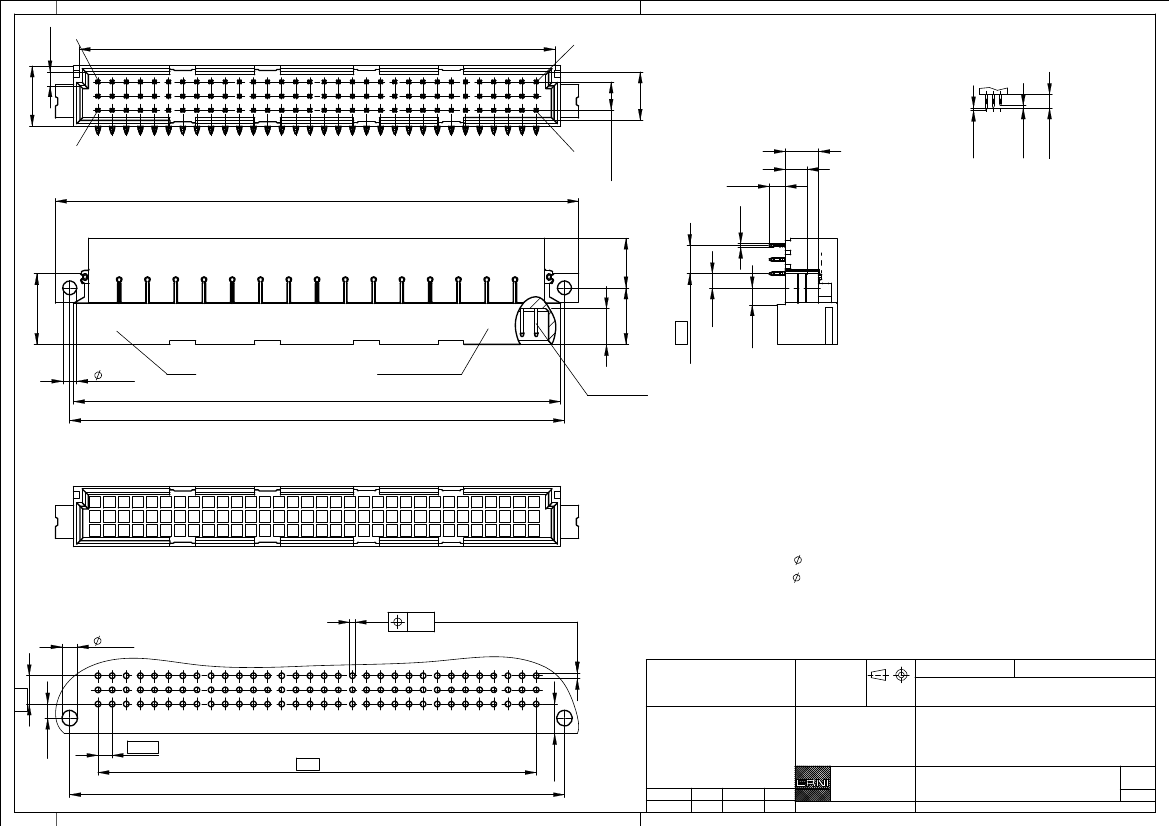

Preview

Download Datasheet

View All

2,5

-0,2

c32

85,5

Stecklänge / mating length

ESL

max.11,1

2x2,54=5,08

8,7

+0,2

a32

±0,1

3,95

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

94 max.

8,9

2 x 2,54 (=5,08)

12,7

10,2

-0,2

2,54

Datum

2,5

+0,1

date

Anforderungsstufe

class

87,5

88,9

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

3,05

XXXXXXX

ERNI

RC 2

6,4

-0,1

+0,1

a b c

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

diameter of drilled hole see drawing 164062 / No. 6

+0,09

1,0

-0,06

Durchmesser des metallisierten Loches

+0,09

Elastische Einpresszone /

compliant pressfit zone

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Schichtaufbau im metallisierten Loch siehe Zeichnung 164062 / Nr. 6

1,0

-0,06

Diameter of finished plated-through hole

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

2 x 2,54 (= 5,08)

+0,1

0,05

alle Löcher/

Bedruckung siehe Zeichnung 294905

all holes

Marking see drawing 294905>

Proprietary notice pursuant to ISO 16016 to be observed.

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

17.06.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C 96 EE

Male Connector C96 pressfit

www.ERNI.com

Class

254835

STVC

4,8

±0,2

0,8

±0,1

0,8

±0,1
