BAT54CDW-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54CDW-H

BAT54CDW-H: DescriptionRectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size101KB，7 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/

Download Datasheet Parametric Compare View All

BAT54CDW-H Overview

Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,

BAT54CDW-H Parametric

Parameter Name	Attribute value
package instruction	R-PDSO-G6
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
Number of components	4
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Small Signal Schottky Diode Array

Formosa MS

BAT54ADW / BAT54CDW / BAT54SDW / BAT54BRW / BAT54TW

List

List................................................................................................. 1

Package outline............................................................................... 2

Features.......................................................................................... 2

Mechanical data............................................................................... 2

Maximum ratings ............................................................................. 2

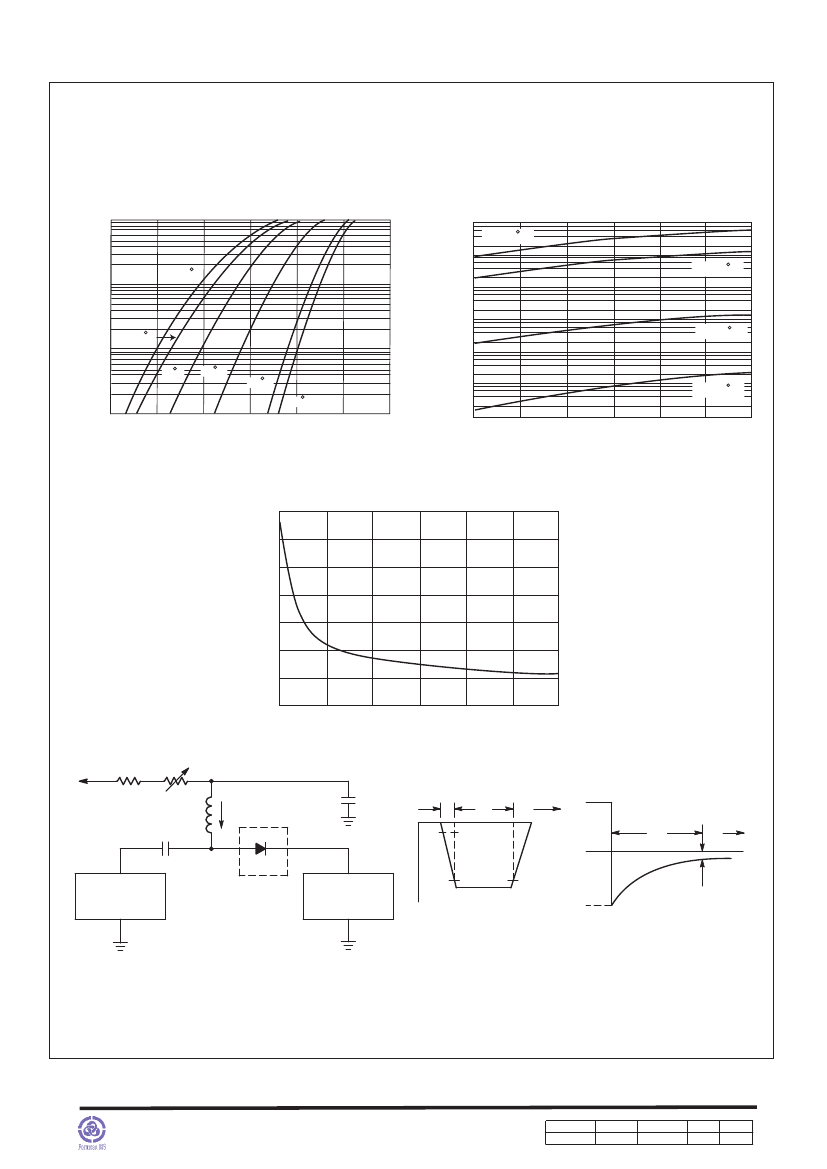

Rating and characteristic curves........................................................ 3

Pinning information........................................................................... 4

Marking........................................................................................... 4

Suggested solder pad layout............................................................. 4

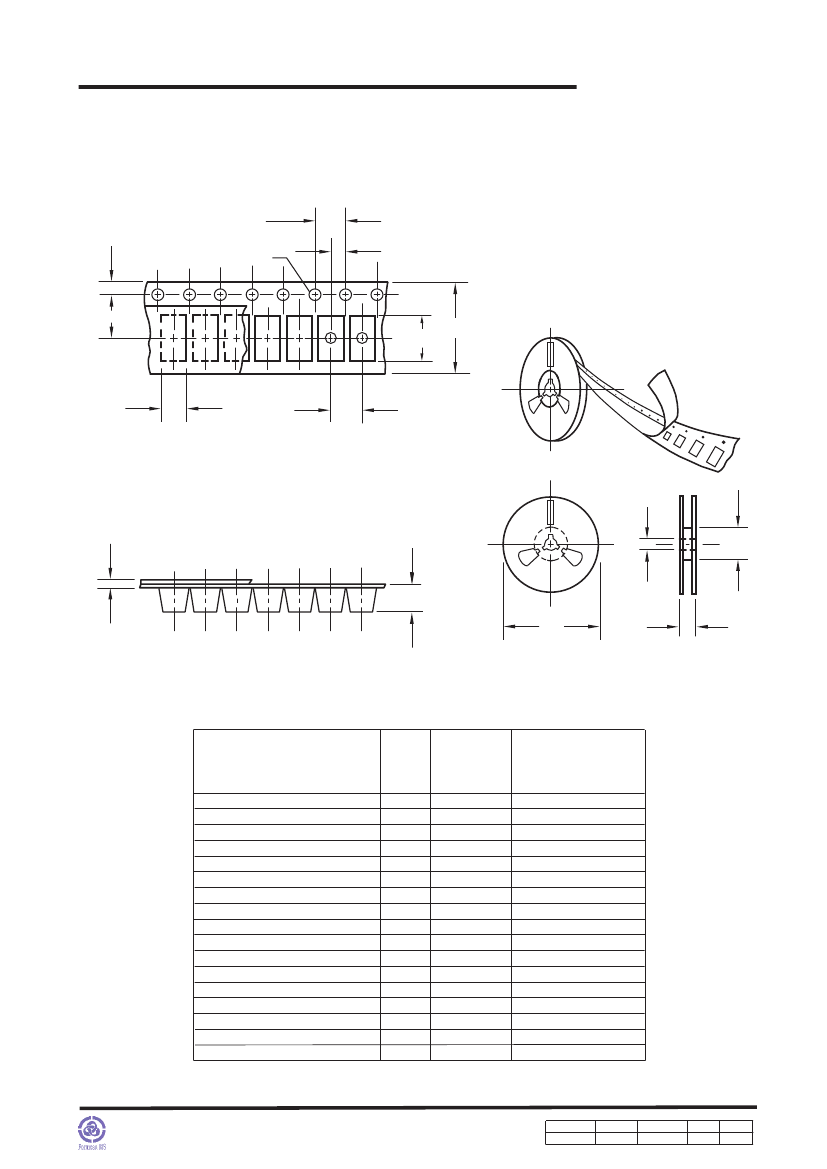

Packing information.......................................................................... 5

Reel packing.................................................................................... 6

Suggested thermal profiles for soldering processes............................. 6

High reliability test capabilities........................................................... 7

http://www.formosams.com/

TEL:886-2-22696661

FAX:886-2-22696141

Document ID

Issued Date

2008/02/10

Revised Date

2010/03/10

Revision

Page.

Page 1

DS-22161R

BAT54CDW-H Related Products

	BAT54CDW-H	BAT54CDW	BAT54TW-H	BAT54ADW	BAT54TW	BAT54ADW-H	BAT54SDW	BAT54BRW	BAT54BRW-H
Description	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 3 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 3 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon,
package instruction	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	2 BANKS, COMMON CATHODE, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	2 BANKS, COMMON ANODE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	2 BANKS, COMMON ANODE, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Number of components	4	4	3	4	3	4	4	4	4
Number of terminals	6	6	6	6	6	6	6	6	6
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Maximum repetitive peak reverse voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	-	-	-
Maker	-	-	FORMOSA	-	FORMOSA	-	FORMOSA	FORMOSA	FORMOSA
