LA
Series
Multi-Function
Power Entry Modules
with RFI Power Line Filters
UL Recognized
CSA Certified
VDE Approved
LA Series
The LA series is a multi-function power entry connector
with a choice of filtering capabilities. The series features
an IEC power line connector, selectable North American
or dual European fusing capabilities, DPST on/off switch,
and 120/240 voltage selection. The filtered LA units
provide a one piece solution to all power entry needs and
provide a filtering solution for almost any RFI problem.
Their vertical design is flange mounted and will meet
requirements for worldwide markets.
This series offers three levels of filtering, all carrying
UL recognition, CSA certification, and VDE approval.
FLA Model
– General purpose RFI filter designed for
susceptibility applications, effectively providing RFI
control of line-to-ground noise.
XLA Model
– High performance RFI filter designed to
bring most digital equipment (including switching power
supplies) into compliance with FCC Part 15J, Class B
conducted emissions limits.
ZLA Model
– Premium performance RFI filter designed to
bring most digital equipment (including switching power
supplies) into compliance with EN55022, Level B (as well
as FCC Part 15J, Class B) conducted emissions limits.
FLA/XLA/ZLA
Specifications
Maximum leakage current, each line-to-ground:
@ 120 VAC 60 Hz:
FLA Model
XLA/ZLA Models
@ 250 VAC 50 Hz:
All Models
Hipot rating (one minute):
line-to-ground
line-to-line
Operating voltages:
Operating frequency:
Rated voltage:
Switch:
0.25 mA
0.30 mA
0.50 mA
1500 VAC
1450 VDC
110/120, 220/240 VAC
50/60 Hz
120/250 VAC
Rated for 50,000
operations at full load
35 Amp inrush capability
Accepts one 1/4” x 1-1/4” fuse
or two 5 x 20mm fuses.
.110” (2.79mm) terminals
Fuse (not included):
Terminals:
Minimum
insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating
.01
.05
-
12
28
Frequency-MHz
.15
.5
1
14
21
38
21
35
42
26
46
40
5
40
44
40
10
46
44
40
30
50
40
40

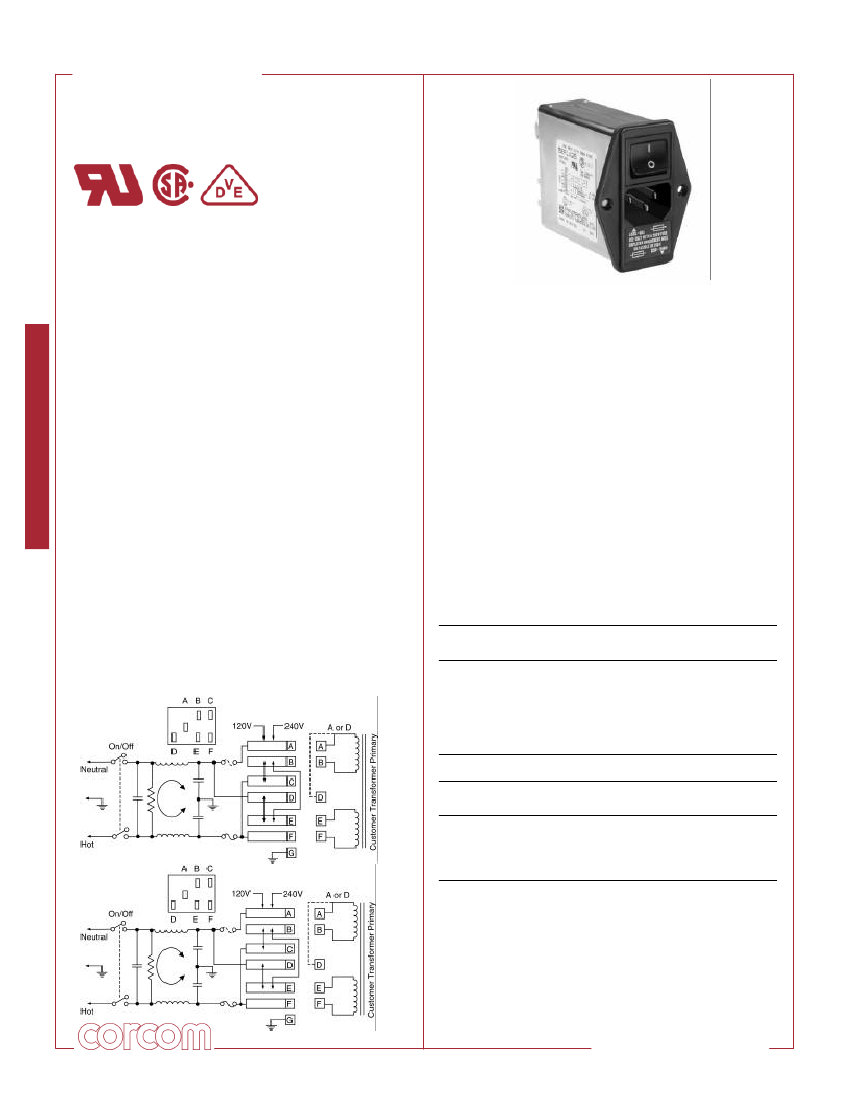

Electrical Schematics
FLA
FLA Models
5A
-
XLA Models
3A
2
ZLA Models
3A
14
Line-to-line in 50 ohm circuit
Current
Rating
Frequency-MHz
.02 .03 .05 .07 .15 .5
-
14
-
29
5
38
33
57
60
72
1
65
72
5
10 30
L
96
XLA & ZLA
XLA Models
3A
-
ZLA Models
3A
3
60 50 50
65 55 50
Libertyville, IL (847) 680-7400
Series
LA

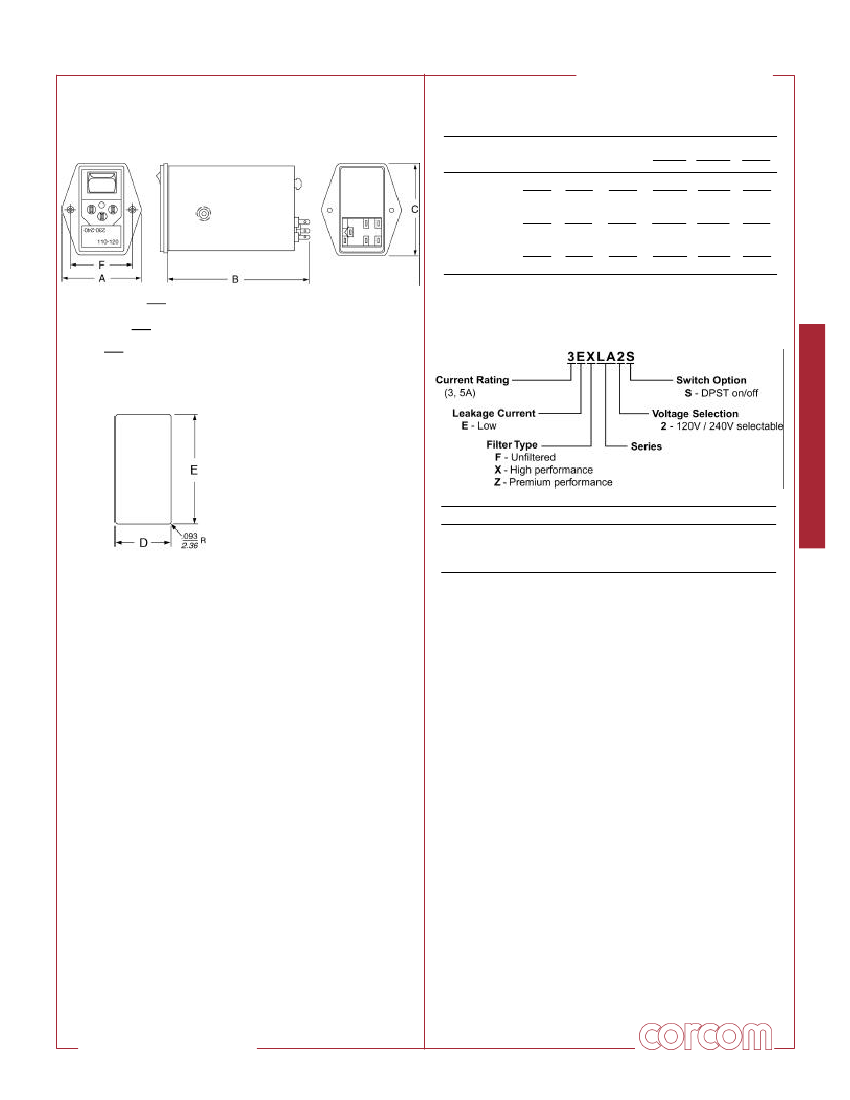

Case Styles
Metric shown in italics.
FLA & XLA & ZLA
Case Dimensions
Metric shown in italics.
Part No.
5EFLA2S
3EXLA2S
3EZLA2S
A
B
C
(max) (max) (max)
1.99
50.5
1.99
50.5
1.99
50.5
3.16
68.1
4.16
105.7
4.16
105.7
2.59
65.8
2.59
65.8
2.59
65.8
D
+.02/-.00
+.50/-.00
E
+.02/-.00
+.50/-.00
F
± .015
± .038
1.19
30.23
1.19
30.23
1.19
30.23
2.42
61.47
2.42
61.47
2.42
61.47
1.57
39.9
1.57
39.9
1.57
39.9
.142
Dia. (2)
3.6
All terminals: .110
4.80
Holes: .059 Dia. Max., except solder lug ground tap with wire wrap.
1.5
Mounting holes:
Ordering Information
Consult your local Corcom sales representative for pricing.
Recommended Panel Cutout
FLA & XLA & ZLA
Note: All models allow front mounting only.
Available Part Numbers
5EFLA2S
3EXLA2S
3EZLA2S
Voltage Selection
To change selected voltage: remove the fuse cartridge
using a small blade screwdriver or similar tool; select the
desired voltage by matching the arrow on the fuse
cartridge to the arrow located on the front of the unit (lower
right corner); replace the fuse cartridge
making sure the
voltage selection arrow aligns with the arrow located on
the front of the unit.
Fuse Changing
Remove the fuse cartridge using a small blade
screwdriver or similar tool; for European fusing pull out the
sliding fuse covers located at the top of each fuse
compartment; insert desired fuses; push the sliding fuse
covers back in place and insert the fuse cartridge back
into the unit
making sure the voltage selection arrow aligns
with the arrow located on the front of the unit.
(Note:
Single North American or European fuse placement is
always on the side of the desired voltage selection arrow;
the other compartment may be used as a spare or be left
blank. Dual European fusing capability is available for
220/240 volts only.)
L
97
Libertyville, IL (847) 680-7400
