IDT75C48SB20DB datasheet, PDF - EEWORLD Datasheet

IDT75C48SB20DB: DescriptionADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28; CategoryAnalog mixed-signal IC converter; File Size318KB，10 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

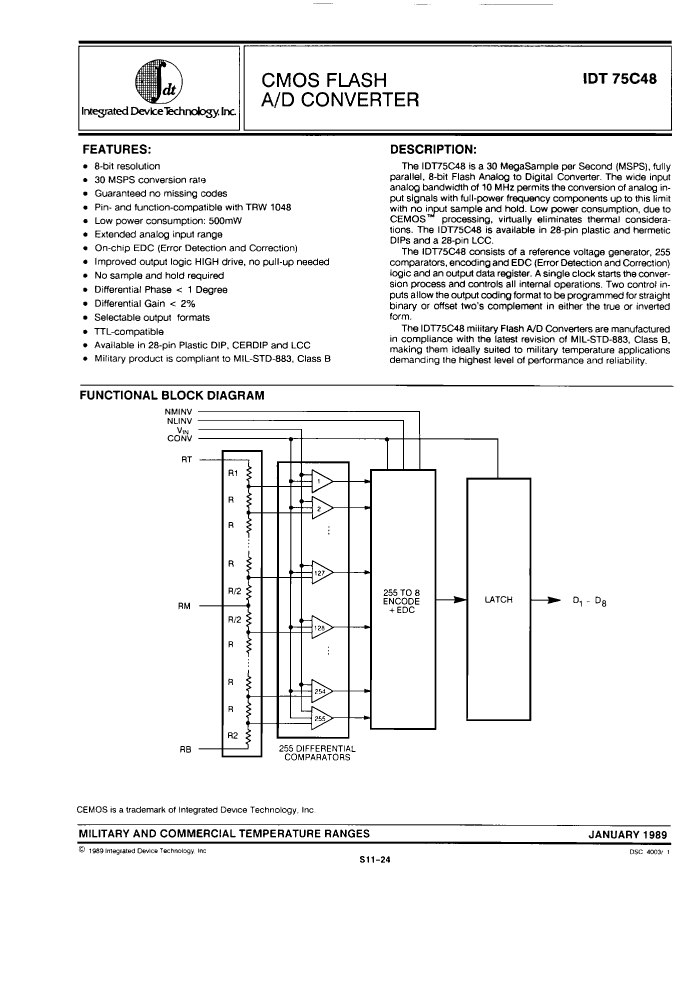

IDT75C48SB20DB Overview

ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28

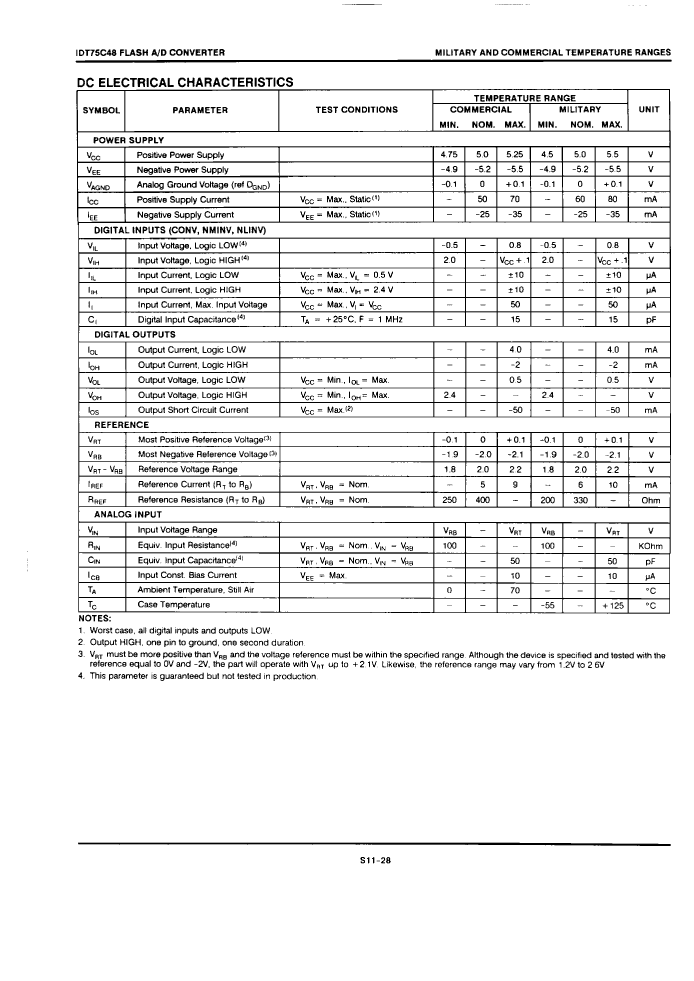

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	0.600 INCH, HERMETIC SEALED, CERDIP-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	0.1 V
Minimum analog input voltage	-1.9 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	37.211 mm
Maximum linear error (EL)	0.3%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	28

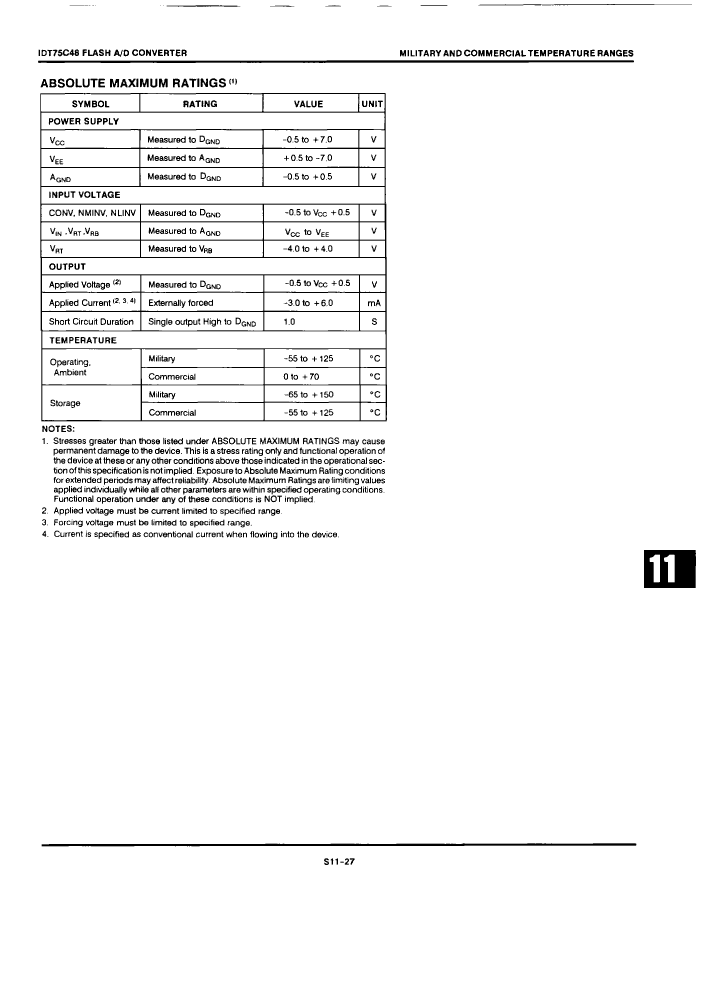

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

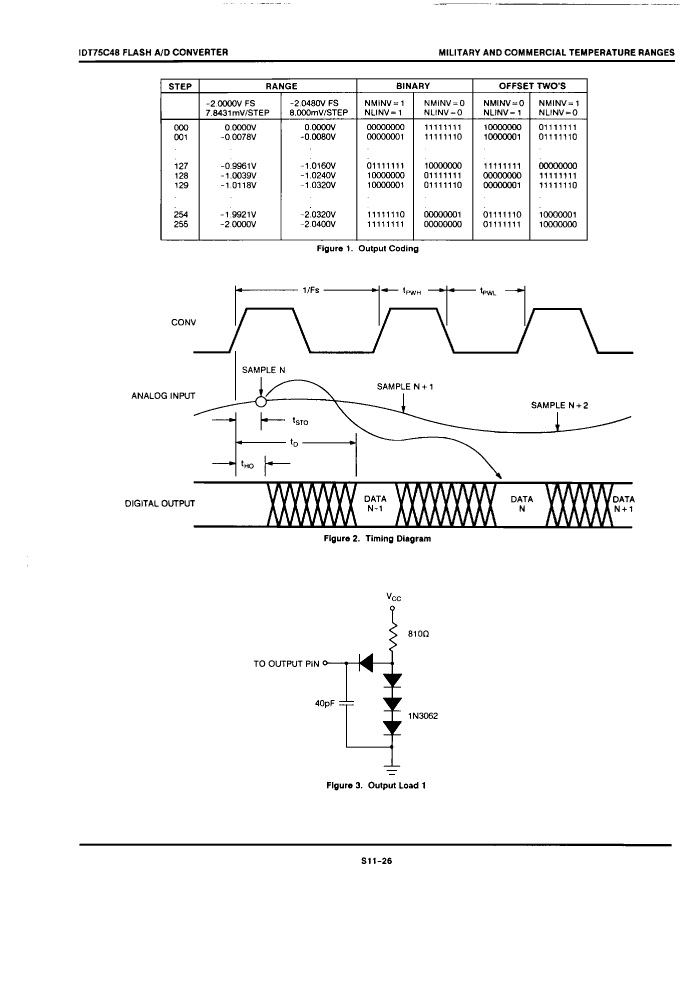

Output bit code	BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT, COMPLEMENTARY OFFSET 2\'S COMPLEMENT
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-5.2 V
Certification status	Not Qualified
Sampling rate	30 MHz
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1
