Datasheet> All Categories > Mechanical and electronic products> relay> 3-1393788-7

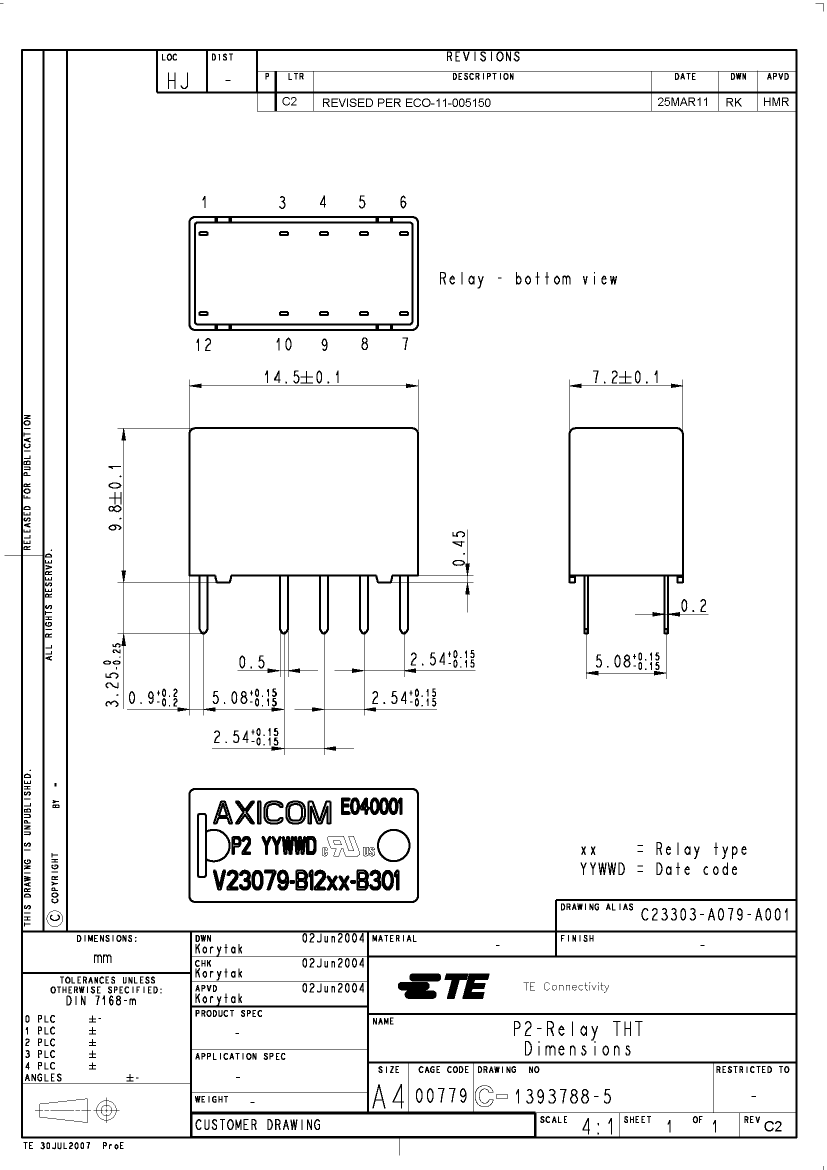

PDF
Preview

3-1393788-7

Description
RF RELAY, DPDT, LATCHED, 0.006A (COIL), 24VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size18KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-1393788-7 Overview

RF RELAY, DPDT, LATCHED, 0.006A (COIL), 24VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1393788-7 Parametric

Parameter NameAttribute value
Brand NameCII
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2142359859
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time48 weeks 3 days
Other featuresRELEASE TIME WITH DIODE
body width7.2 mm
body height9.8 mm
Body length or diameter14.5 mm
Maximum coil current (DC)0.006 A
Coil operating voltage (DC)52.3 V
Coil power140 mW
Coil release voltage (DC)18 V
Coil resistance4114 Ω
Maximum coil voltage (AC)12 V
Maximum coil voltage (DC)24 V
Nominal coil voltage24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load62.5VA@250VAC
Contact (AC) maximum rated R load5A@250VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated power R load60W@220VDC
Contact (DC) maximum rated R load5A@220VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)220 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1500 Vrms
Dielectric strength between breaking contacts1000 Vrms
Electrical life200000 Cycle(s)
End contact materialRUTHENIUM
End contact platingGOLD
Maximum input power60 W
Input switching control typeRandom
Maximum insertion loss-0.02 dB
Insulation resistance1000000000000 Ω
Maximum isolation-39 dB
Installation featuresPANEL MOUNT
Number of terminals10
operating hours7 ms
Maximum operating frequency900 MHz
Minimum operating frequency100 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB hole count10
method of packingBOX
physical size14.5mm x 7.2mm x 9.8mm
GuidelineUL
Relay actionLATCHED
Relay style2 FORM C
Relay functionDPDT
Relay typeRF RELAY
release time7 ms
sealIP67/RT3
surface mountNO
switching time14 ms
Terminal length0.0032 inch
Termination typeSOLDER/QUICK CONNECT
voltage standing wave ratio1.4
weight2.8 g

Preview

Download Datasheet

3-1393788-7 Related Products

3-1393788-7 V23079B1208B301 V23079B1202B301 RJMG1J3208901BL V23079B1211B301 4-1393788-2 3-1393788-3
Description RF RELAY, DPDT, LATCHED, 0.006A (COIL), 24VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT V23079B1208B301 V23079B1202B301 Telecom and Datacom Connector, 8 Contact(s), Female and Female, Right Angle, Solder Terminal V23079B1211B301 RF RELAY, DPDT, LATCHED, 0.031A (COIL), 4.5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT RF RELAY, DPDT, LATCHED, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Relay type RF RELAY RF RELAY RF RELAY - P2 relay V23079 RF RELAY RF RELAY
Termination type SOLDER/QUICK CONNECT SOLDER SOLDER SOLDER Through hole SOLDER SOLDER
Is it Rohs certified? conform to conform to conform to - - conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT - - ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant unknown - compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 - EAR99 EAR99
Other features RELEASE TIME WITH DIODE - - OTHER STACKING CONNECTORS: 8 CONTACTS, 2 PORTS, 4 POSITION EACH - RELEASE TIME WITH DIODE RELEASE TIME WITH DIODE
body width 7.2 mm 7.5 mm 7.5 mm - - 7.2 mm 7.2 mm
body height 9.8 mm 9.9 mm 9.9 mm - - 9.8 mm 9.8 mm
Body length or diameter 14.5 mm 15 mm 15 mm - - 14.5 mm 14.5 mm
Maximum coil current (DC) 0.006 A 0.047 A 0.023 A - - 0.031 A 0.028 A
Coil operating voltage (DC) 52.3 V 2.25 V 4.5 V - - 9.8 V 10.9 V
Coil power 140 mW 140 mW 140 mW - - 140 mW 140 mW
Coil release voltage (DC) 18 V 0.3 V 0.6 V - - 3.38 V 3.75 V
Coil resistance 4114 Ω 64.3 Ω 257 Ω - - 145 Ω 178 Ω
Maximum coil voltage (DC) 24 V 3 V 6 V - - 4.5 V 5 V
Coil/Input Power Type DC DC DC - - DC DC
Contact (AC) maximum rated R load 5A@250VAC 2A@250VAC 2A@250VAC - - 5A@250VAC 5A@250VAC
Maximum contact current (AC) 2 A 2 A 2 A - - 5 A 5 A
Maximum contact current (DC) 2 A 2 A 2 A - - 5 A 5 A
Contact (DC) maximum rated R load 5A@220VDC 2A@220VDC 2A@220VDC - - 5A@220VDC 5A@220VDC
Maximum contact voltage (AC) 250 V 250 V 250 V - - 250 V 250 V
Maximum contact voltage (DC) 220 V 220 V 220 V - - 220 V 220 V
Contact/Output Power Type AC/DC AC/DC AC/DC - - AC/DC AC/DC
Electrical life 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s) - - 200000 Cycle(s) 200000 Cycle(s)
Maximum insertion loss -0.02 dB -0.27 dB -0.27 dB - - -0.02 dB -0.02 dB
Maximum isolation -39 dB -20.7 dB -20.7 dB - - -39 dB -39 dB
Installation features PANEL MOUNT THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT - - THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT
operating hours 7 ms 8 ms 8 ms - - 7 ms 7 ms
Maximum operating frequency 900 MHz 900 MHz 900 MHz - - 900 MHz 900 MHz
Minimum operating frequency 100 MHz 100 MHz 100 MHz - - 100 MHz 100 MHz
Maximum operating temperature 85 °C 85 °C 85 °C - - 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C - - -40 °C -40 °C
method of packing BOX BOX; TUBE BOX; TUBE - - BOX; TUBE BOX; TUBE
physical size 14.5mm x 7.2mm x 9.8mm 15mm x 7.5mm x 9.9mm 15mm X 7.5mm X 9.9mm - - 14.5mm X 7.2mm X 9.8mm 14.5mm x 7.2mm x 9.8mm
Guideline UL CSA; UL CSA; UL - - UL UL
Relay action LATCHED LATCHED LATCHED - - LATCHED LATCHED
Relay function DPDT DPDT DPDT - - DPDT DPDT
release time 7 ms 8 ms 8 ms - - 7 ms 7 ms
seal IP67/RT3 IP67 IP67 - - IP67/RT3 IP67/RT3
surface mount NO NO NO - - NO NO
switching time 14 ms 16 ms 16 ms - - 14 ms 14 ms
voltage standing wave ratio 1.4 1.4 1.4 - - 1.4 1.4
