REVISION AY
DO NOT
SCALE FROM
THIS PRINT
NOTES:
FTE-1XX-XX-X-DV-XX-XX
OPTIONS
-P: PICK AND PLACE PAD (SEE FIG.2, SHT 2)
(ONLY AVAILABLE FOR 08-90 POSITIONS)
(USE PPP-37)
( USE PPP-37-NT FOR TAPE & REEL)
-TR: TAPE & REEL PACKAGING
(USE PPP-37-NT ONLY)
-A: ALIGNMENT PIN (MOLDED OR STAKED)
[ SAMTEC DISCRETION ON WHICH
-A PIN USED]
(MOLDED 4 POS MIN, SEE FIG 6, SHT 2)
(USE FTE-90-D-XX)
(STAKED 7 POS MIN, SEE FIG 5, SHT 2)
(USE FTE-90-D-A)
-M: METAL PICK & PLACE PAD
USE MPP-17-5 (SEE FIG 9 - SHT 3)
(10 POS MIN, AVAILABLE IN -01 STYLE ONLY)
FLEX SHROUD OPTIONS
(STYLE -01 ONLY)
-ES: END SHROUD
[SAMTEC DISCRETION ON WHICH -ES USED]
(SEE FIG 3, SHT 2 FOR SNAPPED-ON,
11 POSITIONS MIN)
(SEE FIG 8, SHT 2 FOR MOLDED,
5 POSITIONS PER ROW MIN, SEE TABLE 2)
-EC: END SHROUD WITH LOCKING CLIPS
(SEE FIG 7, SHT 2)
(11 POSITIONS MIN)
-EP: END SHROUD WITH GUIDE POSTS
(SEE FIG 4, SHT 2)
(11 POSITIONS MIN)
1.
C
REPRESENTS A CRITICAL DIMENSION.
No OF POSITIONS
2. MAXIMUM CUT FLASH: .010 [.25].
-05 THRU -90
3. MINIMUM PUSHOUT FORCE: 1 LB.
(PER ROW)
4. SHEAR TAILS TO DIMENSION SHOWN.
5. MAXIMUM BURR: .003 [.08].
LEAD STYLE
6. MAXIMUM COPLANARITY:
-01: .075 POST
-05 THRU -49 = .004 [.10]
(USE T-1S29-04-X-2 FOR HAND FILL,
-50 THRU -64 = .006 [.15]
T-1S29-02-X-2 FOR MACHINE FILL).
-65 THRU -90 = .009 [.22]
-02: .175 POST
7. FOR -XX POSITION ASSEMBLY USE -XX POSITION
(USE T-1S29-04-X-2 FOR HAND FILL,
BODY EXCEPT AS LISTED IN TABLE 2.
T-1S29-02-X-2 FOR MACHINE FILL).
8. IF -A CALLED OUT ON ASSEMBLY, USE -A ON END OF BODY CALLOUT.
-03: .120 POST
USE FTE-190-0X-G-DV-SA FOR STOCK THAT WILL BE CUT FOR STAKED -A ORDERS.
(USE T-1S29-04-X-2 FOR HAND FILL,
USE FTE-190-0X-G-DV FOR ORDERS NOT REQUIRING STAKED -A OPTION.
T-1S29-02-X-2 FOR MACHINE FILL).
9. MAXIMUM ATTACHED FLASH ALLOWED ON POST SIDE ONLY: .02" [.5].
10. DURING CUT PROCESS, WALL MUST BE A MINIMUM OF .004" OR COMPLETELY REMOVED.
PLATING SPEC
(No OF POS x .0315)
+.004[+0.10]
-.010[-0.25]
-G: 10µ" GOLD IN CONTACT AREA,
"A"
3µ" GOLD ON TAIL
.0157 0.399
.0315 0.800
02
.0472 1.200
180
C
L
.1200 3.048
REF
ROW SPECIFICATION
-DV: DOUBLE ROW VERTICAL
(USE FTE-90-D)
01
"A"
2 MAX SWAY
(EITHER DIRECTION)
.0120 0.305 SQ REF
179
2 MAX SWAY
(EITHER DIRECTION)
T-1S29-XX-X-2
SEE NOTE 9
"A"
(SEE TABLE 1)
C
90°±3°
2 MAX SWAY
(EITHER DIRECTION)
.075 1.91
(CONTACT AREA)
.055 1.40 REF
SEE NOTE 6
FTE-90-D
.067 1.70
SEE NOTE 2
SEE NOTE 2
.18 4.6
BURR SIDE
(SEE NOTE 4 & 5)
SECTION "A"-"A"

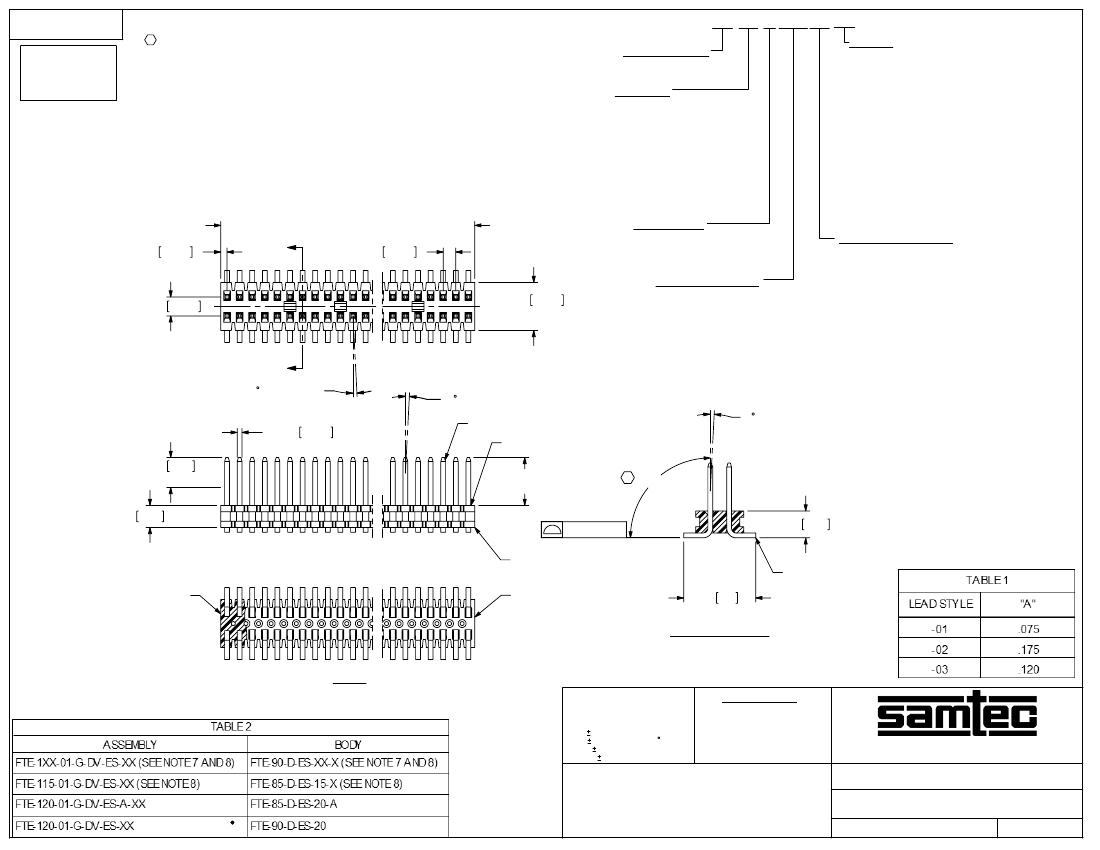

FIG 1
FTE-1XX-03-X-DV SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.X:
.1 [2.5]
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: BLACK, LCP, UL 94 VO
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\FTE-1XX-XX-X-DV-XX-XX-MKT.SLDDRW
.8MM x 1.2MM C.L. TERMINAL STRIP ASSM.
FTE-1XX-XX-X-DV-XX-XX
9/01/2009
SHEET
1
OF
3
BY:
DEAN P
REVISION AY
.200 5.08
REF
C
L
"P"
.125 3.18
REF
"R" REF
(NO OF POS x .0315 [.800] + .217 [5.53])
FTE-EP
.0080 [.203]
.075 1.91 REF
.275 6.99 REF
.150 3.81
REF
.311 7.90
.290 7.37
REF
"M"
"M"= No OF POS X .0315 [.800]
"P"= ("M" - .200 [5.08]) / 2 .020 [.51]

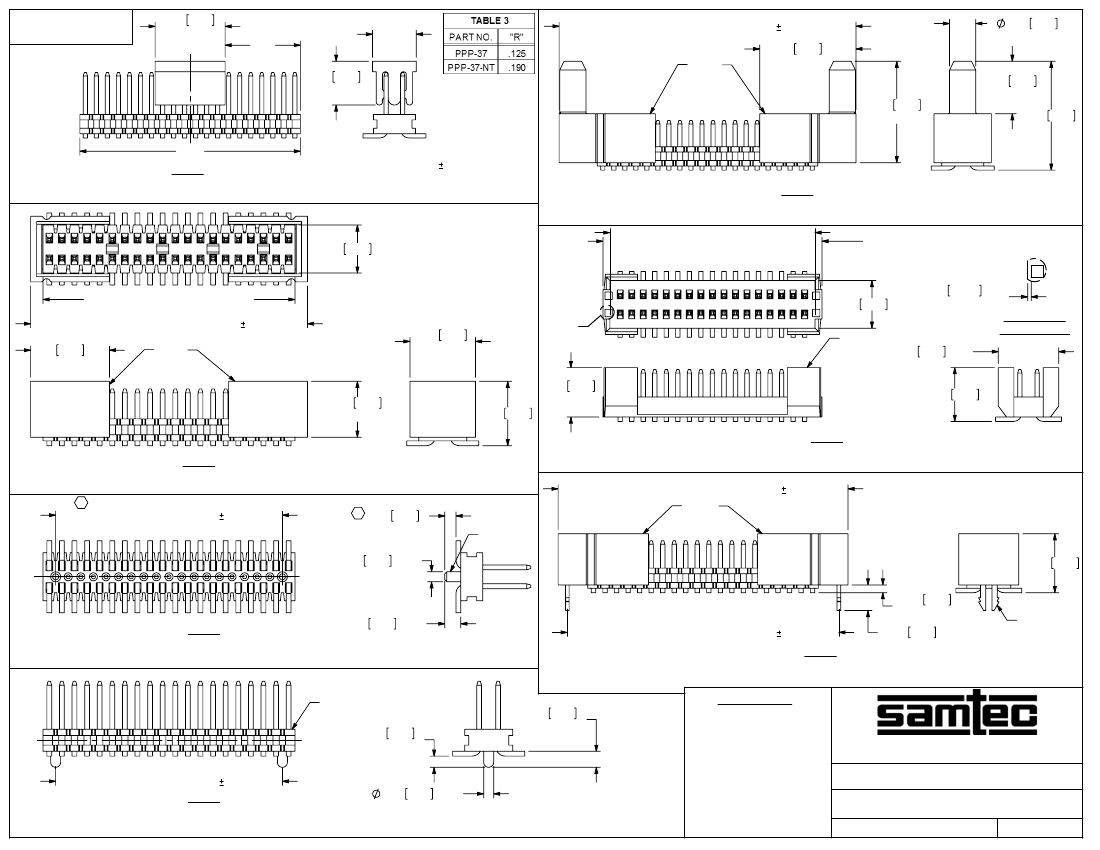

FIG 2
-P OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
-EP OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(NO OF POS x .0315 [.800]) + .025 [.64] REF
.120 3.05 REF
((NO OF POS + 2) x .0315)
- .010
[-0.25]
+.004
[+0.10]
(NO OF POS X .0315)
+.004[+0.10]
-.010[-0.25]
NO OF POS X .0315 [.800] + .062 [1.57]
.197 5.00 REF
FTE-ES
.008 [.20]
.164 4.17
REF
.130 3.30 REF
.0057 0.145 REF
(SEE NOTE 10)
'B'
FTE-XX-D-ES-XX-X
.165 4.19 REF
DETAIL 'B'
SCALE 6 : 1
(4 PLCS)
.140 3.56
REF
.135 3.43
REF
.161 4.09
.147 3.73
FIG 3
-ES OPTION (SNAPPED ON) (11 POS MIN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(NO OF POS - 2) x .0315 [.800]
C
FIG 8
-ES OPTION (MOLDED) (5 POS MIN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
{(NO OF POS x .0315 [.800]) + .160 [4.06]}
FTE-EC
SM-A11H
.008 [.20]
.003 [.08]
C
.028 0.71
.025 0.64 REF
C
L
.021 0.53
REF
{(NO OF POS x .0315 [.800]) + .111 [2.82]}
.161 4.09
.040 1.02 REF
FIG 5
-A OPTION (STAKED) (7 POS MIN)
(DIFFERENT AS SHOWN OTHERWISE SAME AS FIG 1)
FIG 7
-EC OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.008 [.20]
.070 1.78
LC-05-TM
FTE-90-D-XX
C
L
(NO OF POS - 2) x .0315 [.800]
.003 [.08]
.028 0.71
REF
.040 1.02
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
FIG 6
-A OPTION (MOLDED) (4 POS MIN)
(DIFFERENT AS SHOWN OTHERWISE SAME AS FIG 1)
.025 0.64 REF
F:\DWG\MISC\MKTG\FTE-1XX-XX-X-DV-XX-XX-MKT.SLDDRW
.8MM x 1.2MM C.L. TERMINAL STRIP ASSM.
SHEET SCALE: 4:1
FTE-1XX-XX-X-DV-XX-XX
9/01/2009
SHEET
2
OF
3
BY:
DEAN P
REVISION AY
"M"
.250 6.35
REF
MPP-17-5
.100 2.54
"P"
.065 1.65 REF
.080 2.03
"M" = No OF POSITIONS x .0315 [.800]
"P" = {( "M" - .250 [6.35]) / 2 } .020 [.51]
FIG 9
-M OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)

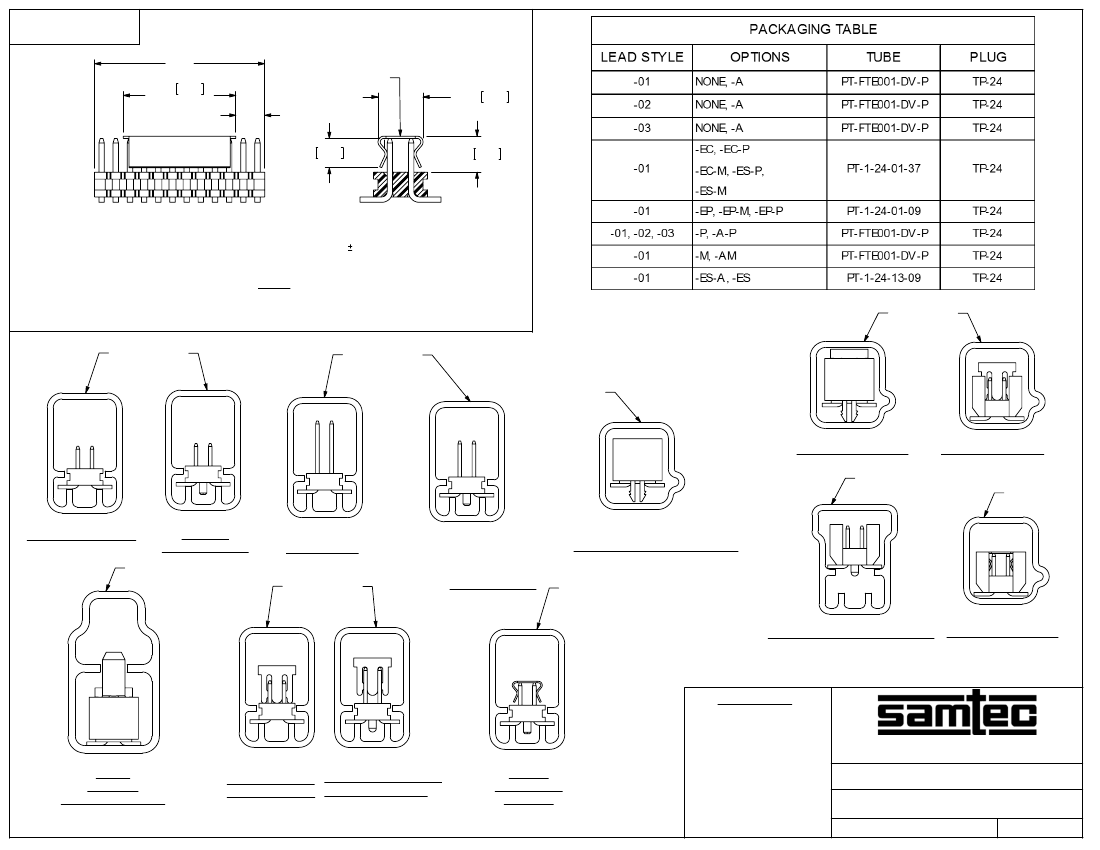

PT-FTE001-DV-P
PT-FTE001-DV-P
PT-1-24-01-37
PT-1-24-01-37
-01-EC-P OPTION
PT-1-24-13-09
-01-ES-P OPTION
PT-1-24-01-37
-01 & -03 OPTION
-01-A &
-03-A OPTION
-02 OPTION
PT-FTE001-DV-P
-01-EC & -EC-M OPTIONS
-02-A OPTION
PT-FTE001-DV-P
PT-1-24-01-09
-01-ES & -01-ES-A OPTIONS
-01-ES-M OPTION
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
01-EP
01-EP-M
-01-EP-P OPTION
-01-P, -02-P & -01-A-P, -02-A-P &
-03-P OPTION -03-A-P OPTION
-01-M
& -01-A-M
OPTION
F:\DWG\MISC\MKTG\FTE-1XX-XX-X-DV-XX-XX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.8MM x 1.2MM C.L. TERMINAL STRIP ASSM.
FTE-1XX-XX-X-DV-XX-XX
9/01/2009
SHEET
3
OF
3
BY:
DEAN P
