3-1230015-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1230015-1

3-1230015-1: Description37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1230015-1 Overview

37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG

3-1230015-1 Parametric

Parameter Name	Attribute value
Objectid	1790066114
Reach Compliance Code	unknown
YTEOL	8.5
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN (118)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1230015
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	PRESS FIT
Total number of contacts	37

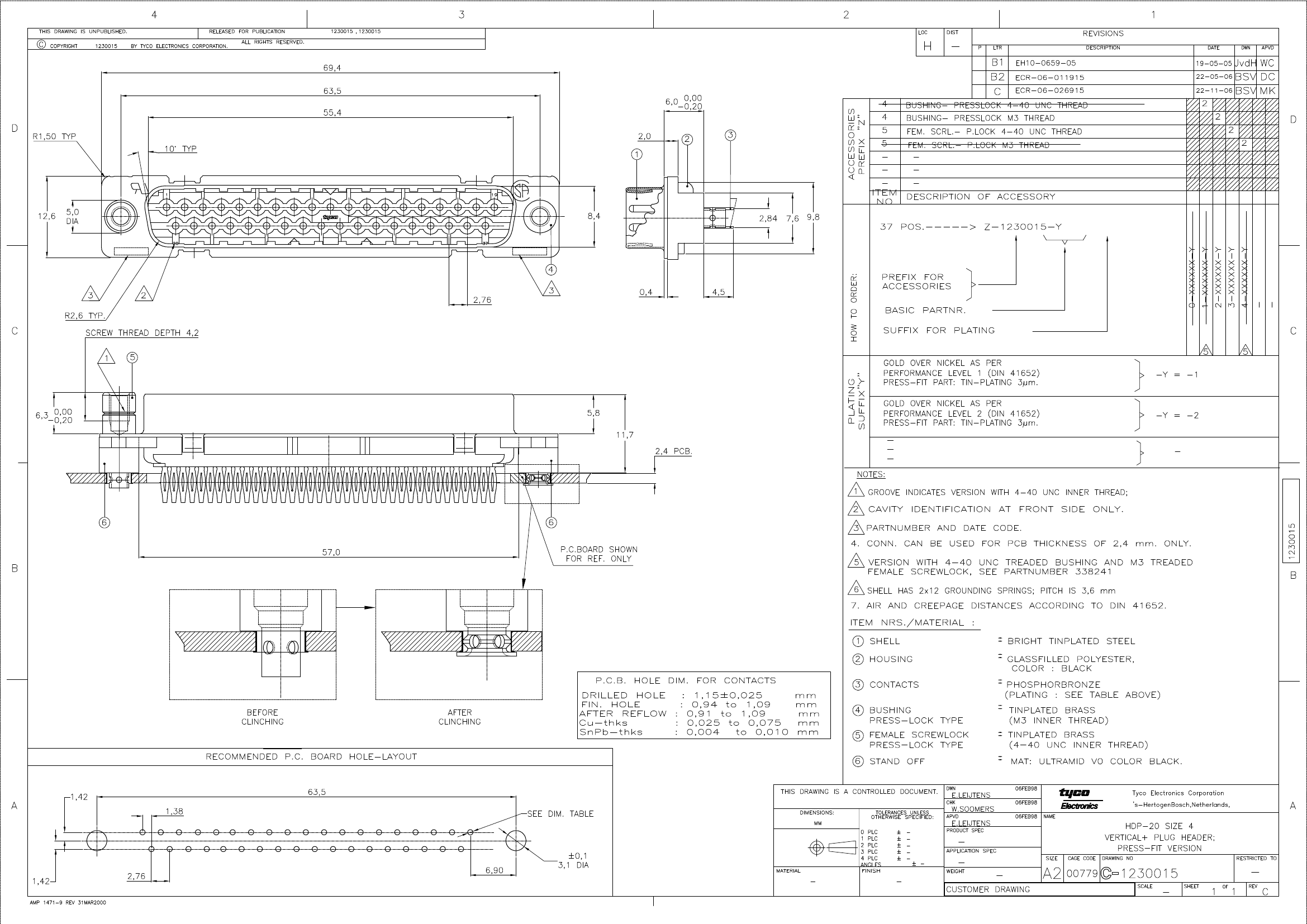

Preview

Download Datasheet

View All

3-1230015-1 Related Products

	3-1230015-1	3-1230015-2	2-1230015-1	4-1230015-1	4-1230015-2	0-1230015-1	0-1230015-2	CHE251G2QLB	CHE251G2RHB
Description	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	Heat Sink	Heat Sink
Objectid	1790066114	1790066117	1790066090	1790066120	1790066123	1790066057	1790066060	402361646	402361681
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
YTEOL	8.5	8.5	8.5	-	-	8.5	8.5	-	-
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	-
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	-
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	-	-
Contact completed and terminated	TIN (118)	TIN (118)	TIN (118)	TIN (118)	TIN (118)	TIN (118)	TIN (118)	-	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	-	-
empty shell	NO	NO	NO	NO	NO	NO	NO	-	-
Filter function	NO	NO	NO	NO	NO	NO	NO	-	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	-	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	-	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	-	-
Manufacturer's serial number	1230015	1230015	-	-	1230015	1230015	1230015	-	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	-	-
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	-	-
Housing size	4/C	4/C	4/C	4/C	4/C	4/C	4/C	-	-
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	-
Total number of contacts	37	37	37	37	37	37	37	-	-
