5962-8985801HXA datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 5962-8985801HXA

Preview

5962-8985801HXA: Description5962-8985801HXA amplifier basic information: 5962-8985801HXA is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are, 5962-8985801HXA amplifier core information: The minimum operating temperature of the 5962-8985801HXA is -55 °C and the maximum operating temperature is 125 °C. How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8985801HXA is 3400 V/us. The nominal supply voltage of 5962-8985801HXA is 15 V, and its corresponding nominal negative supply voltage is -15 V. Related dimensions of 5962-8985801HXA: 5962-8985801HXA has 12 terminals. Its terminal position type is: BOTTOM. 5962-8985801HXA amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W12. The material of 5962-8985801HXA package is mostly METAL. And its package shape is ROUND. 5962-8985801HXA package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size409KB，5 Pages; ManufacturerExar; Alternative parts：5962-8985801HXA

Download Datasheet Parametric Compare View All

5962-8985801HXA Overview

5962-8985801HXA amplifier basic information:

5962-8985801HXA is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

5962-8985801HXA amplifier core information:

The minimum operating temperature of the 5962-8985801HXA is -55 °C and the maximum operating temperature is 125 °C.

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8985801HXA is 3400 V/us.

The nominal supply voltage of 5962-8985801HXA is 15 V, and its corresponding nominal negative supply voltage is -15 V.

Related dimensions of 5962-8985801HXA:

5962-8985801HXA has 12 terminals. Its terminal position type is: BOTTOM.

5962-8985801HXA amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W12. The material of 5962-8985801HXA package is mostly METAL. And its package shape is ROUND. 5962-8985801HXA package pin formats are: CYLINDRICAL.

Its terminal form is: WIRE.

5962-8985801HXA Parametric

Parameter Name	Attribute value
Maker	Exar
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	60 dB
JESD-30 code	O-MBCY-W12
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Filter level	MIL-STD-883
Nominal slew rate	3400 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

www.cadeka.com

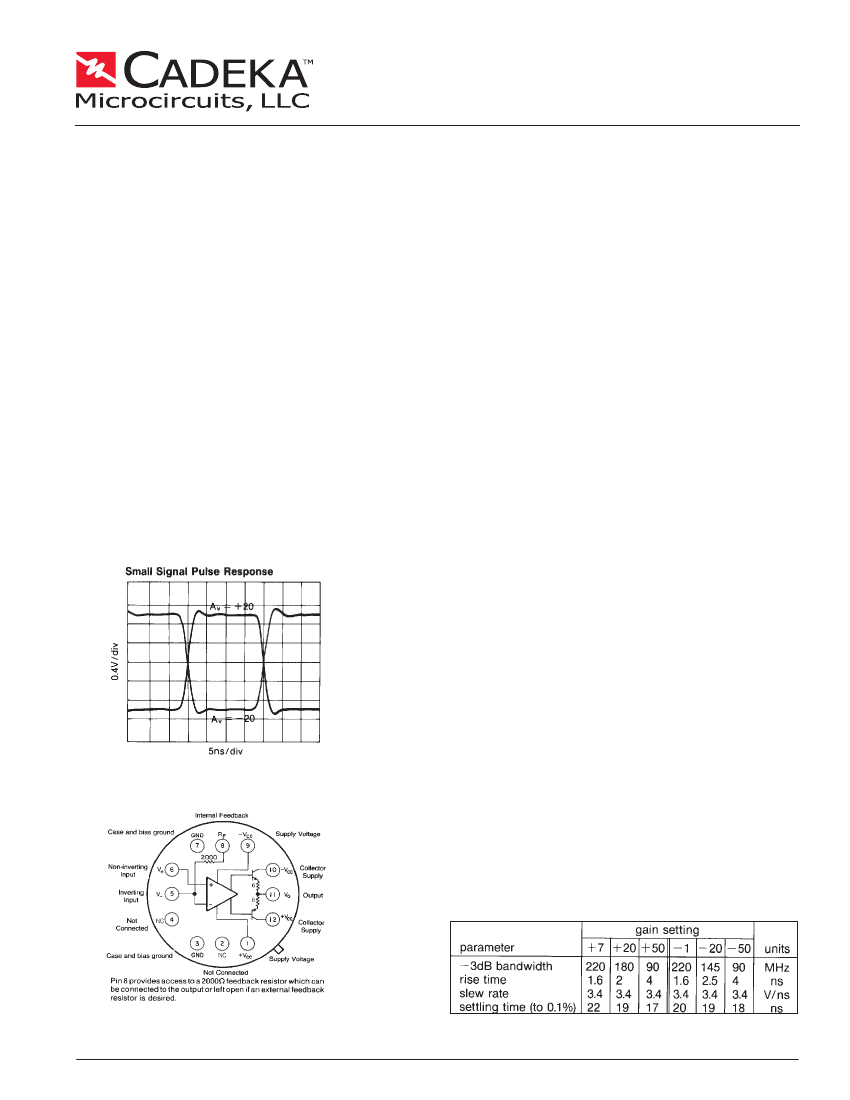

KH206

Overdrive-Protected Wideband Op Amp

Features

General Description

The KH206 is a wideband, overdrive-protected

operational amplifier designed for applications

needing both speed and high drive capability

(100mA). Utilizing a well-established current feed-

back architecture, the KH206 exhibits performance far

beyond that of conventional voltage feedback

op amps. For example, the KH206 has a bandwidth

of 180MHz at a gain of +20 and settles to 0.1% in

19ns. Plus, the KH206 has a combination of important

features not found in other high-speed op amps.

The 100mA output current and the large signal

bandwidth of 70MHz (20V

) make the KH206 ideal

for applications which involve both high signal

amplitudes and heavy loads as in coaxial line driving

applications.

Complete overdrive protection has been designed

into the KH206. This is critical for applications, such as

ATE and instrumentation, which require protection

from signal levels high enough to cause saturation of

the amplifier. This feature allows the output of the

op amp to be protected against short circuits using

techniques developed for low-speed op amps. With

this capability, even the fastest signal sources can

feature effective short circuit protection.

The KH206 is constructed using thin film resistor/bipolar

transistor technology, and is available in the following

versions:

KH206AI

KH206AK

-25°C to +85°C

-55°C to +125°C

12-pin TO-8 can

12-pin TO-8 can, features

burn-in & hermetic testing

12-pin TO-8 can,

environmentally

screened and electrically

tested to MIL-STD-883

SMD#: 5962-8985801HXC

SMD#: 5962-8985801HXA

-3dB bandwidth of 180MHz

70MHz large signal bandwidth (20V

)

0.1% settling in 19ns

Overdrive protected

Output may be current limited

Stable without compensation

3MΩ input impedance

Direct replacement for CLC206

Applications

Fast, precision A/D conversion

Automatic test equipment

Input/output amplifiers

Photodiode, CCD preamps

High-speed modems, radios

Line drivers

Bottom View

KH206AM

KH206HXC

KH206HXA

-55°C to +125°C

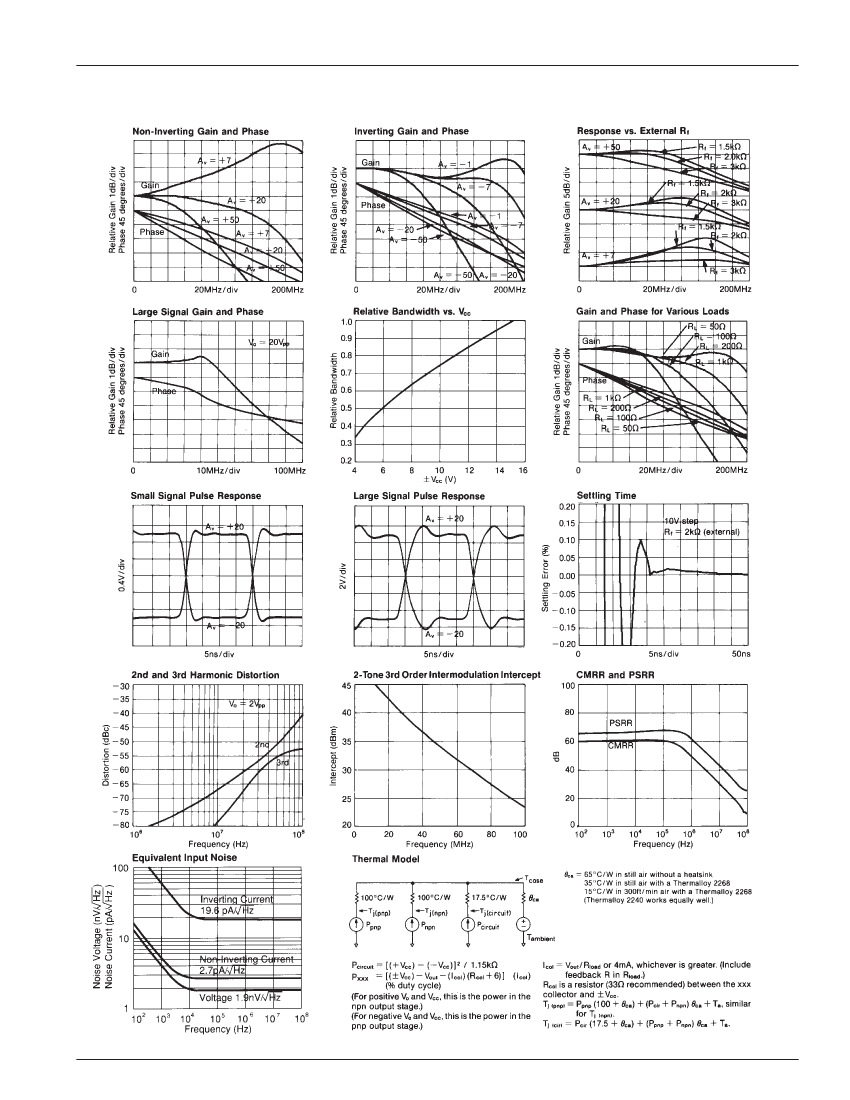

Typical Performance

REV. 1A January 2004

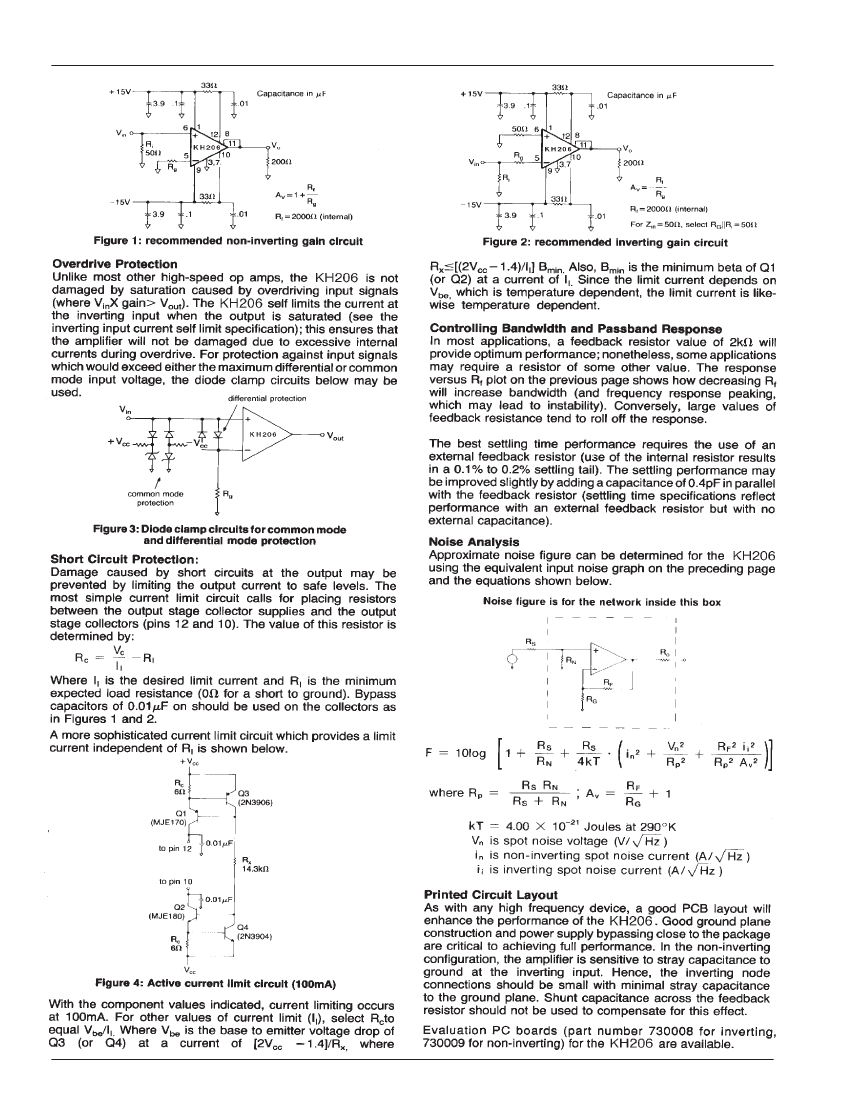

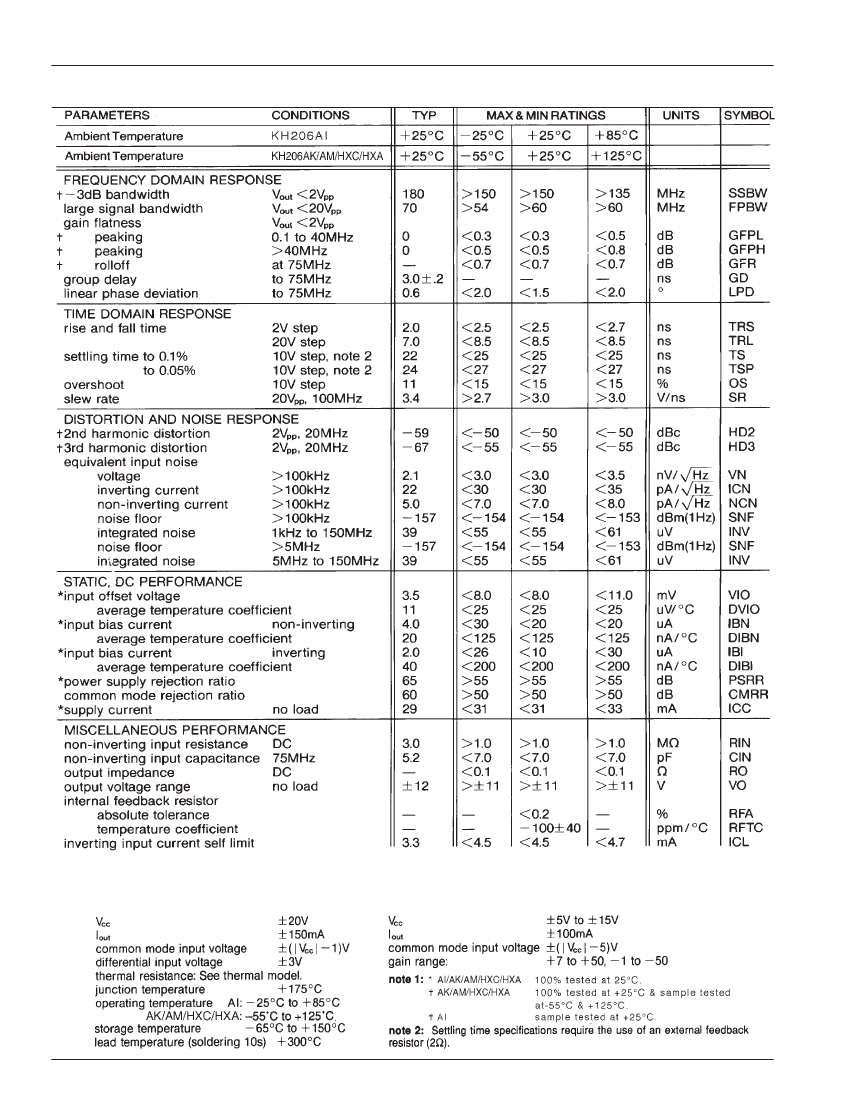

5962-8985801HXA Related Products

	5962-8985801HXA	5962-8985801HXC
Description	Operational Amplifier, 1 Func, BIPolar, MBCY12, METAL, TO-8, 12 PIN	Operational Amplifier, 1 Func, BIPolar, MBCY12, METAL, TO-8, 12 PIN
Maker	Exar	Exar
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	60 dB	60 dB
JESD-30 code	O-MBCY-W12	O-MBCY-W12
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	12	12
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Nominal slew rate	3400 V/us	3400 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
