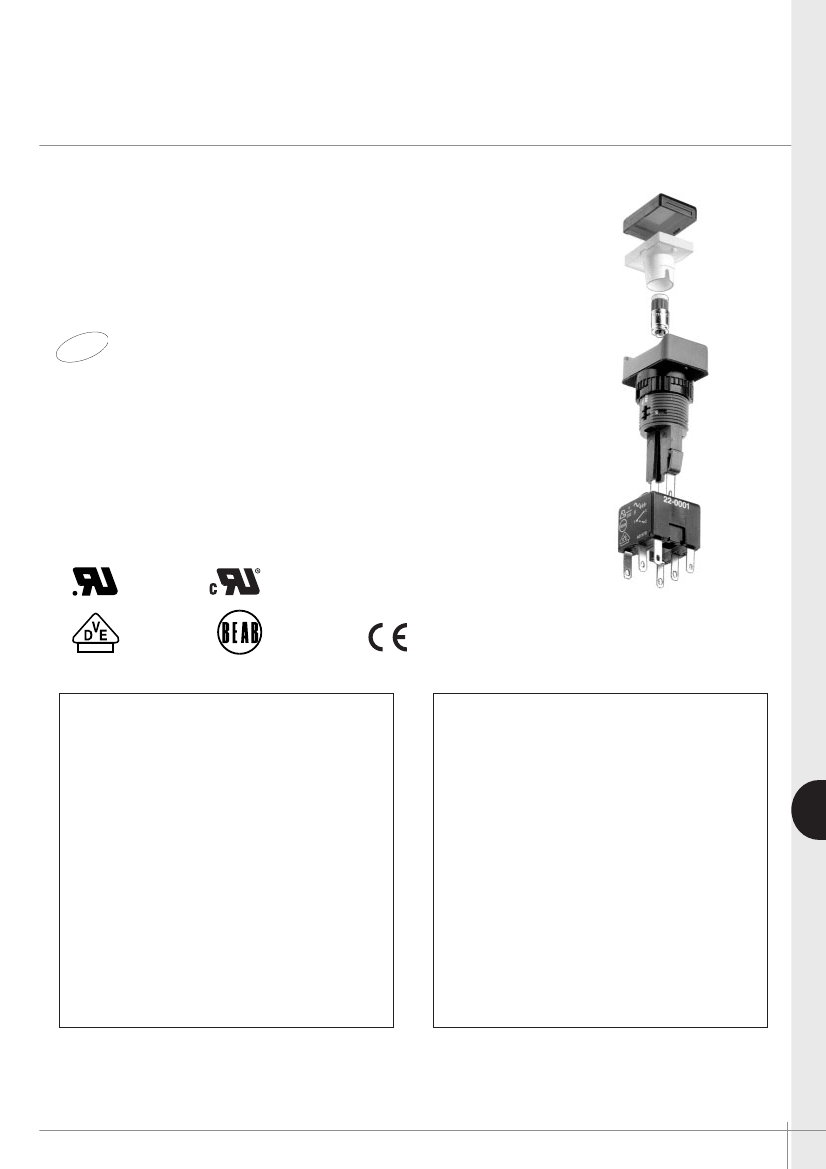

A1-A01-A02-A03 series
Industrial controls
Distinctive features
The A01 and A02 series offer ranges of :
- pushbutton switches, illuminated or not
- indicators
- 2 or 3 position keylock switches
- 2 or 3 position rotary lever switches
- emergency stop switches
with rectangular, square or round operators.
• Custom engraved aluminium pushbutton switches, A1 series
!
• Switch enclosures
New
• Pushbutton switches and indicators, A03 series
❑
Environmental protection : IP65
❑
Modular construction
❑
Electrical life : 50.000 cycles min.
❑
Screen engraving or insertable legends on request
❑
Approvals
UL 1054
EN 61058-1
pending
EN 61058-1
BS RIA 20 Shock & Vibration
Each sub-assembly has
to be ordered separately.
A01 - A1 - A03 series
• Panel cut-out :
Ø 16 mm (.630), except :
- flush mount round : Ø 22 mm (.866)
- flush mount rectangular : 20.60 x 26.70 mm
- flush mount square : 20.60 x 20.60 mm
- A1 series : Ø 22 mm (.866)
- A03 series : round or square Ø 22 (.866)
flush mount : Ø 30 mm (1.378)
• 1, 2, 3 and 4 poles
• Solder lug/quick-connect terminals
• Contacts : silver, gold plated
• Current/voltage rating :
6A 250VAC max. - 10mA 5VAC min.
• Lamp : filament, neon or LED
A02 series
• Panel cut-out :
- round or square : Ø 22 mm (.866)
- rectangular : 29,5 x 21,5 mm (1.160x.846)
- flush mount : Ø 30 mm (1.378)
• 1 and 2 poles
• Screw terminals (optional : quick-connect term.)
• Contacts : silver
• Current/voltage rating : 12A 380VAC
16A 250VAC max. - 25mA 5VAC min.
• Lamp : filament, neon, LED
or special multi-LED array
Option : end cap terminal guard. Order separately
(see end of A02 series).
G
Packaging unit
:
A1 : 25 pieces - A01 : 20 pieces (except pushbuttons: 25 pieces) - A02 : 25 pieces - A03 : 10 pieces.
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
APEM
www.apem.com
G-3
A1-A01-A02-A03 series
Industrial controls
Specifications for pushbutton, keylock and rotary switches
ELECTRICAL SPECIFICATIONS
A01 - A1 - A03
•
Function
:
•
Current/voltage rating
:
Momentary
or maintained action
10mA 5VAC min.
6A 250VAC max. - 6A 12VDC max.
> 1 mm (.039)
10mΩ max. at 1A 4VDC
50 MΩ min.
750V between open contacts
5KV live to accessible
50.000 cycles
Class 2
LED : 60.000 h min. to 75% relative
luminosity - Filament : approx. 5.000 h
Neon : approx. 10.000 h
A02
Momentary
or maintained action
25mA 5VAC min.
12A 380VAC - 16A 250VAC max.
12A 12VDC max.
Double break 2 x 1,5 mm (.059)
10mΩ max. at 1A 4VDC
50 MΩ min.
2KV between open contacts
4KV live to accessible
50.000 cycles
Class 2
LED : 60.000 h min. to 75 % relative
luminosity - Filament : approx. 5.000 h
Neon : approx. 10.000 h
•
Contact gap
•
Initial contact resistance
:
•
Insulation resistance
:
•
Dielectric strength
:
•
Electrical life (resistive load)
:
•
Insulation
:
•
Lamp life
:
•
Lamp circuit diagrams
A
B
A
B
GENERAL SPECIFICATIONS
A01 - A1 - A03
•
Min. mechanical life
:
Pushb. momentary : 1 million cycles
Pushb. maintained : 100.000 cycles
Keylock and rotary : 100.000 cycles
8 mm (.315) max.
-20°C to +55°C
350°C, 5 sec.
IP 65 front of panel
IP 40 back of panel
Midget Grooved T1
3/4
,
filament, LED or neon
Solder/quick-connect 2,8 mm (.110)
Solder/quick-connect 2,8 mm (.110)
A02
Pushb. momentary: 1 million cycles
Pushb. maintained : 100.000 cycles
Keylock and rotary : 100.000 cycles
8 mm (.315) max.
-20°C to +85°C
350°C, 5 sec.
IP 65 front of panel
IP 40 back of panel
Midget Grooved T1
3/4
,
filament, LED or neon
Special multi-LED array
M3 screws - wire 2 x 0,75 mm
2
max.
M3 screws
Flexible wire 2 x 2,5 mm
2
max.
Rigid wire 4 mm
2
max.
•
Panel thickness
•
Operating temperature
:
G
• Solder heat resistance
:
(IEC 68-2-20Tb, method 2)
•
Degree of environmental
protection
(IEC 529 )
•
Lamps
:
•
Switch terminals
:
•
Lamp terminals
:
Specifications for emergency stop switches
: see pages 10 and 22.
For screen engraving or film legends, contact APEM.
G-4
www.apem.com
APEM

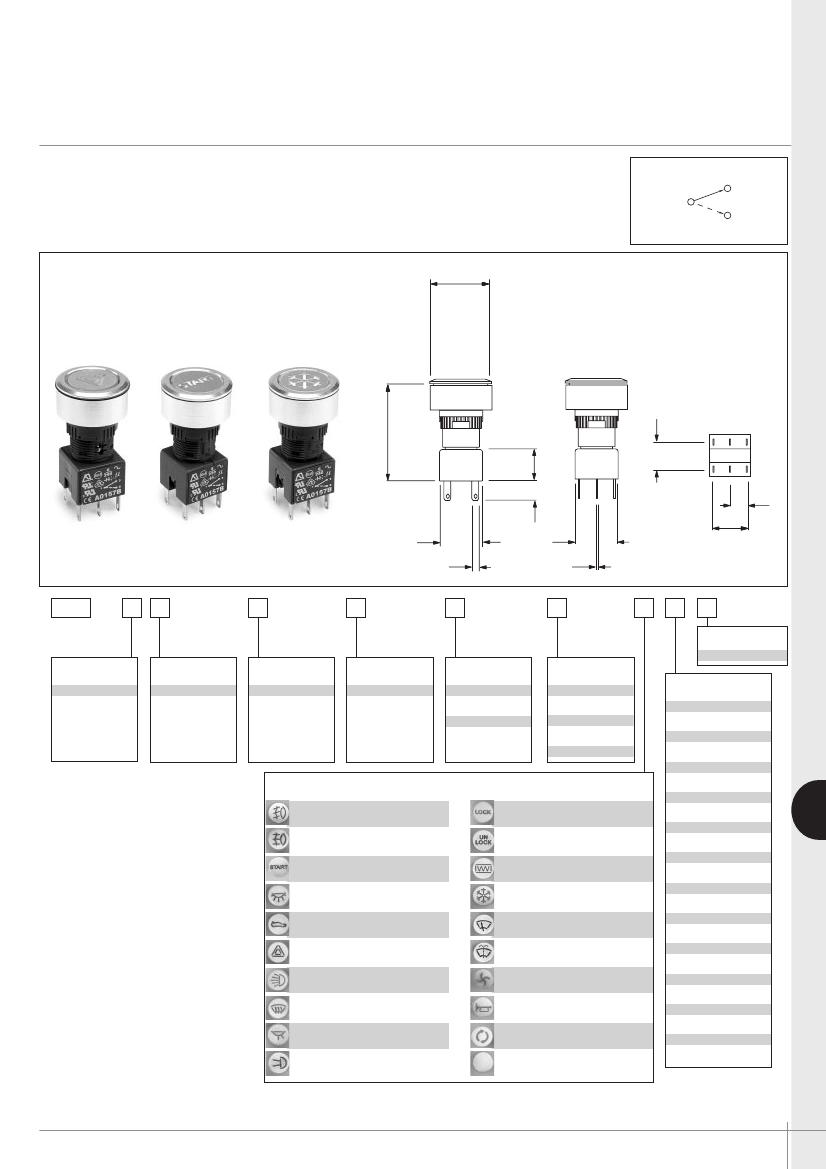

A1 series
Engraved aluminium flush mounting pushbuttons and indicators
Panel cut-out Ø 22 (.866)
A pushbutton assembly requires
:
engraved screen + lamp (if illuminated) + operator + switch block + flush mount bezel.
To order these elements, select desired model numbers from the table below.
Example
: pushbutton, round, illuminated, sealed to IP65, latching, single pole with “start”
engraving, 24V blue LED and flush mounting bezel = A1PCA1X103K403.
Ø25.00
(9.85 DIA)
3
1
2
42.05
(1.655)
14.5
(.571)
12.00
(.472)
7.65
(.301)
8.5
(.335)
15.3
(.602)
18.00
(.709)
2.8
(.110)
18.00
(.709)
0.5
(.020)
A1
Accessories
03 - flushmount
Switch Type
P - pushbutton
I - indicator
Bezel
C - round
Illumination
A - illuminated
B - non-illum.
Sealing
0 - unsealed
1 - sealed IP65
Function
0 - indicator
X - latching
Y - momentary
Switch block
0 - indicator
1 - single pole
2 - double pole
5 - three pole
3 - four pole
Bulb
A1 - filament 6.3V
B1 - filament 14V
C1 - filament 28V
D1 - filament 36V
E1 - filament 48V
F1 - filament 60V
G1 - Neon 110V
H1 - Neon 220V
I1 - Led 6V red
I2 - Led 6V green
I3 - Led 6V amber
J1 - Led 12V red
J2 - Led 12V green
J3 - Led 12V amber
J4 - Led 12V blue
J5 - Led 12V white
K1 - Led 24V red
K2 - Led 24V green
K3 - Led 24V amber
K4 - Led 24V blue
K5 - Led 24V white
L1 - Led 48V red
L2 - Led 48V green
L3 - Led 48V amber
Engraved Screen Options
01 - Front Fog Lights
02 - Rear Fog Lights
03 - ‘Start’
04 - Interior Light
05 - Boot Release
06 - Hazard Warning
07 - Lights
08 - Heating & Ventilation
09 - Map Lights
OTHER SCREEN ENGRAVING OPTIONS :
contact APEM.
10 - Side Lights
11 - ‘Lock’
12 - ‘Unlock’
13 - Rear Window Heating
14 - Cooling
15 - Wipers
16 - Washers
17 - Fan
18 - Horn
19 - Air recirculation
20 - Blank
G
APEM
www.apem.com
G-5

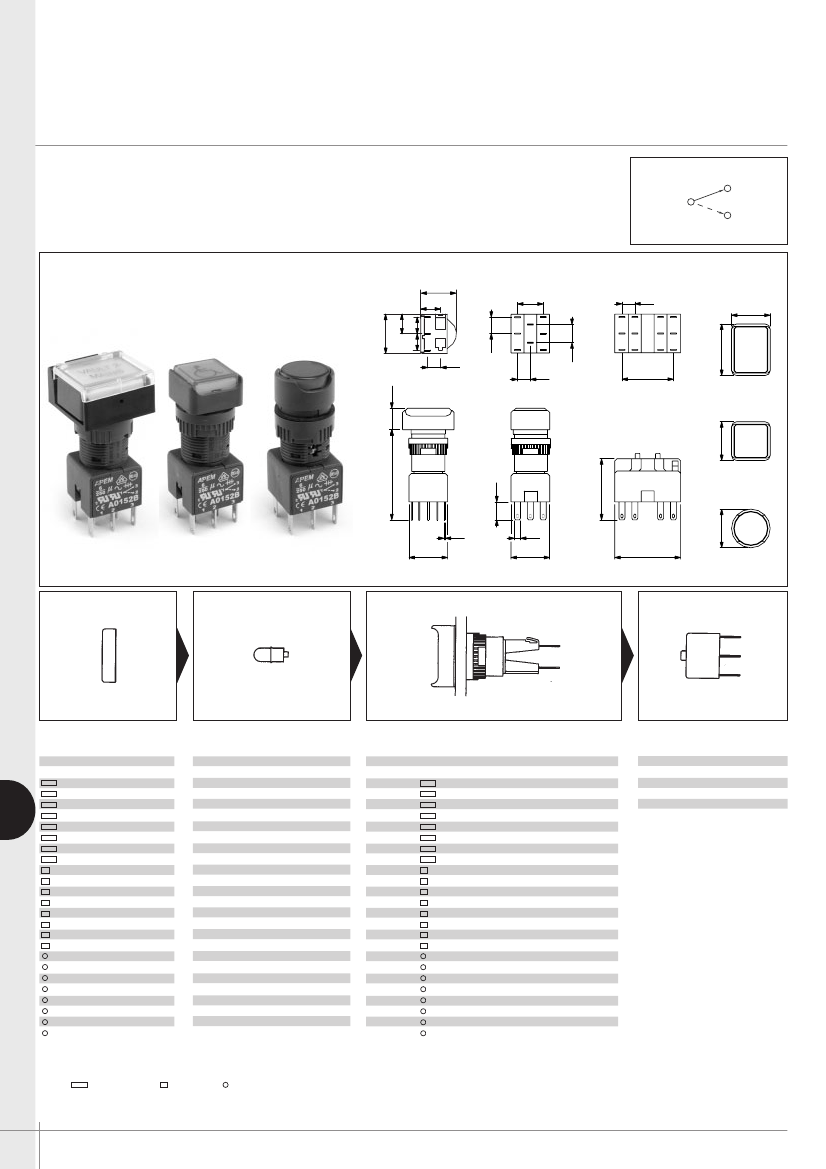

A01 series
Illuminated or non-illuminated pushbutton switches
Panel cut-out Ø 16 (.630)
A pushbutton assembly requires
:
screen + lamp (if illuminated) + operator + switch block.
To order these elements, select desired model numbers from tables below.
Example
: IP65 rectangular pushbutton, single pole, maintained, red screen and 12V red LED =
A0161B, A0142M1, A0101X and A0151BUL.
3
1
2
16.25
(.640)
9.00
(.354)
9.00
(.354)
7.65 7.65
(.301) (.301)
3
12.00
(.472)
6.00
(.236)
18.00
(.709)
1
1
3
3
1
2
2
2
18.00
(.709)
2
7.65
(.301)
2
2
6.00
(.236)
8.50
(.335)
6.00
(.236)
10.00
(.394)
24.00
(.945)
42.00
(1.654)
C
D
28.50
(1.122)
8.40
(.330)
C
D
E
F
Ø18.00
(.709 DIA)
0.50
(.020)
18.00
(.709)
2.80
(.110)
18.00
(.709)
30.70
(1.209)
❶
❷
❸
❹
Screen
Bezel
Colour
black
red
amber
yellow
green
blue
clear
white
black
red
amber
yellow
green
blue
clear
white
black
red
amber
yellow
green
blue
clear
white
Part No
A0161A
A0161B
A0161C
A0161D
A0161E
A0161F
A0161G
A0161J
A0162A
A0162B
A0162C
A0162D
A0162E
A0162F
A0162G
A0162J
A0163A
A0163B
A0163C
A0163D
A0163E
A0163F
A0163G
A0163J
Lamp
Filament
Filament
Filament
Filament
Filament
Filament
Neon
Neon
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
ED
LED
LED
LED
Lamp
Voltage
6.3V
14V
28V
36V
48V
60V
110V
220V
6V red
6V green
6V amber
12V red
12V green
12V amber
12V blue
12V white
24V red
24V green
24V amber
24V blue
24V white
48V red
48V green
48V amber
Part No
A0141A
A0141B
A0141C
A0141D
A0141E
A0141F
A0143G
A0143H
A0142L1
A0142L2
A0142L3
A0142M1
A0142M2
A0142M3
A0142M4
A0142M5
A0142N1
A0142N2
A0142N3
A0142N4
A0142N5
A0142P1
A0142P2
A0142P3
Pole
1 or 2
1 or 2
1 or 2
1 or 2
3 or 4
3 or 4
3 or 4
3 or 4
1 or 2
1 or 2
1 or 2
1 or 2
3 or 4
3 or 4
3 or 4
3 or 4
1 or 2
1 or 2
1 or 2
1 or 2
3 or 4
3 or 4
3 or 4
3 or 4
Bezel
Operator
Description
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Illum, momentary
Illum, maintained
Non-illum, momentary
Non-illum, maintained
Part No
A0101Y
A0101X
A0102Y
A0102X
A0103Y
A0103X
A0104Y
A0104X
A0105Y
A0105X
A0106Y
A0106X
A0107Y
A0107X
A0108Y
A0108X
A0109Y
A0109X
A0110Y
A0110X
A0111Y
A0111X
A0112Y
A0112X
Switch block
No of poles
Single pole
Double pole
Three pole
Four pole
Part No
A0151BUL
A0152BUL
A0155BUL
A0153BUL
G
UNSEALED SWITCHES (IP40)
:
add “01” to end of
operator
model number.
BI-COLOUR LED’s optional.
SCREEN ENGRAVING/INSERTABLE LEGENDS : contact APEM
Bezel:
rectangular,
square,
round,
‘Illum’ - illuminated,
‘Non-illum’ - non illuminated
G-6
www.apem.com
18.00x18.00
(.709 SQ)
24.00
(.945)
3
3
1
1
1
3
APEM

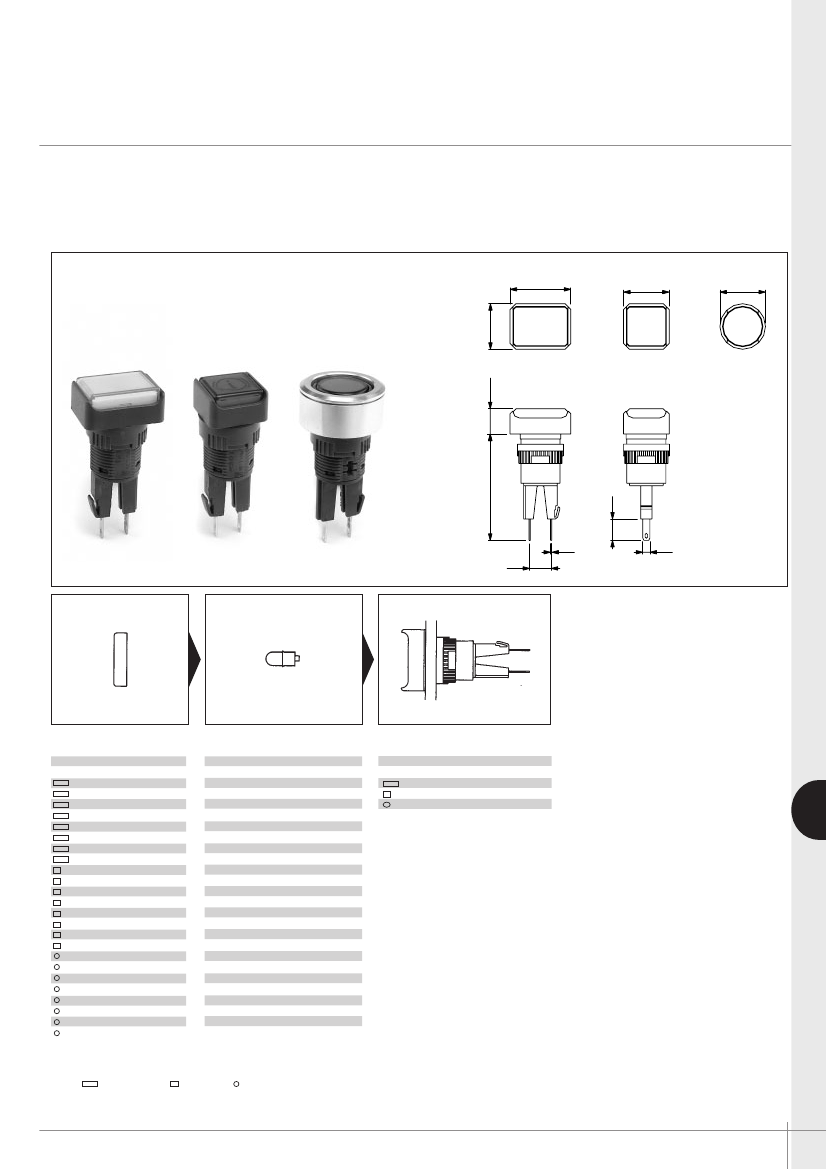

A01 series
Indicators
Panel cut-out Ø 16 (.630)
An indicator assembly requires
:
screen + lamp + operator.
To order these elements, select desired model numbers from tables below.
Example
: IP65 rectangular indicator with red screen and 12V red LED = A0161B, A0142M1 and A0171.
24.00
(.945)
18.00
(.709)
Ø18.00
(.709 DIA)
42.00
(1.654)
10.00
(.394)
18.00
(.709)
0.50
(.020)
8.50
(.335)
8.40
(.330)
2.80
(.110)
❶
❷
❸
Screen
Bezel
Colour
black
red
amber
yellow
green
blue
clear
white
black
red
amber
yellow
green
blue
clear
white
black
red
amber
yellow
green
blue
clear
white
Part No
A0161A
A0161B
A0161C
A0161D
A0161E
A0161F
A0161G
A0161J
A0162A
A0162B
A0162C
A0162D
A0162E
A0162F
A0162G
A0162J
A0163A
A0163B
A0163C
A0163D
A0163E
A0163F
A0163G
A0163J
Lamp
Filament
Filament
Filament
Filament
Filament
Filament
Neon
Neon
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
Lamp
Voltage
6.3V
14V
28V
36V
48V
60V
110V
220V
6V red
6V green
6V amber
12V red
12V green
12V amber
12V blue
12V white
24V red
24V green
24V amber
24V blue
24V white
48V red
48V green
48V amber
Part No
A0141A
A0141B
A0141C
A0141D
A0141E
A0141F
A0143G
A0143H
A0142L1
A0142L2
A0142L3
A0142M1
A0142M2
A0142M3
A0142M4
A0142M5
A0142N1
A0142N2
A0142N3
A0142N4
A0142N5
A0142P1
A0142P2
A0142P3
Bezel
Operator
Description
Indicator
Indicator
Indicator
Part No
A0171
A0172
A0173
G
UNSEALED INDICATORS (IP40)
:
add “01” to end of
operator
model
number.
SCREEN ENGRAVING / INSERTABLE LEGENDS : contact APEM
Bezel:
rectangular,
square,
round
APEM
www.apem.com
G-7
京公网安备 11010802033920号
EEWORLD
