ATTENUATION
VALUE
0 - 12.5 dB
13 - 30 dB
"A"
u
.020
.750
.875
"A"
EST MICR
-0275-XX-
SMA MALE
INTERFACE DIMENSIONS
PER MIL-348, FIG. 310-1
O
.28
SMA FEMALE
INTERFACE DIMENSIONS
PER MIL-348, FIG. 310-2
NOTES: UNLESS OTHERWISE SPECIFIED.
1. SPECIFICATIONS:
1.1 FREQUENCT RANGE: DC - 18.0 GHz
1.2 ATTENUATION ACCURACY:
0 dB: +0.3/-0 dB
0.5 - 6 dB:
u
0.3 dB
6.5 - 20 dB:
u
0.5 dB
20.5 - 30 dB:
u
1.0 dB
1.3 VSWR (MAX):
1.07+.015f(GHz)
1.4 MAXIMUM INPUT POWER:
AVERAGE: 2 WATTS AT +25
v
C, DERATED LINEARLY
TO 0.5 WATTS AT +125
v
C.
PEAK: 200 WATTS FOR A DUTY CYCLE OF 5x10^-4,
MAX PULSE DURATION OF 5 MICROSECONDS.
1.5 OPERATING TEMP. RANGE: -65
v
C TO +125
v
C
1.6 FINISH: PASSIVATED STAINLESS STEEL
3RD ANGLE PROJECTION
Midwest Microwave
Title:
RoHS
This PROPRIETARY Document
is property of Emerson Network
Power Connectivity Solutions.
It is confidential in nature,
non-transferable, and issued with
the clear understanding that it is
not traced or copied without
permission and is returnable
upon demand.
2002/95/EC
UNLESS OTHERWISE SPECIFIED
UNITS: INCH

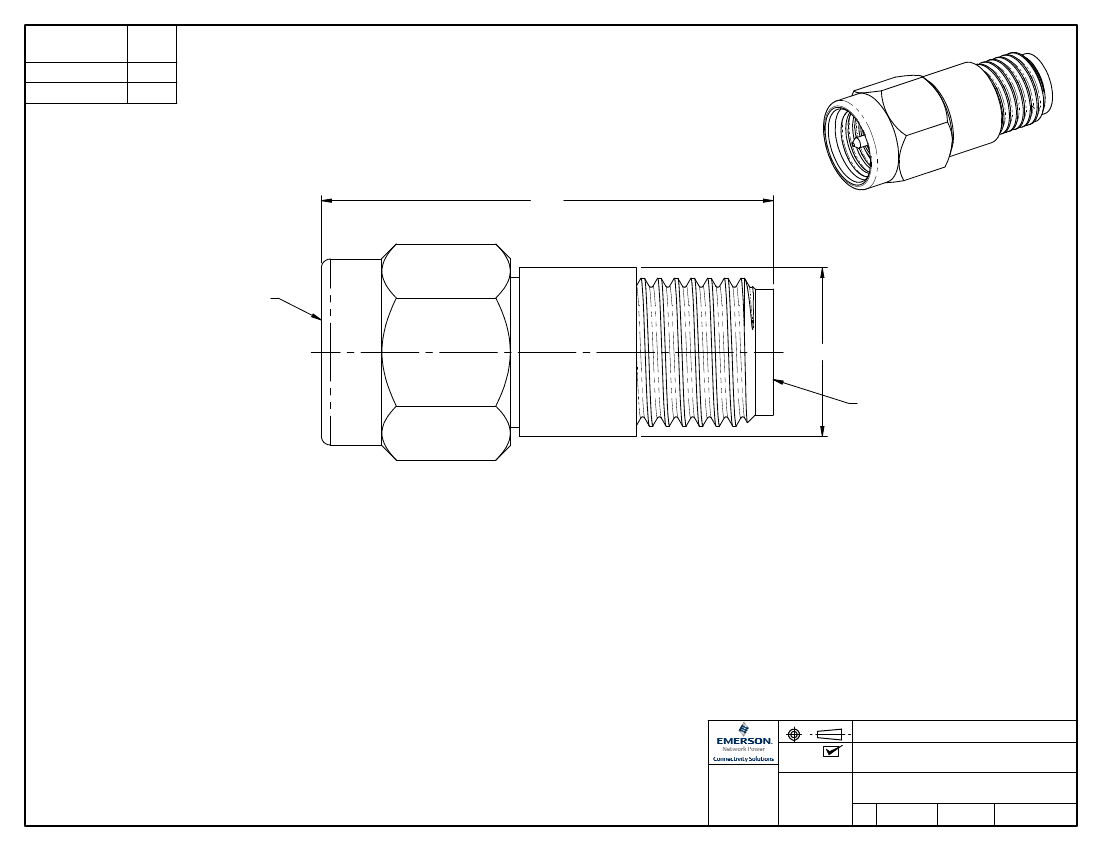

ATTENUATOR 0 - 30 dB
Model No.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2
v
ATT-0275-XX-SMA-02
Size
A
DO NOT SCALE
Date:
7/22/2013
DRAWING
Sheet 1 of 1
