8824471400: DescriptionDry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size85KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

8824471400 Overview

Dry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

8824471400 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	19.7 mm
body height	10 mm
Body length or diameter	32.4 mm
Maximum coil current (DC)	0.021 A
Coil operating voltage (DC)	16.8 V
Coil power	505 mW
Coil release voltage (DC)	1.4 V
Coil resistance	1254 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	8824471400
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	32.4mm x 19.7mm x 10mm
Relay action	MOMENTARY
Relay function	4PST
Relay type	DRY REED RELAY
release time	0.1 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

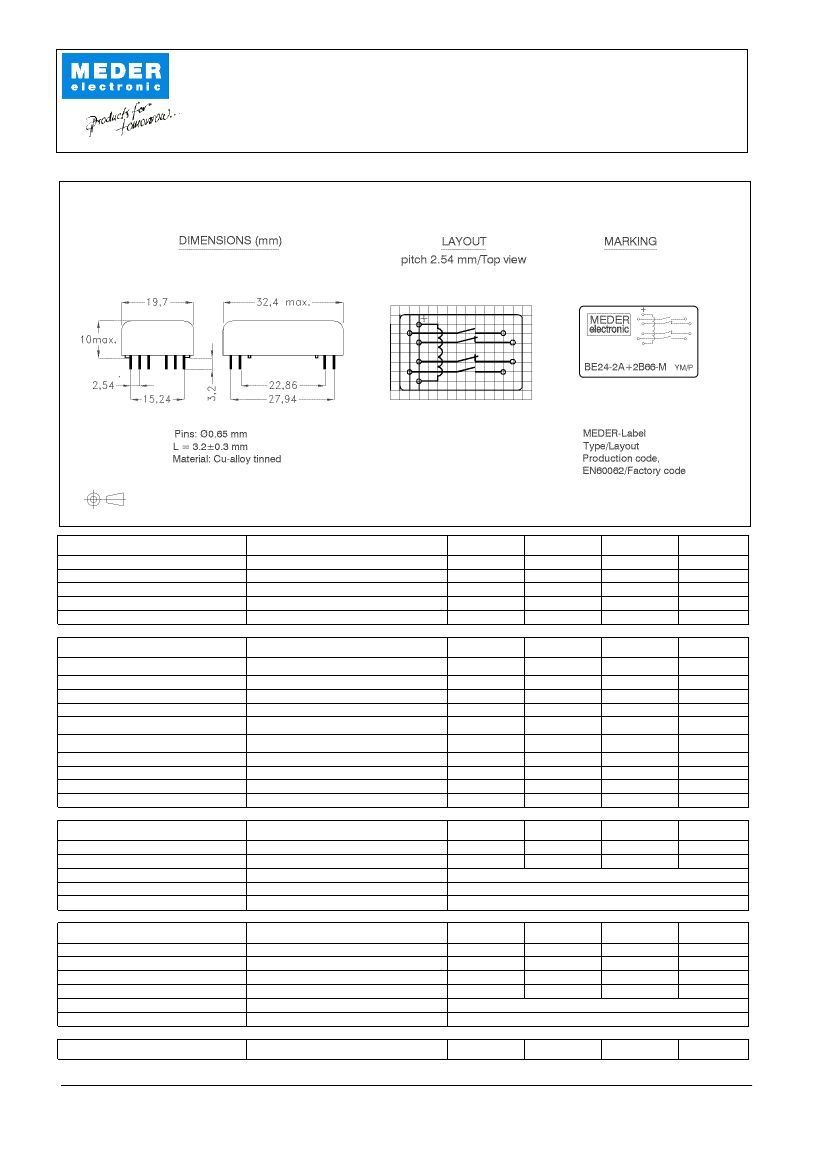

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

8824471400

Item:

BE24-2A+2B66-M

BE24-2A+2B71-M

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 66

Contact rating

Switching voltage (>20 AT)

Switching current

Carry current

Contact resistance static

Contact resistance dynamic

Insulation resistance

Breakdown voltage (>20 AT)

Operate time incl. bounce

Release time

Conditions

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

! "#

Start Value

% '

Start Value

$ % !"! %

! &

RH <45 %, 100 VDC test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

(

Special Product Data

Insulation resistance Coil/Contact

Insulation voltage Coil/Contact

Housing material

Sealing compound

number of contacts

Conditions

RH <45%, 200 VDC test voltage

according to IEC 255-5

Min

Typ

Max

(

)

Unit

Fe - magnetic screen

Polyurethan

Environmental data

Shock

Vibration

Ambient temperature

Storage temperature

Soldering temperature

Cleaning

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

Typ

Max

Unit

wave soldering max. 5 sec.

fully sealed

General data

Conditions

Min

Typ

Max

Unit

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

19.07.06

20.07.06

Last Change by:

WKOVACS

KOLBRICH

Approval at:

30.06.09

Approval by:

KOLBRICH

Version:

8824471400 Related Products

	8824471400	BE24-2A+2B71-M	BE24-2A+2B66-M
Description	Dry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Maker	Standex	Standex	Standex
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
body width	19.7 mm	19.7 mm	19.7 mm
body height	10 mm	10 mm	10 mm
Body length or diameter	32.4 mm	32.4 mm	32.4 mm
Maximum coil current (DC)	0.021 A	0.021 A	0.021 A
Coil operating voltage (DC)	16.8 V	16.8 V	16.8 V
Coil power	505 mW	505 mW	505 mW
Coil release voltage (DC)	1.4 V	1.4 V	1.4 V
Coil resistance	1254 Ω	1254 Ω	1254 Ω
Maximum coil voltage (DC)	24 V	24 V	24 V
Coil/Input Power Type	DC	DC	DC
Contact (AC) maximum rated R load	.5A@200VAC	.5A@200VAC	.5A@200VAC
Maximum contact current (AC)	0.5 A	0.5 A	0.5 A
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC	.5A@200VDC	.5A@200VDC
Maximum contact voltage (AC)	200 V	200 V	200 V
Maximum contact voltage (DC)	200 V	200 V	200 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC
Manufacturer's serial number	8824471400	BE24-2A+2B71-M	BE24-2A+2B66-M
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms	0.5 ms	0.5 ms
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
physical size	32.4mm x 19.7mm x 10mm	32.4mm x 19.7mm x 10mm	32.4mm x 19.7mm x 10mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	4PST	4PST	4PST
Relay type	DRY REED RELAY	DRY REED RELAY	DRY REED RELAY
release time	0.1 ms	0.1 ms	0.1 ms
surface mount	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER
