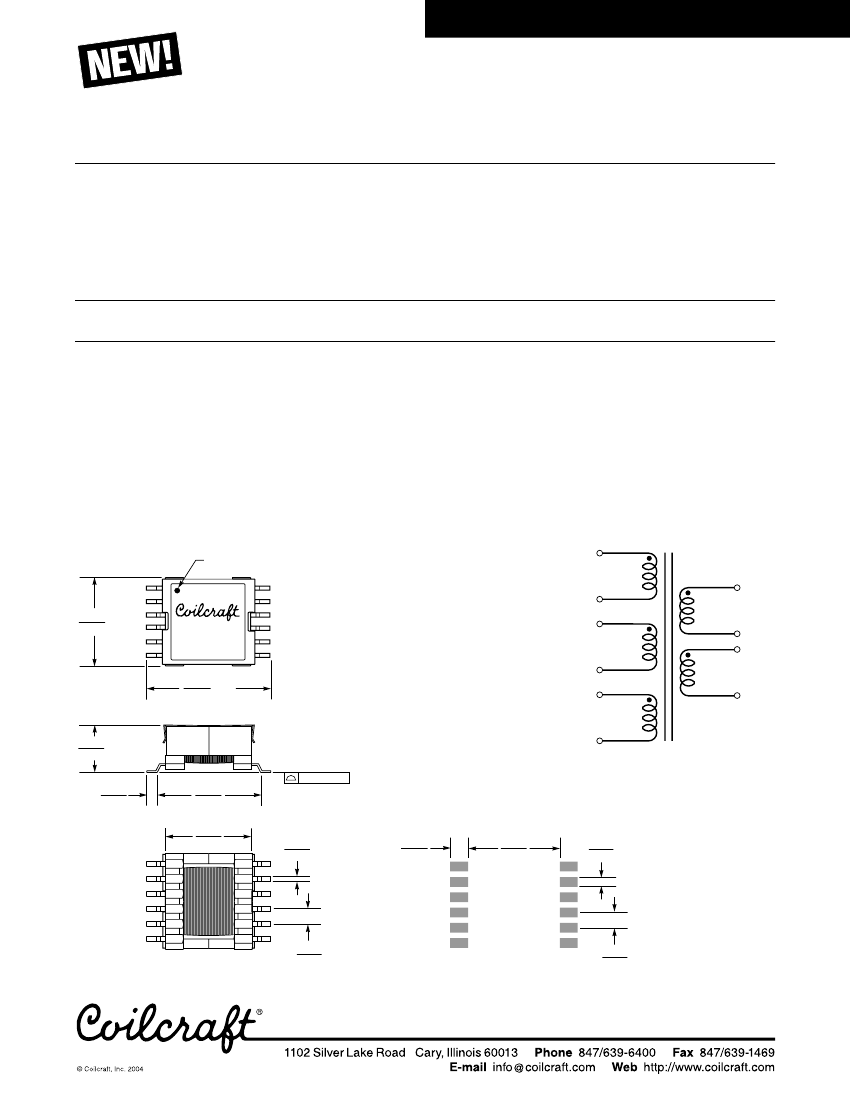

Document 379
SMT Transformer
The B0863-A low profile, surface mount transformer was
designed specifically for use with the Maxim MAX5941B
Power IC in Power over Ethernet (PoE) applications. It
operates in a forward converter topolgy and can be used
as a PWM controller for powered devices (PD).
For Maxim MAX5941B
Power IC for PoE
This transformer features five windings, with the second-
ary dual wound in parallel. It operates at 275 kHz switching
frequency at a 50% duty cycle. For free evaluation
samples, contact Coilcraft or order them on-line at
www.coilcraft.com.
Input
voltage
range (V)
28 – 60
Part
number
B0863-A
Inductance
1
min (µH)
165
DCR max
2
(Ohms)
0.061 (pri)
1.00 (reset)
1.290 (bias)
0.016 (sec)
0.023 (drive)
Leakage
inductance
3
max (µH)
0.75
Output
3.3 V, 4 A
Isolation
4
1600 Vac
1. Inductance is measured at 10 kHz, 0.1 Vrms, 0 Adc.
2. DCR is measured on a micro-ohmmeter.
3. Leakage inductance is for the primary and is measured with all other windings shorted.
4. Isolation is measured between the primary and all other windings.
5. Operating temperature range –40°C to +85°C.
6. Electrical specifications at 25°C.
Dimensions
Dot indicates
pin 1
1
12
Schematic
1
Primary
12,11
3
Secondary
2
7
0.677 max
17,20
6
B0863-A
9,10
8
Drive
7
Reset
4
0.865 max
21,97
5
Bias
0.335 max
8,51
0.004 /0,10
6
0.079
2,01
0.693
17.60
0.590
14,98
6
7
0.028
0,72
0.135
3,43
1
0.665
16,88
0.07
1,79
Recommended
Land Pattern
1
12
0.098
2,5
0.098
2,5
Tape and reel:
225/13″ reel 44 mm tape width
Specifications subject to change without notice.
Document 379
Revised 03/04/04
