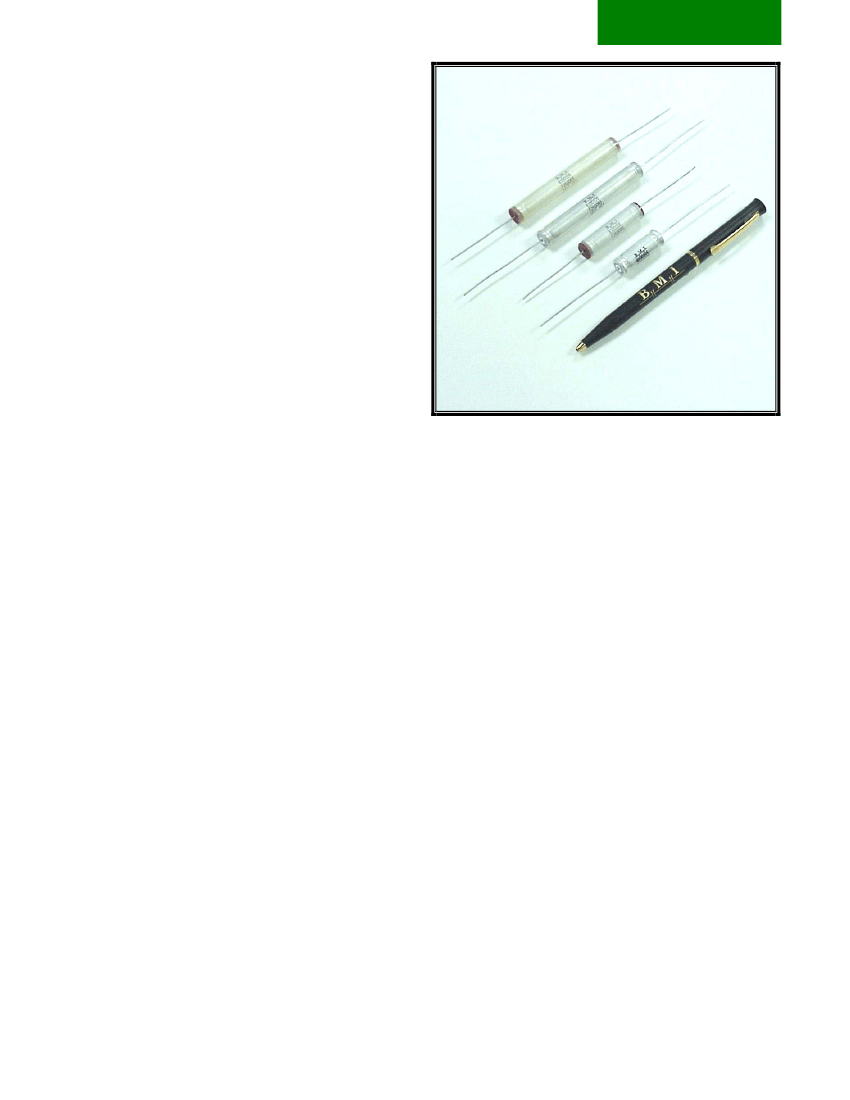

M39108/02
+125°C
Non-Polar, Miniature
Aluminum Capacitors
M39018/02
•
Styles CU14 and CU15
General Specifications-
Operating Temperature:
-55 to +125°C
Voltage Range:
7.0 – 250 VDC
Capacitance Range:
0.68µF to 680µF
Capacitance Tolerance:
-10%/+30%
-10%/+50%
-10%/+75%
Case Size Range:
0.296” X 1.000” – 0.390” X 2.812”
Termination:
Axial Leads.
Life Validation Test:
Refer to MIL-PRF-39018/2D for test
requirements.
Shelf Test:
Refer to MIL-PRF-39108/2D for test
requirements.
Other Test Parameters:
Refer to MIL-PRF-39108/2D for test
requirements.
M39108/02
PART NUMBER BREAK-DOWN:
M39018/ 02- 0401
DASH NUMBER:
(SEE STANDARD RATINGS TABLE.)
DETAIL SPECIFICATION NUMBER:
INDICATES THE DETAIL SPECIFICATION NUMBER (IE MIL-PRF-39018/2D).
BASIC DOCUMENT NUMBER:
INDICATES THE BASIC SPECTIFICATION NUMBER (IE. MIL-PRF-39018).

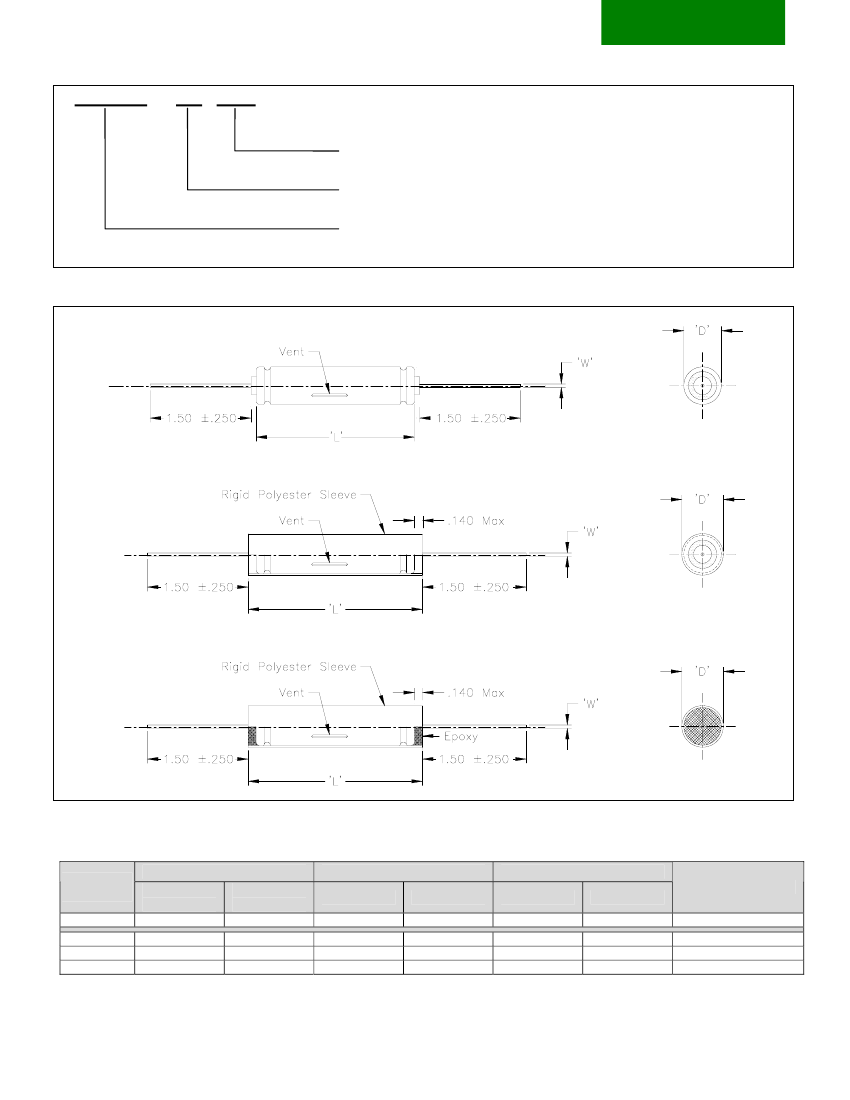

Axial-Leaded Capacitor Dimensions
STYLE CU14
STYLE CU15
STYLE CU15
Table 1. Case Dimensions mm(in.)
CASE
CODE
A0
A7
A8
A9
CU14
‘D’
±0.38(±0.015)
7.14 (0.281)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
‘L’
±0.79(±0.031)
23.83 (0.938)
36.53 (1.438)
53.98 (2.125)
69.85 (2.750)
CU15 (w/ sleeve)
‘D’ MAX.
7.72 (0.304)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
‘L’ MAX.
25.40 (1.000)
38.10 (1.500)
55.55 (2.187)
71.42 (2.812)
CU15 (w/epoxy end-seal)
‘D’ MAX.
7.72 (0.304)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
‘L’ MAX.
28.17 (1.109)
40.87 (1.609)
58.32 (2.296)
74.19 (2.921)
WIRE GAUGE ‘W’
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
M39108/02
STANDARD RATINGS FOR TYPE M39018/02
Rated
Cap.
(µF)
47
220
470
680
39
180
330
470
33
120
150
270
390
15
56
68
120
150
180
6.8
27
56
82
3.9
15
18
39
56
2.2
12
22
33
Max.
ESR
+25°C
120Hz
(Ω)
5.64
1.21
0.56
0.39
6.80
1.47
0.80
0.56
8.04
2.21
1.77
0.98
0.68
17.68
4.74
3.90
2.21
1.77
1.47
19.50
4.91
2.37
1.62
34.01
8.84
7.37
3.40
2.37
60.29
11.05
6.03
4.02
Max. ESR
+85°C &
+125°C
Max.
Imped.
-55°C
Case
Size
A0
A7
A8
A9
A0
A7
A8
A9
A0
A7
A7
A8
A9
A0
A7
A7
A8
A8
A9
A0
A7
A8
A9
A0
A7
A7
A8
A9
A0
A7
A8
A9
120Hz
(Ω)
7.05
1.51
0.71
0.49
8.50
1.84
1.00
0.71
10.05
2.76
2.21
1.23
0.85
22.10
5.92
4.88
2.76
2.21
1.84
39.01
9.82
4.74
3.23
68.01
17.68
14.74
6.80
4.74
120.57
22.10
12.06
8.04
120Hz
(Ω)
64
14
6.4
4.4
77
17
9.1
6.4
91
25
20
11
7.7
130
36
30
17
13
11
300
74
36
23
510
130
110
51
36
910
170
91
61
-10/+30
0401
0402
0403
0404
0405
0406
0407
0408
0409
0410
0411
0412
0413
0414
0415
0416
0417
0418
0419
0420
0421
0422
0423
0424
0425
0426
0427
0428
0429
0430
0431
0432
Dash Number
Capacitance Tolerance (%)
CU14
CU15
-10/+50
-10/+75
-10/+30
-10/+50
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
0529
0530
0531
0532
0501
0502
0503
0504
0505
0506
0507
0508
0509
0510
0511
0512
0513
0514
0515
0516
0517
0518
0519
0520
0521
0522
0523
0524
0525
0526
0527
0528
---
---
---
---
0601
0602
0603
0604
0605
0606
0607
0608
0609
0610
0611
0612
0613
0614
0615
0616
0617
0618
0619
0620
0621
0622
0623
0624
0625
0626
0627
0628
0629
0630
0631
0632
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
0729
0730
0731
0732
-10/+75
0701
0702
0703
0704
0705
0706
0707
0708
0709
0710
0711
0712
0713
0714
0715
0716
0717
0718
0719
0720
0721
0722
0723
0724
0725
0726
0727
0728
---
---
---
---
7 VOLTS DC WORKING & 10 VOLTS DC SURGE @ 85°C; 5 VOLTS DC WORKING & 7 VOLTS DC SURGE @ 125°C
10 VOLTS DC WORKING & 15 VOLTS DC SURGE @ 85°C; 7 VOLTS DC WORKING & 10 VOLTS DC SURGE @ 125°C
15 VOLTS DC WORKING & 20 VOLTS DC SURGE @ 85°C; 10 VOLTS DC WORKING & 15 VOLTS DC SURGE @ 125°C
30 VOLTS DC WORKING & 40 VOLTS DC SURGE @ 85°C; 20 VOLTS DC WORKING & 30 VOLTS DC SURGE @ 125°C
50 VOLTS DC WORKING & 60 VOLTS DC SURGE @ 85°C; 40 VOLTS DC WORKING & 50 VOLTS DC SURGE @ 125°C
75 VOLTS DC WORKING & 90 VOLTS DC SURGE @ 85°C; 60 VOLTS DC WORKING & 75 VOLTS DC SURGE @ 125°C
100 VOLTS DC WORKING & 125 VOLTS DC SURGE @ 85°C; 75 VOLTS DC WORKING & 100 VOLTS DC SURGE @ 125°C
M39108/02
STANDARD RATINGS FOR TYPE M39018/02
Rated
Cap.
(µF)
1.8
5.6
8.2
12
15
22
1.0
4.7
10
15
0.68
3.3
6.8
10
Max.
ESR
+25°C
120Hz
(Ω)
73.68
23.68
16.17
11.05
8.84
6.03
132.63
28.22
13.26
8.84
290.00
40.19
19.50
13.26
Max. ESR
+85°C &
+125°C
Max.
Imped.
-55°C
Case
Size
A0
A7
A7
A8
A8
A9
A0
A7
A8
A9
A0
A7
A8
A9
120Hz
(Ω)
147.37
47.37
32.35
22.10
17.68
12.06
265.26
56.44
26.53
17.68
390.09
80.38
39.01
26.53
120Hz
(Ω)
1100
360
230
170
130
91
2000
400
200
130
3000
610
300
200
-10/+30
0433
0434
0435
0436
0437
0438
0439
0440
0441
0442
0443
0444
0445
0446
Dash Number
Capacitance Tolerance (%)
CU14
CU15
-10/+50
-10/+75
-10/+30
-10/+50
0533
0534
0535
0536
0537
0538
0539
0540
0541
0542
0543
0544
0545
0546
---
---
---
---
---
---
---
---
---
---
---
---
---
---
0633
0634
0635
0636
0637
0638
0639
0640
0641
0642
0643
0644
0645
0646
0733
0734
0735
0736
0737
0738
0739
0740
0741
0742
0743
0744
0745
0746
-10/+75
---
---
---
---
---
---
---
---
---
---
---
---
---
---
150 VOLTS DC WORKING & 175 VOLTS DC SURGE @ 85°C; 100 VOLTS DC WORKING & 125 VOLTS DC SURGE @ 125°C
200 VOLTS DC WORKING & 225 VOLTS DC SURGE @ 85°C; 150 VOLTS DC WORKING & 175 VOLTS DC SURGE @ 125°C
250 VOLTS DC WORKING & 275 VOLTS DC SURGE @ 85°C; 200 VOLTS DC WORKING & 225 VOLTS DC SURGE @ 125°C
NOTE:
Additional Electrical Parameters can be found in MIL-PRF-39018/2D.
