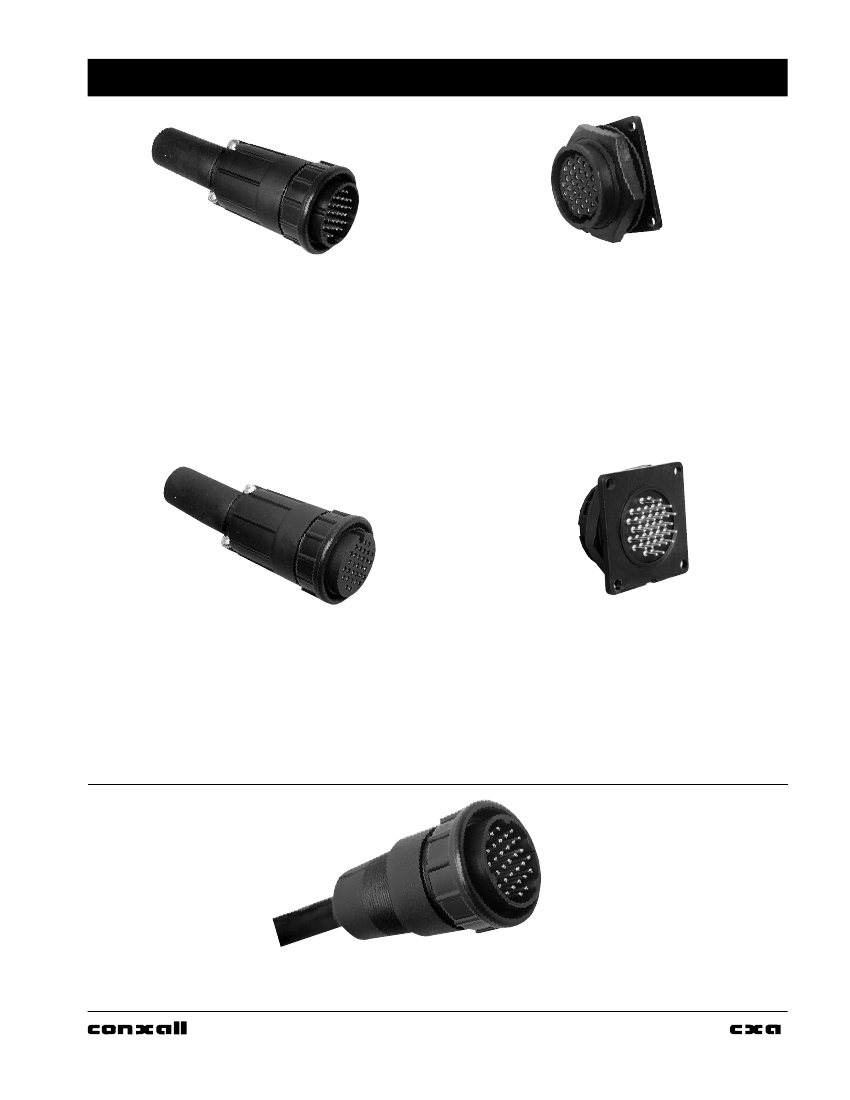

M
EGA
-C
ON
-X
®
F
IELD
I
NSTALLABLE
C
ONNECTORS
Part Number to Order
XX X XX-XX XG-T3XX
Connector Type:
23
- Cable End
24
- Panel Mount
Back
Cable O.D. Range:
Shell
50
-.51 - .56 (12.9 - 14.2)
Style 3
Grommet Code –
Contact Size:
2
- #20
Back Shell Style:
3
Mechanical screw-down
cable clamp with grommet
seal and (1) interfacial
“O” ring for cable end.
Contact Style:
80
-
81
-
82
-
91
-
92
-
Crimp (Supplied loose)
P/C Tail .187" (4.7) (Supplied assembled)
Solder Cup (Supplied assembled)
P/C Tail .280" (7.1) (Supplied assembled)*
P/C Tail .335" (8.5) (Supplied assembled)*
300
- Panel mount with hex nut
& gasket.
3ES
- 300 with Epoxy
Coupling Type
Number of Contacts:
31
Blank
- Twist Lock
T
- Threaded
Type of Contact:
P
- Pin
S
- Socket
Contact Plating:
G
- Gold over Nickel (Standard)
*Available in #20 size contact only.
Consult factory for your custom design cable assemblies and connectors. (See pages 3 & 26)

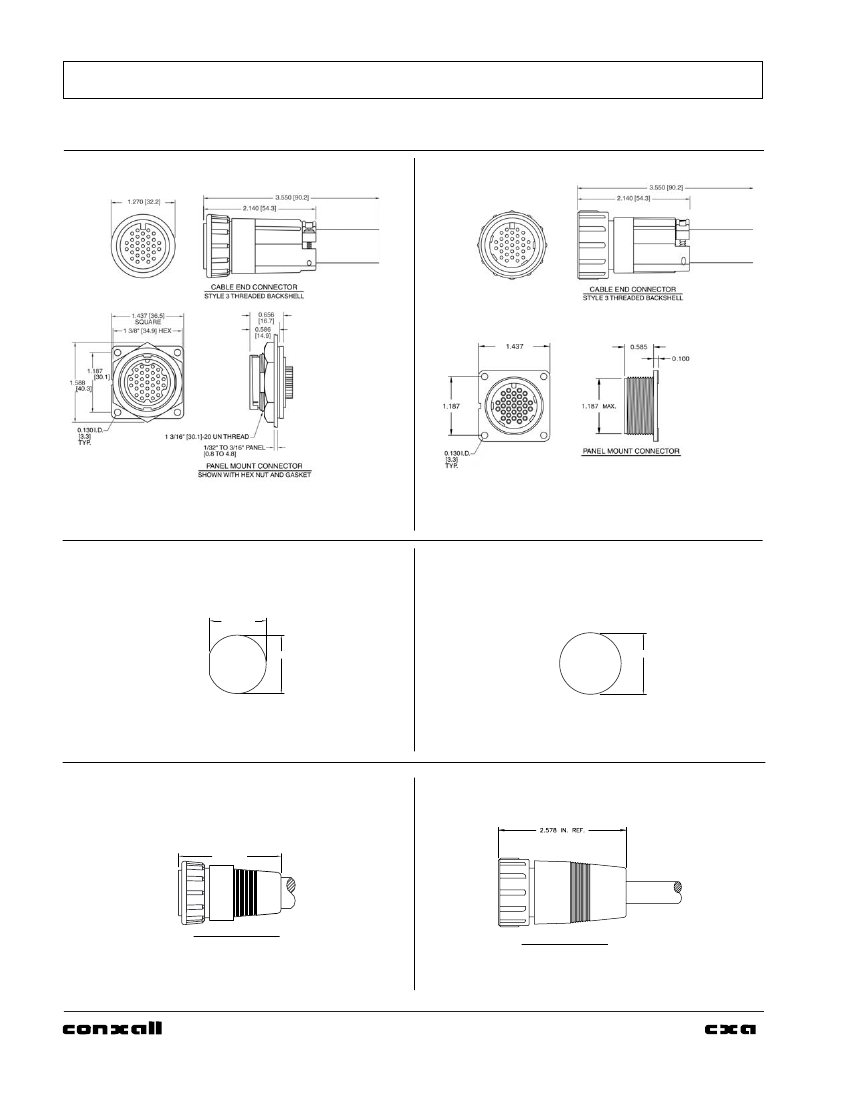

Contact Arrangements
24
18
13
7
24
29
2
13
18
7
2
29
31
31
30
25
3
19
14
8
1
30
3
25
19
31-#20
1
14
8
31-#20
Quick Connect Type
Threaded Type
Contact arrangements shown are wiring view of cable end pins/sockets.
Key/keyway shown for orientation only.
®
601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540
®
24
M
EGA
-C
ON
-X
®
F
IELD
I
NSTALLABLE
C
ONNECTORS
Specifications
Typical Specifications
Manufacturers Identifications
Description
Rating
Conductor Size
Configuration
Certification
Material Specifications
Cable Pin/Socket
Mechanical Backshell (Threaded)
Strap
Screws
Grommet
Coupling Ring
Contacts
Connector Body
O-Ring
Panel Mount
Contacts
Panel Body
Gasket
Hex Nut
Mechanical Specifications
Durability
Vibration
Hex Nut Torque
Electrical Specifications
Voltage
Current
Environmental Specifications
Temperature Rating
Corrosion
Weathertight
Molded Cable Assemblies
Watertight
Nylon, UL Recognized, Black
Nylon, UL Recognized, Black
Cadmium Plated
Santoprene Rubber, Black
Nylon, UL Recognized, Black
Brass, Gold over Nickel
Nylon, UL Recognized, Black
Nitrile Rubber, Black
Brass, Gold over Nickel
Nylon, UL Recognized, Black
Nitrile Rubber, Black
Nylon, UL Recognized, Black
Minimum 300 mate/unmate cycles without mechanical or electrical
failure
Coupling rings have overriding locking feature to prevent loosening
or separation of connector
All series hex nut to withstand 10-12 inch/lb tightening torque
600V
See Electrical Current Rating Chart (Page 27)
-55°C to +125°C (-67°F to +257°F)
300 Hr salt spray contacts
Consult factory with specific application
(See Pages 3 & 26)
NEMA 6P, 13: IEC IP67
Mega-Con-X
®
Field Installable Connector & Custom Cable Assemblies
0.9 thru 2.3A, 600V
20 thru 24 AWG
31 - #20 Contacts
UL Recognized File #E150822 - 250V
CSA Certified File #LR89277 - 600V
®
