2 Pt100 KN 3036, Ceramic Wire Wound PRTD
Temperature range -196 °C to +660 °C
The KN Series Ceramic Wire Wound PRTDs are suitable for general applications requiring temperature stability. The dual
sensor can be used in redundancy systems.
Applications: Industrial resistance thermometers, especially in chemical, power generation plants and analytical equipment.
Construction: Two separate platinum coils are embedded and sealed inside a high purity aluminum oxide ceramic body.
Lead wires are shear force resistant and assure proper connection to extension leads and cables.
Nominal Resistance RO
100 Ohm @ 0 °C
Tolerance
W0.3
W0.15
W0.1
Order number
32206191
32206192
32206193
The measuring point is located at 8 mm from the end of the sensor body.
Nominal Resistance
100 Ohm @ 0 °C
Temperature coefficient
TCR = 3850 ppm/K
Temperature Range
W0.3 (Class B)
= -196°C to +660°C
W0.15 (Class A)
= -100°C to +450°C
W0.1 (Class 1/3 B)
= -100°C to +350°C
Response time
Water current (v= 0.4m/s):
1
2
t0.5 = To be released soon
t0.9 = To be released soon
t0.5 = To be released soon
t0.9 = To be released soon
Air stream (v= 3m/s):
Self Heating
To be released soon

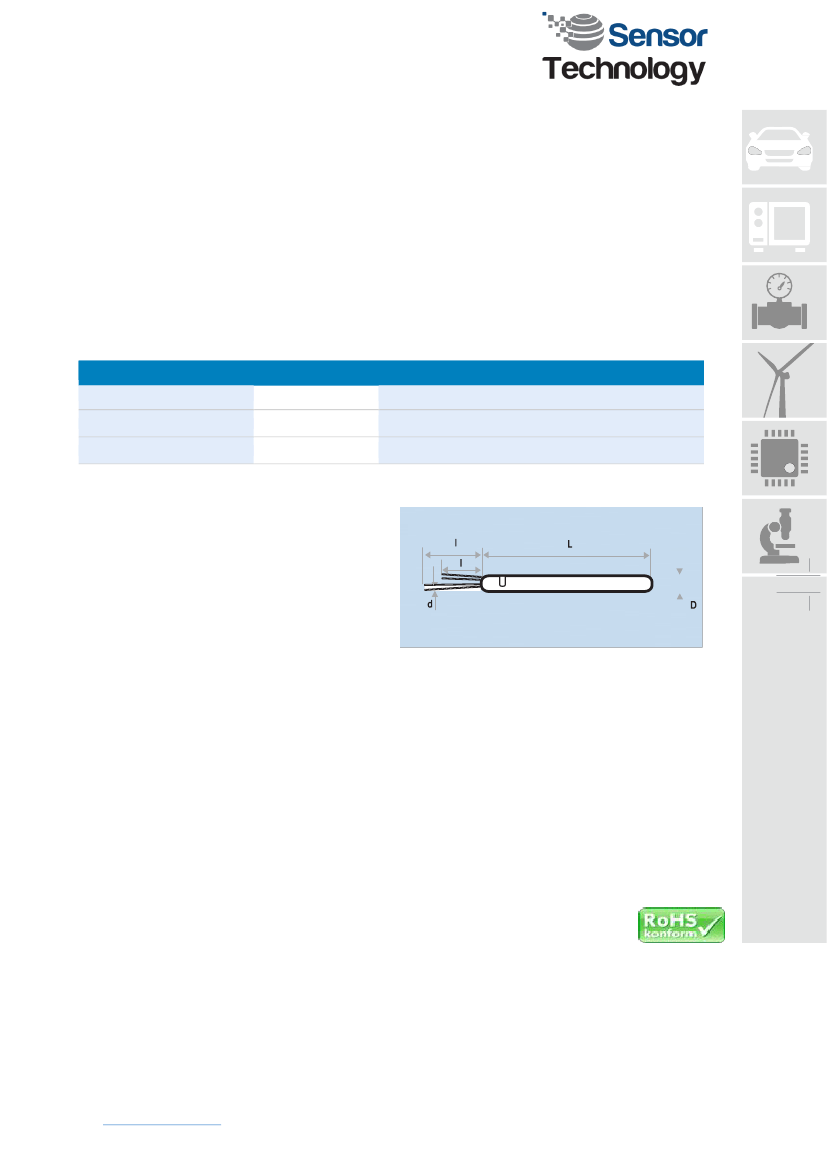

Dimensions in mm
L = 30
- 0
+2
D= 3.6±0.15 d=0.27±0.01 l
1
= 11.0±0.5
l
2
= 10.0±0.5
The information provided in this data sheet describes certain technical characteristics of the product, but shall not be qualified or construed as quality
guarantees whatsoever. Furthermore, the information provided in this data sheet does not constitute a warranty, implied or express, whatsoever, including
but not limited to warranties of merchantability, fitness for a particular purpose, or use.
The information provided in this data sheet regarding measurement values (including, but not limited to, response time, long-term stability, vibration and
shock resistance, insulation resistance and self-heating) are average values that have been obtained under laboratory conditions in tests of large numbers of
the product. Product results or measurements achieved by customer or any other person in any production, test, or other environment may vary depending
on the specific conditions of use.
The customer
is solely responsible to determine whether the product is suited for customer’s intended use; in this respect Heraeus cannot
assume any
liability. The sale of any products of Heraeus is exclusively subject to the Terms and Conditions of Sale of Heraeus in their current version at the time of
purchase, which is available under www.heraeus.com/gtc or may be furnished upon request. This data sheet is subject to changes without prior notice.
Heraeus Nexensos USA, a division of Heraeus Epurio LLC, 770 Township Line Road, Suite 300, Yardley, Pennsylvania, USA 19067
Web:
www.heraeus-nexensos.com
Status: 04/2019
2 Pt100 KN 3036, Ceramic Wire Wound PRTD
Temperature range -196 °C to +660 °C
Measuring current
1mA
Tolerance Class
According to IEC 60751:2008
Other standards and narrower tolerances are available on request
Temperature Stability
Excellent long term stability
Also available
Platinum-gold alloy
Different temperature coefficients (3916 ppm/K
–
old JIS)
Extension leads
Leads
Palladium -gold alloy
Insulation resistance after assembly
>100 MOhm @ 25 °C
California Proposition 65
WARNING:
This product can expose you to chemicals including
lead oxide, which is known to the State of California
to cause cancer and birth defects or other
reproductive harm. For more information go to
www.p65warnings.ca.gov.
The information provided in this data sheet describes certain technical characteristics of the product, but shall not be qualified or construed as quality
guarantees whatsoever. Furthermore, the information provided in this data sheet does not constitute a warranty, implied or express, whatsoever, including
but not limited to warranties of merchantability, fitness for a particular purpose, or use.
The information provided in this data sheet regarding measurement values (including, but not limited to, response time, long-term stability, vibration and
shock resistance, insulation resistance and self-heating) are average values that have been obtained under laboratory conditions in tests of large numbers of
the product. Product results or measurements achieved by customer or any other person in any production, test, or other environment may vary depending on
the specific conditions of use.
The customer is solely responsible to determine whether the product is suited
for customer’s intended use; in this respect Heraeus cannot assume any
liability. The sale of any products of Heraeus is exclusively subject to the Terms and Conditions of Sale of Heraeus in their current version at the time of
purchase, which is available under www.heraeus.com/gtc or may be furnished upon request. This data sheet is subject to changes without prior notice.
Heraeus Nexensos USA, a division of Heraeus Epurio LLC, 770 Township Line Road, Suite 300, Yardley, Pennsylvania, USA 19067
Web:
www.heraeus-nexensos.com
Status: 04/2019
