IA80186-10 datasheet, PDF - EEWORLD Datasheet

IA80186-10: Description16-BIT, 8 MHz, MICROPROCESSOR, PQCC68; Categorysemiconductor The embedded processor and controller; File Size4MB，56 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

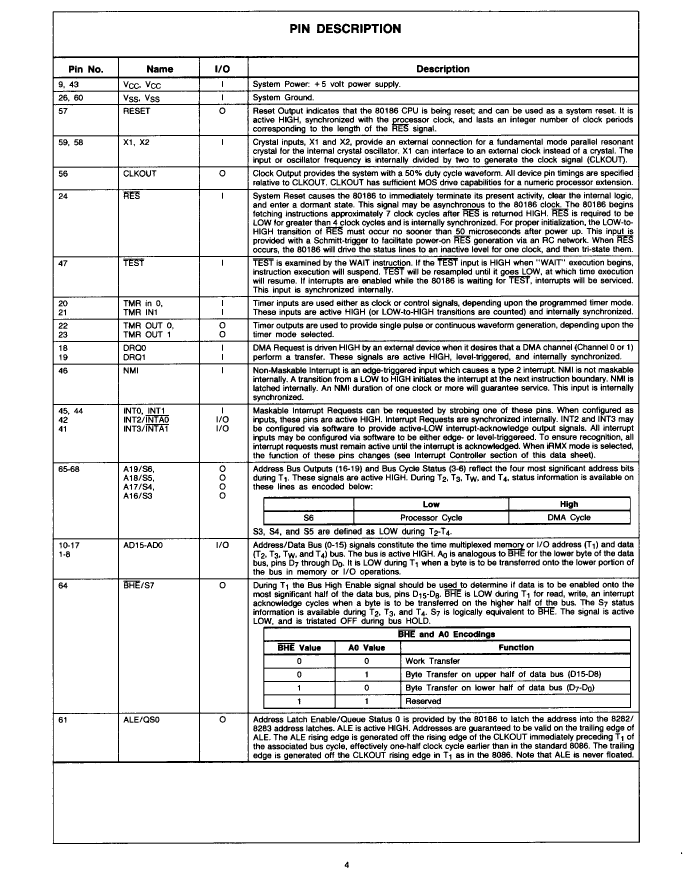

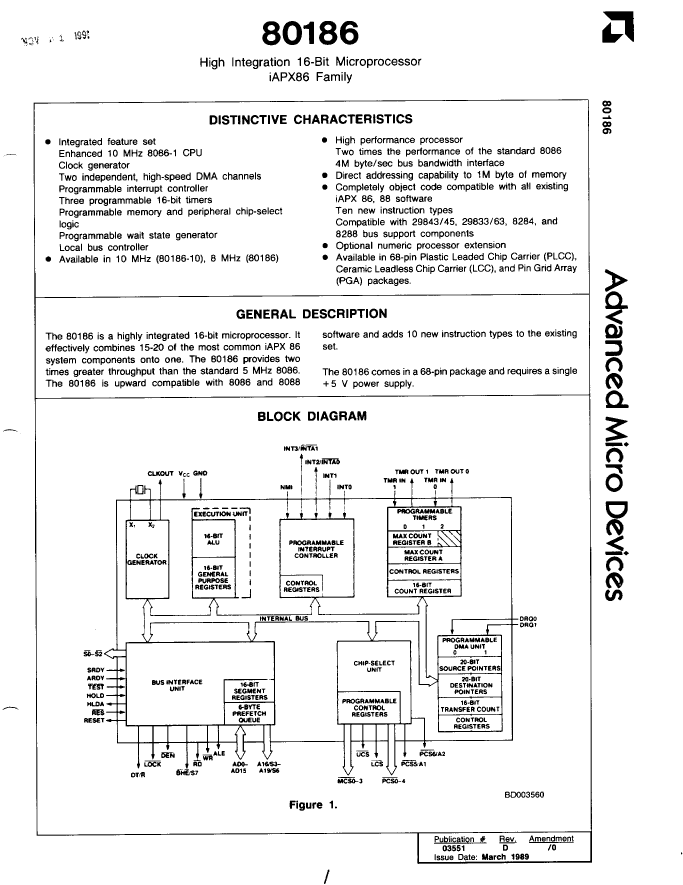

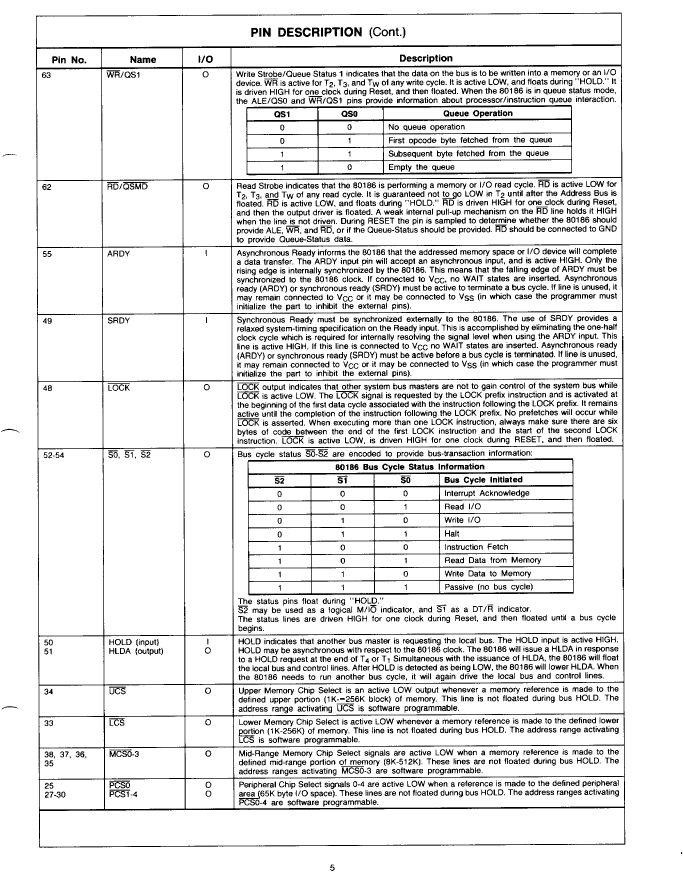

IA80186-10 Overview

16-BIT, 8 MHz, MICROPROCESSOR, PQCC68

Parameter Name	Attribute value
External data bus width	16

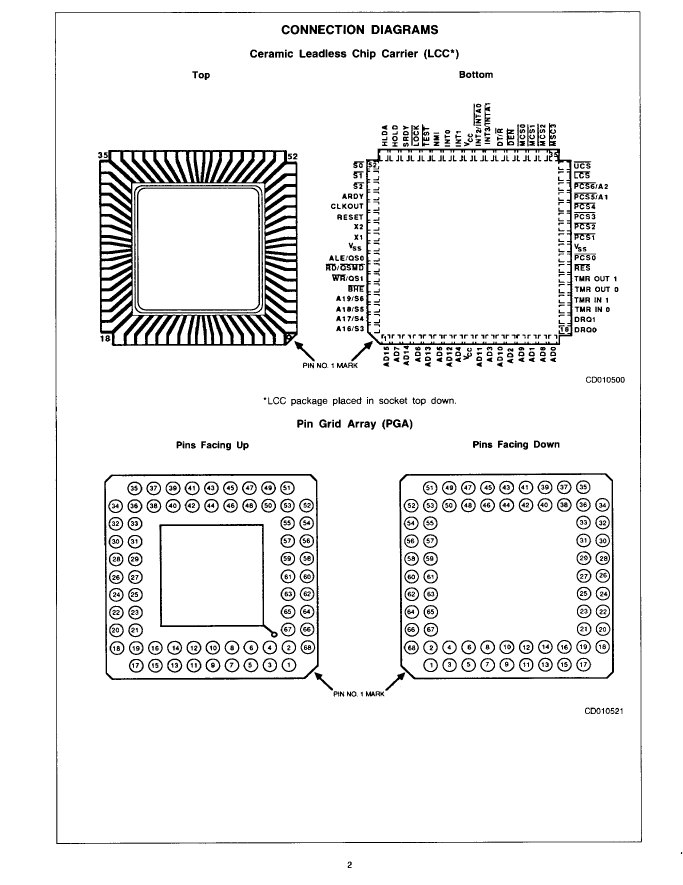

Number of terminals	68
Minimum operating temperature	0.0 Cel
Maximum operating temperature	70 Cel
Line speed	8 MHz

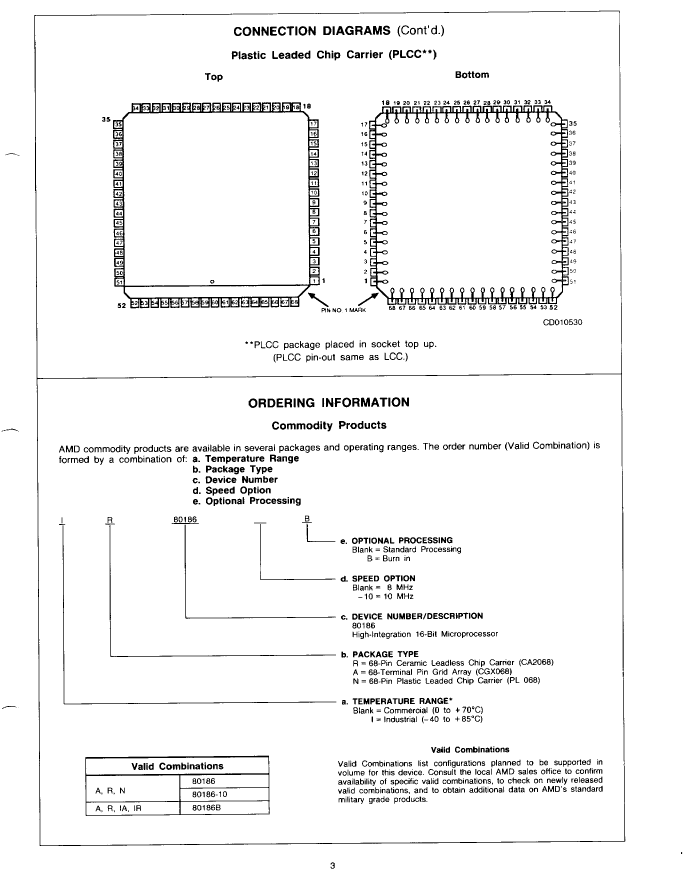

Processing package description	PLASTIC, LCC-68
state	Active
microprocessor_microcontroller_peripheral_ic_type	MICROPROCESSOR
Address bus width	20
Number of digits	16
boundary scan	NO
clock_frequency_max	16 MHz
form	FIXED POINT
Integrated cache	NO
jesd_30_code	S-PQCC-J68
jesd_609_code	e0
low power mode	NO
moisture_sensitivity_level	NOT SPECIFIED
Packaging Materials	PLASTIC/EPOXY
ckage_code	QCCJ
packaging shape	SQUARE
Package Size	CHIP CARRIER
eak_reflow_temperature__cel_	NOT SPECIFIED
qualification_status	COMMERCIAL
seated_height_max	4.83 mm
Rated supply voltage	5 V
Minimum supply voltage	4.5 V
Maximum supply voltage	5.5 V
surface mount	YES
Temperature level	COMMERCIAL
terminal coating	TIN LEAD
Terminal form	J BEND
Terminal spacing	1.27 mm
Terminal location	QUAD
ime_peak_reflow_temperature_max__s_	NOT SPECIFIED
length	24.23 mm
width	24.23 mm
