Dual-Band WLAN Dual Diplexer
2.4–2.5 GHz and 5–6 GHz
AM119
Applications
Features
■
WLAN Systems Including 802.11a,b,g
■
LTCC Technology
■
Dual Diplexer
■
SMD Package, 5.0 x 3.25 x 1.2 mm
■
Dual-Band Diplex Receive, Dual-Band
Diplex Transmit
PIN 1
INDICATOR
TOP VIEW
SIDE VIEW
Outline Drawing
5.00
1.20
3.25
PIN 1
2.21
Description
The AM119 is a ceramic dual diplexer for dual-band WLAN
systems using LTCC design and manufacturing
technology. The part consists of two diplexers, one for dual-
band receive and one for dual-band transmit. The
AM119-614 is utilized with the diversity switch AS218-321
for switching between antennas. The design is compatible
with the 802.11 WLAN specifications.
1.63
0.25 TYP.
0.25 TYP.
6X 0.50
6X 0.47
BOTTOM VIEW
Dimensions in mm.
Tolerance ± 0.2 mm unless otherwise specified.
Electrical Specifications at 25°C
Mode
Low Pass
Parameter
Passband
Insertion Loss
Attenuation @ 4.8 GHz
Return Loss
High Pass
Passband
Insertion Loss
Attenuation @ 2.5 GHz
Return Loss
5.15
Min.
2.4
Typ.
2.45
0.50
35
15
5.50
0.50
25
12
5.85
0.80
Max.
2.5
0.8
Unit
GHz
dB
dB
dB
GHz
dB
dB
dB
Skyworks Solutions, Inc.
[781] 376-3000
•
Fax
[781] 376-3100
•
Email
sales@skyworksinc.com
•
www.skyworksinc.com
Specifications subject to change without notice. 4/03A
1
Dual-Band WLAN Dual Diplexer 2.4–2.5 GHz and 5–6 GHz
AM119

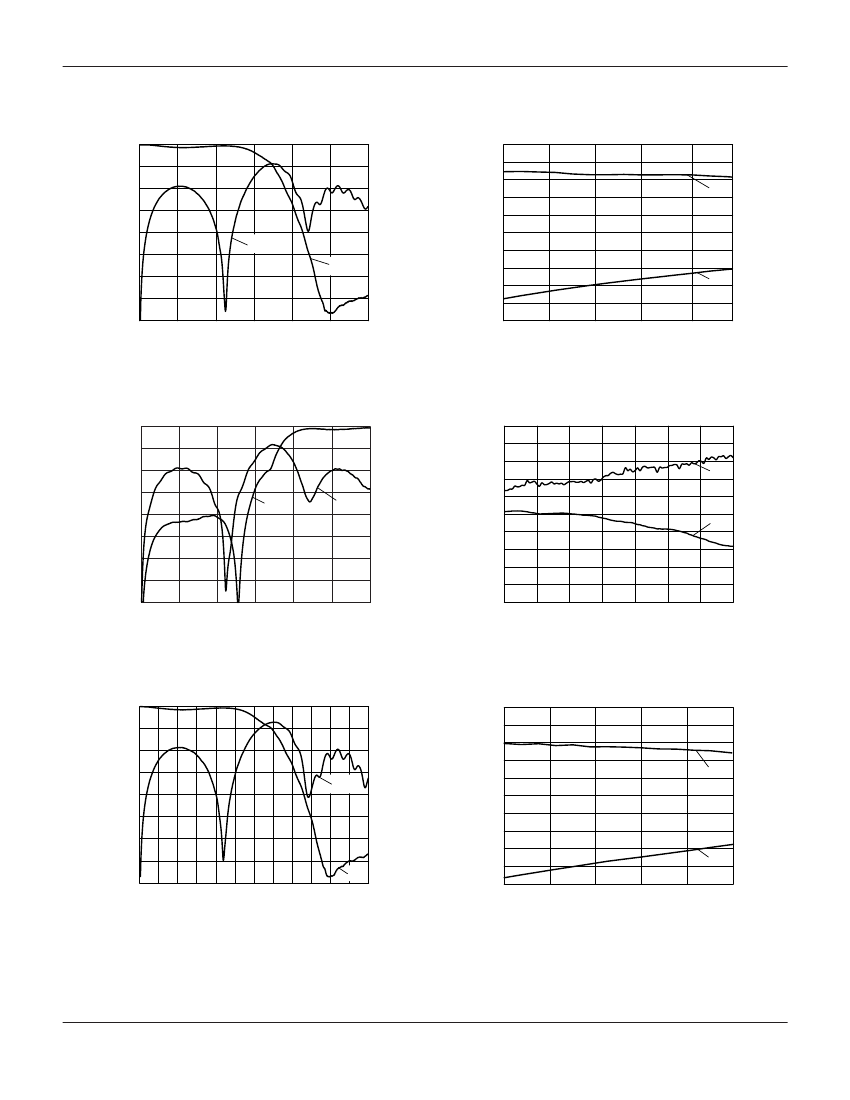

Typical Performance Data
0
-5
0
-0.25
-0.50
-0.75
-1.00
-1.25
-1.50
-1.75
-2.00
-2.25
0
1
2
3
4
5
6
-2.50
2.40
2.42
2.44
2.46
2.48
S
11
0
-2.5
S
21
-5.0
-10
Insertion Loss (dB)
Return Loss (dB)
-7.5
-10.0
-12.5
-15.0
-17.5
-20.0
-22.5
Loss (dB)
-15
-20
-25
-30
-35
-40
S
11
S
21
-25.0
2.50
Frequency (GHz)
Frequency (GHz)
IN 1 to LP1, Wideband
IN 1 to LP1, In Band
0
-5
-10
0
-0.2
-0.4
-0.6
-0.8
-1.0
-1.2
-1.4
-1.6
-1.8
0
1
2
3
4
5
6
S
11
S
21
0
-2
-4
Insertion Loss (dB)
Return Loss (dB)
-6
-8
-10
-12
-14
-16
-18
Loss (dB)
-15
S
21
-20
-25
-30
-35
-40
S
11
-2.0
-20
5.15 5.25 5.35 5.45 5.55 5.65 5.75 5.85
Frequency (GHz)
Frequency (GHz)
IN 1 to HP1, Wideband
0
-5
-10
0
-0.2
-0.4
-0.6
-0.8
-1.0
-1.2
-1.4
-1.6
-1.8
-2.0
2.40
IN 1 to HP1, In Band
0
-2
-4
Insertion Loss (dB)
Return Loss (dB)
-6
S
21
-8
-10
-12
-14
S
11
-16
-18
Loss (dB)
-15
-20
-25
-30
-35
-40
0
1
2
3
4
5
S
21
6
S
11
2.42
2.44
2.46
2.48
-20
2.50
Frequency (GHz)
Frequency (GHz)
IN 2 to LP2, Wideband
IN 2 to LP2, In Band
2
Skyworks Solutions, Inc.
[781] 376-3000
•
Fax
[781] 376-3100
•
Email
sales@skyworksinc.com
•
www.skyworksinc.com
Specifications subject to change without notice. 4/03A
Dual-Band WLAN Dual Diplexer 2.4–2.5 GHz and 5–6 GHz
AM119
0
-5
-10
S
21
0
-0.2
-0.4
-0.6
-0.8
-1.0
-1.2
-1.4
-1.6
-1.8
0
1
2
3
4
5
6
-2.0
5.15
5.25
5.35
5.45
5.55
5.65
5.75
S
11
0
-2
S
21
-4
Insertion Loss (dB)
Return Loss (dB)
-6
-8
-10
-12
-14
-16
-18
Loss (dB)
-15
-20
-25
-30
-35
-40
S
11
-20
5.85
Frequency (GHz)
Frequency (GHz)
IN 2 to HP2, Wideband
IN 2 to HP2, In Band

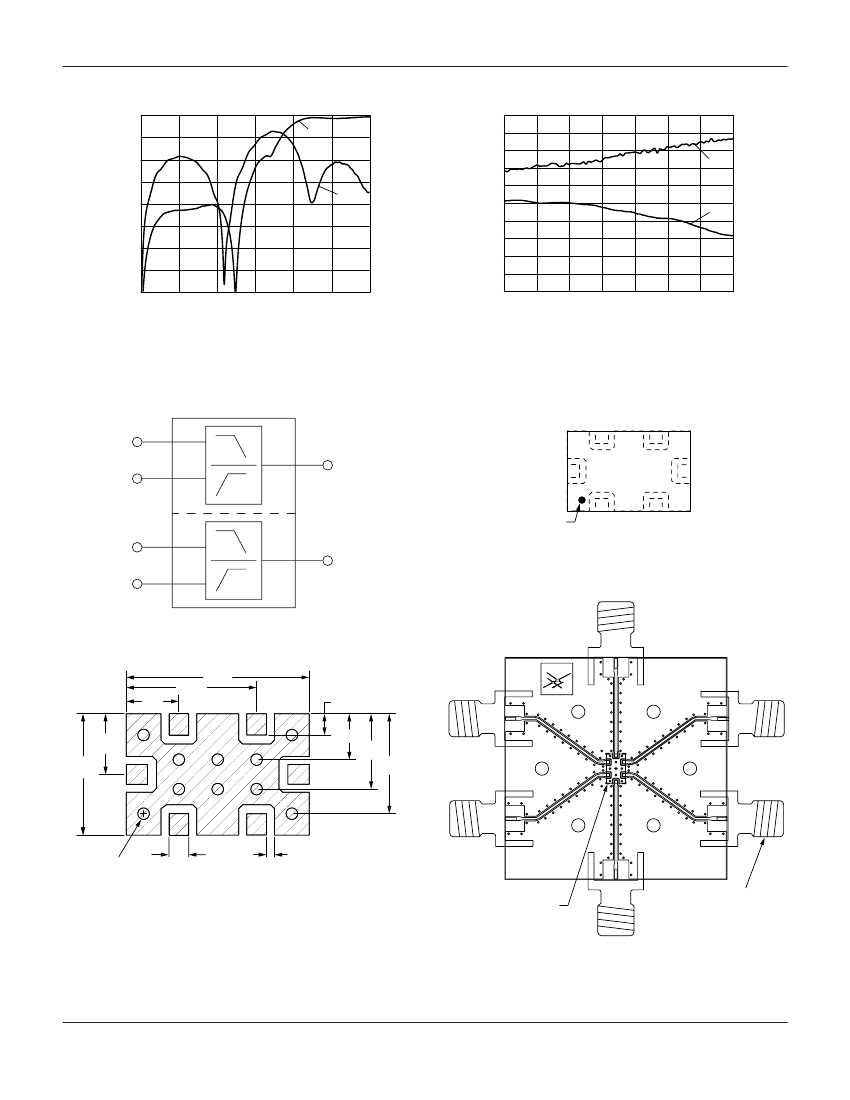

Block Diagram
LP1
IN 1
HP1
Pin Out (Top View)
IN 1
5
IN 2
4
7 (GND)
LP1 6
1
PIN 1
INDICATOR
HP1
3 LP2
2
HP2
LP2
IN 2
HP2
AM119-614 Evaluation PCB
Suggested Land Pattern
5.20
3.71
1.50
0.61
1.31
2.14
2.84
1
HP
LP
ANT 1
1.73
3.45
HP
LP
0.33 PLATED
THRU HOLES
0.23 TYP.
0.56 x 0.61
TYP.
SKYWORKS
ANT 2
SK40119
DUAL DIPLEXER
PC MOUNT
SMA CONNECTOR
6 PLACES
AM119-614
PCB# SK40119. Material: Rogers RO4003.
The circuit board used in the final application should employ RF circuit design
techniques. RF signal lines should have 50
Ω
impedance. The package bottom
ground plane should be connected directly to PCB ground plane. A sufficient
number of via holes should be used to connect the top and bottom ground
planes. The evaluation circuit board shown is available upon request.
