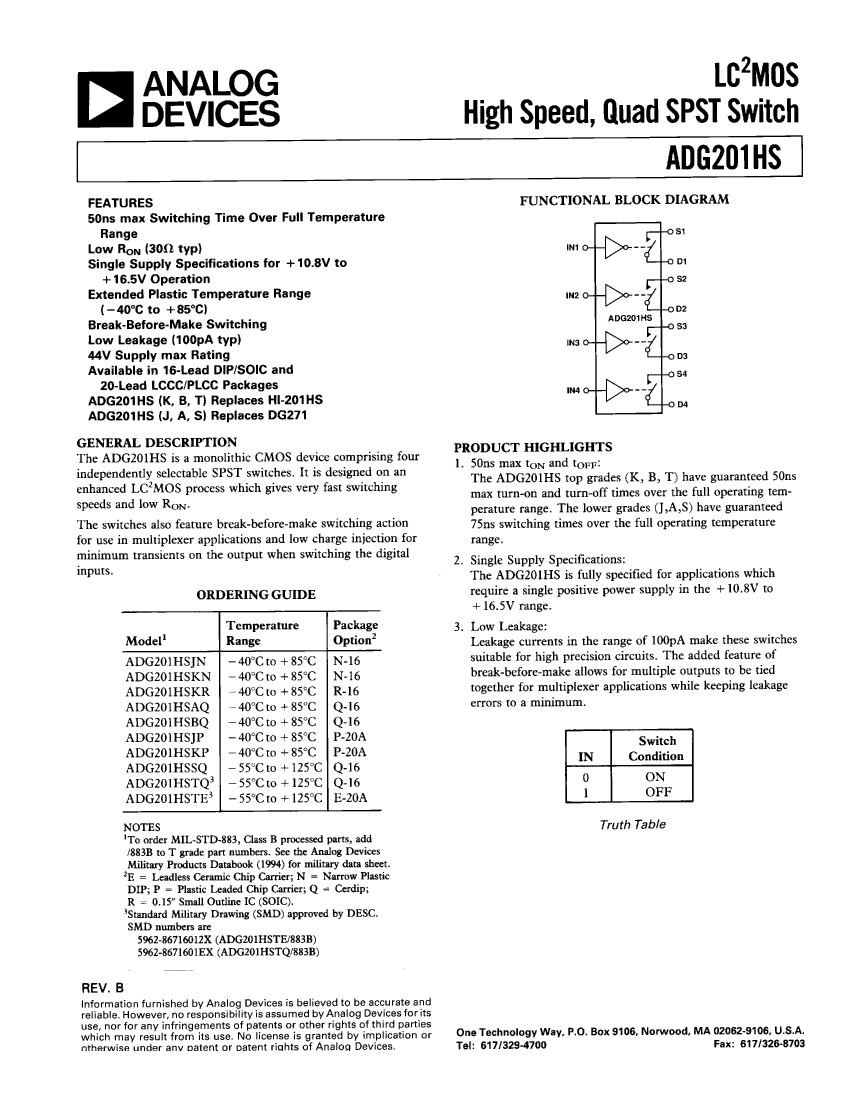

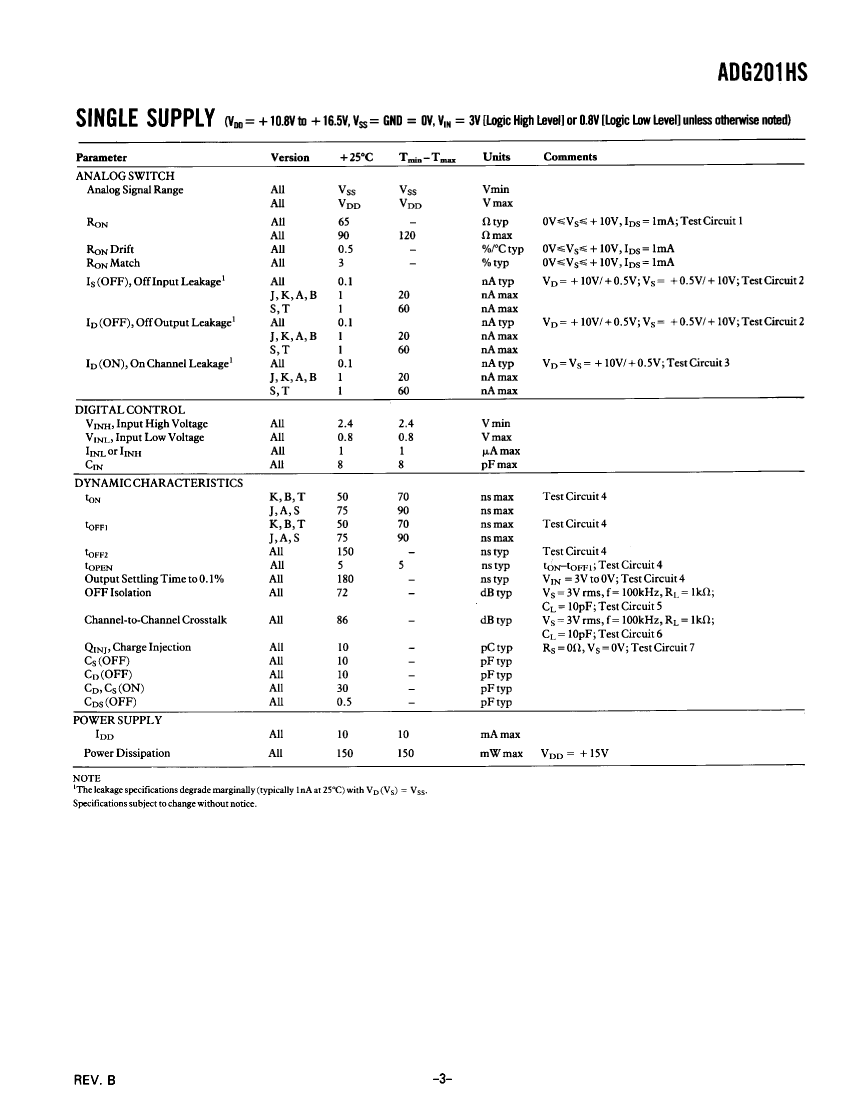

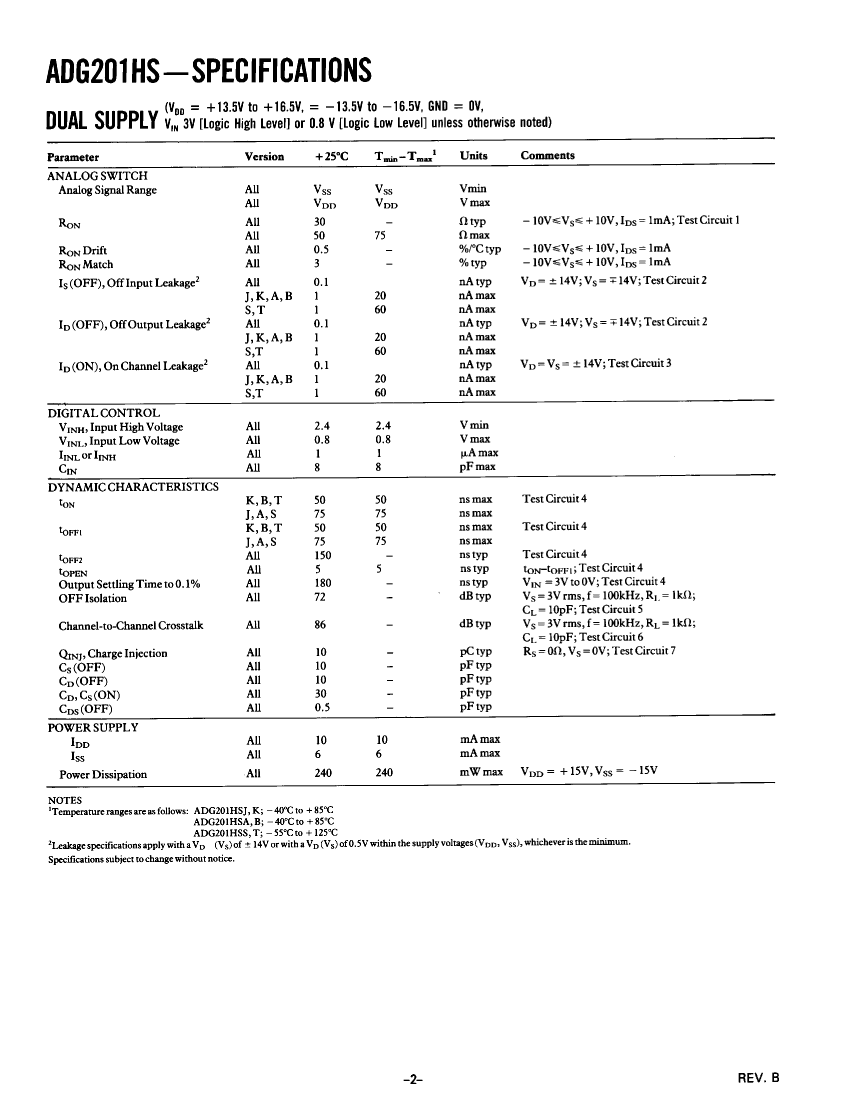

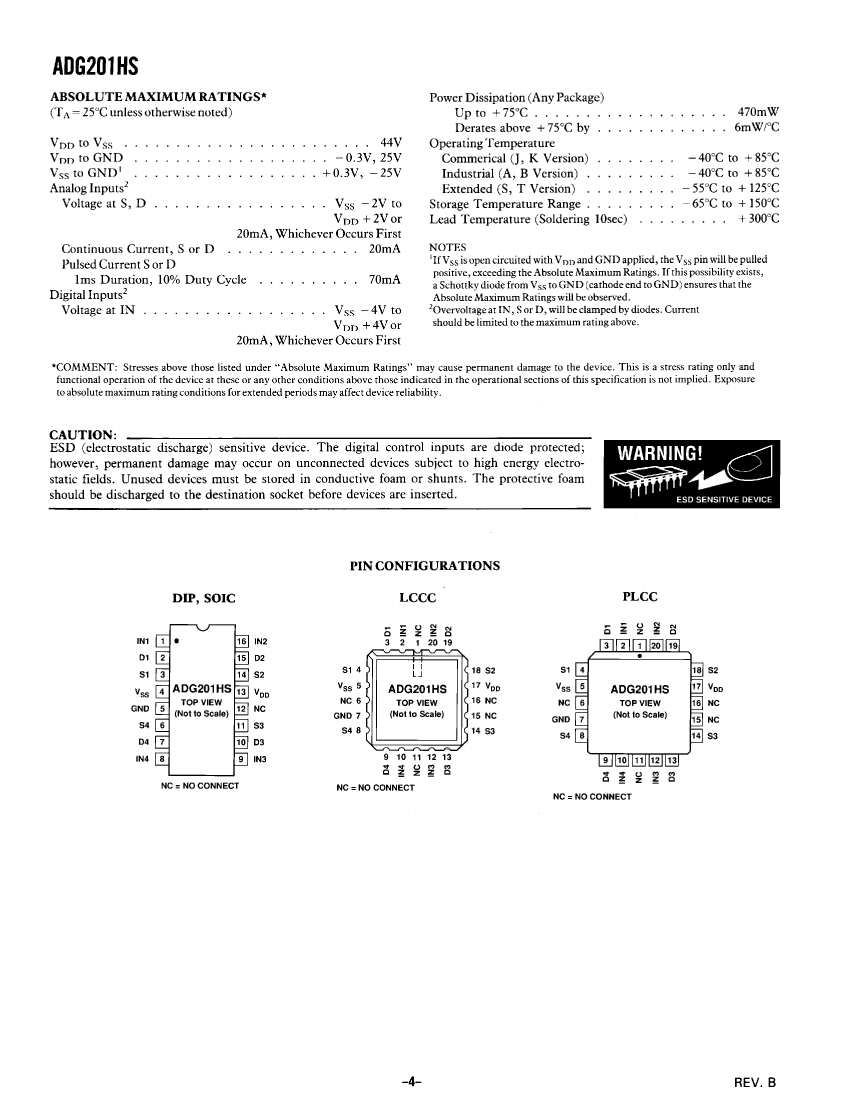

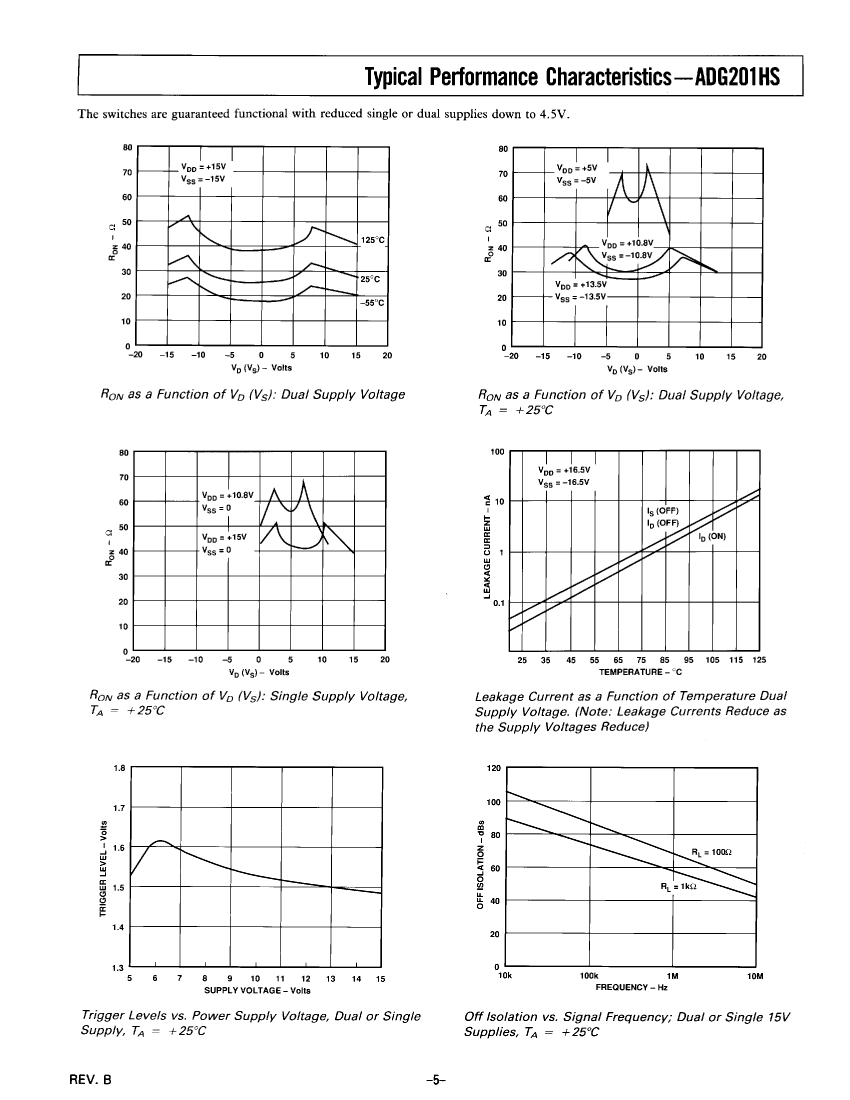

Preview

5962-8671603EA: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size284KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-8671603EA Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch

5962-8671603EA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	CERAMIC, DIP-16
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	CAN ALSO OPERATE WITH SINGLE 10.8 TO 16.5 SUPPLY RANGE
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Maximum negative supply voltage (Vsup)	-16.5 V
Negative supply voltage minimum (Vsup)	-13.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	72 dB
On-state resistance matching specifications	3 Ω
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	50 ns
Maximum connection time	50 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8671603EA Related Products

	5962-8671603EA	5962-86716032A
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	QLCC
package instruction	CERAMIC, DIP-16	CERAMIC, LCC-20
Contacts	16	20
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Other features	CAN ALSO OPERATE WITH SINGLE 10.8 TO 16.5 SUPPLY RANGE	CAN ALSO OPERATE WITH SINGLE 10.8 TO 16.5 SUPPLY RANGE
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	R-GDIP-T16	S-CQCC-N20
JESD-609 code	e0	e0
length	19.495 mm	8.89 mm
Maximum negative supply voltage (Vsup)	-16.5 V	-16.5 V
Negative supply voltage minimum (Vsup)	-13.5 V	-13.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
normal position	NC	NC
Number of channels	1	1
Number of functions	4	4
Number of terminals	16	20
Nominal off-state isolation	72 dB	72 dB
On-state resistance matching specifications	3 Ω	3 Ω
Maximum on-state resistance (Ron)	50 Ω	50 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT APPLICABLE	NOT APPLICABLE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	4.572 mm	2.54 mm
Maximum supply voltage (Vsup)	16.5 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
Maximum disconnect time	50 ns	50 ns
Maximum connection time	50 ns	50 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT APPLICABLE	NOT APPLICABLE
width	7.62 mm	8.89 mm
Base Number Matches	1	1
