AP5S1-FREQ-F-H-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> AP5S1-FREQ-F-H-T

Preview

AP5S1-FREQ-F-H-T: DescriptionHCMOS/TTL Output Clock Oscillator, 10MHz Min, 166MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size236KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AP5S1-FREQ-F-H-T Overview

HCMOS/TTL Output Clock Oscillator, 10MHz Min, 166MHz Max, ROHS COMPLIANT, SMD, 4 PIN

AP5S1-FREQ-F-H-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	3.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	35%
Manufacturer's serial number	AP5S
Installation features	SURFACE MOUNT
Maximum operating frequency	166 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	3.5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

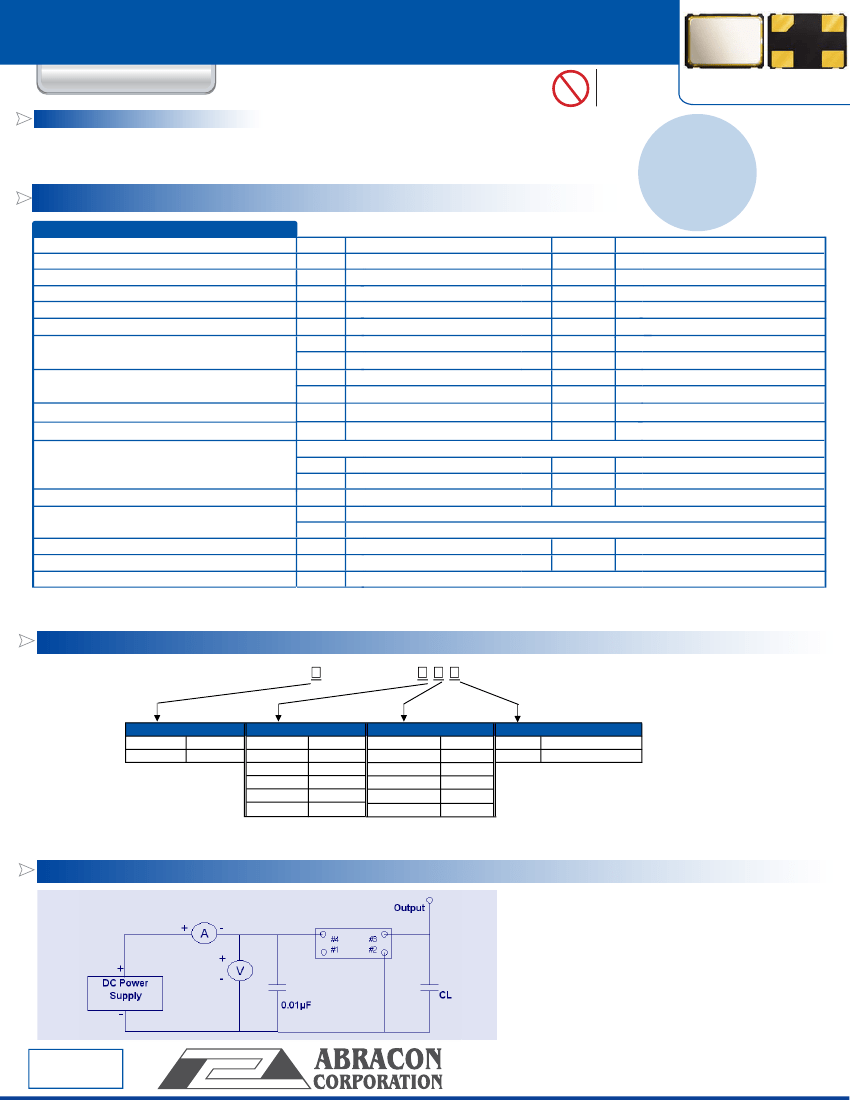

HCMOS/TTLMABLE

PROPROGRAMMABLE CRYSTAL CLOCK OSCILLATOR

GRAM COMPATIBLE SURFACE-MOUNT

AP5S

FEATURES:

• Performance comparable to fixed frequency oscillator

• Lowest peak-to-peak jitter

• Low supply current

• Alternative to long lead-time XO's

For Small

Quantities,

Delivery Time

is 1-5 days

Maximum

200

166

+70

125

100

3.63

2.75

30

20

55.0

3.5

Pb

RoHS

Compliant

5.0 x 3.2 x 1.2mm

| | | | | | | | | | | | | | |

ELECTRICAL SPECIFICATIONS:

3.3V, 2.5V OPERATION

Characteristics

Frequency Range 3.3V

2.5V

Operation Temp. Range (See Options)

Storage Temp. Range (See Options)

Overall Frequency Stability * (See Options)

Input Voltage (Operating Vdd)

3.3V

2.5V

Symmetry at 1/2 Vdd

Rise and fall time (Tr/Tf)**

Output Voltage

VOH

VOL

Start-up Time

Tri-state Function (Input to pin 1)

Jitter peak-to-peak

Phase Jitter (RMS, 12kHz to 20MHz)

Output Type

pSec

--

Input Current

Unit

MHz

°C

ppm

V

mA

%

nSec

V

msec

Minimum

10

0

-55

-100

2.97

2.25

--

45

--

Typical

--

3.3

2.5

--

50

2.5

--

Vdd-0.4min

--

0.4V max

--

10

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

--

70

--

2.5

CMOS

* Inclusive of calibration @25°C, operating temperature range, input voltage variation, load variation, aging, shock, and vibration.

** Transition times are measured between 10% and 90% of Vdd with an output load of 15 pf.

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AP5S -Frequency- - -

Supply Voltage

Blank*

3.3 V

1

2.5 V

*3.3V : Standard

Operating Temp.

0°C to +50°C

I

-10°C to +60°C

D

-20°C to +70°C

E

-30°C to +70°C

F

-30°C to +85°C

N

-40°C to +85°C

L

Freq. Stability

J(**)

±20ppm

R

±25ppm

K

±30ppm

H

±35ppm

B

±40ppm

C

±50ppm

Blank

T

Packaging

Bulk

Tape and Reel

(* *) Available for I, D, or E temp options only.

Contact ABRACON for EJ or LR options. (Availability limited)

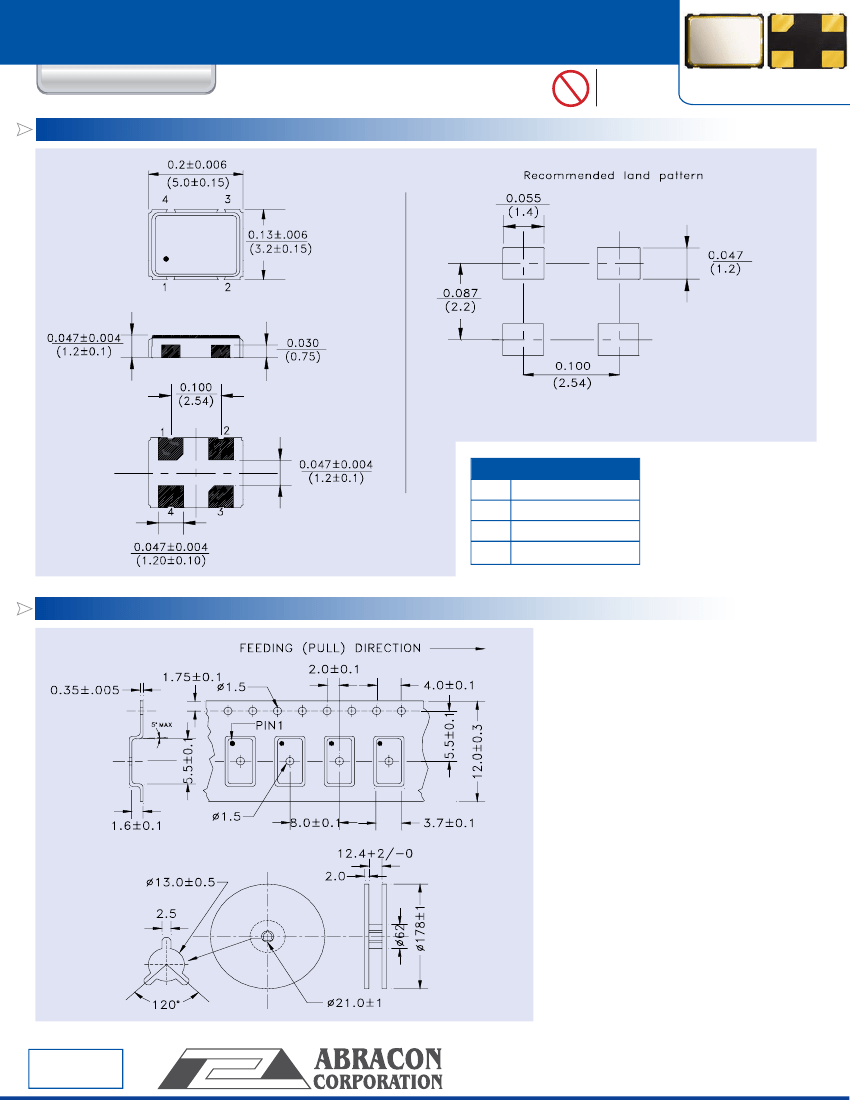

TEST CIRCUIT:

Revised: 1.04.08

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
