54S00/BCA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S00/BCA

54S00/BCA: DescriptionNAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14; Categorylogic logic; File Size126KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54S00/BCA Overview

NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14

54S00/BCA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	36 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

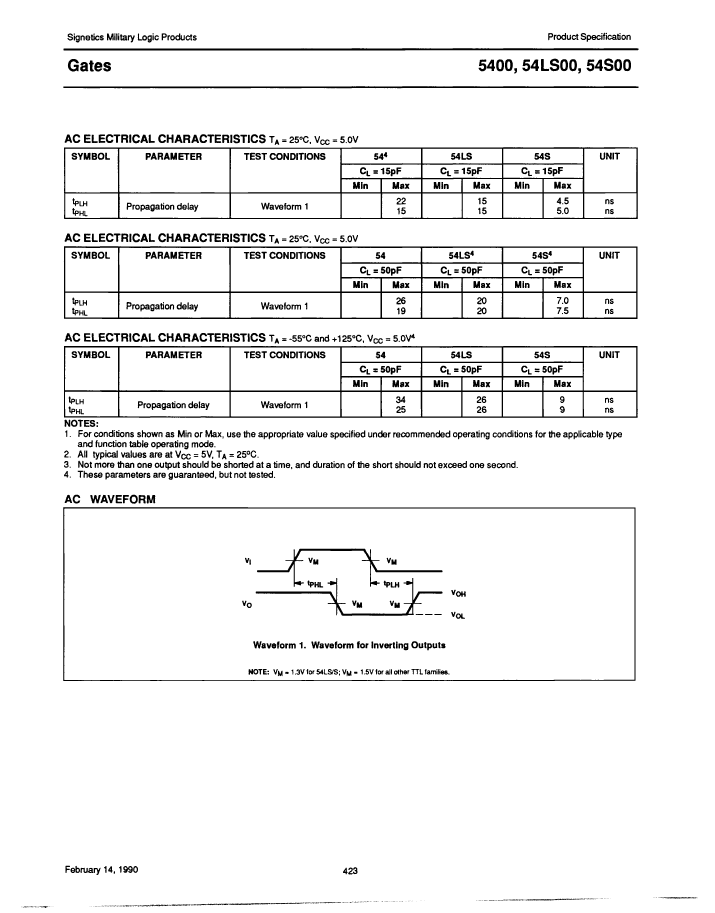

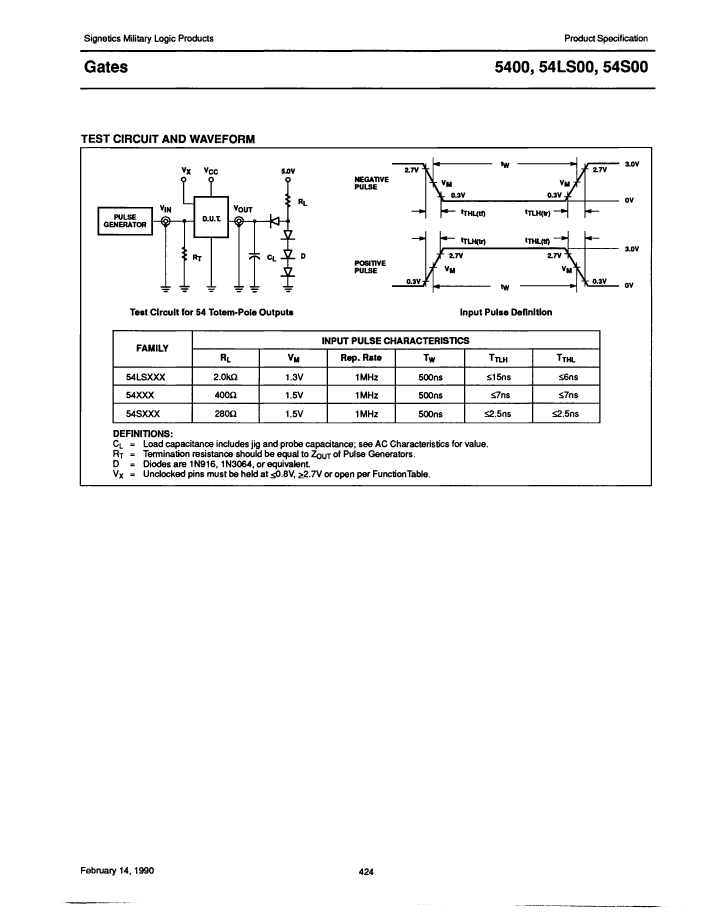

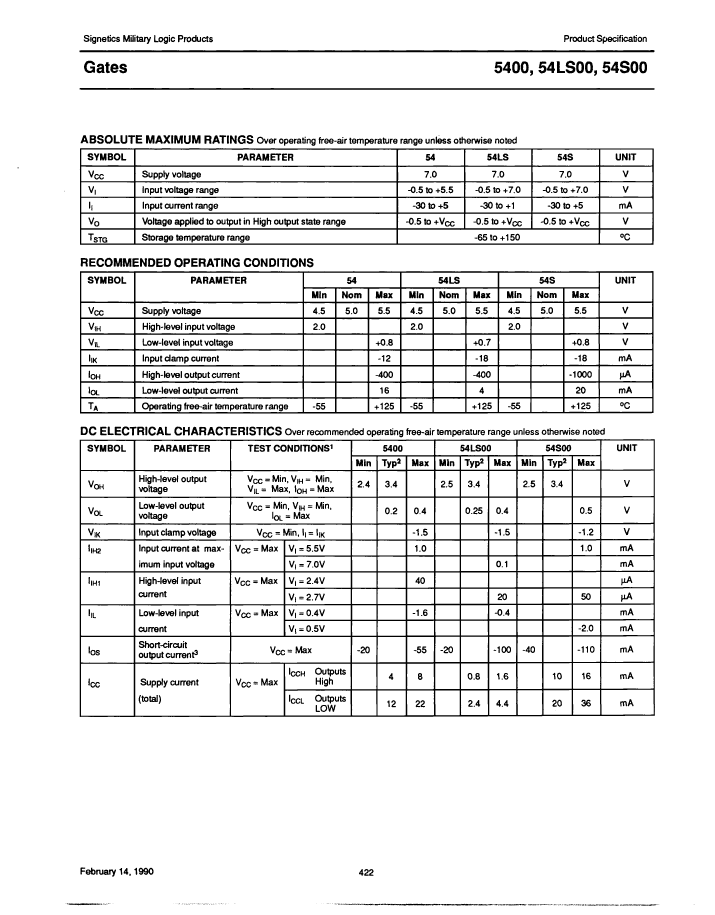

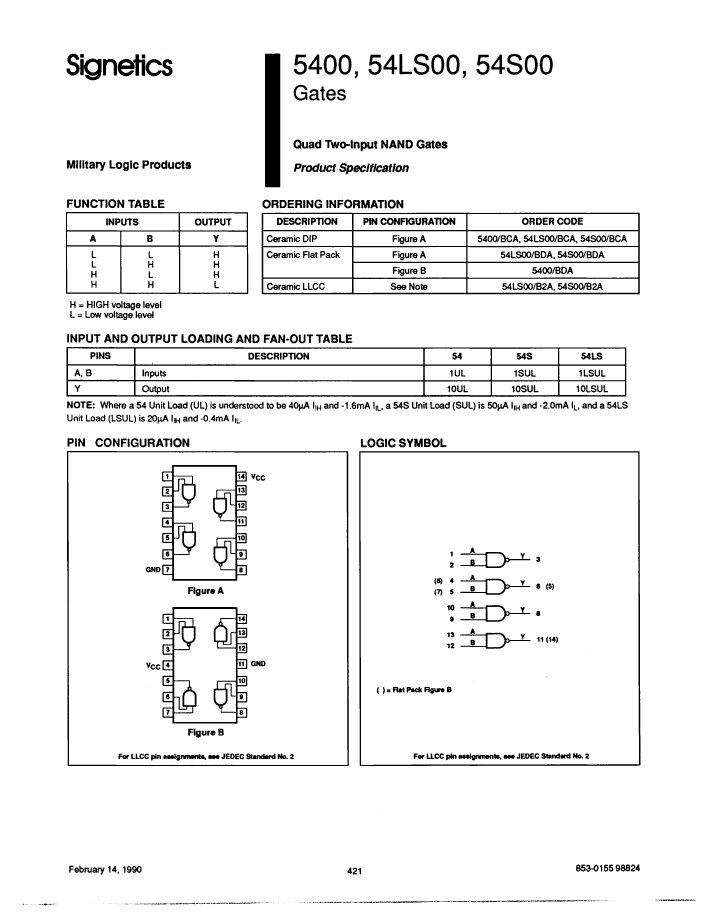

Preview

Download Datasheet

View All

54S00/BCA Related Products

	54S00/BCA	54LS00/BCA	54LS00/BDA	54LS00/B2A	54S00/BDA	5400/BDA	54S00/B2A	5400/BCA
Description	NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20	NAND Gate, S Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDFP14	NAND Gate, S Series, 4-Func, 2-Input, TTL, CQCC20	NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown
series	S	LS	LS	LS	S	TTL/H/L	S	TTL/H/L
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14	S-CQCC-N20	R-CDFP-F14	R-CDFP-F14	S-CQCC-N20	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	20	14	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE
Maximum supply current (ICC)	36 mA	4.4 mA	4.4 mA	4.4 mA	36 mA	22 mA	36 mA	22 mA
propagation delay (tpd)	9 ns	26 ns	26 ns	26 ns	9 ns	25 ns	9 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD	FLAT	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1	1	1	1	-
