BCX71KLEADFREE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCX71KLEADFREE

BCX71KLEADFREE: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size324KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

BCX71KLEADFREE Overview

Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3

BCX71KLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

BCX71 SERIES

SURFACE MOUNT

PNP SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BCX71 Series

types are PNP Silicon Transistors manufactured

by the epitaxial planar process, epoxy molded in a

surface mount package, designed for general purpose

switching and amplifier applications.

MARKING CODES: SEE MARKING CODE TABLE

ON FOLLOWING PAGE

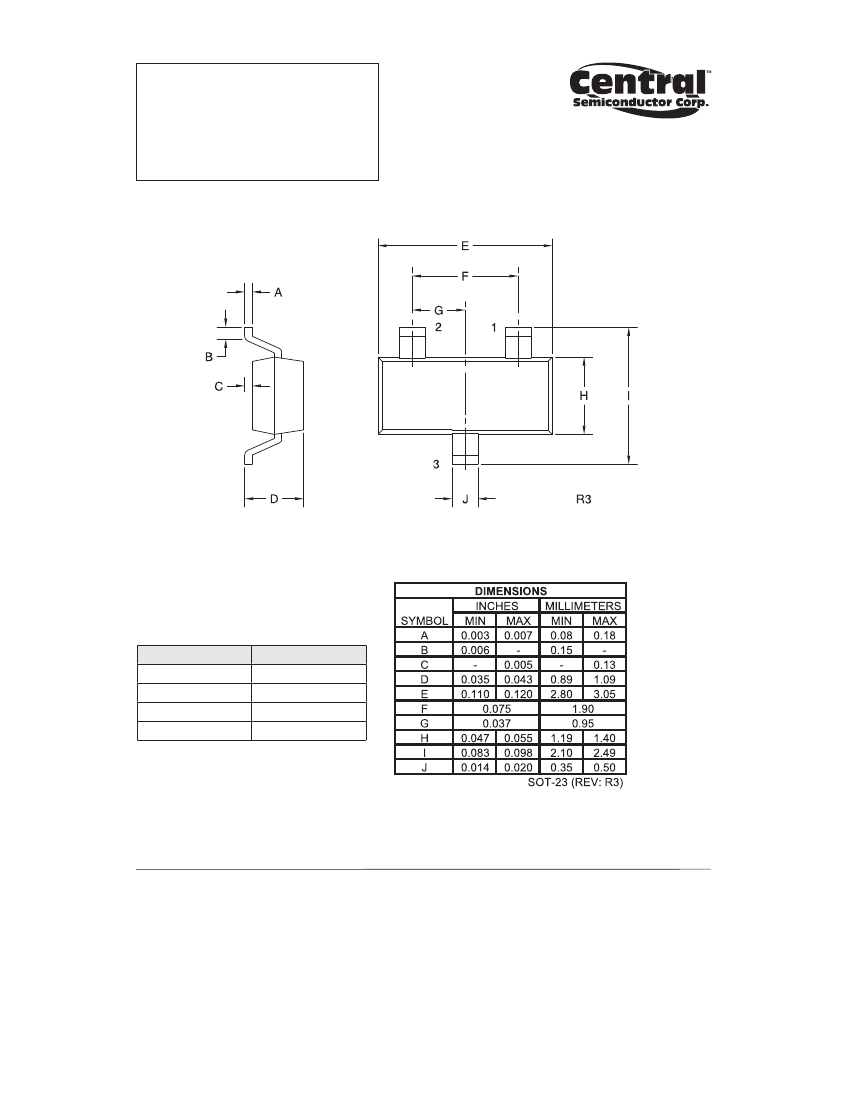

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Peak Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VCBO

VCEO

VEBO

ICM

IBM

TJ, Tstg

UNITS

°C

°C/W

5.0

100

200

350

-65 to +150

357

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless

SYMBOL

TEST CONDITIONS

ICBO

VCB=45V

ICBO

VCB=45V, TA=150°C

IEBO

VEB=4.0V

BVCBO

IC=10μA

BVCEO

IC=10mA

BVEBO

IE=1.0μA

VCE(SAT)

IC=10mA, IB=250μA

VCE(SAT)

IC=50mA, IB=1.25mA

VBE(SAT)

IC=10mA, IB=250μA

VBE(SAT)

IC=50mA, IB=1.25mA

VBE(ON)

VCE=5.0V, IC=2.0mA

VCE=5.0V, IC=10mA, f=100MHz

VCB=10V, IE=0, f=1.0MHz

VEB=0.5V, IC=0, f=1.0MHz

VCE=5.0V, IC=200μA, RS=2.0kΩ,

f=1.0kHz, BW=200Hz

otherwise noted)

MIN

TYP

MAX

5.0

0.06

0.12

0.60

0.68

0.60

100

4.5

0.25

0.55

0.85

1.05

0.75

UNITS

μA

MHz

BCX71K

MIN MAX

100

380

630

110

6.0

BCX71H

MIN MAX

180

310

BCX71J

MIN MAX

250

460

100

BCX71G

MIN

MAX

hFE

VCE=5.0V,

VCE=1.0V,

IC=10μA

IC=2.0mA

IC=50mA

120

220

R2 (20-November 2009)

BCX71KLEADFREE Related Products

	BCX71KLEADFREE	BCX71HLEADFREE	BCX71GLEADFREE	BCX71JLEADFREE
Description	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	45 V	45 V	45 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	110	80	60	100
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	MATTE TIN (315)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz
