53615-6511 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53615-6511

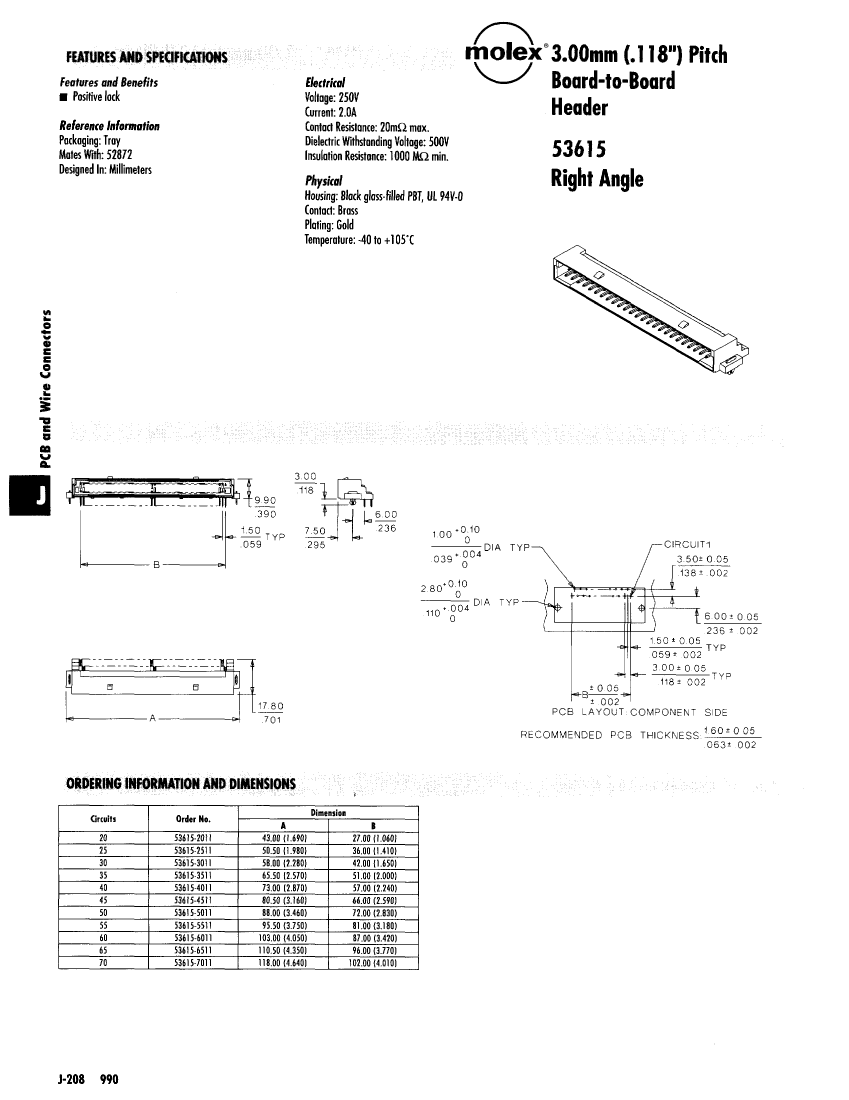

53615-6511: DescriptionBoard Connector, 65 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Polarized Lck, Black Insulator, Receptacle; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53615-6511 Overview

Board Connector, 65 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Polarized Lck, Black Insulator, Receptacle

53615-6511 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK
body width	0.39 inch
subject depth	0.701 inch
body length	4.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	53615
Plug contact pitch	0.118 inch
Match contact row spacing	0.138 inch
Plug information	52872-6511
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.5052 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3 mm
Termination type	SOLDER
Total number of contacts	65
UL Flammability Code	94V-0
Base Number Matches	1
