LC3KP20CATR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LC3KP20CATR

LC3KP20CATR: DescriptionTransient Suppressor,; CategoryDiscrete semiconductor diode; File Size42KB，2 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com

Download Datasheet Parametric View All

LC3KP20CATR Overview

Transient Suppressor,

LC3KP20CATR Parametric

Parameter Name	Attribute value
Maker	MDE Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414

1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

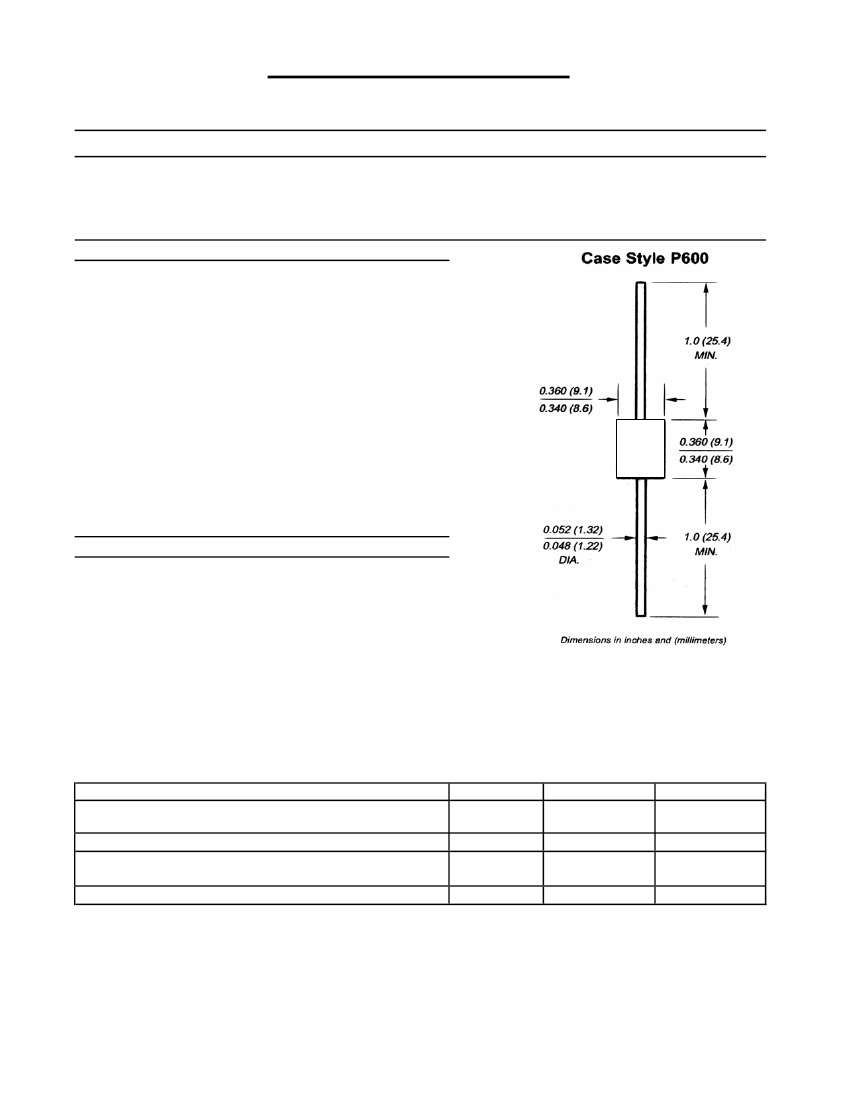

LC 3KP Series

LOW CAPACITANCE BI DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

STAND-OFF VOLTAGE- 6.5 - 28 Volts

3000 Watt Peak Pulse Power

FEATURES

• Plastic package has Underwriters Laboratory

Flammability Classification 94 V-O

• Glass passivated junction

• 3000W Peak Pulse Power capability on 10/1000 µs

waveform, repetition rate (duty cycle): 0.05%

• Glass passivated junction

• Low incremental surge resistance

• Excellent clamping capability

• Fast response time: typically less than

5.0 ns from 0 volts to V(BR)

• Ideal for data line applications

• High temperature soldering guaranteed:

265°C/10 seconds/ .375", (9.5mm) lead

length, 5lbs., (2.3kg) tension

MECHANICAL DATA

Case: Molded plastic over glass passivated junction

Terminals: Plated Axial leads, solderable per

MIL-STD-750, Method 2026

Mounting Position: Any

Weight: 0.07 ounces, 2.1 gram

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

SYMBOL

VALUE

UNITS

Watts

Amps

Watts

°C

Peak Pulse Power Dissipation on 10/1000 µs

PPM

Minimum 3000

waveform

(NOTE 1, Fig.1)

PPM

SEE TABLE 1

Peak Pulse Current of on 10/1000 µs waveform

(Note 1,Fig 3)

Steady State Power Dissipation at

= 75°C

(AV)

5.0

Lead lengths .375", 9.5mm

-55 +175

Operatings and Storage Temperature Range

, T

STG

NOTES:

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.

Certified RoHS Compliant

UL File # E223026
