FSZ
CONNECTOR
0.5mm
pitch
Emboss Tape
Connectors for FFC and FPC
Features ––––––––––––––––––––––––

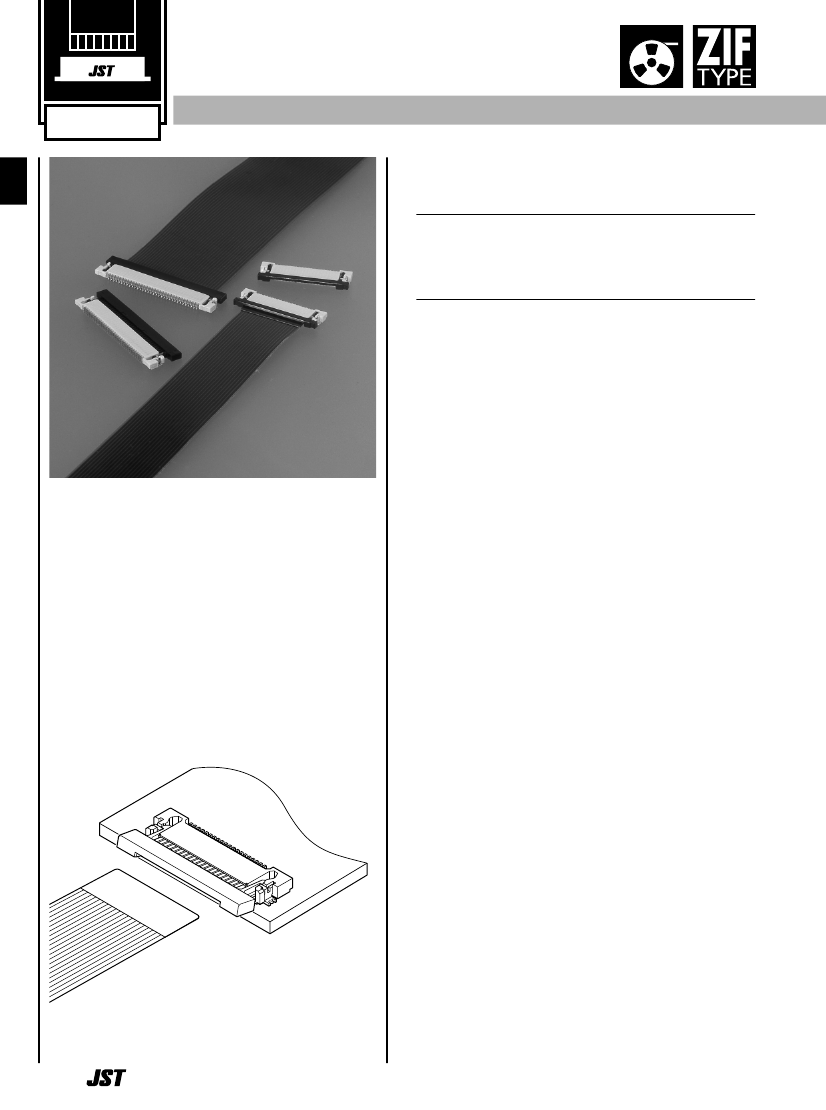

• Slim housing
This connector has a mounting height of 1.2mm MAX, yet
features a resin insulated bottom which allows a circuit pattern
layout underneath the connector.
• Space saving design
It is designed for use in small mobile equipment which requires
high-density mounting.
Space saving ZIF Connector for 0.3mm
thickness FPC ZIF type is superior in
durability and in preventing wearing.
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/40m
Ω
max.
After environmental testing/20m
Ω
max.
(variation from initial value)
• Insulation resistance:
500M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FFC/FPC:
Conductor pitch/0.5mm
Conductor width/0.35mm
Mating part thickness/0.3±0.05mm
* RoHS compliant products are published.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
D128
FSZ
CONNECTOR

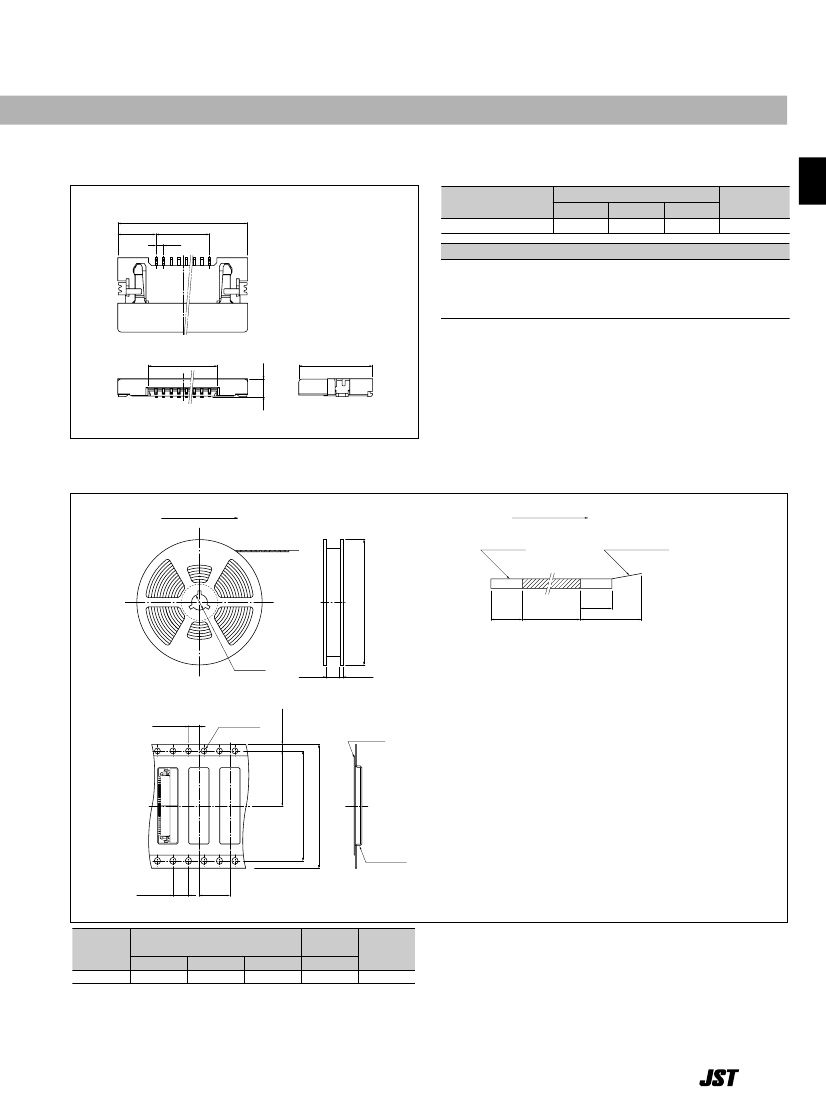

Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
(2.5)
0.5
C
A
Dimensions(mm)
A
16.5
B
17.55
C
21.5
Q'ty/ reel
4,000
34FSZ-RSM1-G-TB
Material and Finish
Contact: Copper alloy, nickel-undercoated, gold-plated
Housing: LCP, UL94V-0, natural
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Cover: PA 9T, UL94V-0, black
RoHS compliance
This product displays (LF)(SN) on a label.
This products listed above are supplied on embossed-tape.
1.1
B
4.85
Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
Carrier tape
Cover tape leader
φ
330
±
2.0
Leader part
100min.
The end part Connector
160min.
mounting part
400min.
(
φ
13)
W1
+2.5
- 1.0
2.0
±
0.5
2.37
±
0.1
φ1.55
±
0.05
1.75
±
0.1
Cover tape
F
±
0.1
W
±
0.3
S
±
0.1
Carrier tape
4.0
±
0.1
8.0
±
0.1
Circuits
F
34
Taping dimensions(mm)
S
28.4
Reel dimensions
(mm)
W
W1
33.5
Q'ty/
reel
4,000
14.2
32.0
Note: 1. Specifications conform to JIS C 0806. The tape width, connector loading recess square hole dimensions, etc. are determined by the number of circuits and
external shape of the connector to be loaded.
Note:
2. Specifications are subject to change without prior notice.
D129
FSZ
CONNECTOR
Lead section dimensions of FFC and FPC –––––––––––––––––––––––––––––––––––––
0.5x(N+1)
±
0.05
0.5
±
0.1
0.5x(N-1)
±
0.03
0.5
±
0.03
0.35
±
0.04
0.3
±
0.05
3.0min.
Note: N --- Number of circuits
PC board layout (viewed from component side) and Assembly layout ––––––––––––––
2.6
±
0.05
0.99
±
0.05
0.8
±
0.1
A
±
0.05
0.5
±
0.03
0.35
±
0.05
(5.5)
Reinforcing layer
4.85
0.9
±
0.05
Note: 1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
D130
1.05
±
0.05
1.1
