5962-9152101M3X datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-9152101M3X

5962-9152101M3X: DescriptionIC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size163KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-9152101M3X Overview

IC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter

5962-9152101M3X Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	35 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-CQCC-N28
length	11.43 mm
Nominal negative supply voltage	-5 V
Number of analog input channels	4
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Sampling rate	0.029 MHz
Sample and hold/Track and hold	TRACK
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
Base Number Matches	1

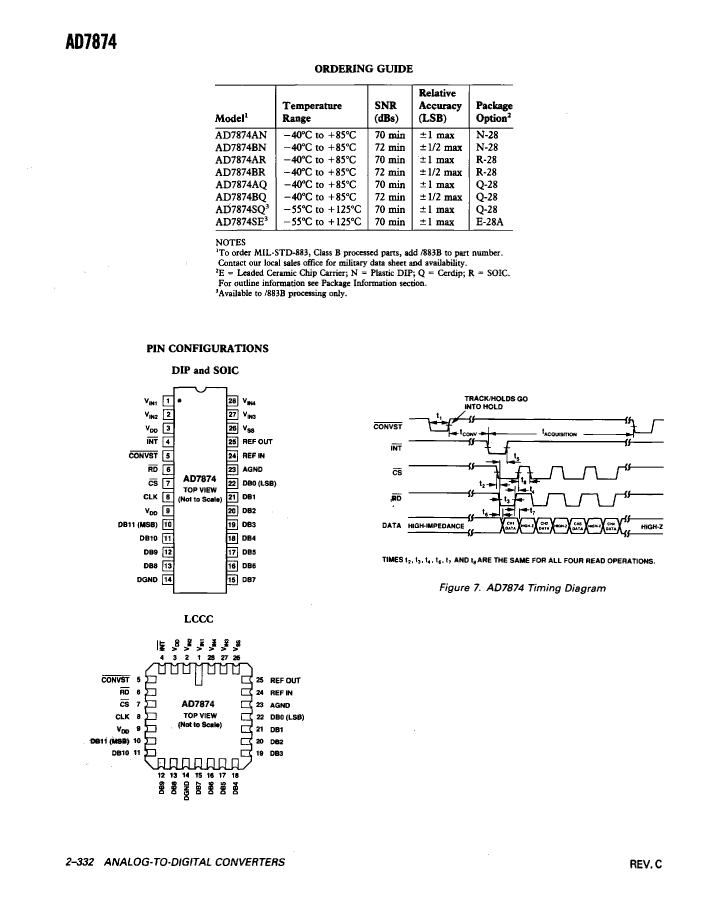

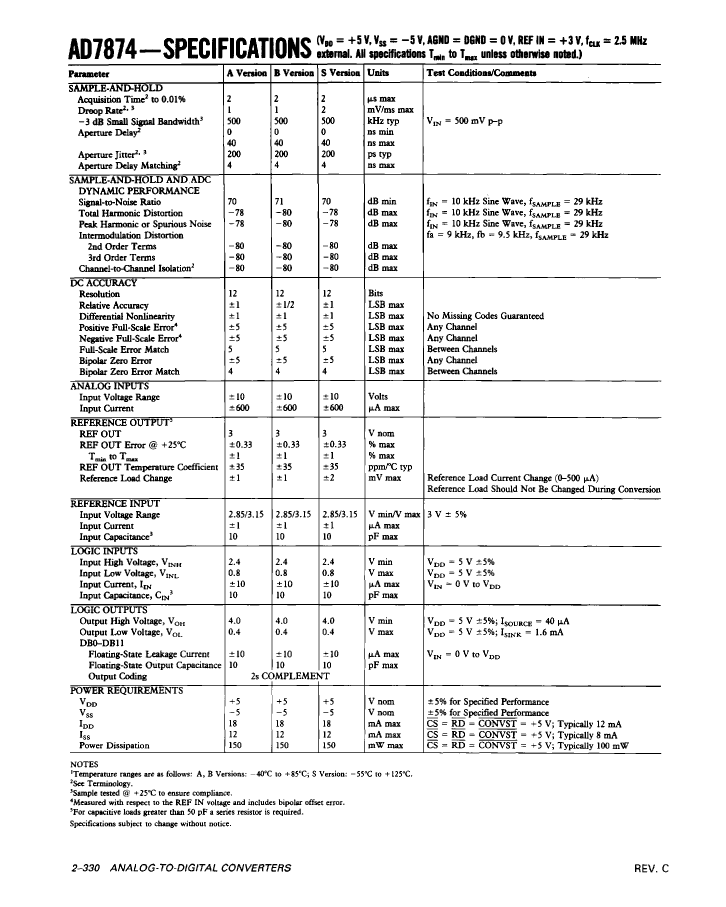

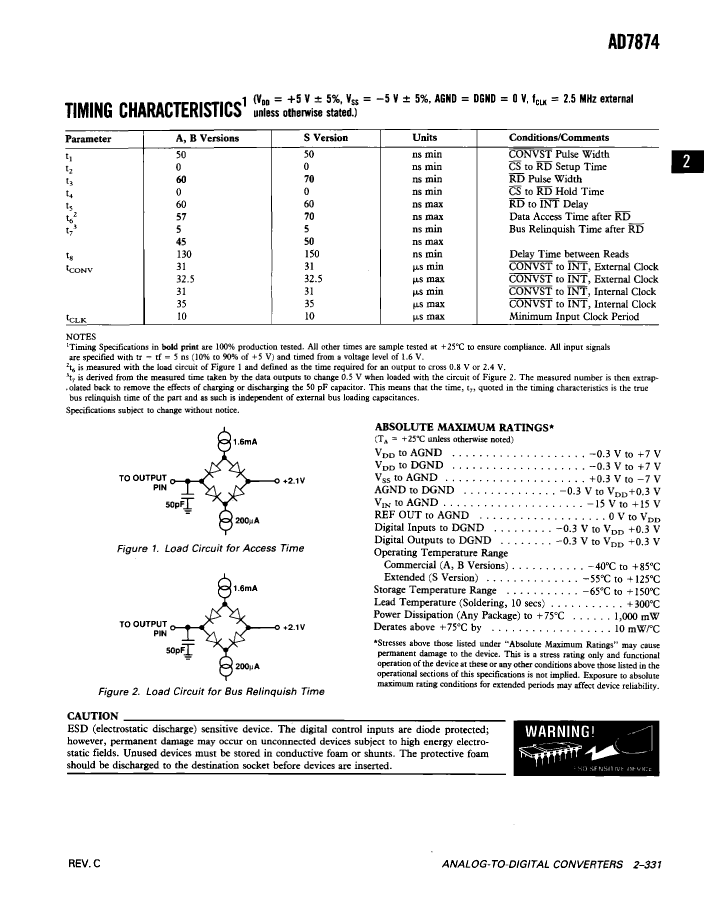

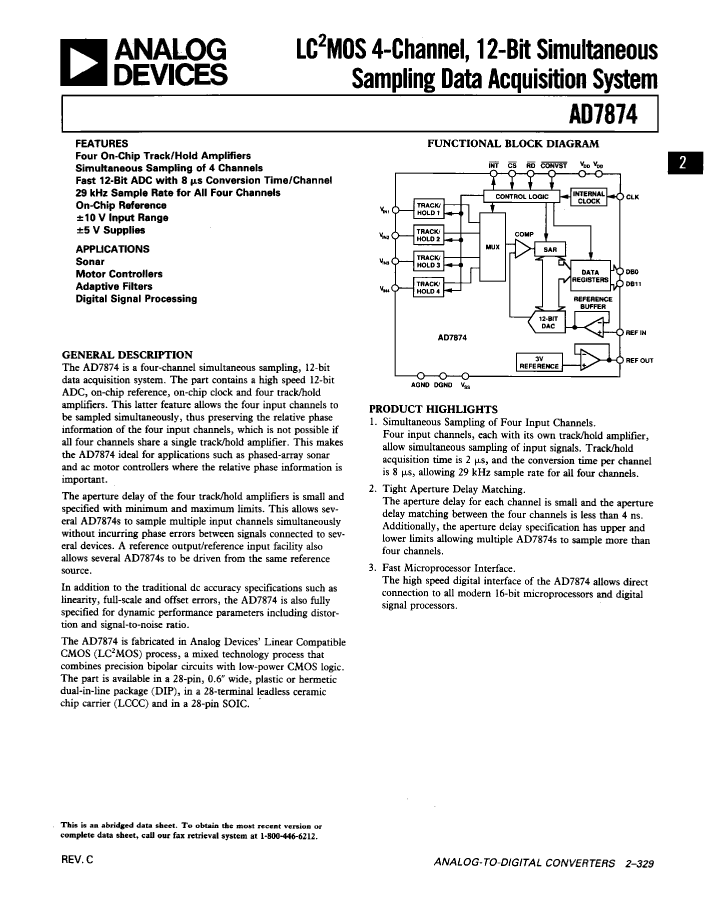

Preview

Download Datasheet

View All

5962-9152101M3X Related Products

	5962-9152101M3X	5962-9152101MXX
Description	IC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter	IC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP28, CERDIP-28, Analog to Digital Converter
Maker	ADI	ADI
Parts packaging code	QLCC	DIP
package instruction	QCCN,	DIP,
Contacts	28	28
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum analog input voltage	10 V	10 V
Minimum analog input voltage	-10 V	-10 V
Maximum conversion time	35 µs	35 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-CQCC-N28	R-GDIP-T28
Nominal negative supply voltage	-5 V	-5 V
Number of analog input channels	4	4
Number of digits	12	12
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output bit code	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Qualified	Qualified
Sampling rate	0.029 MHz	0.029 MHz
Sample and hold/Track and hold	TRACK	TRACK
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	2.54 mm	5.72 mm
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	11.43 mm	15.24 mm
Base Number Matches	1	1
