Preview

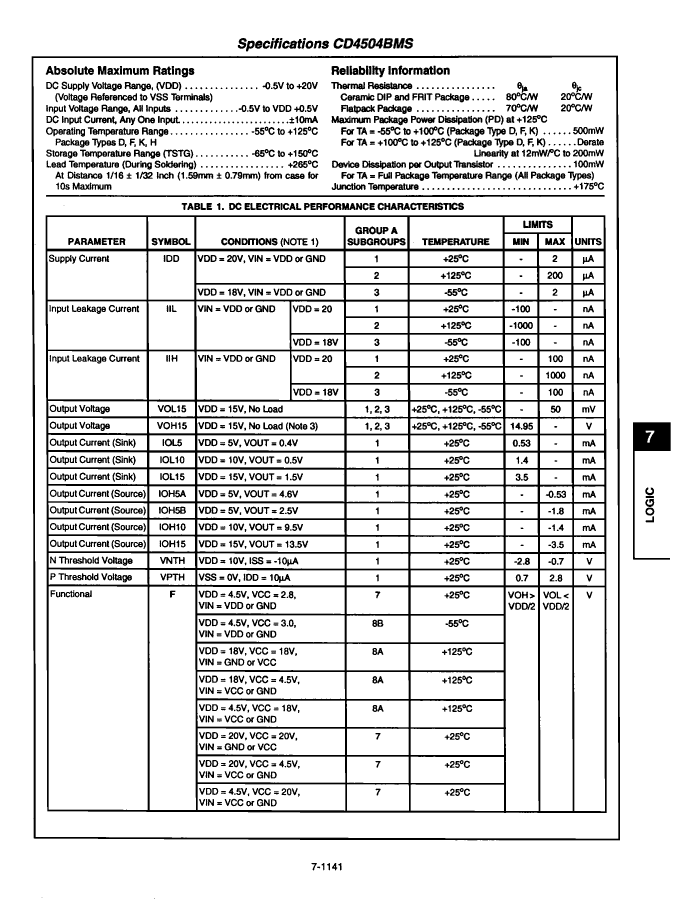

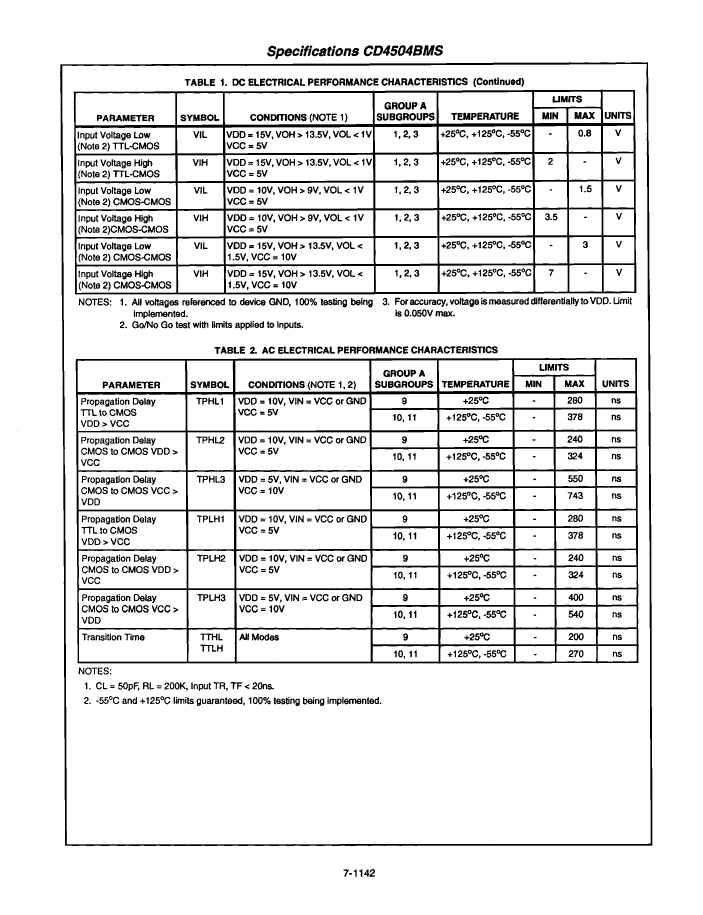

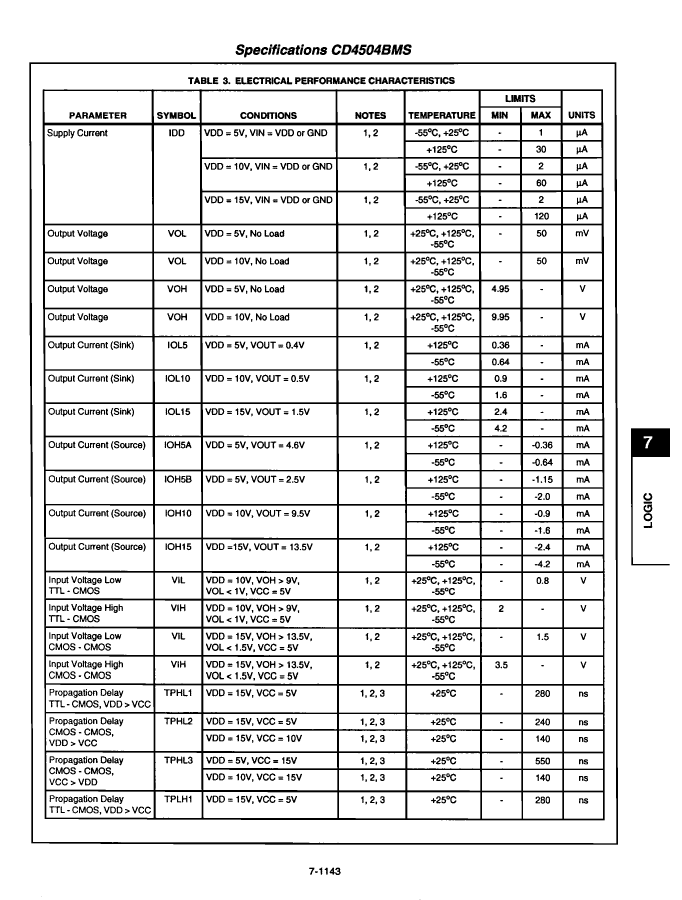

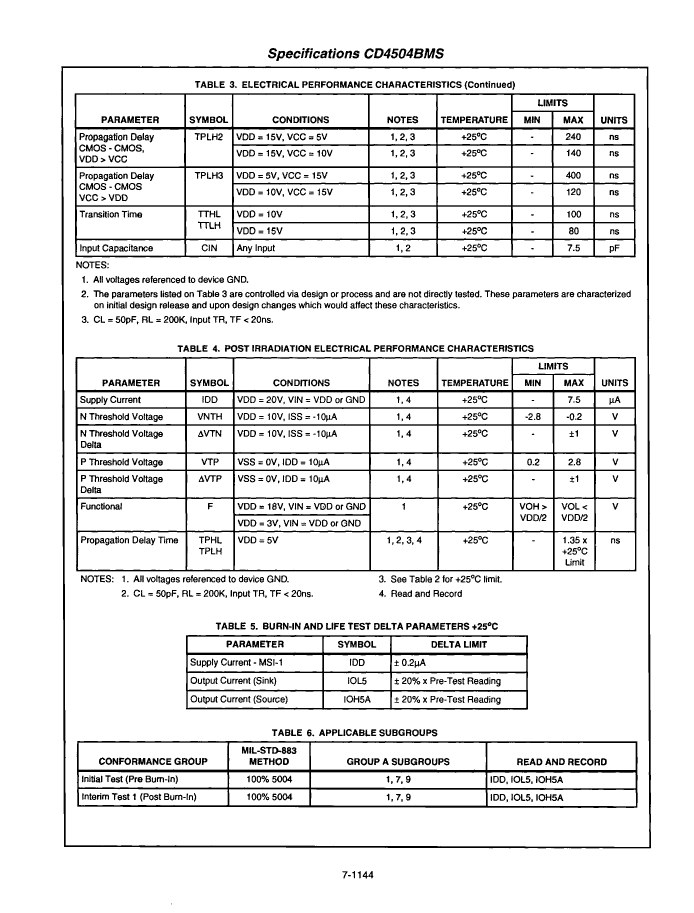

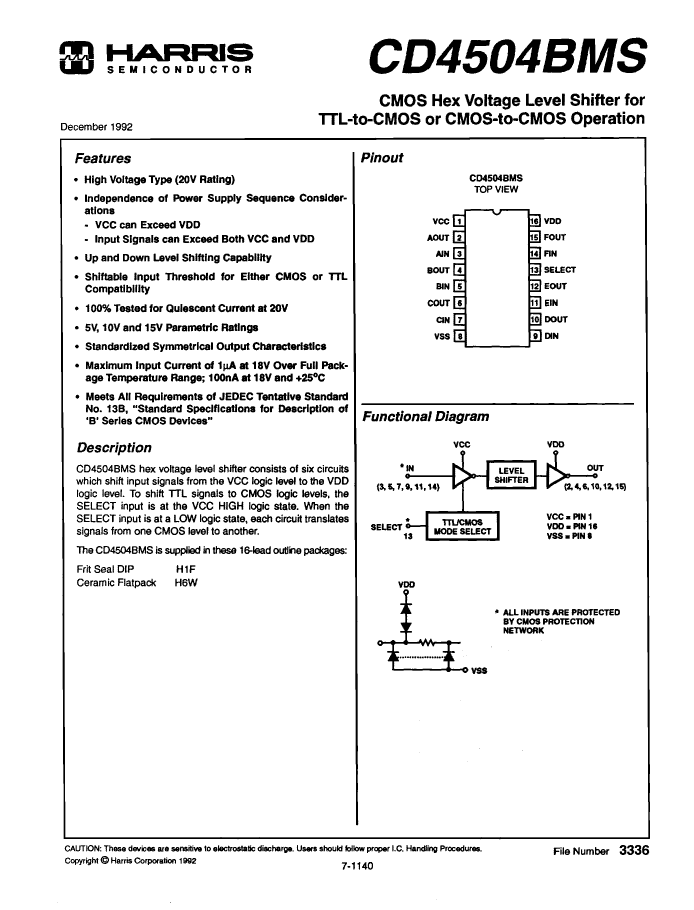

CD4504BFMSR: DescriptionTTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDIP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size291KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD4504BFMSR Overview

TTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDIP16

CD4504BFMSR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
Reach Compliance Code	unknown
ECCN code	EAR99
maximum delay	743 ns
Interface integrated circuit type	TTL/CMOS TO CMOS TRANSLATOR
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Number of digits	1
Number of functions	6
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output latch or register	NONE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

CD4504BFMSR Related Products

	CD4504BFMSR	5962R9666501VXC	CD4504BFMSH	CD4504BKMSH	CD4504BKMSR
Description	TTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDIP16	TTL/CMOS to CMOS Translator, 6 Func, True Output, CMOS, CDFP16, CERAMIC, DFP-16	TTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDIP16	TTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDFP16	TTL/CMOS to CMOS Translator, 6 Func, Inverted Output, CMOS, CDFP16
Maker	Harris	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
maximum delay	743 ns	743 ns	743 ns	743 ns	743 ns
Interface integrated circuit type	TTL/CMOS TO CMOS TRANSLATOR	TTL/CMOS TO CMOS TRANSLATOR	TTL/CMOS TO CMOS TRANSLATOR	TTL/CMOS TO CMOS TRANSLATOR	TTL/CMOS TO CMOS TRANSLATOR
JESD-30 code	R-GDIP-T16	R-CDFP-F16	R-GDIP-T16	R-CDFP-F16	R-CDFP-F16
JESD-609 code	e0	e4	e0	e0	e0
Number of digits	1	1	1	1	1
Number of functions	6	6	6	6	6
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output latch or register	NONE	NONE	NONE	NONE	NONE
Output polarity	INVERTED	TRUE	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	MIL-PRF-38535 Class V	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Encapsulate equivalent code	DIP16,.3	-	DIP16,.3	FL16,.3	FL16,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5/15 V	-	5/15 V	5/15 V	5/15 V
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	-	-
package instruction	-	DFP,	-	DFP, FL16,.3	DFP, FL16,.3
