8810100000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8810100000

8810100000: DescriptionPower/Signal Relay, DPDT, Momentary, 750mW (Coil), AC Input, AC Output, DIN-Rail Mount; CategoryMechanical and electronic products relay; File Size54KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8810100000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8810100000	-	-	View	Buy Now

8810100000 Overview

Power/Signal Relay, DPDT, Momentary, 750mW (Coil), AC Input, AC Output, DIN-Rail Mount

8810100000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	COIL OPERATING VOLTAGE (AC): 86.3 V, COIL RELEASE VOLTAGE (AC): 17.3 V
body width	15.5 mm
body height	62 mm
Body length or diameter	78.5 mm
Coil current (AC) maximum value	0.007 A
Coil power	750 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Manufacturer's serial number	8810100000
Installation features	DIN-RAIL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	78.5mm X 15.5mm X 62mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
seal	IP20
surface mount	NO
Termination type	CONNECTOR
Base Number Matches	1

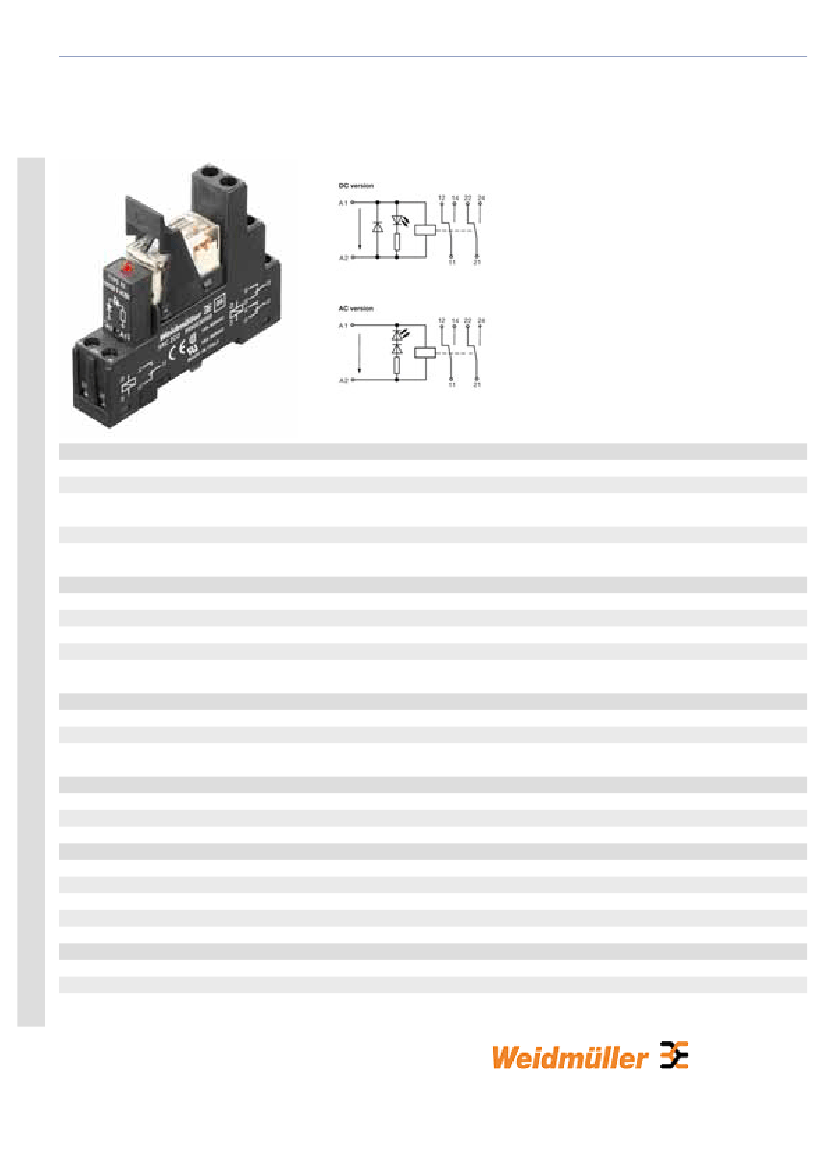

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage AC coil

Rated current AC

Power rating

Status indicator

Output

Continuous current

Max. switching power

Max. switching voltage AC

Contact data

Number of contacts

Contact base material

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Ambient temperature (operational)

Insulation coordination (EN 50 178)

Pollution severity

Protection class

Secure separation acc. to VDE 0106 part 101

8810100000

RCLKIT 115VAC 2CO LD RT

Relays, 2 CO contact, 115 V AC , 8 A, Screw

connection

4032248509621

10 pc(s).

115 V AC

86.3 V / 17.3 V

6.6 mA

0.75 VA

Green LED = DC coil; red LED = AC coil

4000 VA

250 V

AgNi 90/10

Screw connection

TS 35

V-0

-40 °C...+70 °C

IP 20

Yes

-1-
