5082-7751 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5082-7751

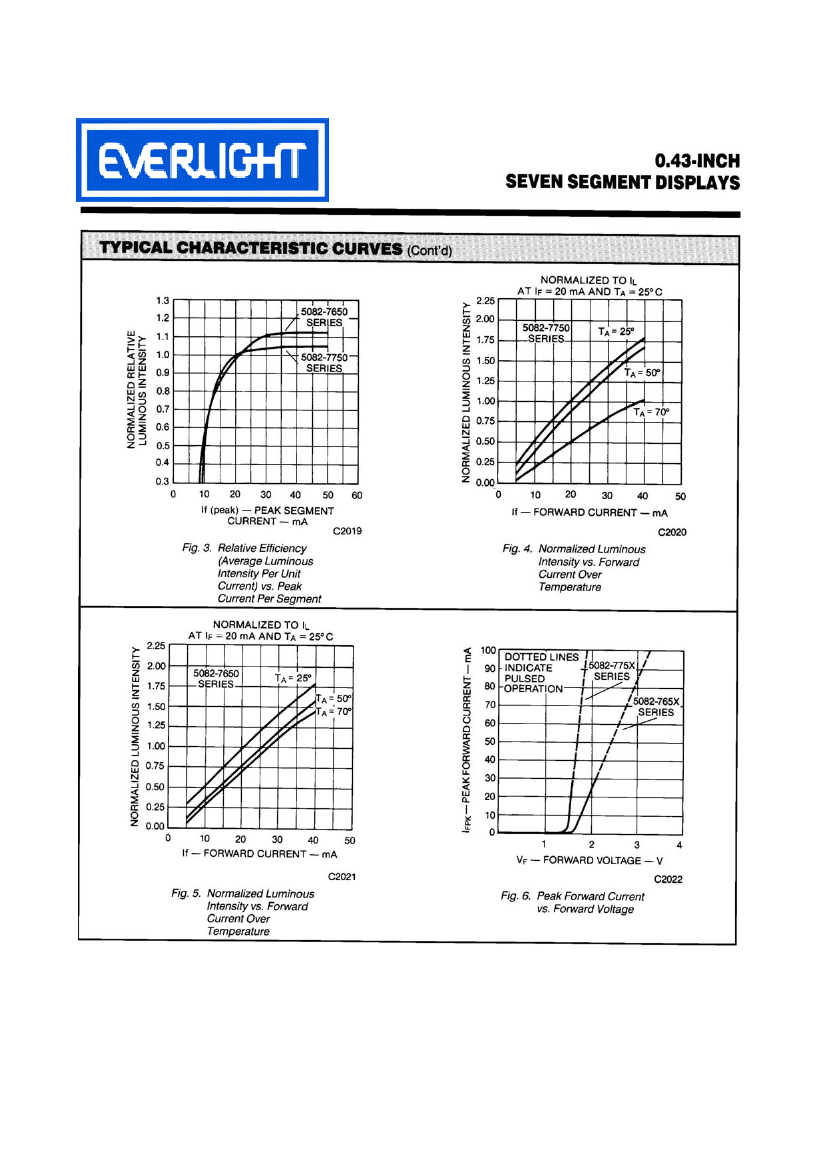

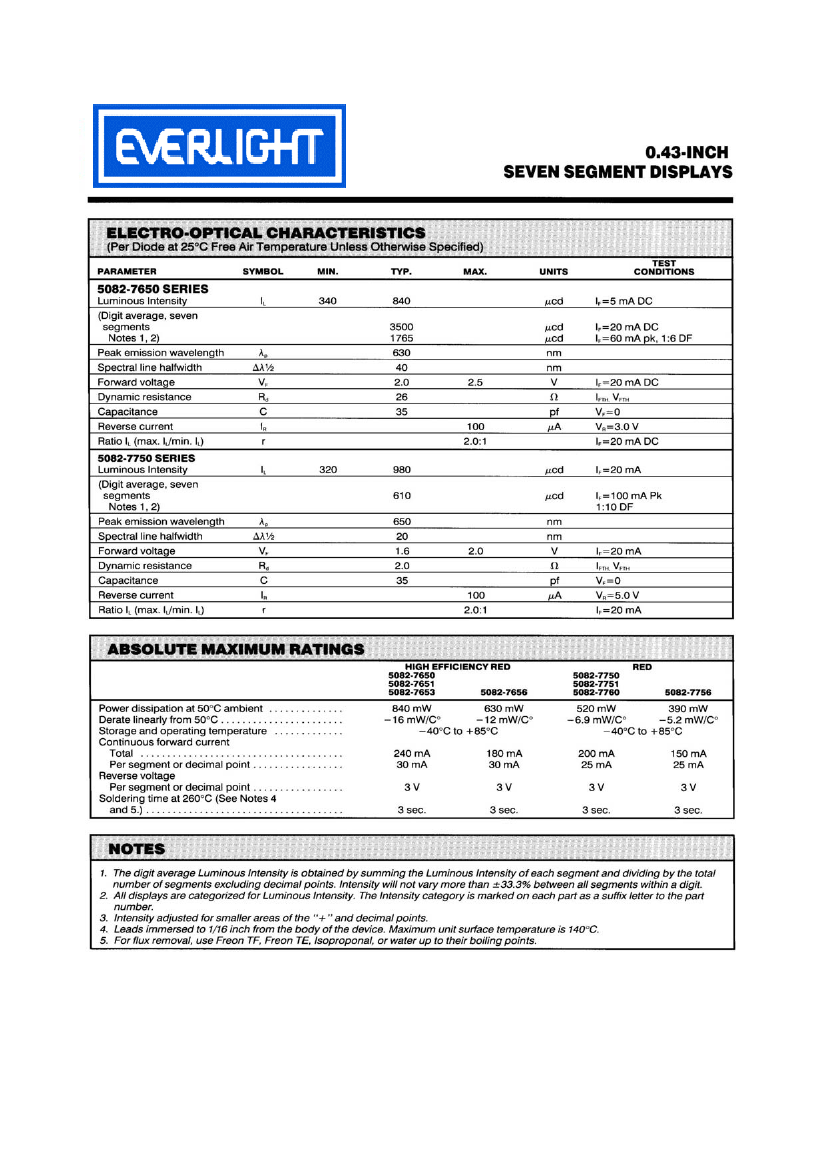

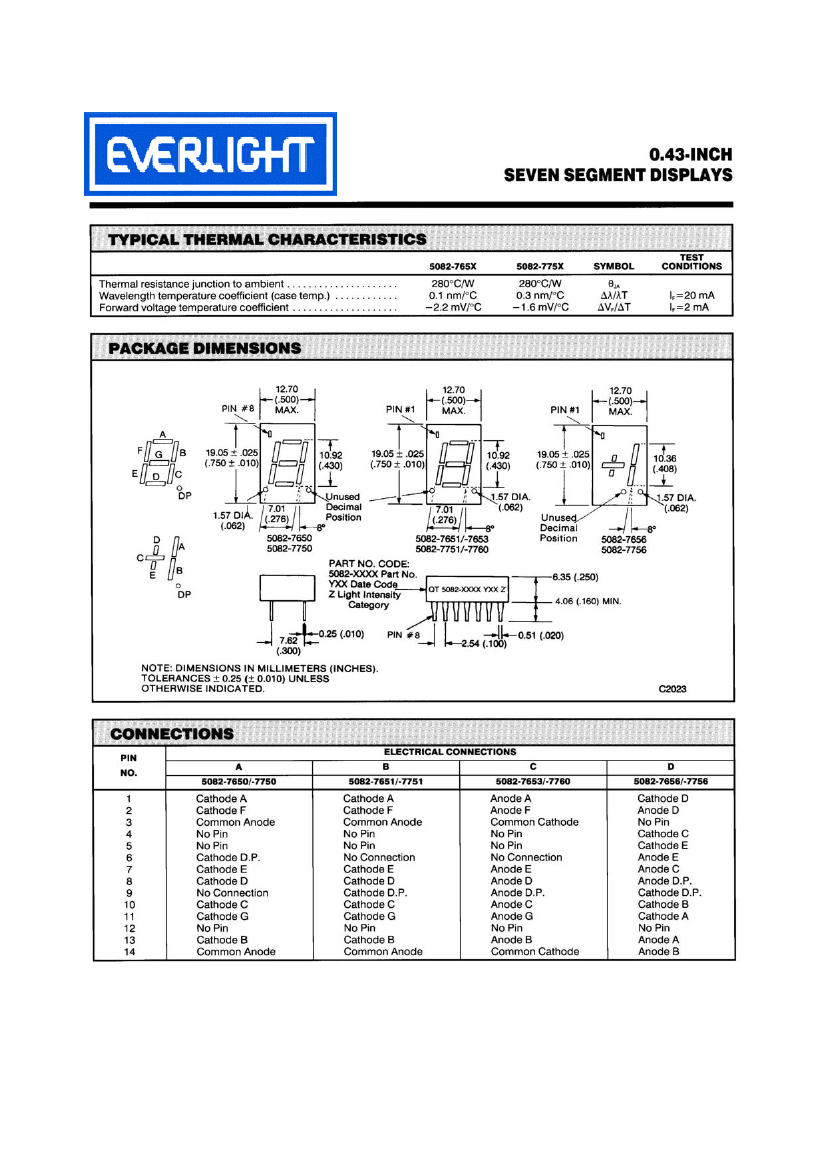

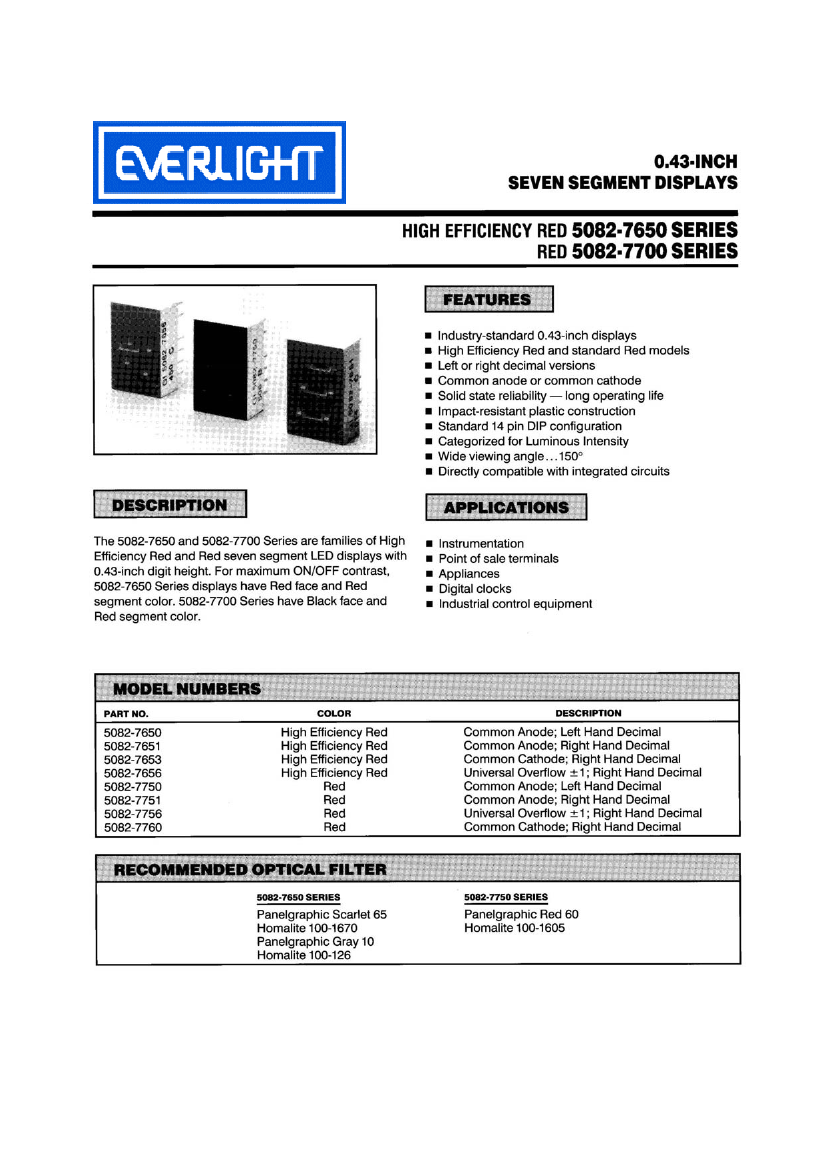

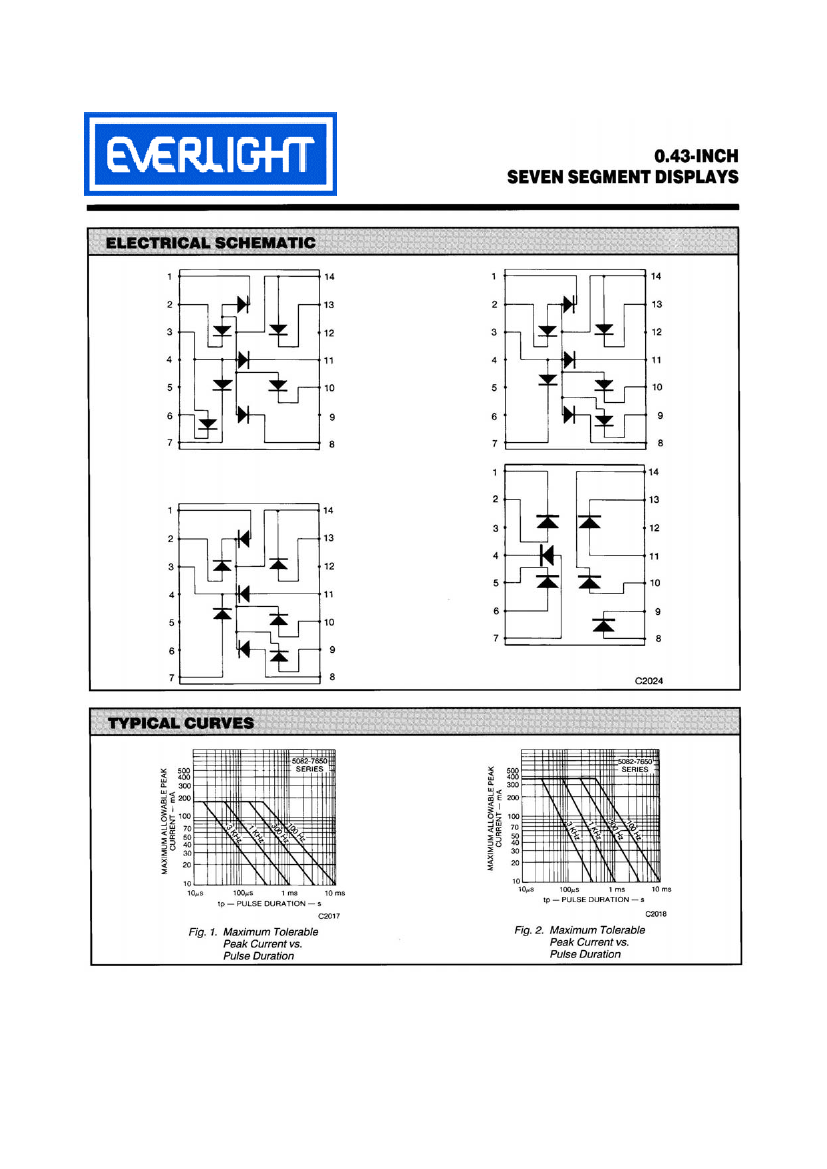

Preview

5082-7751: DescriptionSmart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.92mm, PLASTIC, DIP-14; CategoryLED optoelectronic/LED photoelectric; File Size1MB，6 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5082-7751 Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.92mm, PLASTIC, DIP-14

5082-7751 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PLASTIC, DIP-14
Reach Compliance Code	compliant
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	10.92 mm
Maximum forward current	0.025 A
Maximum forward voltage	2 V
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	650 nm
Base Number Matches	1

Preview

Download Datasheet

View All

5082-7751 Related Products

	5082-7751	5082-7760	5082-7656	5082-7650	5082-7750	5082-7651	5082-7653	5082-7756
Description	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 10.36mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 10.92mm, PLASTIC, DIP-14	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 10.36mm, PLASTIC, DIP-14
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, DIP-14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY
color	RED	RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	RED
color@wavelength	Red	Red	Orange-Red	Red	Red	Red	Orange-Red	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT
Display height	10.92 mm	10.92 mm	10.36 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.36 mm
Maximum forward current	0.025 A	0.025 A	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A	0.025 A
Maximum forward voltage	2 V	2 V	2.5 V	2.5 V	2 V	2.5 V	2.5 V	2 V
Number of characters	1	1	1	1	1	1	1	1
Number of functions	1	1	0.5	1	1	1	1	0.5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	650 nm	655 nm	630 nm	635 nm	650 nm	635 nm	630 nm	650 nm
Base Number Matches	1	1	1	1	1	1	1	1
