FM27C512TE55L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> FM27C512TE55L

FM27C512TE55L: DescriptionOTP ROM, 64KX8, 55ns, CMOS, PDSO28, PLASTIC, TSOP1-28; Categorystorage storage; File Size322KB，11 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

FM27C512TE55L Overview

OTP ROM, 64KX8, 55ns, CMOS, PDSO28, PLASTIC, TSOP1-28

FM27C512TE55L Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TSOP
package instruction	TSOP1,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	55 ns
Other features	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS
JESD-30 code	R-PDSO-G28
length	11.8 mm
memory density	524288 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.55 mm
Terminal location	DUAL
width	8 mm
Base Number Matches	1

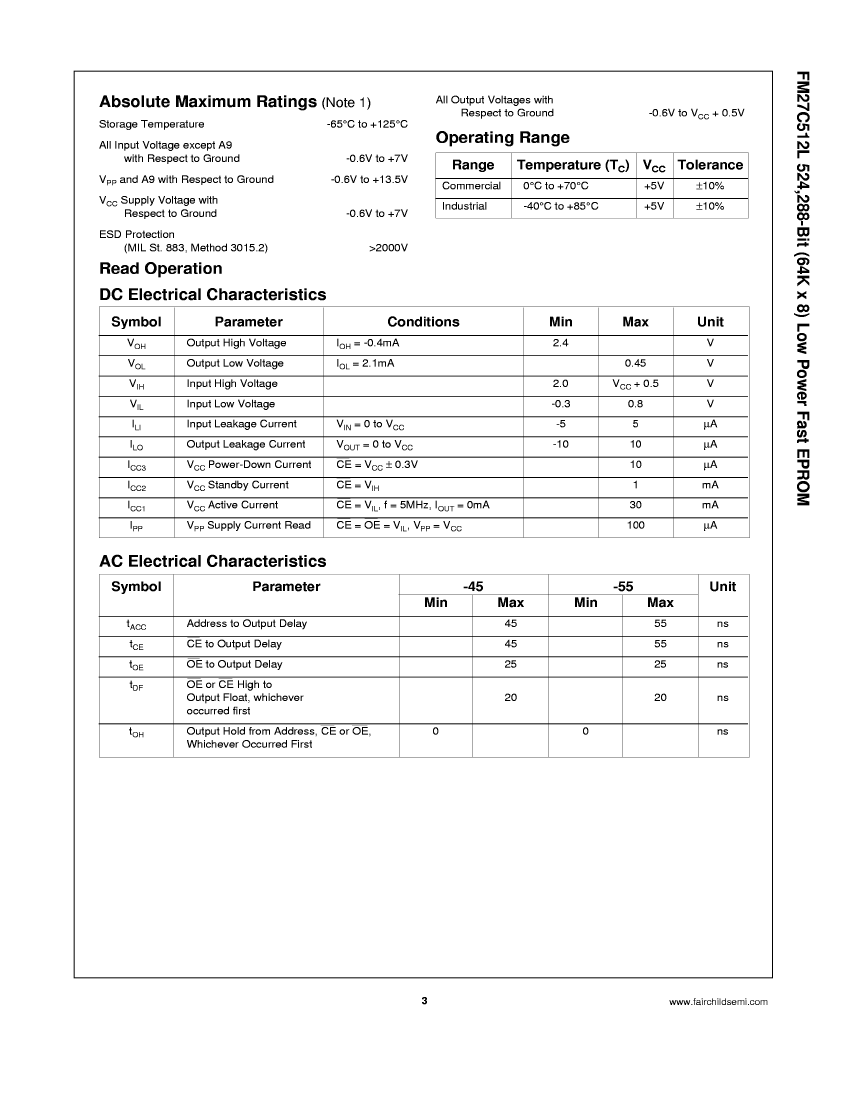

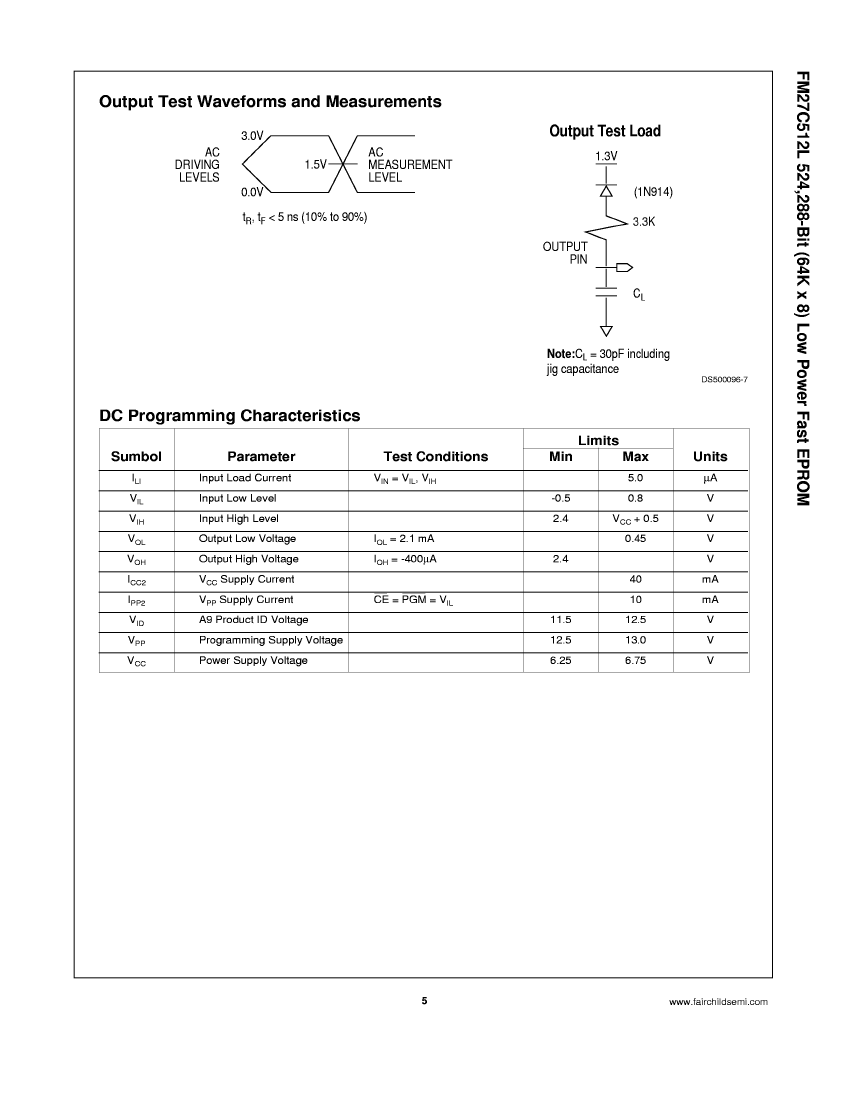

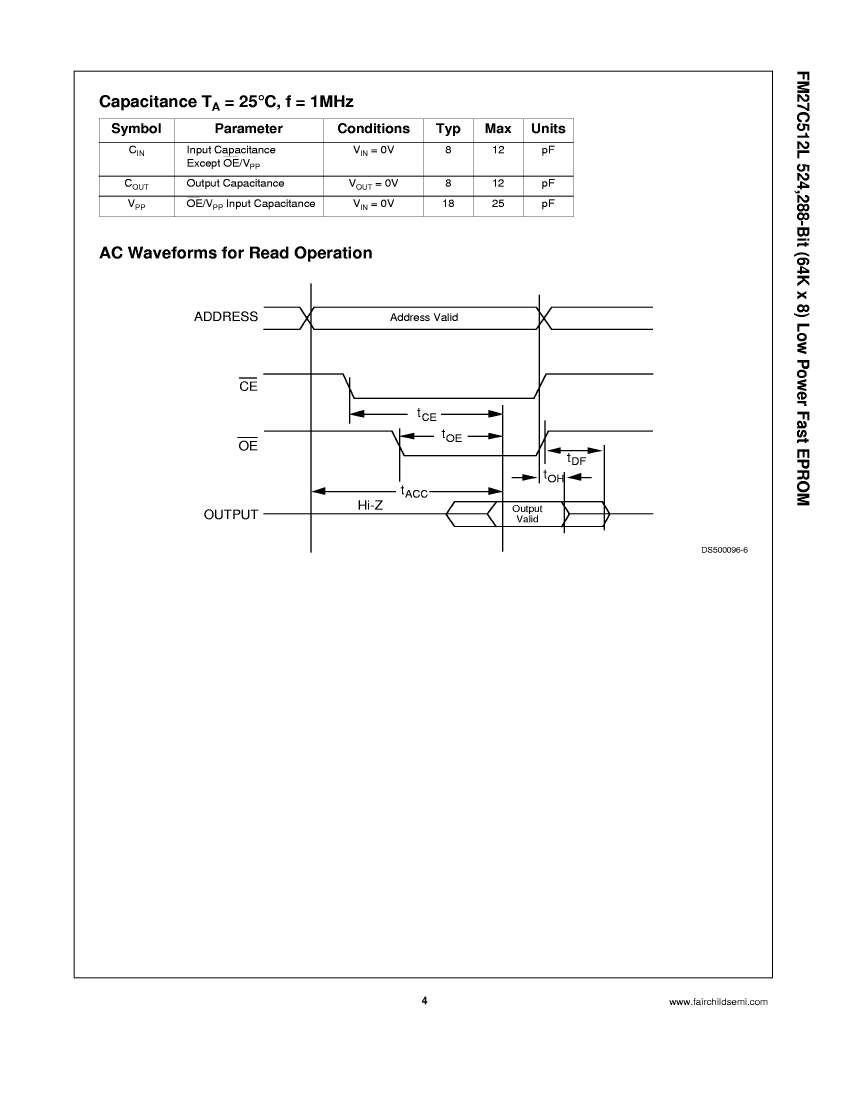

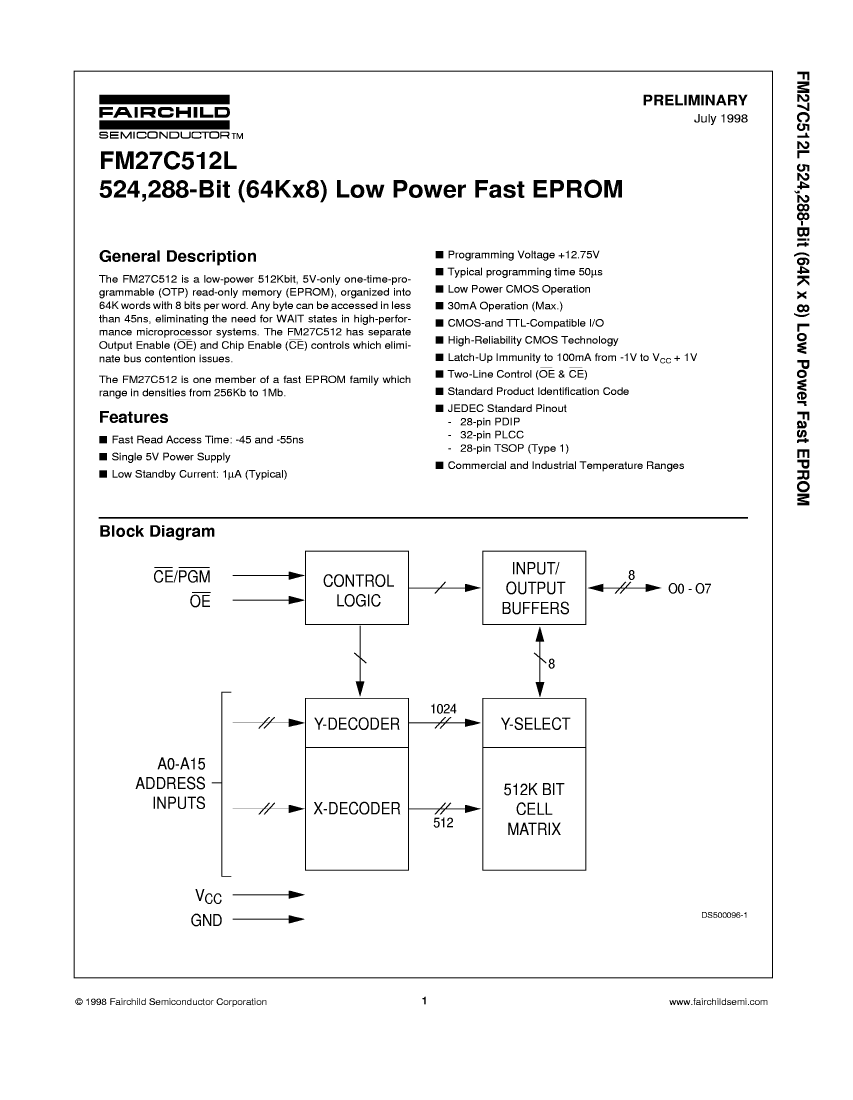

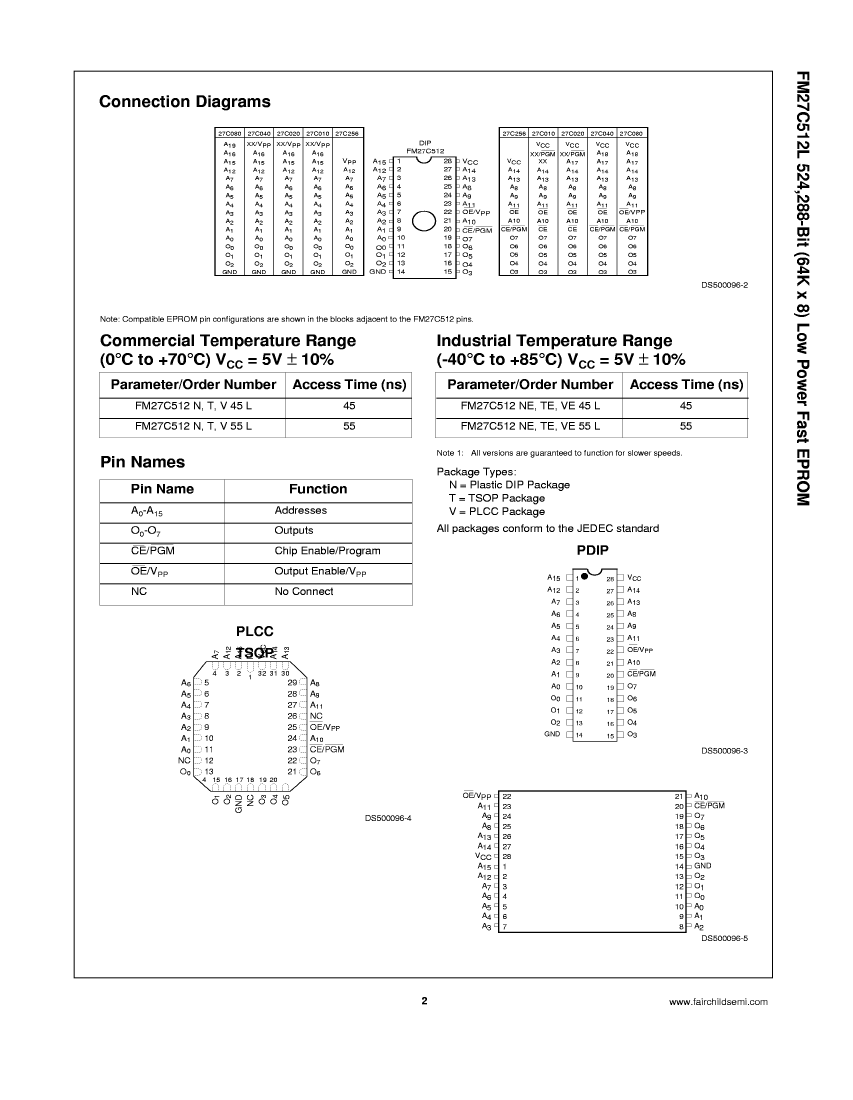

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

FM27C512TE55L Related Products

	FM27C512TE55L	FM27C512T45L	FM27C512TE45L	FM27C512VE55L	FM27C512T55L	FM27C512NE45L
Description	OTP ROM, 64KX8, 55ns, CMOS, PDSO28, PLASTIC, TSOP1-28	OTP ROM, 64KX8, 45ns, CMOS, PDSO28, PLASTIC, TSOP1-28	OTP ROM, 64KX8, 45ns, CMOS, PDSO28, PLASTIC, TSOP1-28	OTP ROM, 64KX8, 55ns, CMOS, PQCC32, PLASTIC, LCC-32	OTP ROM, 64KX8, 55ns, CMOS, PDSO28, PLASTIC, TSOP1-28	OTP ROM, 64KX8, 45ns, CMOS, PDIP28, PLASTIC, DIP-28
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	TSOP	TSOP	TSOP	QFJ	TSOP	DIP
package instruction	TSOP1,	TSOP1,	TSOP1,	QCCJ,	TSOP1,	DIP,
Contacts	28	28	28	32	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	55 ns	45 ns	45 ns	55 ns	55 ns	45 ns
Other features	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS	TTL/CMOS COMPATIBLE INPUTS/OUTPUTS
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PQCC-J32	R-PDSO-G28	R-PDIP-T28
length	11.8 mm	11.8 mm	11.8 mm	13.995 mm	11.8 mm	35.942 mm
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	32	28	28
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-	-40 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1	QCCJ	TSOP1	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	CHIP CARRIER	SMALL OUTLINE, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	3.56 mm	1.2 mm	5.334 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	THROUGH-HOLE
Terminal pitch	0.55 mm	0.55 mm	0.55 mm	1.27 mm	0.55 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
width	8 mm	8 mm	8 mm	11.455 mm	8 mm	15.24 mm
Base Number Matches	1	1	1	1	1	-
