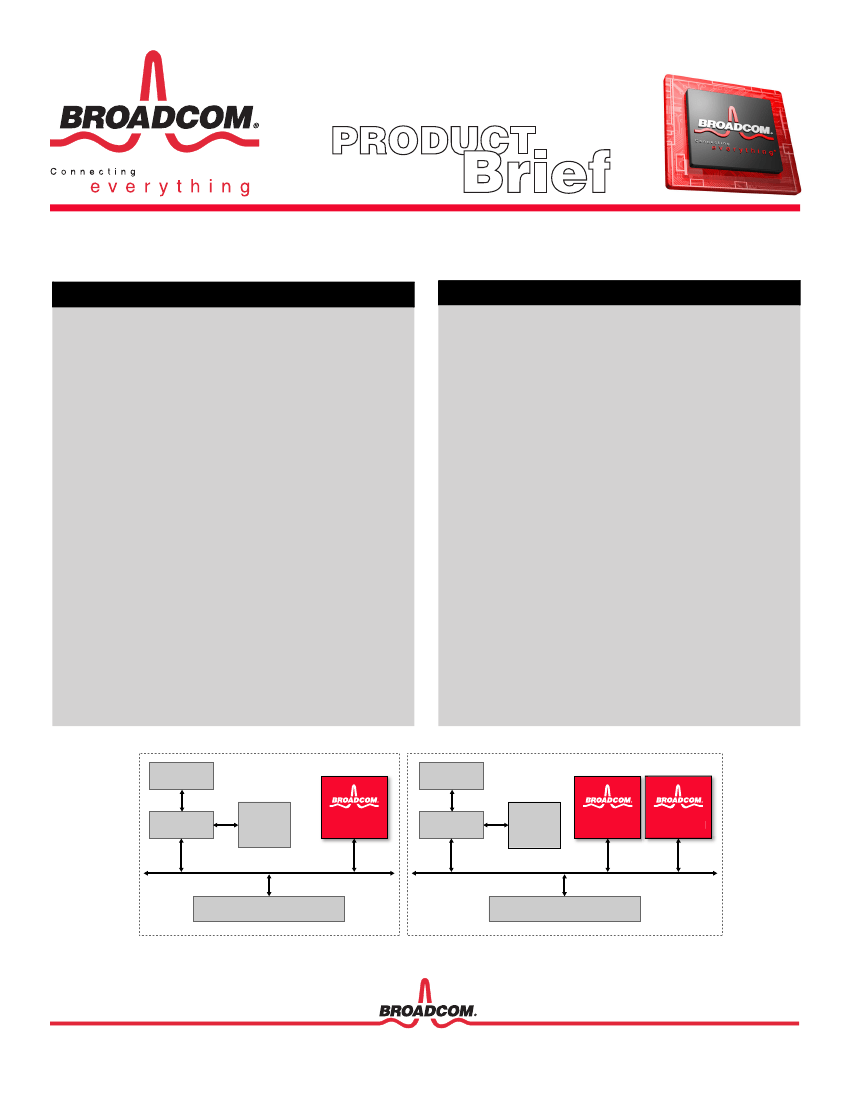

BCM586X
®
NEXT-GENERATION CRYPTONETX™ IPSEC/SSL SECURITY PROTOCOL
PROCESSOR PRODUCT LINE
FEATURES
•
High-performance VPN and SSL security processor
•
Up to 2 Gbps IPSec packet protocol processing
•
IPv4 and IPv6 header encapsulation/decapsulation
•
AH, ESP, transport and tunnel modes supported
•
5-tuple-based inbound security policy verification
Two Gbps SSL/TLS record layer processing
•
Record encapsulation and decapsulation
•
Session key derivation
•
SSL/TLS finished message computation
High-performance public key processor
•
15,2241024-bit RSA transactions per second
•
15,224 Diffie-Hellman transactions per second
•
Support for IKE and SSL/TLS modes
BroadSAFE™ enabled
•
OTP to protect private keys
•
Secure assurance logic
Software-compatible with the entire CryptoNetX™ security
processor family
Cryptographic functions
•
3DES/DES, AES, HMAC-SHA-1
True hardware random number generator
Optimized PCI-X
®
or PCI Express
®
interface
0.13-mm CMOS technology
Low power consumption: <5W
400-pin PBGA package
SUMMARY OF BENEFITS
•
High-performance security processor enables both secure web
and high-performance VPN applications
•
Web servers
•
VPN-enabled routers
•
Layer 4+ switches
•
VPN appliances
•
Web appliances with integrated SSL
•
Access devices
•
Firewalls
•
Extensive embedded software development kit
•
Linux
®
, VxWorks
®
, BSD
®
support
•
Software reference library
•
Full OpenSSL integration
•
Complete reference design
•
Easy upgrade from BCM5821, BCM5823, and BCM5825
•
•
•
•
•
•
•
•
•
•
•
Compatible with other Broadcom devices, enabling optimal
system-level form factor, costs, and power dissipation
•
Software compatibility across entire family protects customers
software investment and enables fast time-to-market of next-
generation solutions.
•
BroadSAFE benefits
•
Keys and identity stored in on-chip memory
•
Provides a secure key management
•
Strong device authentication
•
Secure key distribution coupled with strong hardware
encryption (AES) ensures true link privacy
•
Secure software distribution for safe in-field upgrades and
patches of software
BCM586X Application Block Diagram
DRAM
DRAM
Bridge
CPU
BCM5862
Bridge
CPU
BCM5862
BCM5862
PCI-X Bus @ 133 MHz
PCI-X Bus @ 133 MHz
LAN Interface
LAN Interface
2-Gbps VPN System Application
30K TPS SSL System Application
OVERVIEW
Host Software
Broadcom Security
API
SW
Reuse
Host Software
Broadcom Security
API
SW
Reuse
Host Software
Broadcom Security
API
Legacy
Current
Generation
Next
Generation
BCM586X Compatibility
The
BCM586X protocol processors are capable of providing up to 2 Gbps
of IPSec protocol processing as well securing 15,224 RSA transactions
per second. Ideal for high- and mid-end virtual private networking
(VPN), firewall appliances, and SSL-based appliances, this new low-
power security protocol processing family provides software
compatibility with Broadcom’s popular CrypoNetX™ security processor
chip family.
For VPN applications, this BCM586X product line offers protocol
processing and acceleration for symmetric key functions at significantly
increased performance rates. The BCM586X products support bulk AES
encryption and authentication up to 2 Gbps, bulk SSL encryption and
authentication (ARC4, SSL-MAC-MD5/SHA-1) up to 2 Gbps, and Ipsec
(3DES, HMAC-SHA-1) in-system performance up to and greater than
2 Gbps. The product line is also capable of performing security
association (SA) lifetime checking for both inbound and outbound SAs
and anti-replay checking for inbound packets, supporting 5-tuple-based
inbound policy verification. A true hardware random number generator is
convenient for initialization vector seeding and secret key generations.
For SSL applications, a single BCM5862 (see table) can support 15,224
SSL sessions per second, which dramatically improves the response time
of layer 4+ switches, server load balancers, servers, and other appliances
with integrated SSL capability. The BCM586X devices perform all of the
protocol processing required for SSL record layer processing:
encapsulation/decapsulation, authentication/verification, encryption/
decryption of SSL/TLS records at up to 2 Gbps, key derivation, finished
message processing, and client certificate verification operations for SSL/
TLS. The BCM586X processors support public key operations used in
IKE and SSL/TLS handshake protocols: Diffie Hellman (DH), RSA, and
DSA.
The BCM586X processors include BroadSAFE™, an automated FIPS
140-2 level 3 certifiable key management subsystem. BroadSAFE
enables strong cryptographic authentication, automatic device
enrollment, and easy in-field upgrades. In addition, BroadSAFE can be
used to distribute private keys and symmetric keys securely in public
networks.
Depending on the chip bonding options, the BCM586X processors
connect directly to either the PCI/PCI-X bus or the PCI Express bus
without external logic/memory. This new product line is software-
compatible to the entire security processor family in either bus
configuration.
The BCM586X family is ideal for embedded applications with strict
board space and power requirements because it requires no external
components. Additionally, the integrated PCI-X interface makes the
BCM586X the solution for all high-performance yet cost-sensitive
security applications. In the unlikely event that more performance is
required, the BCM586X processors can be scaled to further increase both
public key and bulk crypto (IPsec and AES) processing performance.
System memory is optimized to maximum throughput in real-world
applications with unlimited security association (SA) support via system
memory and a multithreaded DMA engine. Concurrent public key and
bulk payload processing minimizes latency and improves system
performance dramatically.
The next-generation CryptoNetX BCM586X devices address a broad
range of performance points and leverage a common software base,
enabling customers to develop families of products with common
architectures and software platforms.
Application program interface (API) support through Broadcom’s
renowned Software Reference Library (SRL) for IPSec and SSL
application software offers BCM586X users a complete system solution.
The BCM586X SDK includes support for VxWorks, Linux, and BSD.
Part Number
BCM5860
BCM5861
BCM5862
IPSec and SSL Performance
500 Mbps
1 Gbps
2 Gbps
RSA Performance
4,600
7,000
15,224
