ZT560-X56-30.0MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ZT560-X56-30.0MHZ

Preview

ZT560-X56-30.0MHZ: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size120KB，1 Pages; ManufacturerGreenray Industries Inc; Environmental Compliance

Download Datasheet Parametric View All

ZT560-X56-30.0MHZ Overview

HCMOS Output Clock Oscillator

ZT560-X56-30.0MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Greenray Industries Inc
Reach Compliance Code	unknown
Ageing	0.002PPM/DAY
Maximum control voltage	5 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	5 ppm
frequency stability	5%
Installation features	THROUGH HOLE MOUNT
Number of terminals	14
Nominal operating frequency	30 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	HCMOS
Encapsulate equivalent code	DIP4/14,.3
physical size	20.32mm x 12.7mm x 10.1854mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
technology	CMOS
Base Number Matches	1

Preview

Download Datasheet

View All

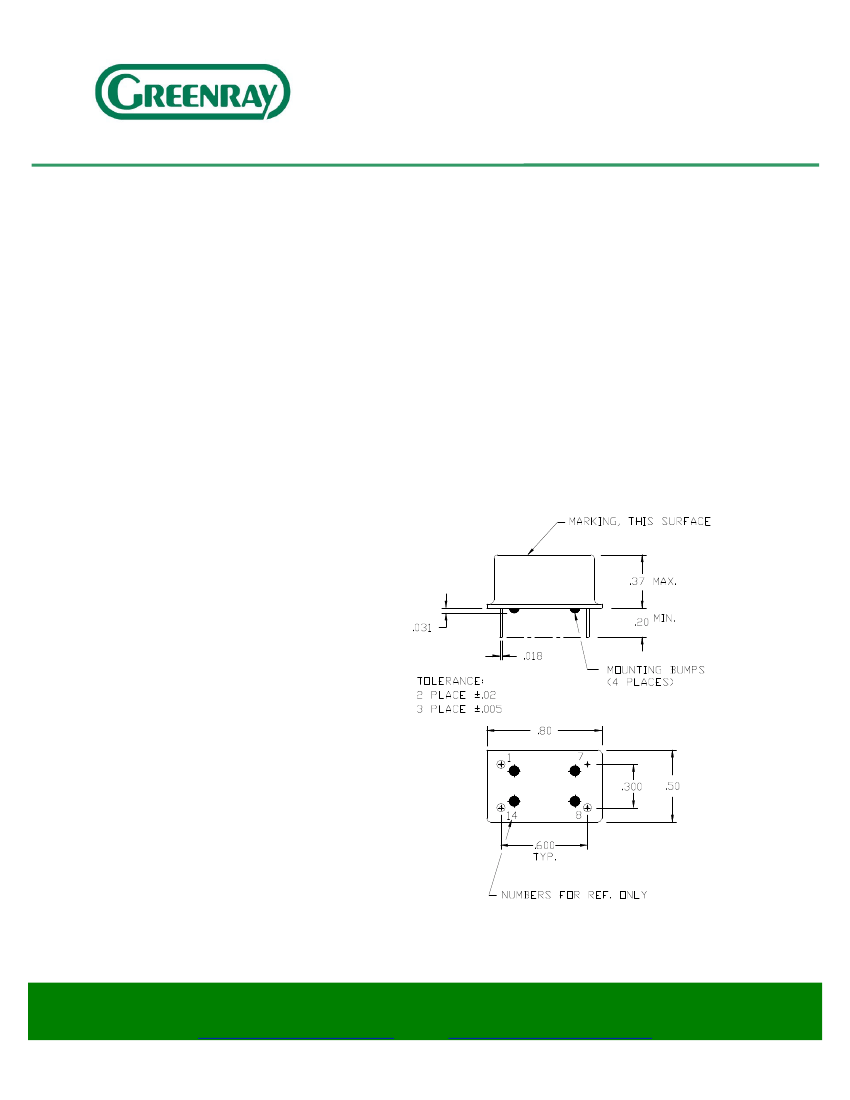

ZT560 Series TCXO

20.0kHz – 30.0 MHz

GREENRAY INDUSTRIES, INC.

PRECISION QUARTZ TECHNOLOGY

(Rev B)

Wide Operating Temp

Tight Stability/Low Noise

SPECIFICATIONS

Frequency

Output

Symmetry

Temp Stability

20.0 kHz to 30.0 MHz

HCMOS

50% ±10%

Temp Range

Tolerance

-6

0 to +70°C

±1x10

-6

-20 to +70°C

±2.5x10

-6

-40 to +85°C

±3x10

-6

-55 to +125°C

±5x10

-9

±2x10 per day after 30 days (10MHz typ)

+5.0VDC ±5%

10Hz

-90dBc/Hz

100Hz

-120dBc/Hz

1kHz

-140dBc/Hz

10kHz

-150dBc/Hz

100kHz

-152dBc/Hz

±5.0ppM typ, negative slope

0 to +5V EFC

Option

K16

N256

T36

X56

Aging

Input V

Phase Noise

(typ @ 10MHz)

Frequency Adjust

Ordering Example:

ZT560-T36-10.0 MHz

(Model-Stability-Frequency)

Pin Connections:

1

7

8

14

- EFC

- 0V/Case Gnd

- Output

- Supply V

To inquire about available custom parameters, please contact us at

sales@greenrayindustries.com.

840 West Church Rd., Mechanicsburg, PA 17055

Tel: 717-766-0223 Fax: 717-790-9509

www.greenrayindustries.com

email:

sales@greenrayindustries.com
