Part Number

Search

34_MMBX-QMA-50-2/1--_NY

Description
RF Connector Adapter, MMBX-QMA, Female-Female, Jack-jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size49KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

34_MMBX-QMA-50-2/1--_NY Overview

RF Connector Adapter, MMBX-QMA, Female-Female, Jack-jack, ROHS COMPLIANT

34_MMBX-QMA-50-2/1--_NY Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeMMBX-QMA
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-FEMALE
Coupling typeSNAP-THREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLCP/PFA/PTFE
MIL complianceNO
Maximum operating frequency12.4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1

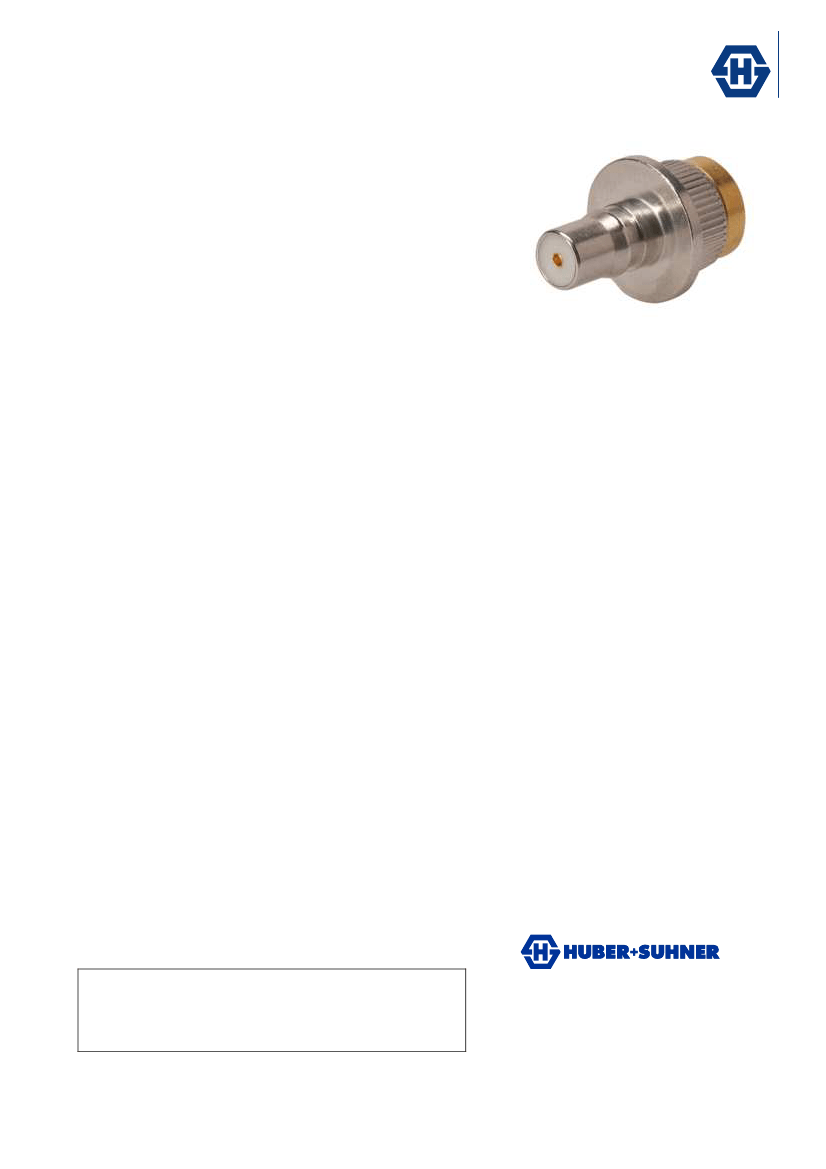

HUBER+SUHNER
®
DATA SHEET
Between Series Adapter: 34_MMBX-QMA-50-2/1--_N
Description
Rev.: E
Adaptor jack/jack
MMBX jack (female) / QMA jack (female)
Interface standards
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
12.4 GHz
100
0.0054 kg
-40 °C to 85 °C
compliant
Material
Copper Beryllium Alloy
Brass
Brass
LCP
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
DOU-00126244
34_MMBX-QMA-50-2/1--_NY
34_MMBX-QMA-50-2/1--_NE
Surface Plating
SUCOPRO / Gold Plating
SUCOPRO / Gold Plating
SUCOPRO / Gold Plating
Surface Plating
SUCOPRO / Gold Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Mechanical Data
Number of matings
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
(MMBX)
Centre contact
Outer contact
Body
Insulator
Piece Parts
(QMA)
Centre contact
Outer contact
Body
Insulator
Outline drawing
Tray package
Single package
Material Data
Related Documents
Ordering Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000294363 G
Issued: 09.01.09
Uncontrolled Copy
Page 1/1

34_MMBX-QMA-50-2/1--_NY Related Products

34_MMBX-QMA-50-2/1--_NY 34_MMBX-QMA-50-2/1--_NE
Description RF Connector Adapter, MMBX-QMA, Female-Female, Jack-jack, ROHS COMPLIANT RF Connector Adapter, MMBX-QMA, Female-Female, Jack-jack, ROHS COMPLIANT
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant
Adapter type MMBX-QMA MMBX-QMA
Body/casing type JACK-JACK JACK-JACK
Characteristic impedance 50 Ω 50 Ω
Connector type RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER
Contact point gender FEMALE-FEMALE FEMALE-FEMALE
Coupling type SNAP-THREADED SNAP-THREADED
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
insulator material LCP/PFA/PTFE LCP/PFA/PTFE
MIL compliance NO NO
Maximum operating frequency 12.4 GHz 12.4 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO
Base Number Matches 1 1
