11Z3201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 11Z3201

11Z3201: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 2:1; CategoryPower management transformer; File Size131KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric View All

11Z3201 Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 2:1

11Z3201 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Certification	UL
high	19.05 mm
Insulation voltage	2500 V
length	24.13 mm
Manufacturer's serial number	11Z
Installation features	THROUGH HOLE MOUNTED
Number of functions	2
physical size	L24.13XB19.68XH19.05 (mm)
Primary inductance	1000 µH
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	2:1
width	19.68 mm
Base Number Matches	1

Preview

Download Datasheet

View All

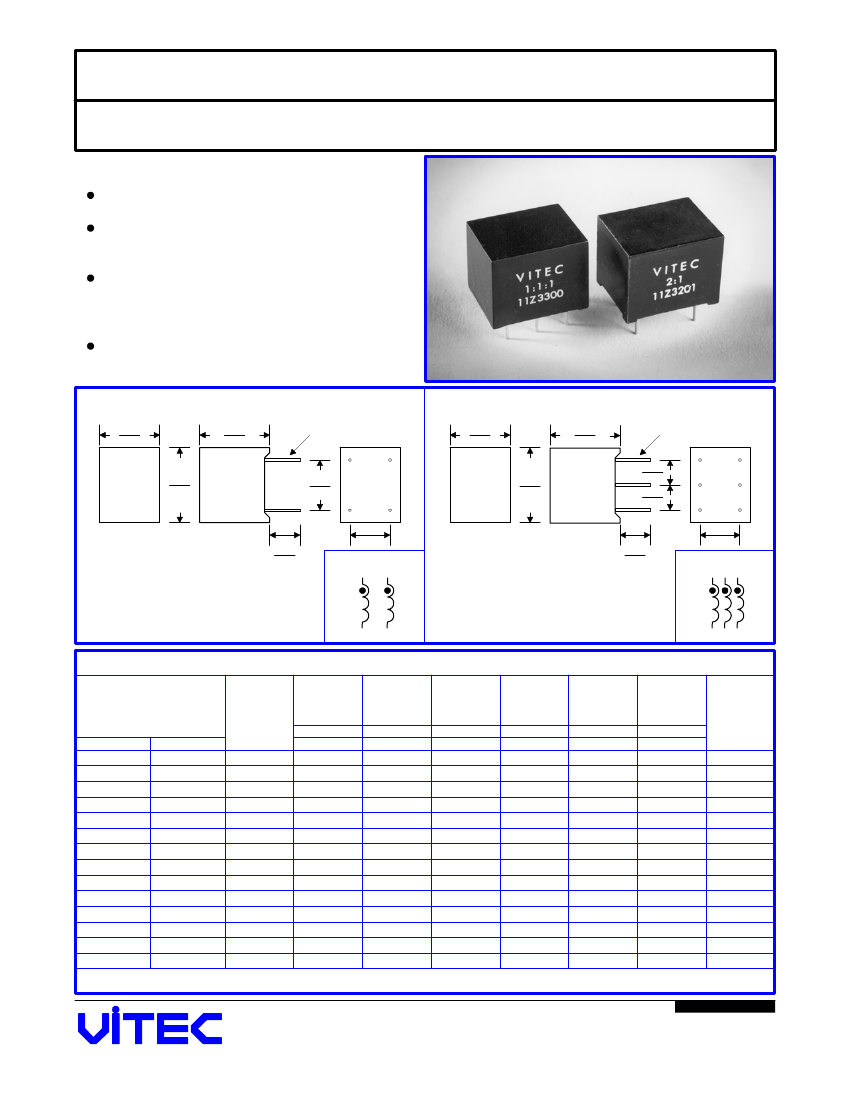

TYPE 11Z

TRIGATE® PULSE TRANSFORMERS

PRINTED CIRCUIT BOARD DESIGNS WITH PRE-MOLDED CASE

FEATURES

Designed for low cost SCR triggering application.

Superior moisture protection under conditions of

high humidity.

Mechanically and electrically interchangeable with

11Z2000 series having the corresponding last

digits in the part number.

UL recognized, File # E102597

CASE STYLE 5

0.775

19.70

0.750

19.05

#20 AWG, 0.032 Dia.

0.950

24.13

0.600

15.20

0.500

12.70

0.250

6.35

CASE STYLE 6

0.775

19.70

0.750

19.05

0.300

7.60

0.300

7.60

#20 AWG, 0.032 Dia.

0.500

12.70

0.250

5.35

VITEC

11Z3000

VITEC

11Z3300

0.950

24.13

SCHEMATIC

1 3 5

Dimensions Inches/mm +/- 0.01" Unless noted

2 4 6

ELECTRICAL CHARACTERISTICS @ +25

Part

Number

Classic

RoHS

Turns

Ratio

MIN

MAX

DCR

Ohm

MAX

Dielectric

Test

@60CY

Vrms

MIN

AC Line

Voltage

@60CY

Vrms

MAX

Case

Style

11Z3000

11Z3001

11Z3002

11Z3003

11Z3004

11Z3100

11Z3101

11Z3102

11Z3103

11Z3104

11Z3200

11Z3201

11Z3300

11Z3301

11ZR3000

11ZR3001

11ZR3002

11ZR3003

11ZR3004

11ZR3100

11ZR3101

11ZR3102

11ZR3103

11ZR3104

11ZR3200

11ZR3201

11ZR3300

11ZR3301

1:1

2:1

5:1

1:1:1

2:1:1

5:1:1

1:1

2:1

1:1:1

2:1:1

200

1000

5000

1000

5000

200

1000

5000

1000

5000

200

1000

200

1000

3.0

12.0

15.0

10.0

1500

3.0

12.0

15.0

1500

5.0

16.0

5.0

20.0

800

2000

3500

1300

400

800

2000

3500

1300

400

500

1300

500

1300

1.5-1.5

8-8

18-18

10-2

19-3

2-2-2

10-10-10

27-27-27

10-2-2

20-4-4

3-3

10-5

5-5-5

40-20-20

1600

2500

240

550

Notes:

Please order RoHS compliant parts only. The Classic (Non RoHS compliant) products are now obsolete.

C-103

03/13

Vitec Electronics Corporation

www.VitecCorp.com
