PCA.3S.275.CTLC82
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
0
0
1
0
0
0
0
3S
Female solder
50
7.30 - 8.70 mm
FFA.3S.275.CLAC82
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
58.08 g
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 7.3 - 8.7 mm
PCA*: Free receptacle, cable collet
Performance
Configuration
Insulator
Rated Current
3S.275 : 1 Coax (75 Ohm)
T: PTFE
15 Amps
Specifications
Contact Type: Coaxial 75 Ohm (Solder)
Max. Matings: 1000
Contact Dia.: 2 mm (0.0787in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 1.8 mm (0.0708in)
Vtest: 2700 V (AC), 3900 V (DC)
Impedance: 75 Ohm
VSWR: 1.04 + 0.05 * f/GHz
Cable type: RG 213/U, RG 115 A/U, RG 11 A/U, RG 144/U, RG 165 /U
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

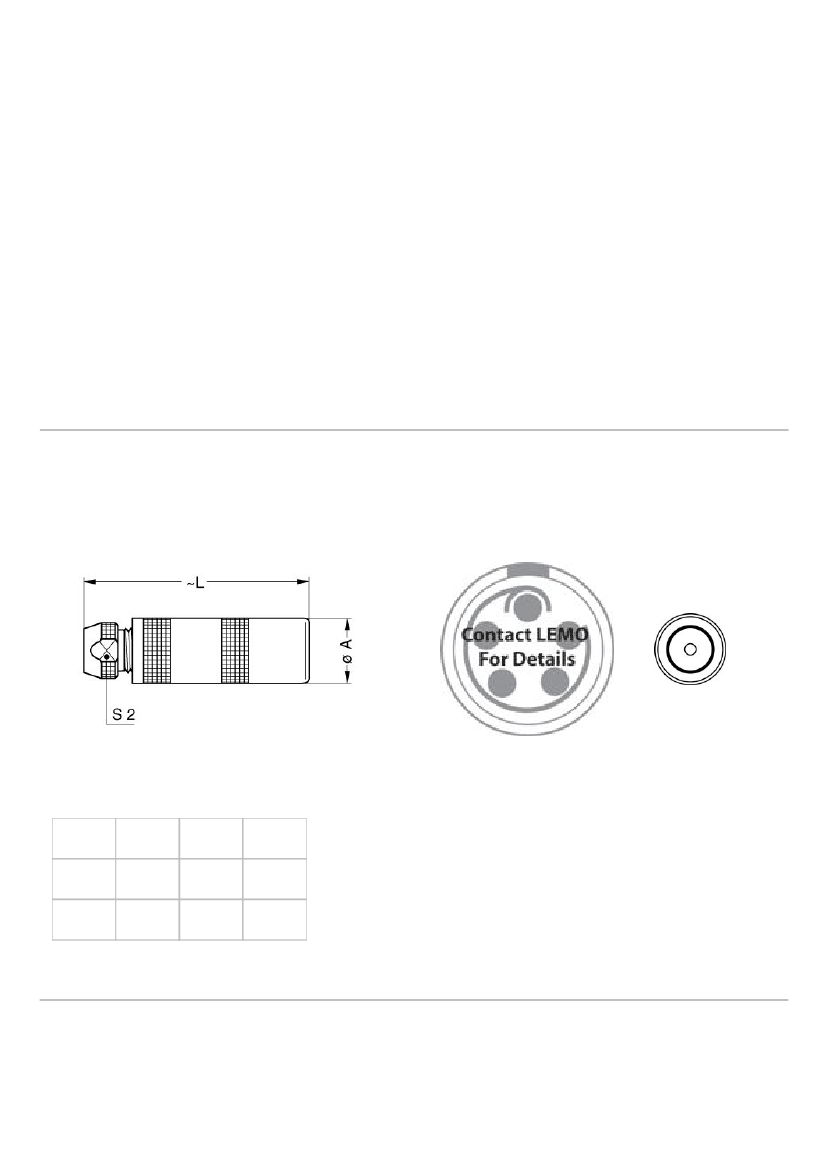

DRAWINGS
Draws
Dimensions
A
mm.
in.
17.8
0,70
L
59
2,32
S2
14
0,55
