SIM Card Sockets
ID1A Series
Miniature and Thin
Plecement surface
17
.4
30.
6
2.45

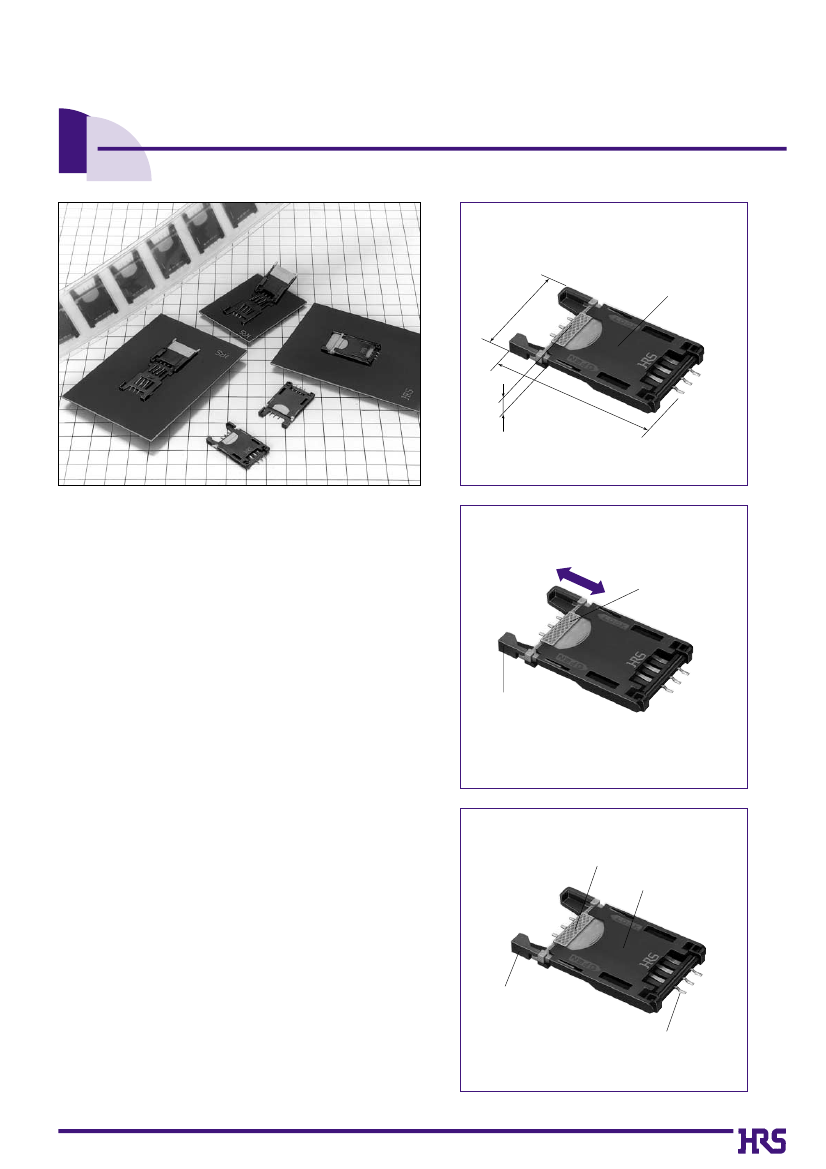

Photograph (1)
s
Features
1. Suited for Plug-in SIM Cards of the GSM Standard (11.11)
In Europe, SIM card Subscriber Identity Modules are used
for subscriber identification with portable telephone terminals
of the GSM system for which standards have been unified.
The ID1A Series of sockets are suited for use with GSM
standard (11.11) plug-in SIM cards.
Slide Lock System
LOCK
OPEN
Can be locked by
moving the slider.
2. Miniature and Thin
These sockets are miniature and thin with a height of 2.45
mm, length of 30.6 mm, and width of 17.4 mm. The weight
has been reduced by 30% compared with our existing
products. (See Photograph (1).)
Upside down insertion
of the SIM card is
prevented through
the establishment
of a polarity.
3. Suited to Automatic Mounting
The board mounting method is of the surface mount
type.In addition to the standard tray packaging
specification, an embossed tape specification suited to
automatic mounting is also available.
Photograph (2)
Structure and Names of the Parts
Slider
Card holder
4. Prevention of Incorrect Insertion to the Board
A board-positioning boss prevents incorrect insertion to the
board by means of boss position and boss diameter.
5. Slide Lock System
An original lock structure securely holds the SIM card and easy
opening and closing of the card holder is another feature.
(See Photograph (2).)
Housing
s
Applications
Portable terminals and equipment that use GSM Standard
(11.11) plug-in SIM cards.
Contacts
Photograph (3)
C39
s
Product Specifications
Rating
Current rating 1 A
Voltage rating 100 V AC
Operating temperature
-30ç to +80ç (NOTE 1)
Operating humidity range 40 to 80%
Storage temperature
-10ç to +60ç (NOTE 2)
Storage humidity 40 to 70% (NOTE 2)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity (Steady state)
6. Temperature cycle
7. Durability (Insertion/withdrawal)
8.
Resistance to Soldering heat
Specification
1000M
ohms
min.
No flashover or insulation breakdown.
40 m
ohms
max.
No electrical discontinuity of 10 µs or
more
Contact resistance 60 m
ohms
max.
Insulation resistance 100 M
ohms
min.
Contact resistance 60 m ohms max.
Insulation resistance 100 M
ohms
min.
Contact resistance of 60 m
ohms
max.
No deformation of components affecting
performance.
Conditions
100 V DC
500 V AC / 1 minute
100 mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of
90% to 95%
Temperature: -55ç: 30 min. --> 15 to 35ç: 5 min.
MAX --> 85ç: 30 min --> 15 to 35ç: 5 min. MAX) for 5 cycles
5000 cycles
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating
Temperature Range and Humidity range covers non- conducting condition of installed connectors in storage,
shipment or during transportation.
s
Materials
Part
Insulator
Contacts
Card holder
Slider
Material
Synthetic resin
Phosphor bronze
Synthetic resin
Synthetic resin
Finish
Color : Black
Contact portion: Gold plating
Lead portion: Solder plating
Color : Black
Color : Beige
Remarks
UL94V-0
___
___
UL94V-0
UL94V-0
q
Ordering Information
ID1A - 6 S - 2.54 SF (21)
1
2
3
4
5
6
1
Series Name: ID1A
2
Number of contacts: 6
3
Contact type
S: Socket
4
Contact pitch: 2.54 mm
5
Terminal type
SF: SMT type
6
Packaging type
Blank: Tray packaging
(21): Embossed tape packaging
C40

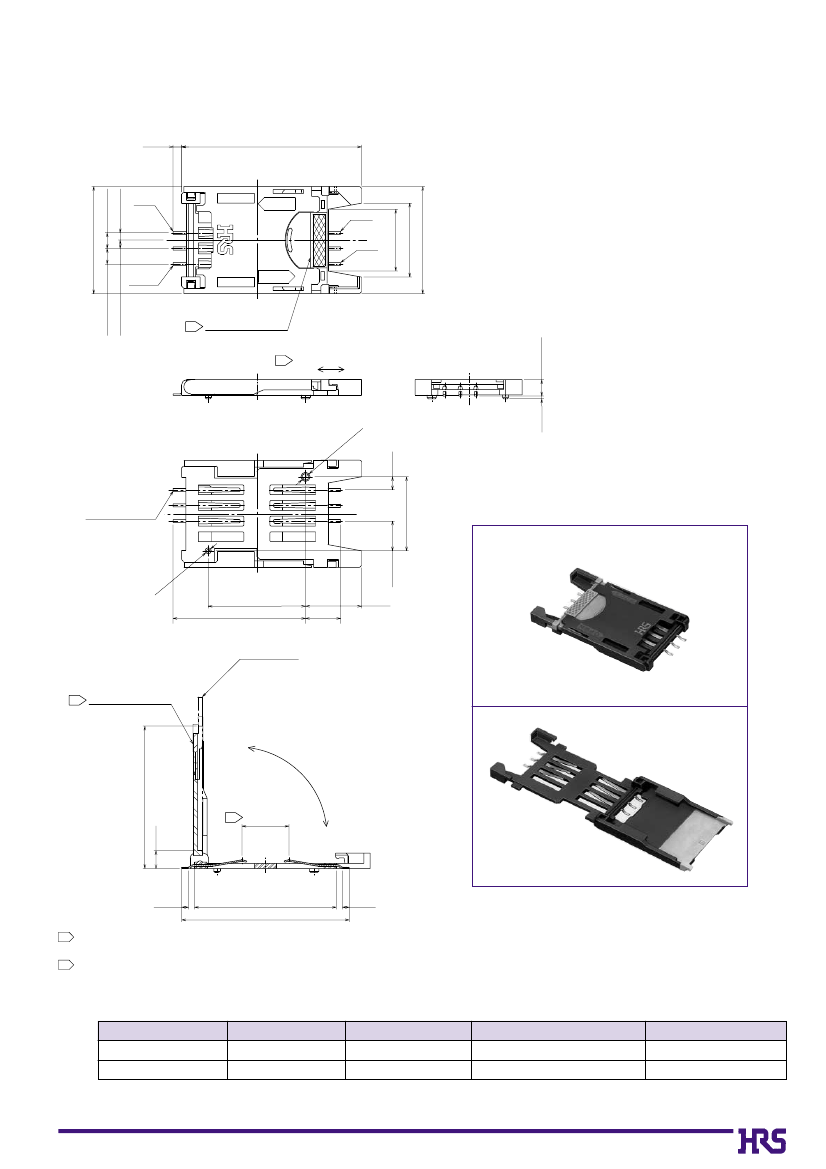

s
Sockets
(1.39)
29.2±0.3
17.4±0.3
2.54±0.2
1.18±0.2
No.3
OPEN
No.5
LOCK
Contact
No.1
2.54±0.2
1.36±0.2
C
L
1
Protruding portion
2.45±0.3
12±0.1
1
Amount of sliding(1.5)
OPEN
LOCK
5)
1.
(Ø
0.25t±0.05
∞0.5w±0.05
(2.1)
With the card holder closed
1)
(Ø
C
L
15.8±0.1
(21.5)
SIM CARD
(GSM 11.11)
(5.7)
(9.09)
1
Protruding portion
(4.82)
With the card holder open
0°~180°
(23.15)
3
(2.9)
7.62±0.2
C
L
(1.1)
(23.02)
27.2±0.2
(1.1)
1
2
3
When locking, slide the protruding portion of the slider after the card holder has been closed.
The co-planarity at the SMT lead tip portion is 0.1 maximum.
C
indicates a 7.62 ±0.2 center line.
L
Part Number
ID1A-6S-2.54SF
ID1A-6S-2.54SF(21)
CL No.
645-0003-9
645-0003-9-21
Number of Contacts
6
6
Tray
Packaging type
Embossed tape (NOTE 1)
(0.65)
C
L
(10)
(12)
17.4±0.3
No.7
Number of Pieces
___
___
500 pieces per reel
NOTE 1: Embossed tape packaged items are sold by the reel with 500 pieces per reel.
C41
BPCB
mounting pattern
1.5 Min.
15.4±0.1
11.5±0.1
1.3 Min.
1.3 Min.
4.3±0.1
1.5 Min.
0.4±0.1
5.08±0.05
2.45±0.05
1.1±0.1
Ø1.1
+
0.1
0
Pattern prohibited area
1
12±0.05
2.1±0.05
Ø1
15.8±0.05
19.7±0.05
.6
+0
0 .1
3.9±0.05
6.4 Min.
Connector mounting position
22.2 Min.
1
Shaded portions [///] indicate pattern prohibited areas.
BTemperature
Profile
5 s max.
250
240ç
200
Temperature
(ç)
200ç
150
160ç
150ç
Applicable Conditions
Reflow system: IR reflow
Solder type: Cream type 63 Sn/37 Pb
(Flux component 9 wt%)
Test board: Glass epoxy 85 x 60 x 1 mm
Metal mask thickness: 0.15 mm
(30 s)
60 to 90 s
Preheating time
60
120
Time (Seconds)
(20 to 30 s)
Soldering time
Conditions may change and are dependent on type
and thicness of solder.
100
50
25ç(60 s)
0
Start
C42
1.1 Min.
s

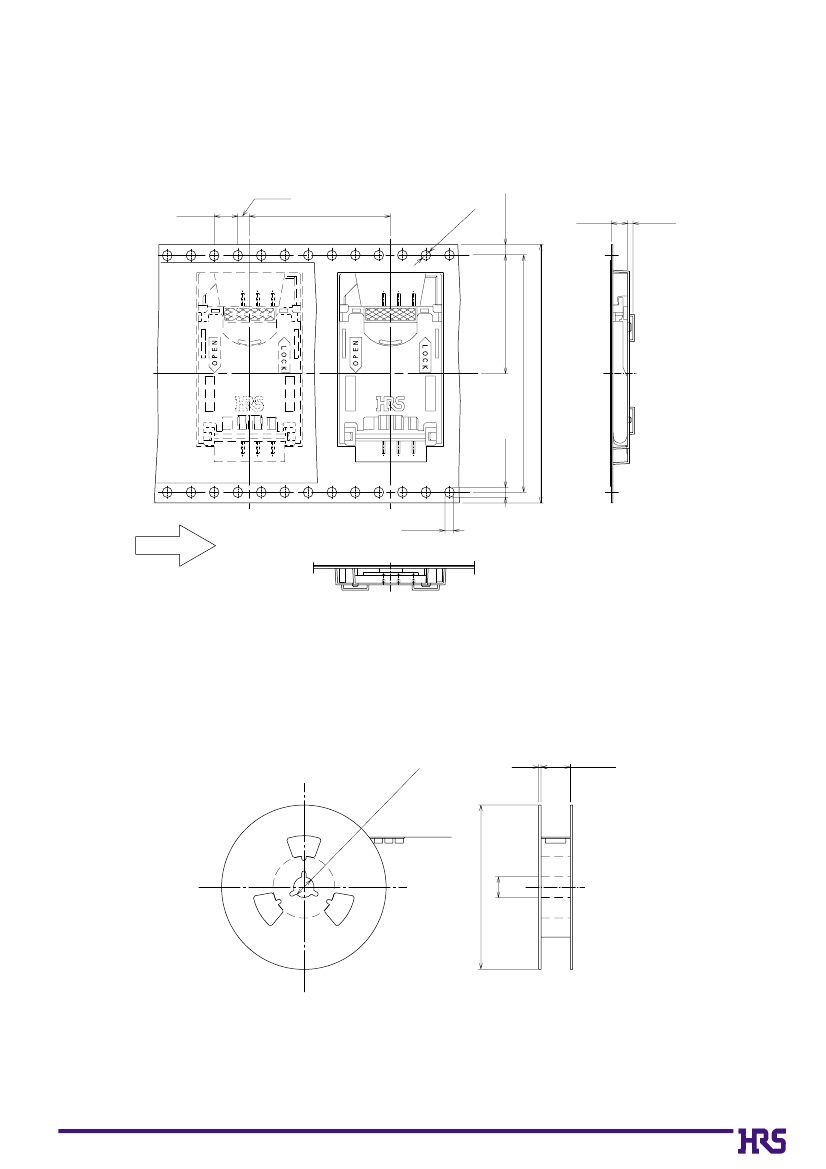

Embossed Carrier Tape Dimensions
4±0.1
24±0.1
+
.5
Ø1
.1
+
0 0
1.75±0.1
2±0.15
(2.8)
(0.9)
20.2±0.1
40.4±0.1
1.5
+0.1
+0
Unreeling direction
q
Reel Dimensions
1.7
+0.15
+0
44±0.3
(2)
Ø1
3±
(44.5)
0.
5
(Ø330)
(Ø80)
C43
