BAS70-05T-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70-05T-13

BAS70-05T-13: DescriptionRectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size84KB，3 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

BAS70-05T-13 Overview

Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3

BAS70-05T-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	FAST SWITCHING
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

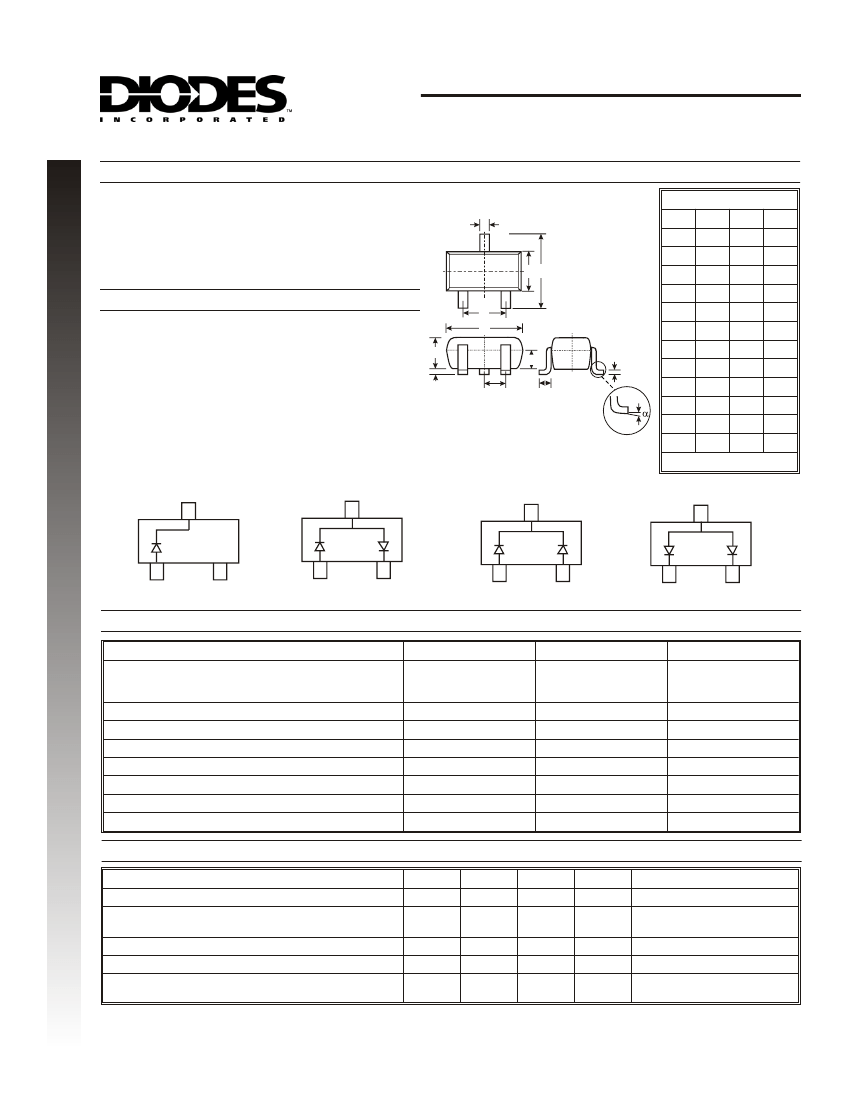

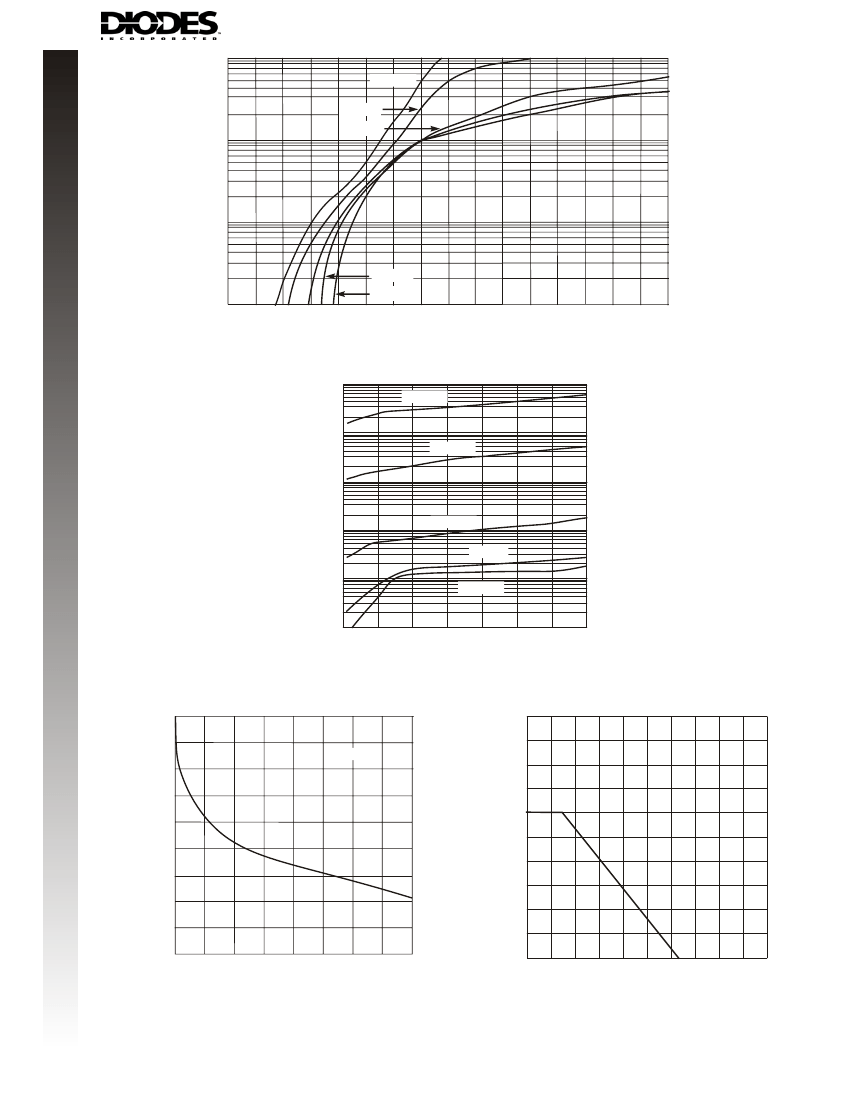

BAS70T/ -04T/ -05T/ -06T

SURFACE MOUNT SCHOTTKY BARRIER DIODE

SPICE MODELS: BAS70T BAS70-04T BAS70-05T BAS70-06T

Features

NEW PRODUCT

Low Turn-on Voltage

Fast Switching

PN Junction Guard Ring for Transient and

ESD Protection

Ultra-Small Surface Mount Package

Available in Lead Free/RoHS Compliant Version (Note 3)

B C

SOT-523

Dim

Min

0.15

0.75

1.45

0.90

1.50

0.00

0.60

0.10

0.45

0°

Max

0.30

0.85

1.75

1.10

1.70

0.10

0.80

0.30

0.20

0.65

8°

Typ

0.22

0.80

1.60

0.50

1.00

1.60

0.05

0.75

0.22

0.12

0.50

Mechanical Data

Case: SOT-523

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Solderable per MIL-STD-202, Method

208

Also Available in Lead Free Plating (Matte Tin

Finish annealed over Alloy 42 leadframe). Please see

Ordering Information, Note 5, on Page 3

Polarity: See Diagrams Below

Marking: See Diagrams Below & Page 2

Weight: 0.002 grams (approx.)

All Dimensions in mm

BAS70T Marking: 7C

BAS70-04T Marking: 7D

BAS70-05T Marking: 7E

BAS70-06T Marking: 7F

Maximum Ratings and Electrical Characteristics, Single Diode

@ T

= 25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Forward Continuous Current (Note 1)

Non-Repetitive Peak Forward Surge Current @ t

1.0s

Power Dissipation (Note 1)

Thermal Resistance Junction to Ambient Air (Note 1)

Operating Temperature Range

Storage Temperature Range

Symbol

RRM

RWM

R(RMS)

FSM

qJA

STG

@ T

= 25°C unless otherwise specified

Symbol

(BR)R

Min

—

Max

—

410

1000

100

2.0

5.0

Unit

—

Test Condition

= 10mA

<300µs, I

= 1.0mA

<300µs, I

= 15mA

< 300µs, V

= 50V

= 0V, f = 1.0MHz

= I

= 10mA to I

= 1.0mA,

Irr = 0.1 x I

, R

= 100W

Value

100

150

833

-55 to +125

-65 to +150

Unit

°C/W

°C

Electrical Ratings

Characteristic

Reverse Breakdown Voltage (Note 2)

Forward Voltage (Note 2)

Leakage Current (Note 2)

Total Capacitance

Reverse Recovery Time

Notes:

1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

2. Short duration test pulse used to minimize self-heating effect.

3. No purposefully added lead.

DS30261 Rev. 7- 2

1 of 3

www.diodes.com

BAS70T/ -04T/ -05T/ -06T

Diodes Incorporated

BAS70-05T-13 Related Products

	BAS70-05T-13	BAS70-04T-13	BAS70T-13	BAS70-06T-13
Description	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
package instruction	R-PDSO-G3	ULTRA SMALL, PLASTIC PACKAGE-3	ULTRA SMALL, PLASTIC PACKAGE-3	ULTRA SMALL, PLASTIC PACKAGE-3
Contacts	3	3	3	3
Reach Compliance Code	not_compliant	not_compliant	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FAST SWITCHING	FAST SWITCHING	FAST SWITCHING	FAST SWITCHING
Configuration	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0	e0
Number of components	2	2	1	2
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235	235	235	235
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10
Humidity sensitivity level	1	1	-	1
Base Number Matches	1	1	1	-
